Installation

AUDIO / VISUAL: STEREO JACK ADAPTER ASSEMBLY: INSTALLATION

1. INSTALL STEREO JACK ADAPTER ASSEMBLY

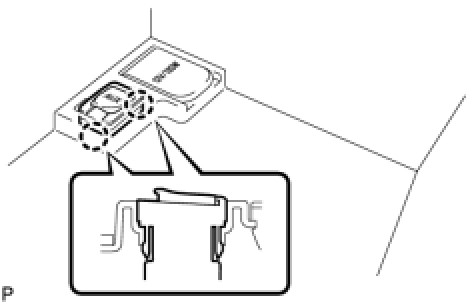

(a) Engage the 2 claws and install the stereo jack adapter assembly.





2. INSTALL CONSOLE BOX ASSEMBLY

3. INSTALL CONSOLE BOX CARPET

4. INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER

5. INSTALL SEAT HEATER SWITCH (w/ Seat Heater System)

6. INSTALL POSITION INDICATOR HOUSING ASSEMBLY

7. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
