Charging System: Description and Operation
2AZ-FE BATTERY / CHARGING:
CHARGING SYSTEM

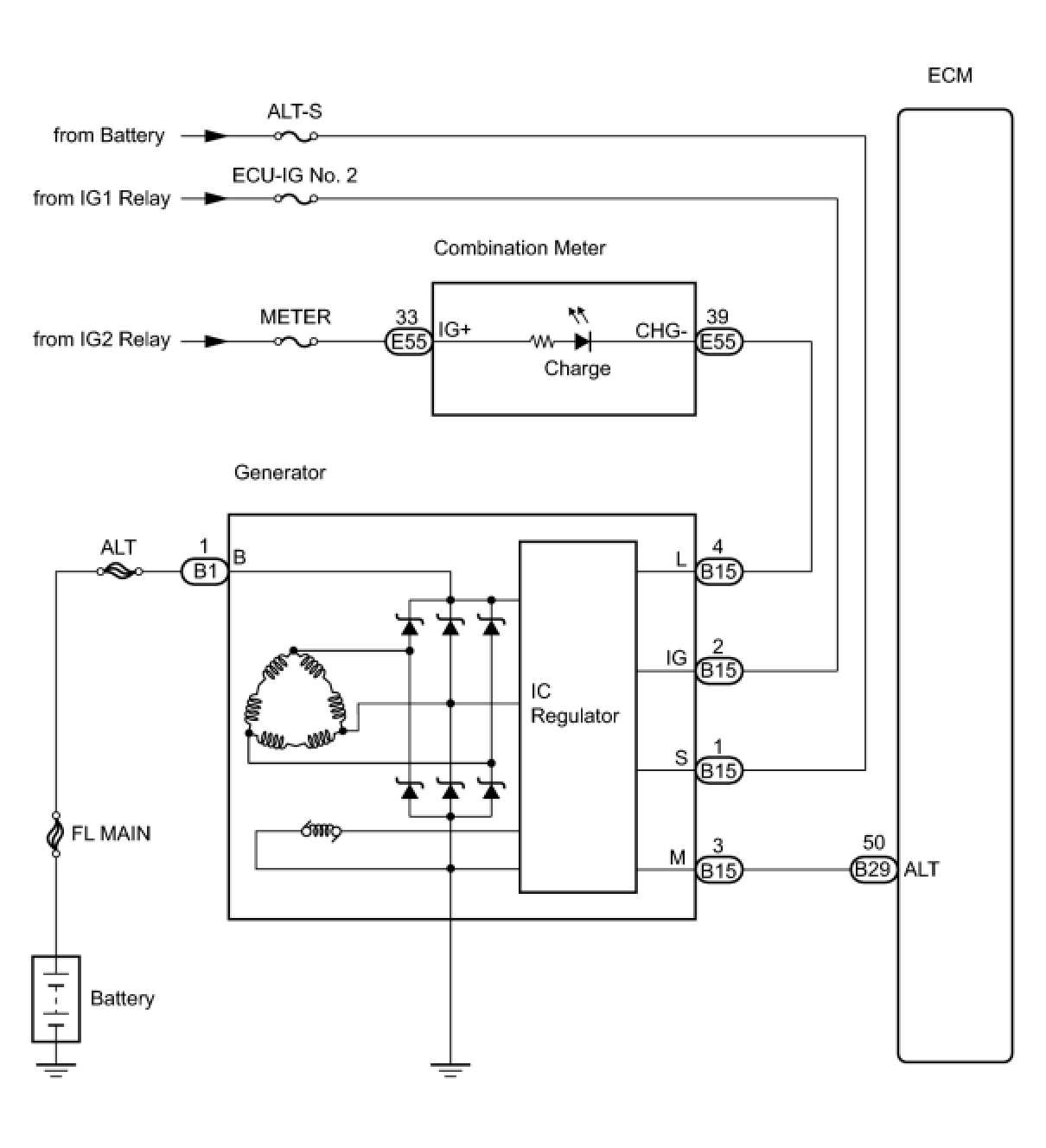

: SYSTEM DIAGRAM
SYSTEM DIAGRAM
