Computers and Control Systems: Description and Operation








2AZ-FE ENGINE CONTROL: SFI SYSTEM:

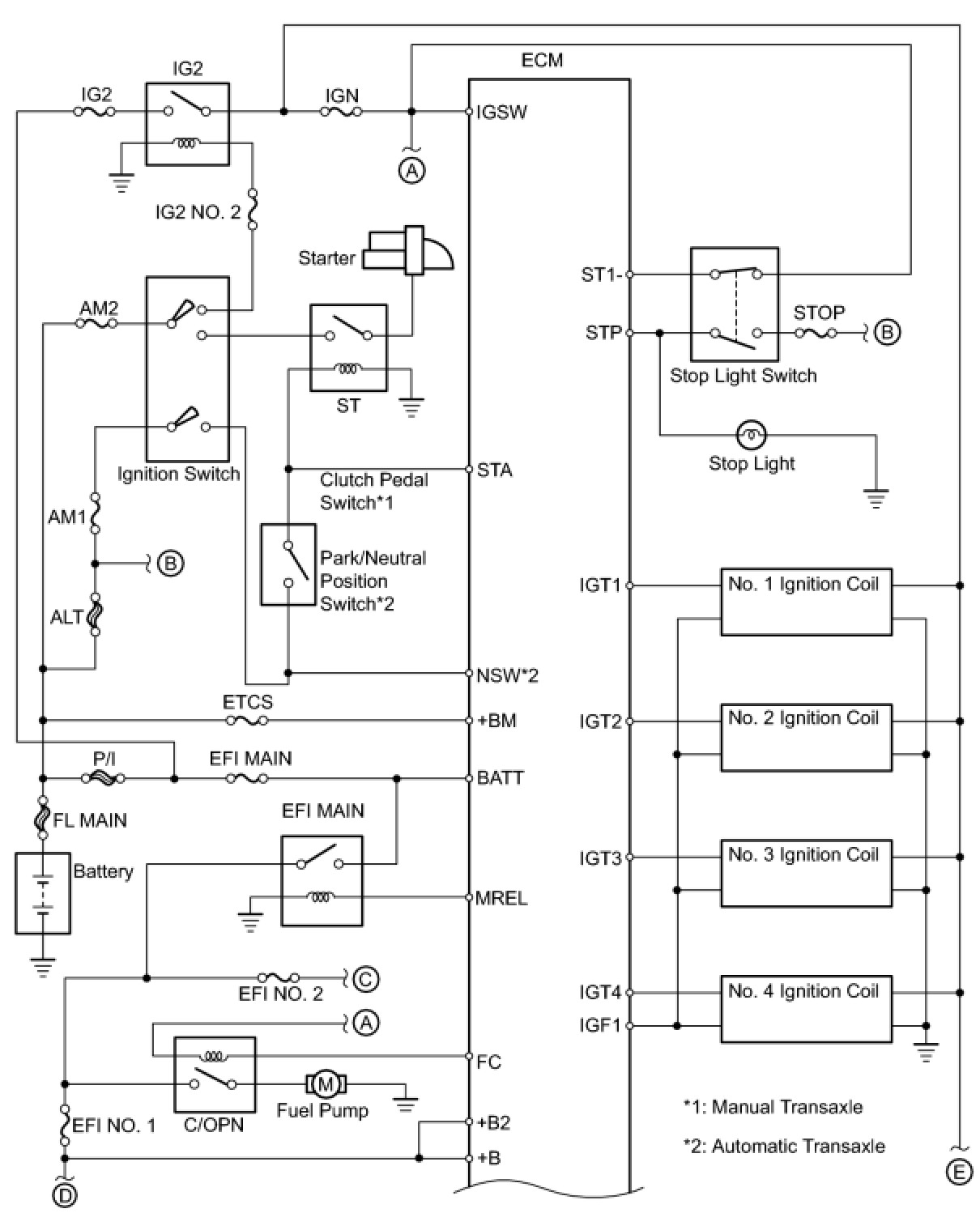

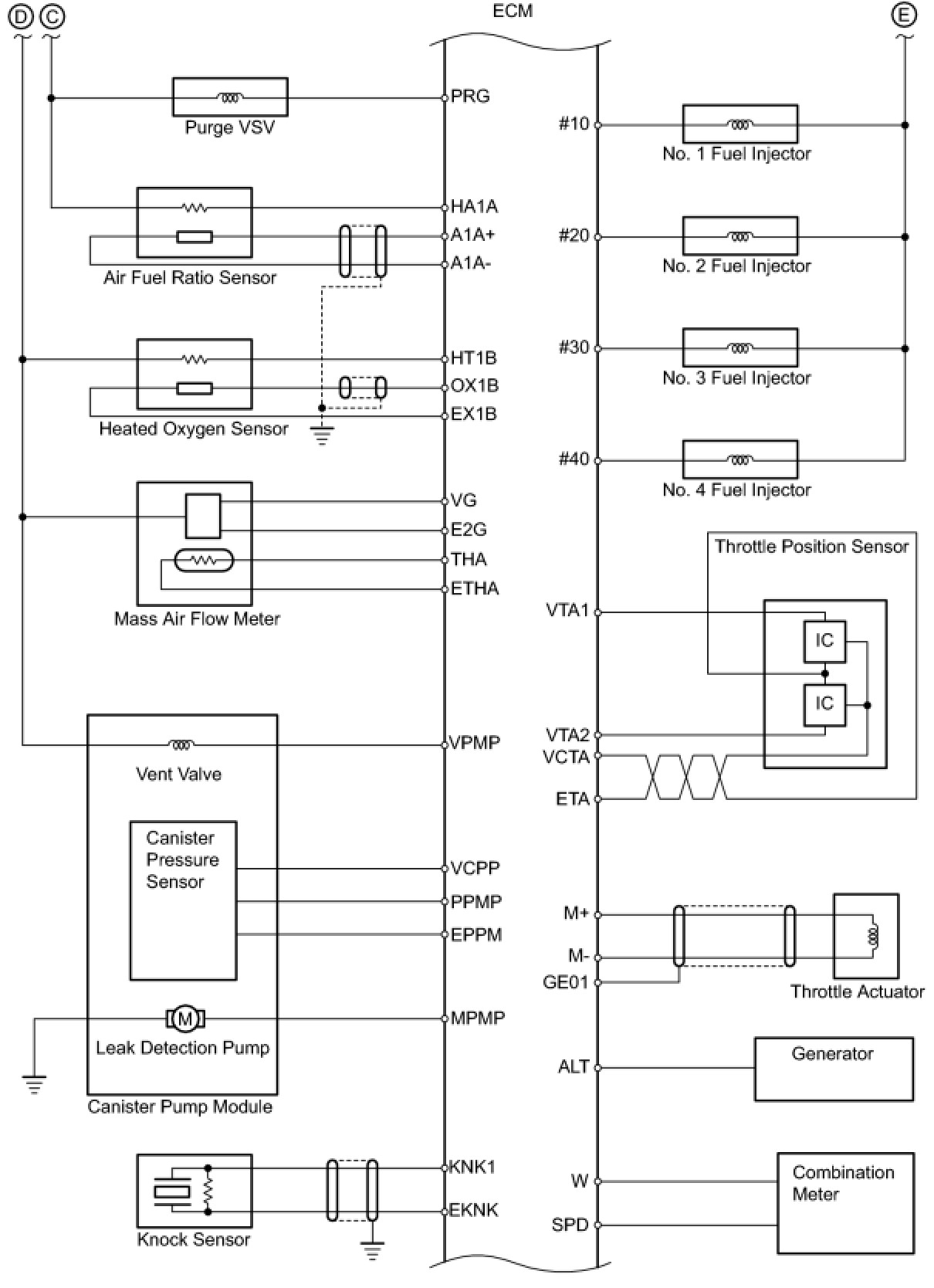

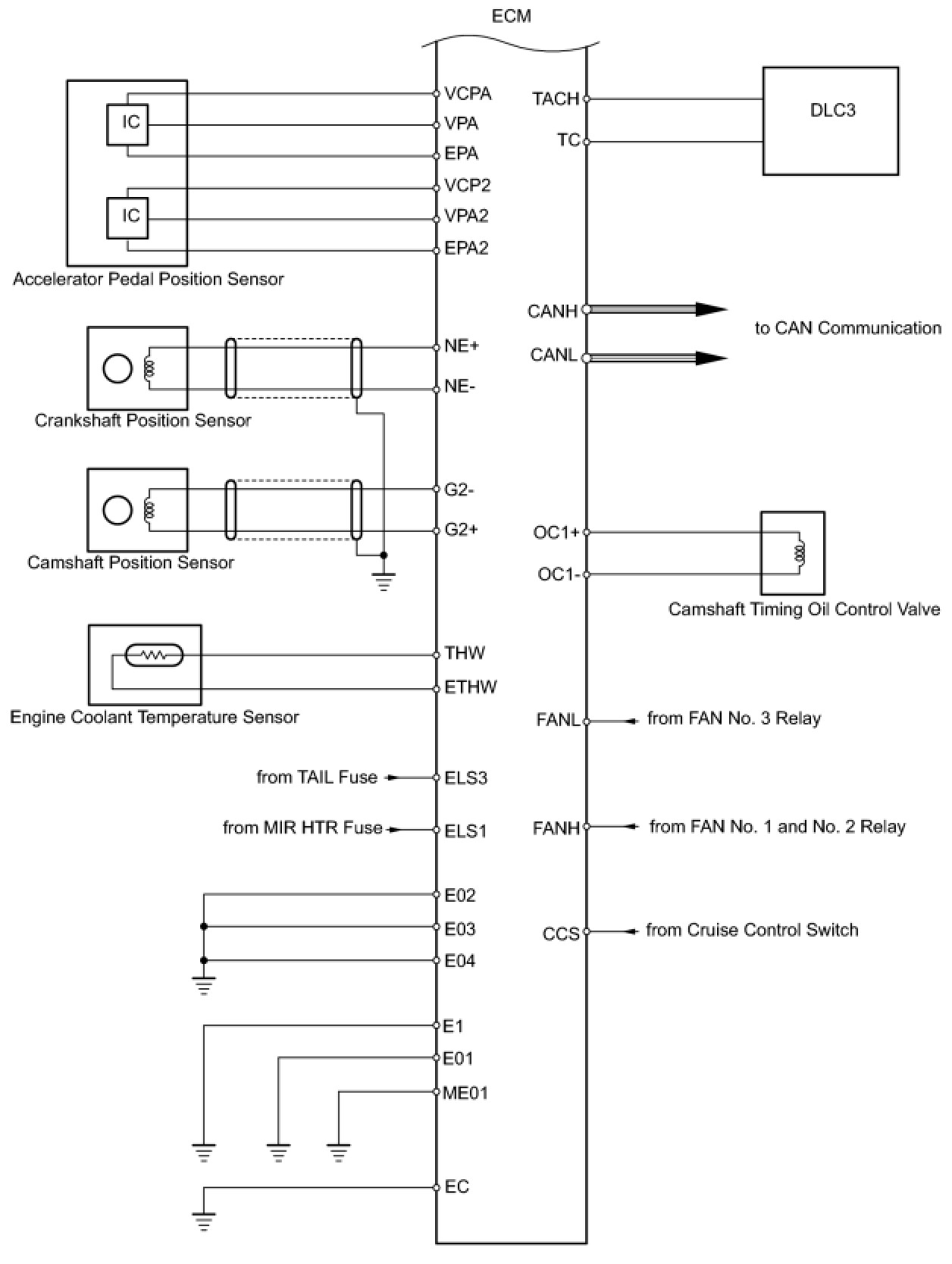

SYSTEM DIAGRAM
