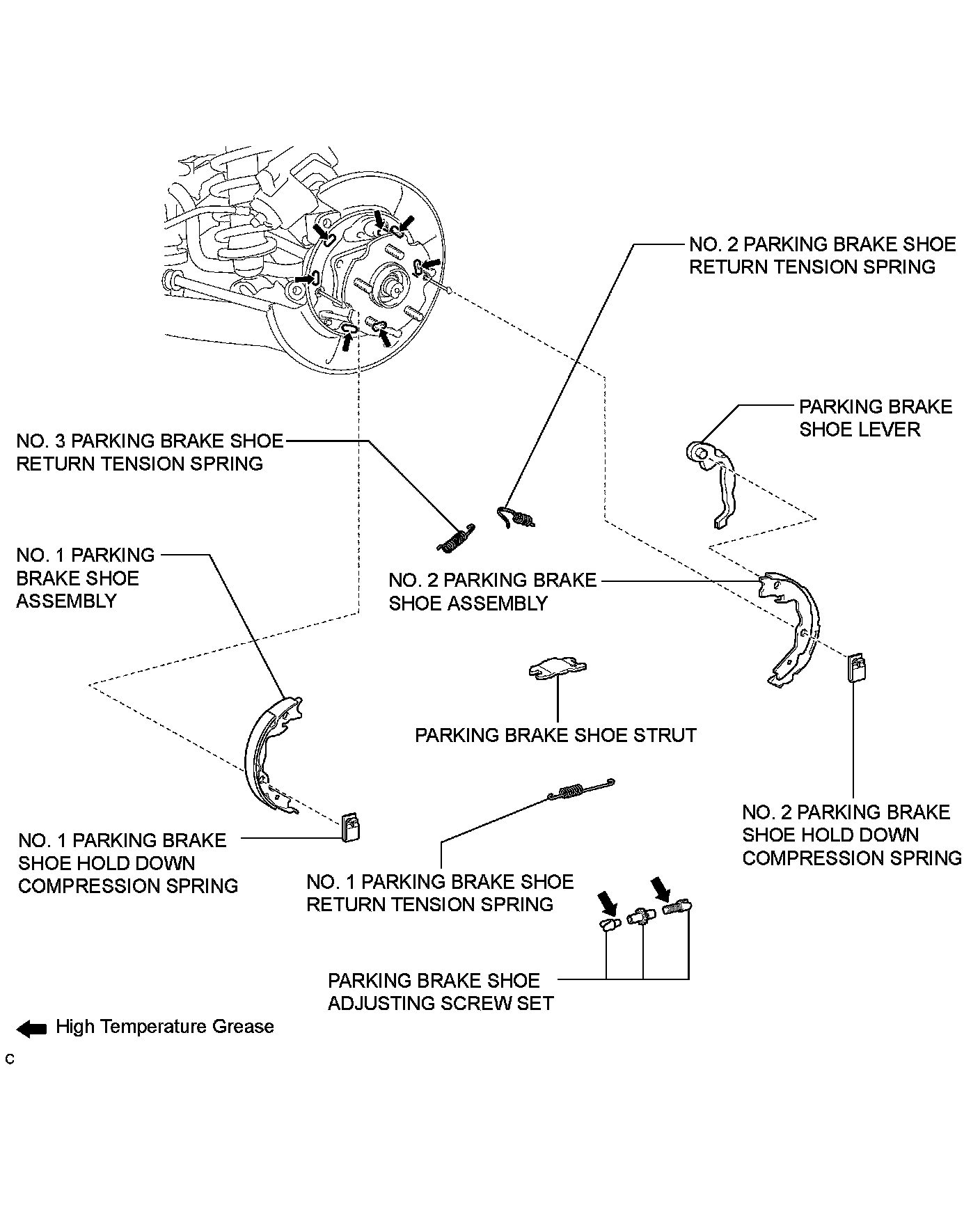

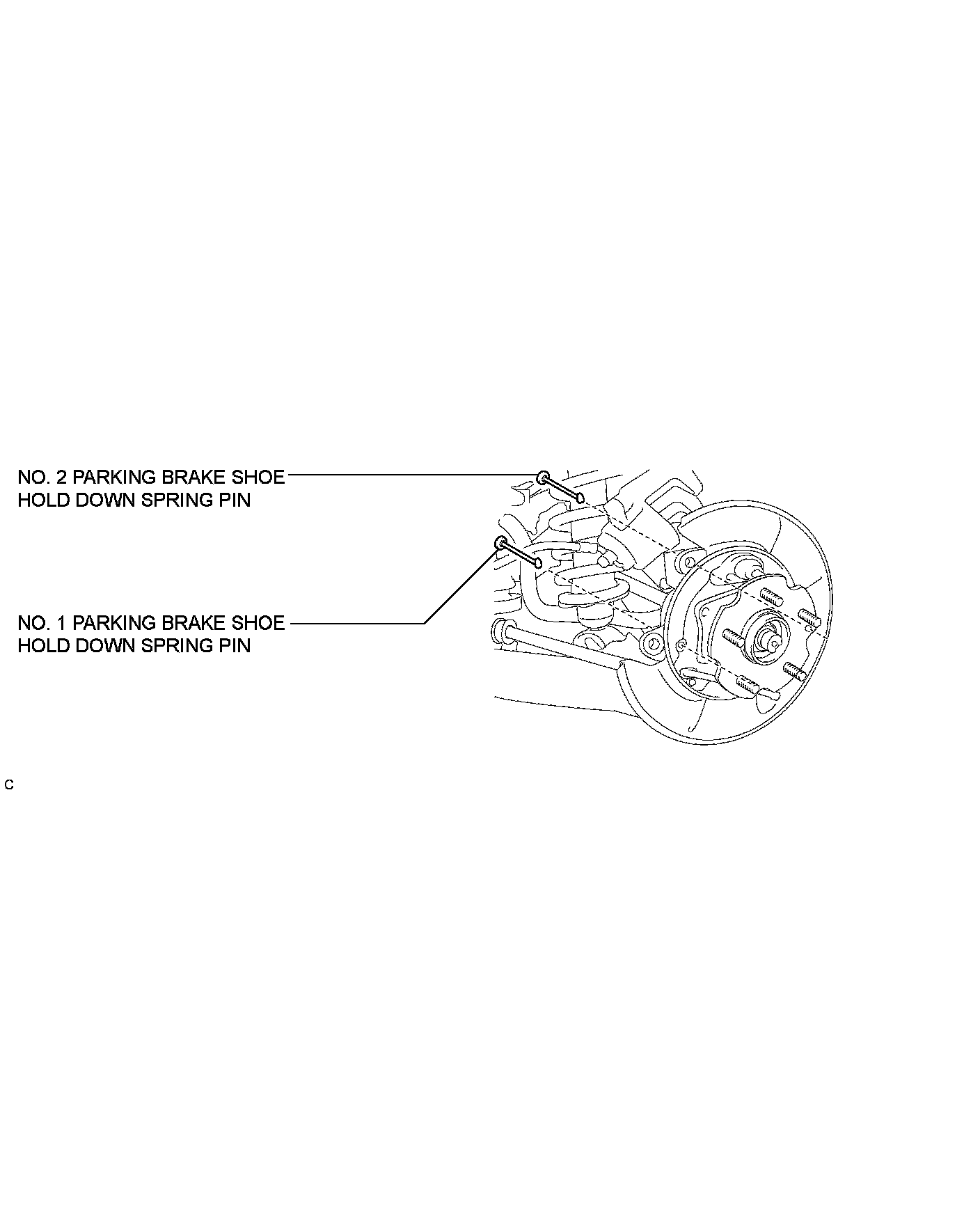

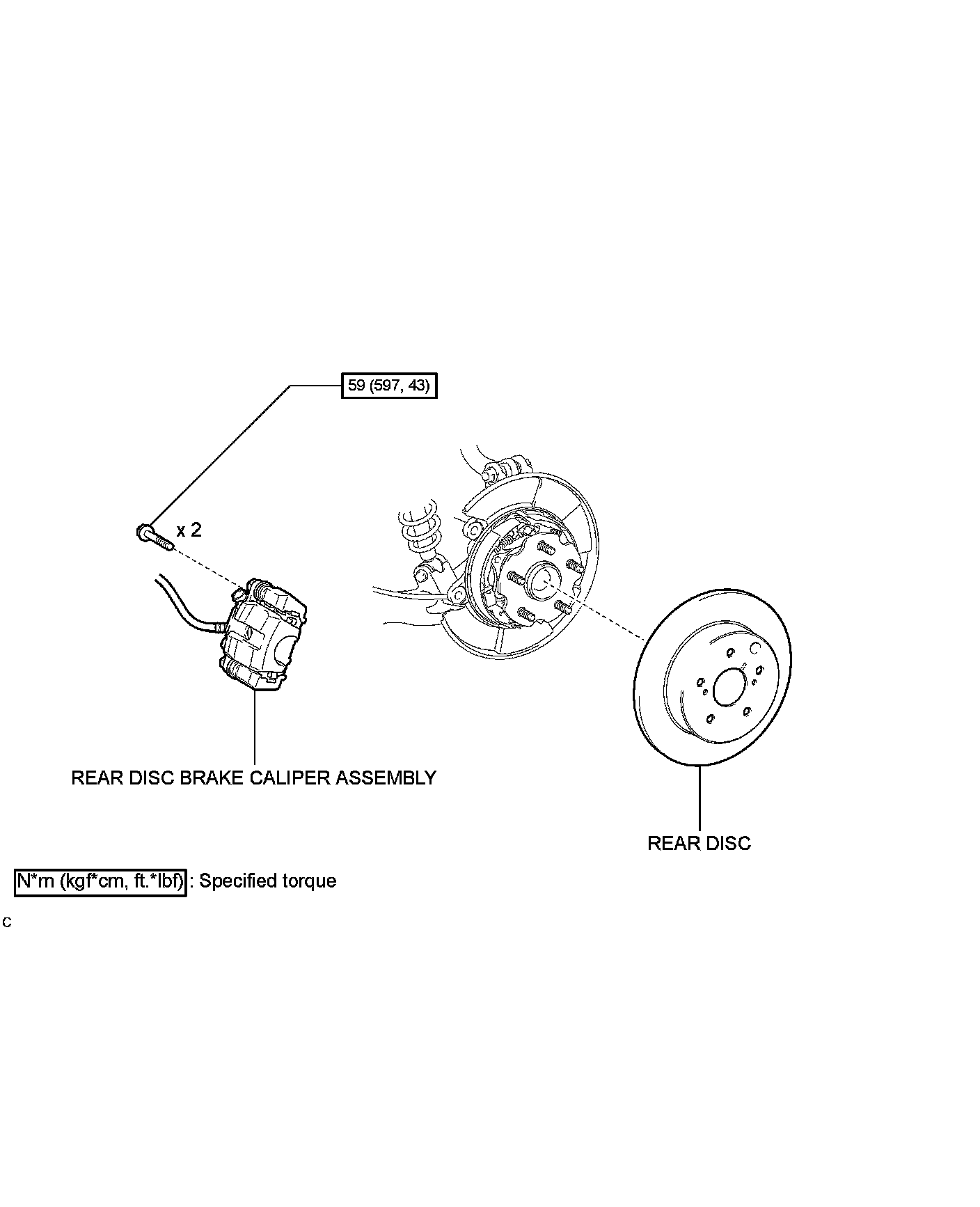

PARKING BRAKE: PARKING BRAKE ASSEMBLY (for Double Wishbone Type Suspension): COMPONENTS
COMPONENTS
ILLUSTRATION
