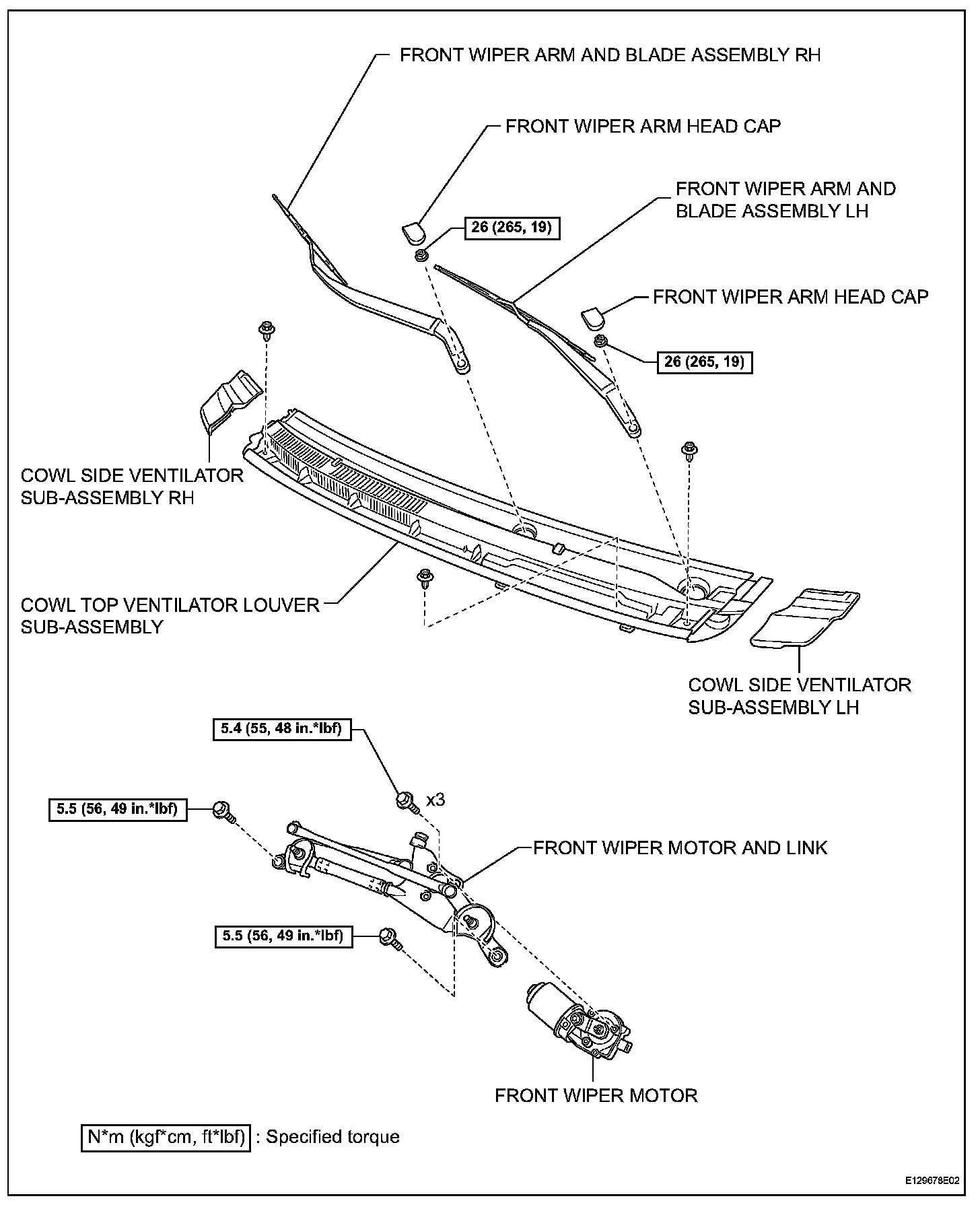

Front Wiper Motor (For Sedan)
Front Wiper Motor (for Sedan):
FRONT WIPER MOTOR (for Sedan)
REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

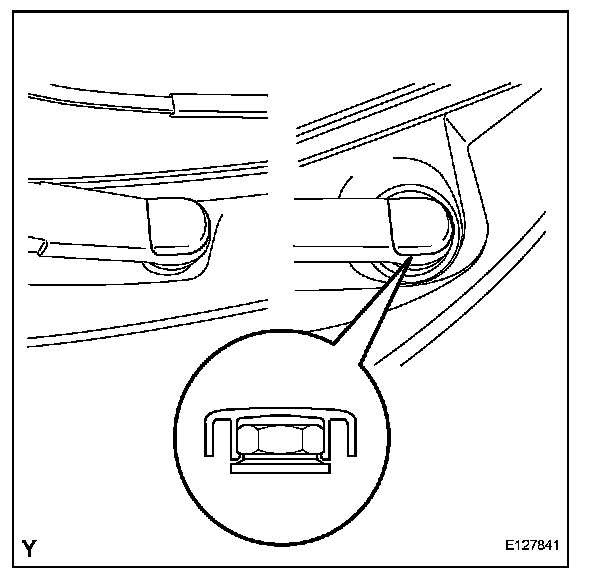

2. REMOVE FRONT WIPER ARM HEAD CAP

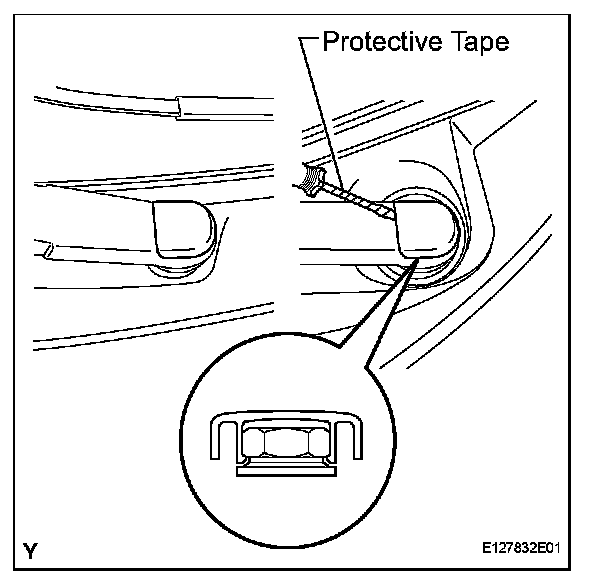

a. Using a screwdriver with its tip wrapped in protective tape disengage the claw and remove the 2 front wiper arm head caps.
3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH
a. Operate the wiper then stop the windshield wiper motor in the automatic stop position.

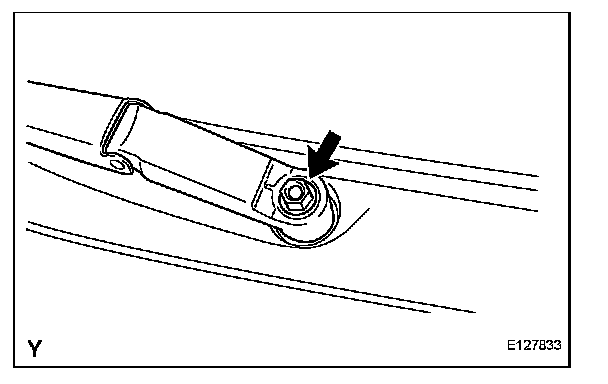

b. Remove the nut and front wiper arm.
4. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH
HINT: Use the same procedure as for the LH side.

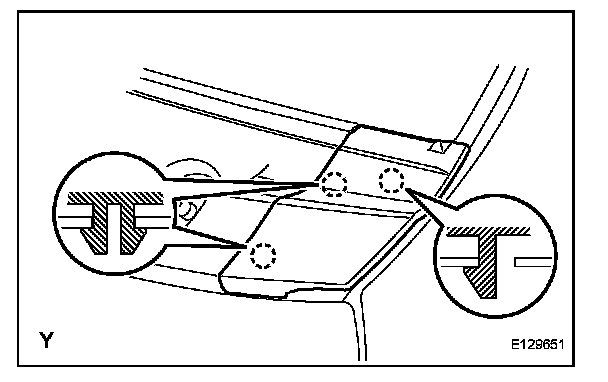

5. REMOVE COWL SIDE VENTILATOR SUB-ASSEMBLY LH

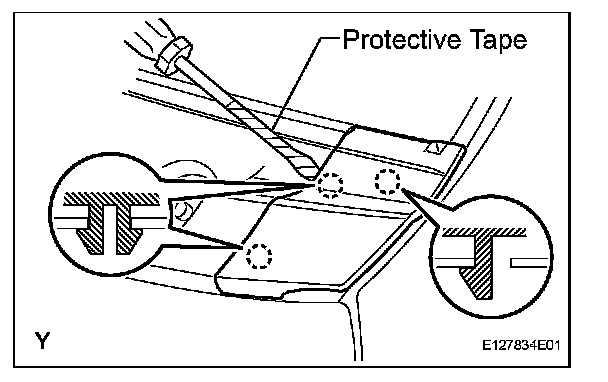

a. Using a screwdriver with its tip wrapped in protective tape disengage the 3 claws and remove the cowl side ventilator sub-assembly LH.
6. REMOVE COWL SIDE VENTILATOR SUB-ASSEMBLY RH
HINT: Use the same procedure as for the LH side.

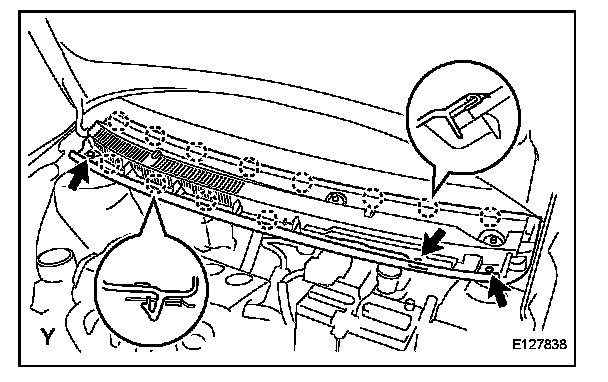

7. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

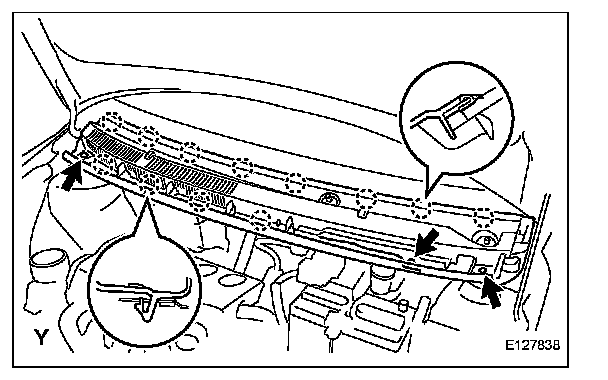

a. Disengage the 3 clips the 4 claws and the 8 hooks.
b. Remove the cowl top ventilator louver sub- assembly.
c. Disconnect the washer hoses.

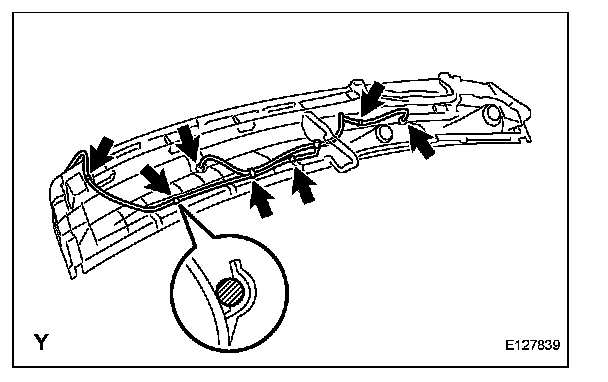

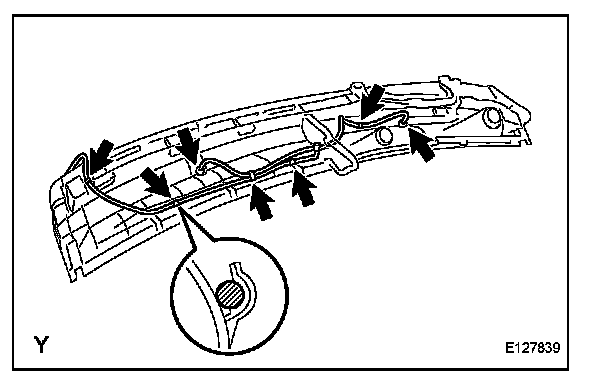

d. Disengage the 5 hooks.

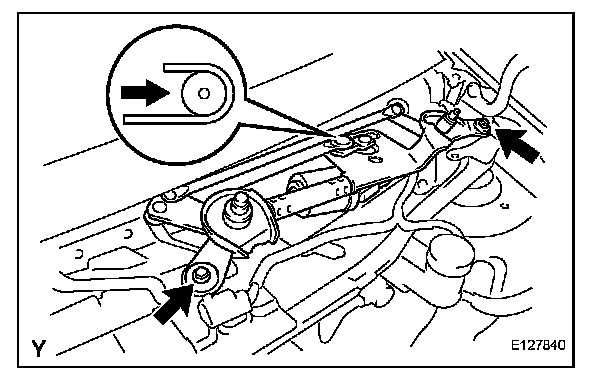

8. REMOVE FRONT WIPER MOTOR AND LINK

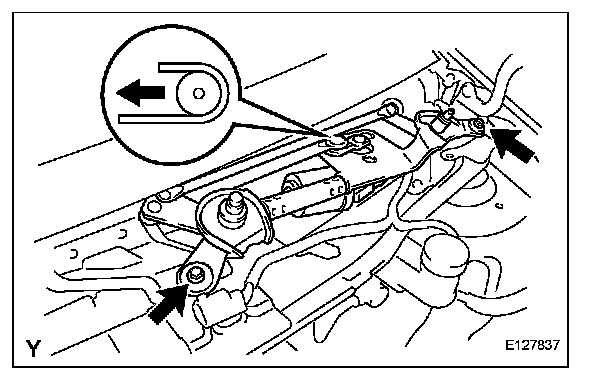

a. Remove the 2 bolts.
b. Slide the wiper link. Disengage the meshing of the rubber pin then disconnect the connector and remove the front wiper motor and link.
9. REMOVE FRONT WIPER MOTOR

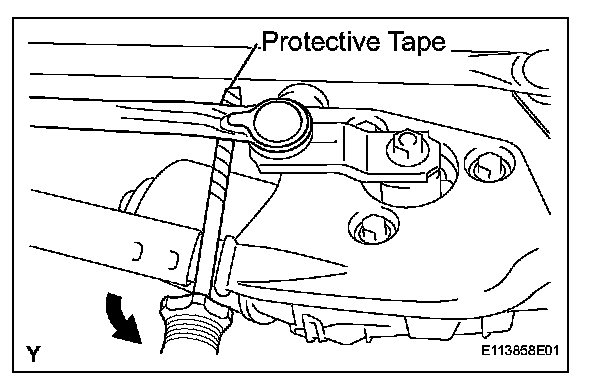

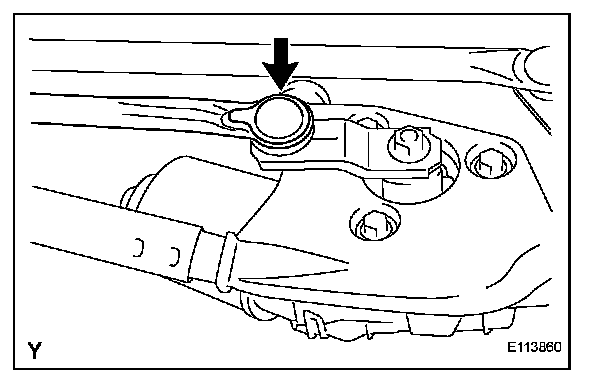

a. Using a screwdriver with its tip wrapped in protective tape disengage the meshing of the rod at the crank arm pivot of the front wiper motor.

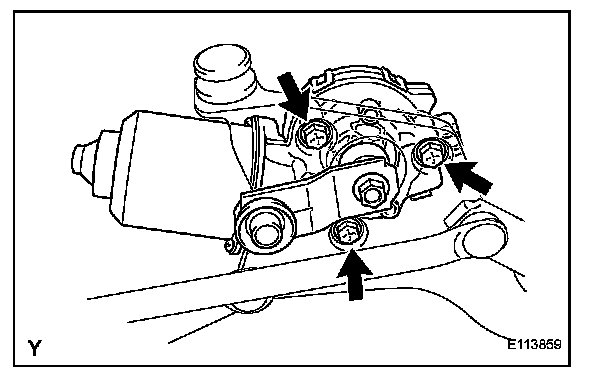

b. Remove the 3 bolts and the front wiper motor.
INSTALLATION
1. INSTALL FRONT WIPER MOTOR

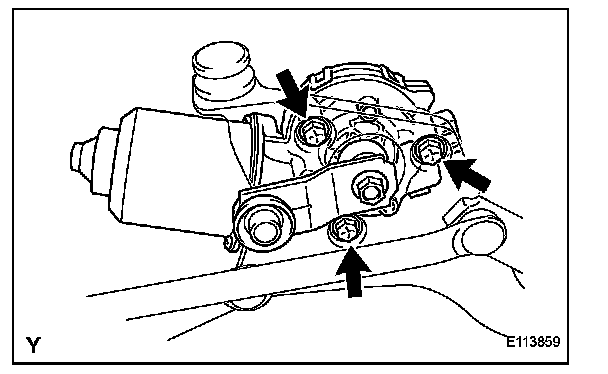

a. Install the front wiper motor with the 3 bolts.
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
b. Apply DENSO No.50 grease to the crank arm pivot of the front wiper motor.
c. Install the rod onto the crank arm pivot of the front wiper motor.
2. INSTALL FRONT WIPER MOTOR AND LINK
a. Connect the connector.
b. Slide the wiper link as shown in the illustration and engage the rubber pin with the body.
c. Install the front wiper motor and link with the 2 bolts.
Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
3. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
a. Connect the washer hoses.
b. Engage the 5 hooks.
c. Engage the 8 hooks and the 4 claws.
d. Install the cowl top ventilator louver sub-assembly with the 3 clips.
4. INSTALL COWL SIDE VENTILATOR SUB-ASSEMBLY LH
a. Engage the 3 claws and install the cowl side ventilator sub-assembly LH.
5. INSTALL COWL SIDE VENTILATOR SUB-ASSEMBLY RH
HINT: Use the same procedure as for the LH side.
6. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH

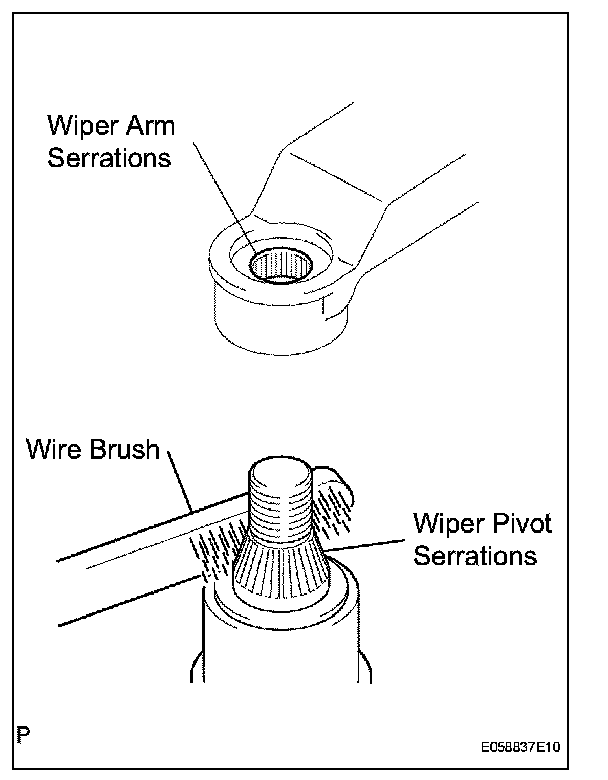

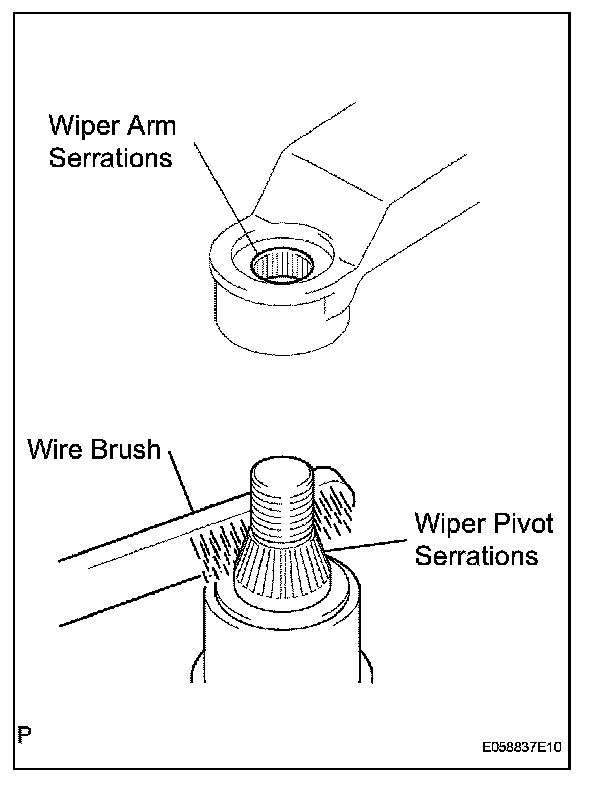

a. Scrape any metal powder off the serrated part of the wiper arm with a round file or the equivalent (when reinstalling).
b. Clean the wiper pivot serrations with a wire brush.
c. Operate the wiper then stop the windshield wiper motor in the automatic stop position.

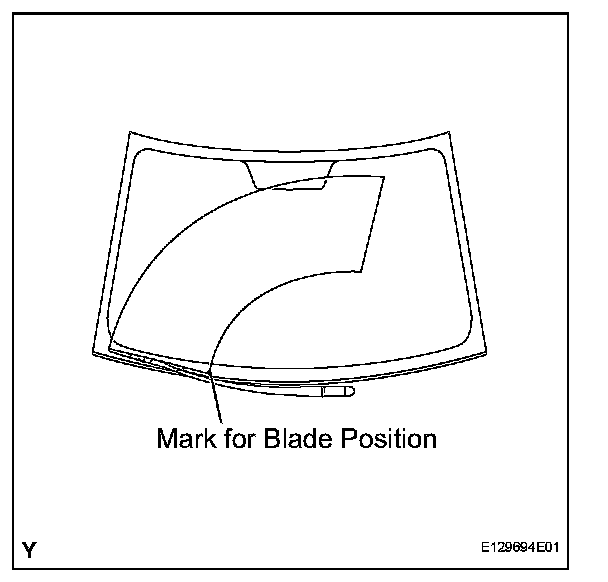

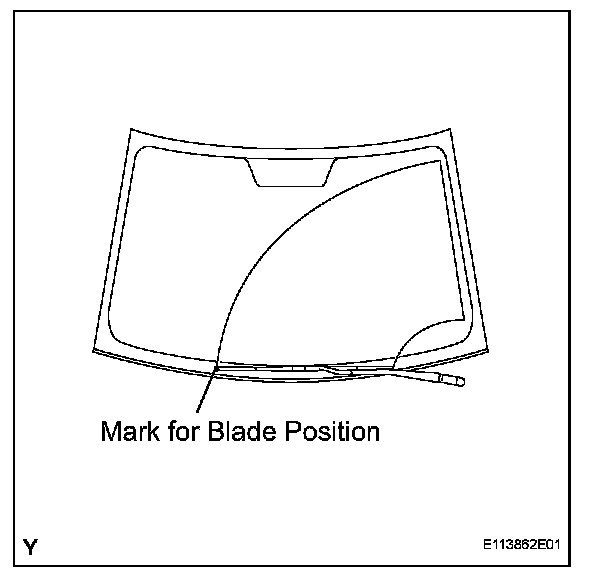

d. Align the blade tip with the mark on the windshield glass as shown in the illustration.
e. Tighten the nut of the front wiper arm.
Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)
7. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH
a. Scrape any metal powder off the serrated part of the wiper arm with a round file or the equivalent (when reinstalling).
b. Clean the wiper pivot serrations with a wire brush.
c. Operate the wiper then stop the windshield wiper motor in the automatic stop position.
d. Align the blade tip with the mark on the windshield glass as shown in the illustration.
e. Tighten the nut of the front wiper arm.
Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)
8. INSTALL FRONT WIPER ARM HEAD CAP
a. Engage the claw and install the 2 front wiper arm head caps.
9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
