WASHER MOTOR (for Sedan)
REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT SPOILER COVER (w/ Front Spoiler)

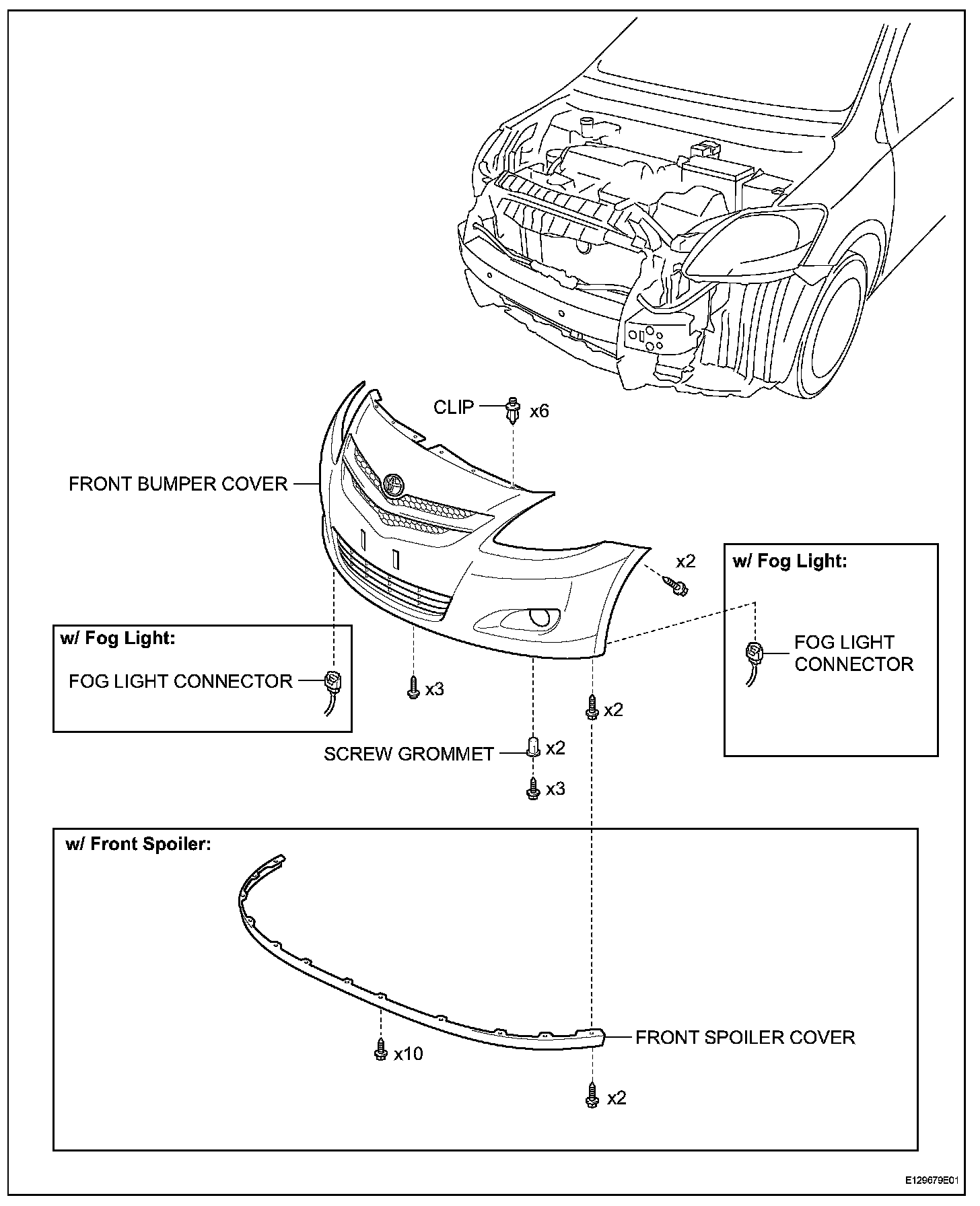

3. REMOVE FRONT BUMPER COVER

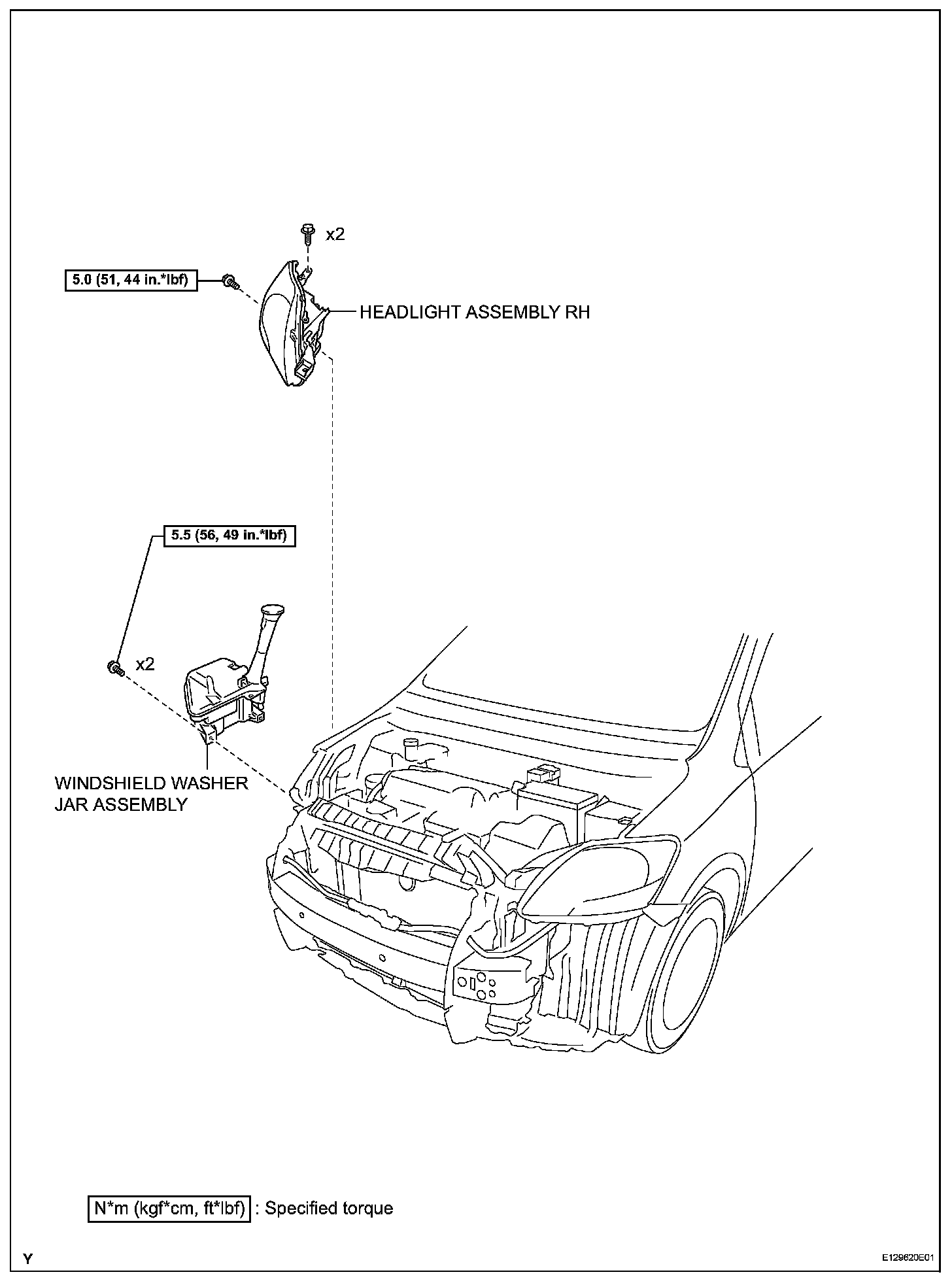

4. REMOVE HEADLIGHT ASSEMBLY RH
5. DRAIN WASHER FLUID

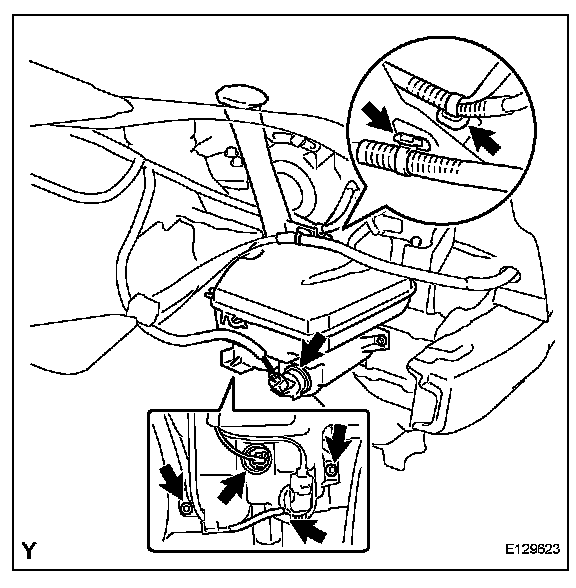

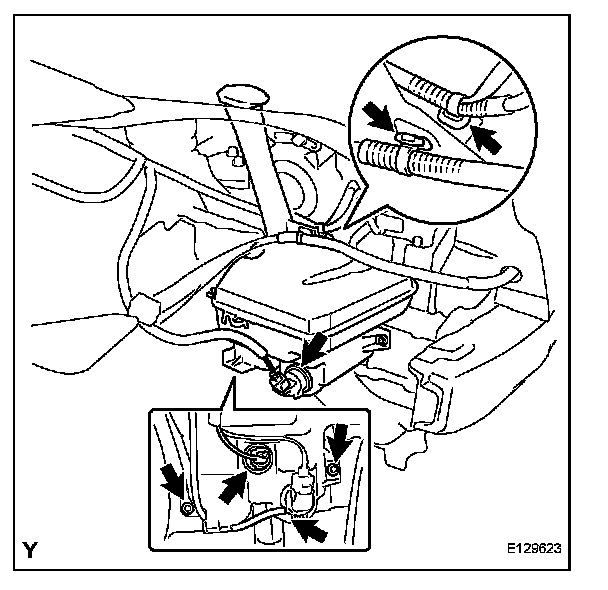

a. Disconnect the washer hose from the windshield washer motor and pump and drain the washer fluid.
6. REMOVE WINDSHIELD WASHER JAR ASSEMBLY
a. w/ Washer Level Warning Switch
1. Disconnect the 2 harness clamps.
2. Disconnect the 2 connectors.
3. Remove the 2 bolts.
4. Remove the windshield washer jar.
b. w/o Washer Level Warning Switch
1. Disconnect the 2 harness clamps.
2. Disconnect the connector.
3. Remove the 2 bolts.
4. Remove the windshield washer jar.

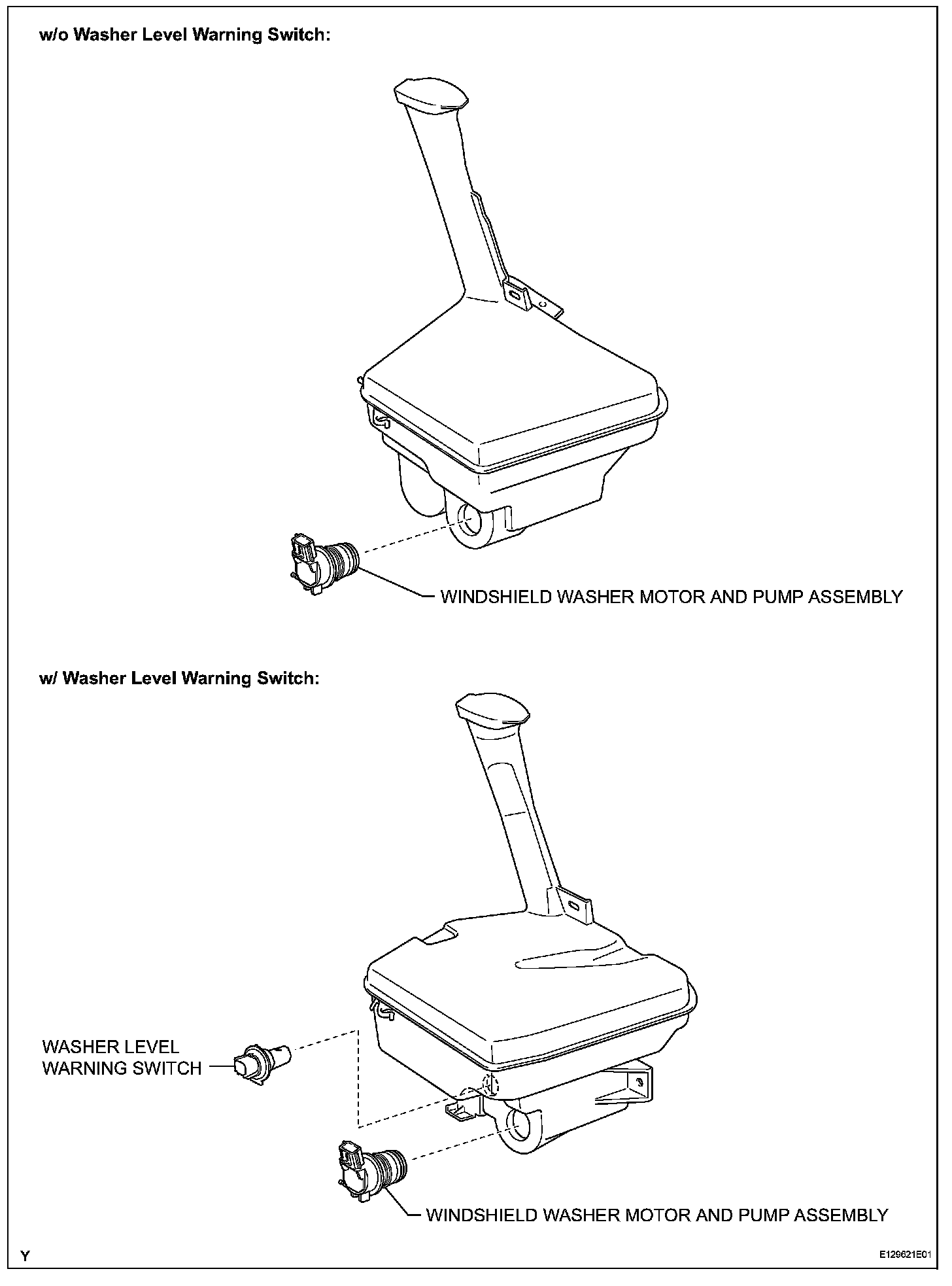

7. REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

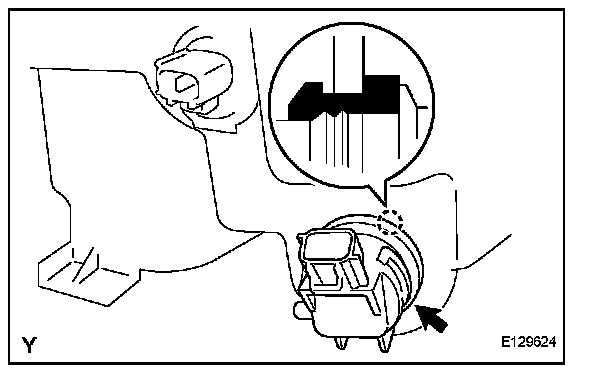

a. Pull the washer motor and pump out of the packing of the washer jar.
INSTALLATION
1. INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

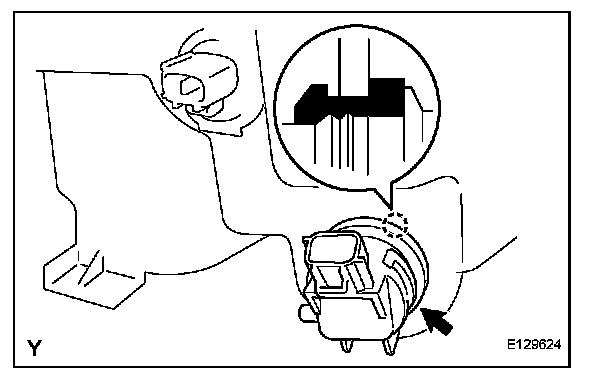

a. Install the windshield washer motor and pump onto the packing of the washer jar.
2. INSTALL WINDSHIELD WASHER JAR ASSEMBLY

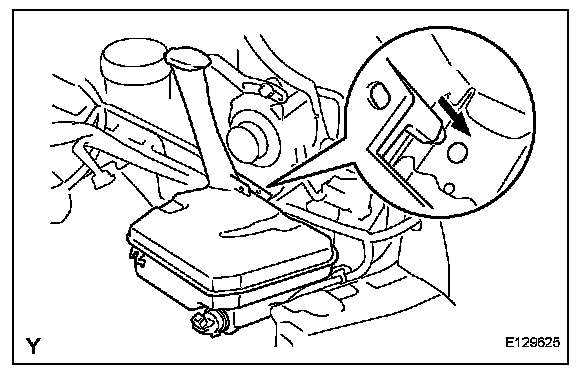

a. Install the windshield washer jar.
b. w/ Washer Level Warning Switch
1. Install the 2 bolts.
Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
2. Connect the 2 connectors.
3. Connect the 2 harness clamps.
c. w/o Washer level warning switch
1. Install the 2 bolts.
Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
2. Connect the connector.
3. Connect the 2 harness clamps.
3. FILL UP WASHER JAR AND PUMP ASSEMBLY WITH WASHER FLUID
a. Connect the washer hose to the washer motor and pump and fill the washer jar with washer fluid.
4. INSTALL HEADLIGHT ASSEMBLY RH
5. INSTALL FRONT BUMPER COVER
6. INSTALL FRONT SPOILER COVER (w/ Front Spoiler)
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
