Washer Fluid Level Switch: Service and Repair

Washer Level Warning Switch (for Sedan):

Washer Level Warning Switch (for Sedan):

Washer Level Warning Switch (for Sedan):

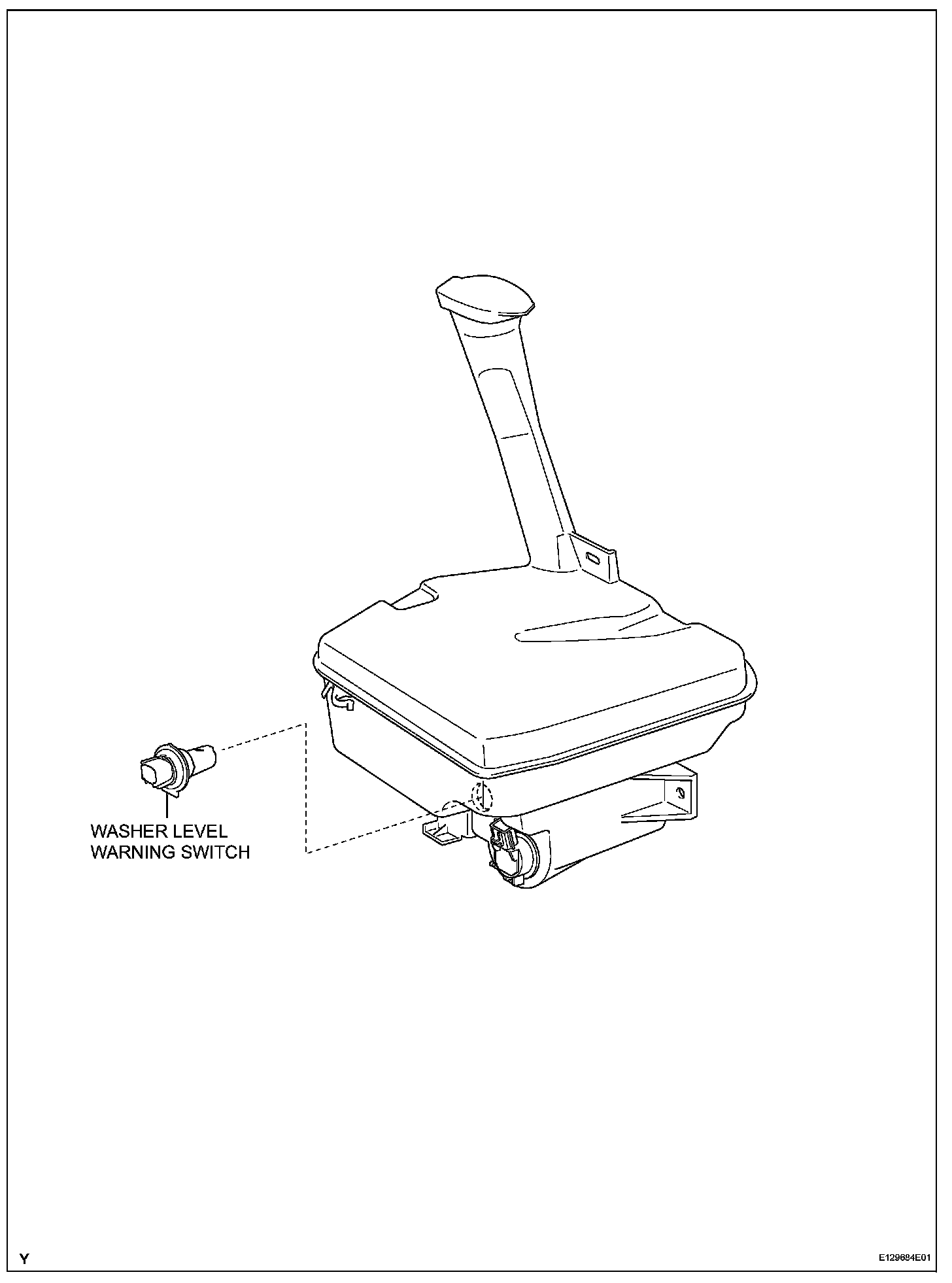

WASHER LEVEL WARNING SWITCH (for Sedan)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT SPOILER COVER (w/ Front Spoiler)
3. REMOVE FRONT BUMPER COVER
4. REMOVE HEADLIGHT ASSEMBLY RH
5. DRAIN WASHER FLUID
a. Disconnect the 2 washer hoses from the windshield washer motor and pump and drain the washer fluid.




6. REMOVE WINDSHIELD WASHER JAR ASSEMBLY
a. Disconnect the 2 harness clamps.
b. Disconnect the 2 connectors.
c. Remove the 2 bolts.
d. Remove the windshield washer jar.




7. REMOVE WASHER LEVEL WARNING SWITCH
a. Pull the washer motor and pump out of the packing of the washer jar.

INSTALLATION




1. INSTALL WASHER LEVEL WARNING SWITCH

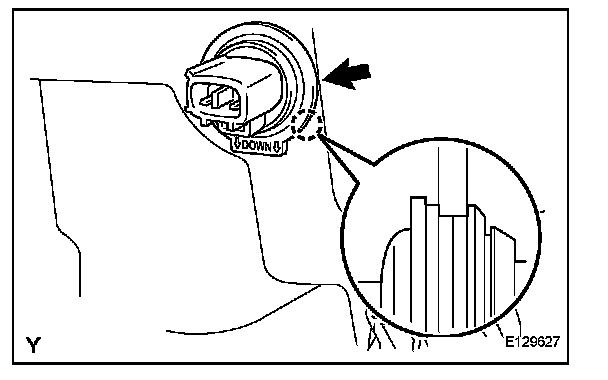

a. Install the washer level warning switch onto the packing of the washer jar.

2. INSTALL WINDSHIELD WASHER JAR ASSEMBLY




a. Install the windshield washer jar.




b. Install the 2 bolts.

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

c. Connect the 2 connectors.
d. Connect the 2 harness clamps.

3. FILL UP WASHER JAR AND PUMP ASSEMBLY WITH WASHER FLUID
a. Connect the washer hose to the washer motor and pump and fill the washer jar with washer fluid.

4. INSTALL HEADLIGHT ASSEMBLY RH
5. INSTALL FRONT BUMPER COVER
6. INSTALL FRONT SPOILER COVER (w/ Front Spoiler)
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
