Rear Power Window LH Does Not Operate With Rear Power Window Switch LH
Rear Power Window LH Does Not Operate With Rear Power Window Switch LHDESCRIPTION
If the rear LH side manual UP / DOWN function does not operate, a malfunction may exist in the power window regulator motor, power window regulator switch, power window regulator master switch or wire harness.
WIRING DIAGRAM

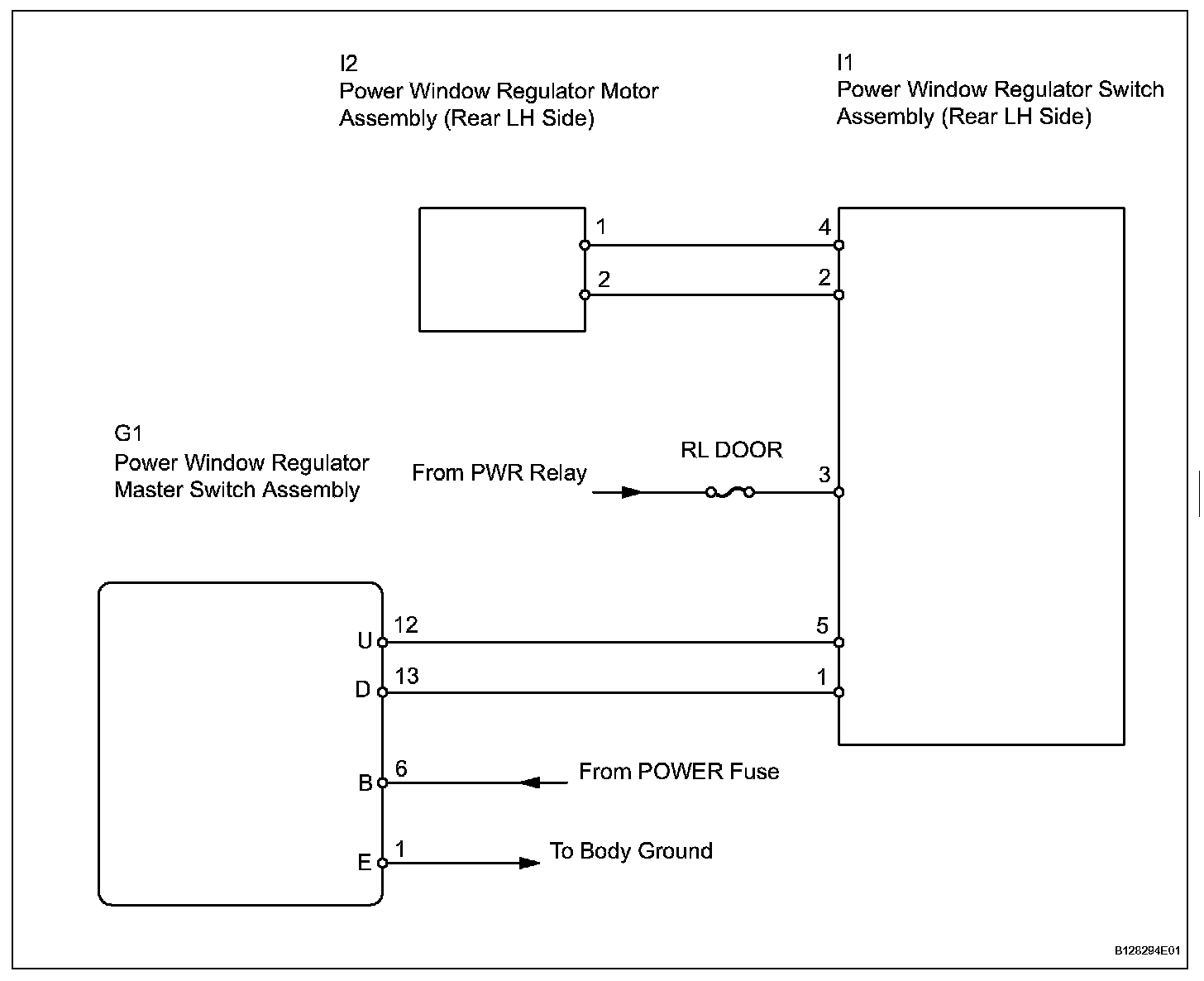

Wiring Diagram:
INSPECTION PROCEDURE

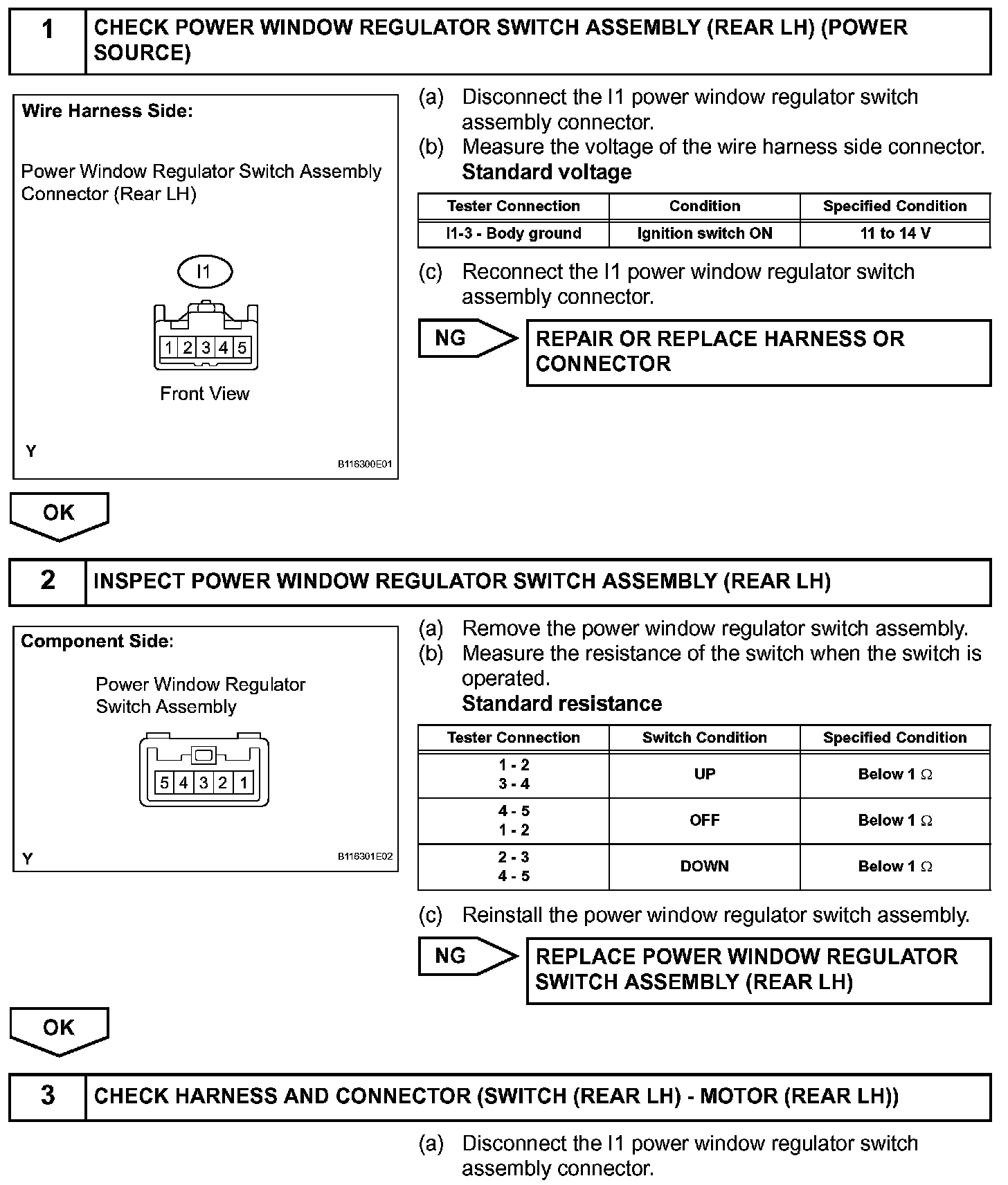

Step 1 - 3:

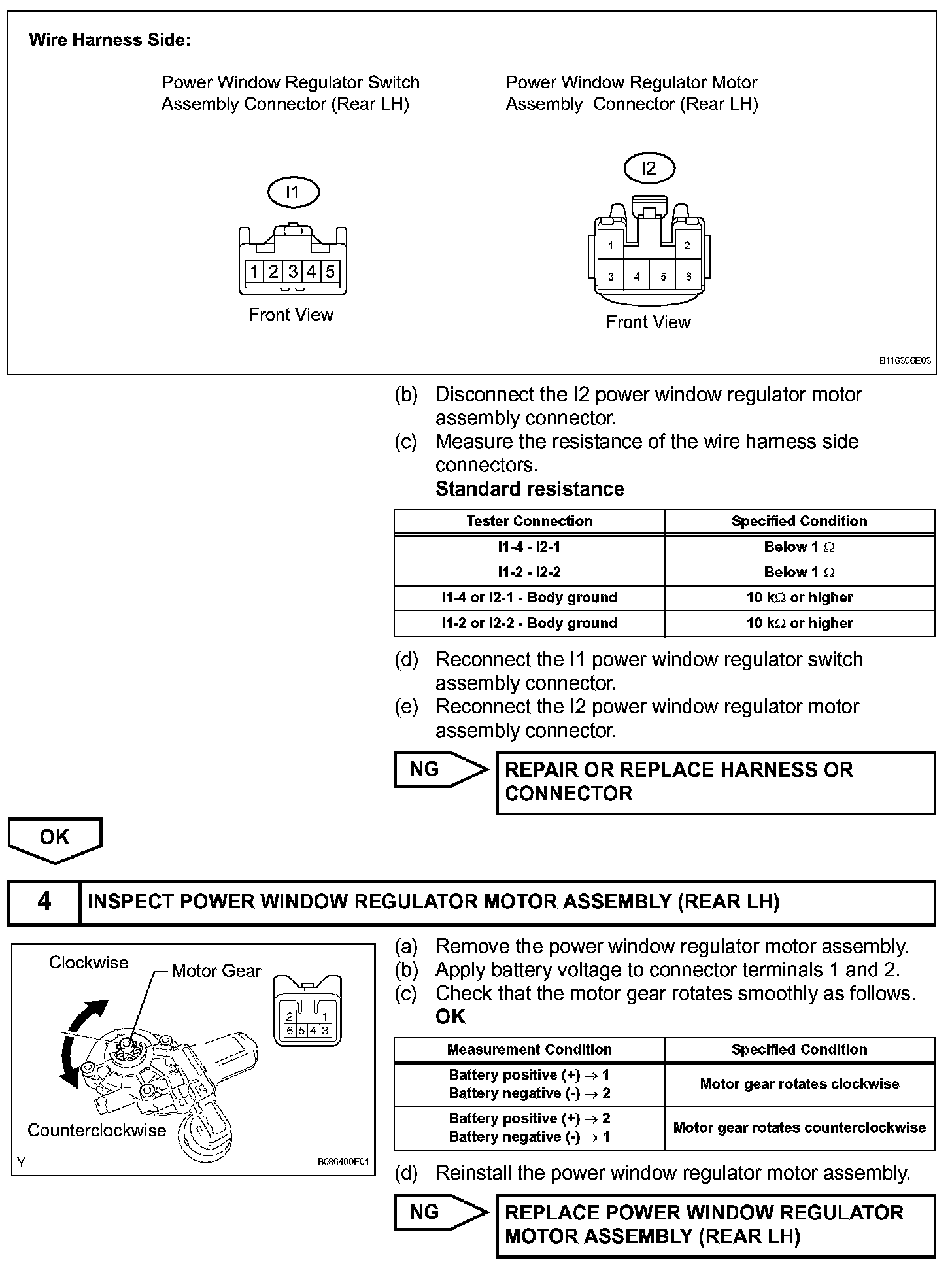

Step 3 (Continued) - 4:

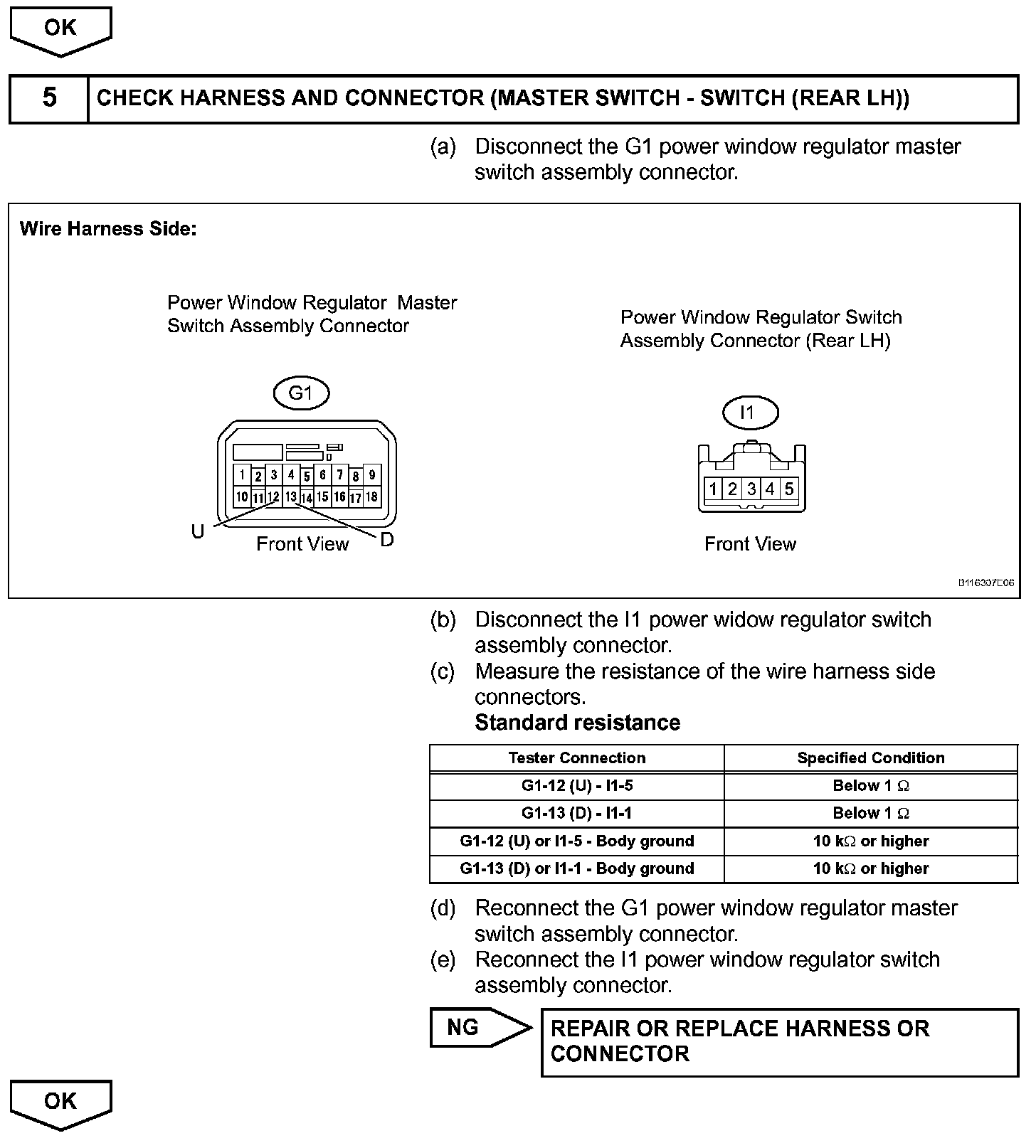

Step 5:
Step 6:
