Front Passenger Side Power Window Does Not Operate With Front Passenger Side Power Window Switch
Front Passenger Side Power Window Does Not Operate With Front Passenger Side Power Window SwitchDESCRIPTION
If the passenger side manual UP / DOWN function does not operate, a malfunction may exist in the power window regulator motor, power window regulator switch, power window regulator master switch or wire harness.
WIRING DIAGRAM
Wiring Diagram:
INSPECTION PROCEDURE
Step 1 - 3:
Step 3 (Continued) - 4:

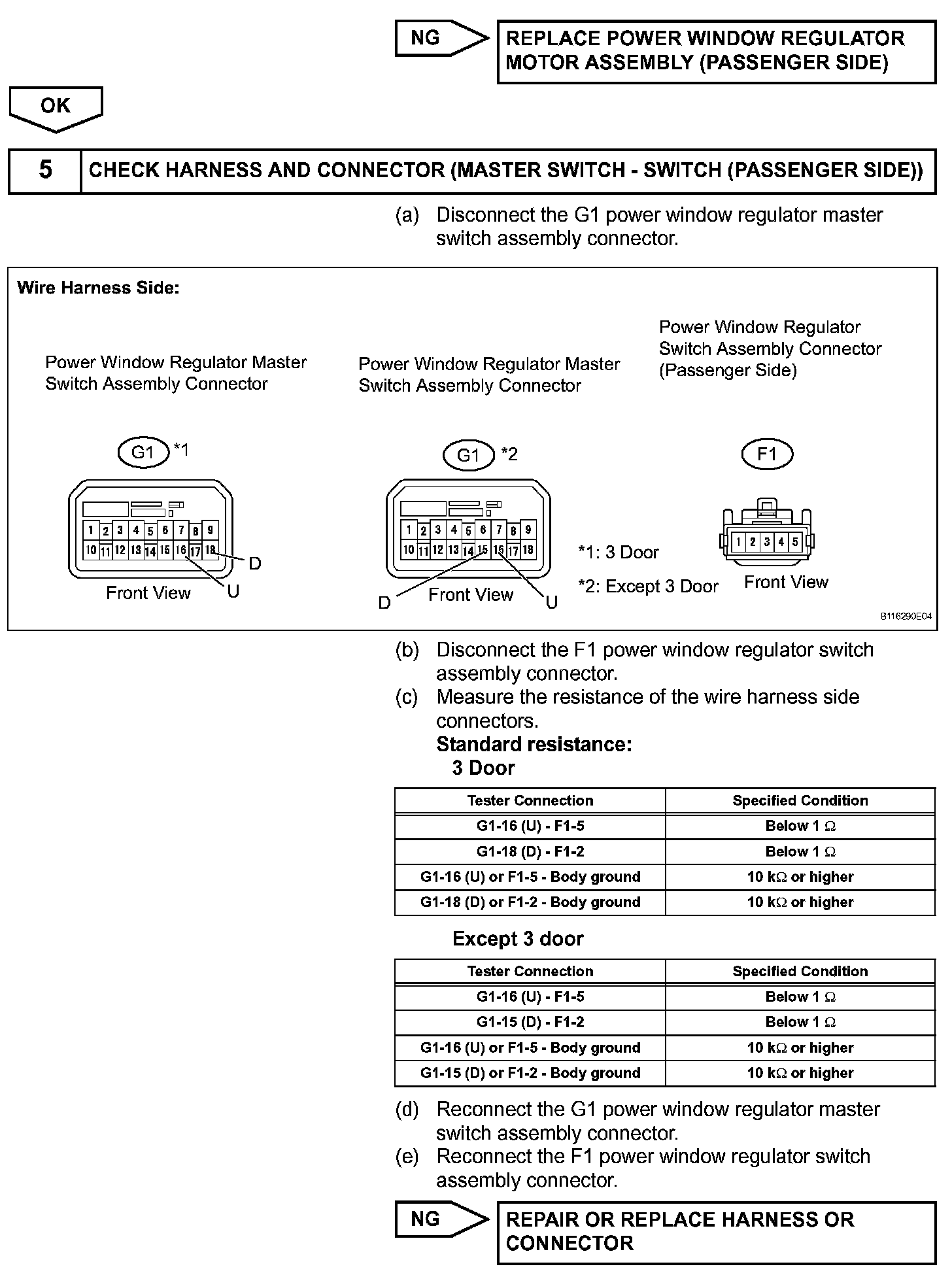

Step 4 (Continued) - 5:

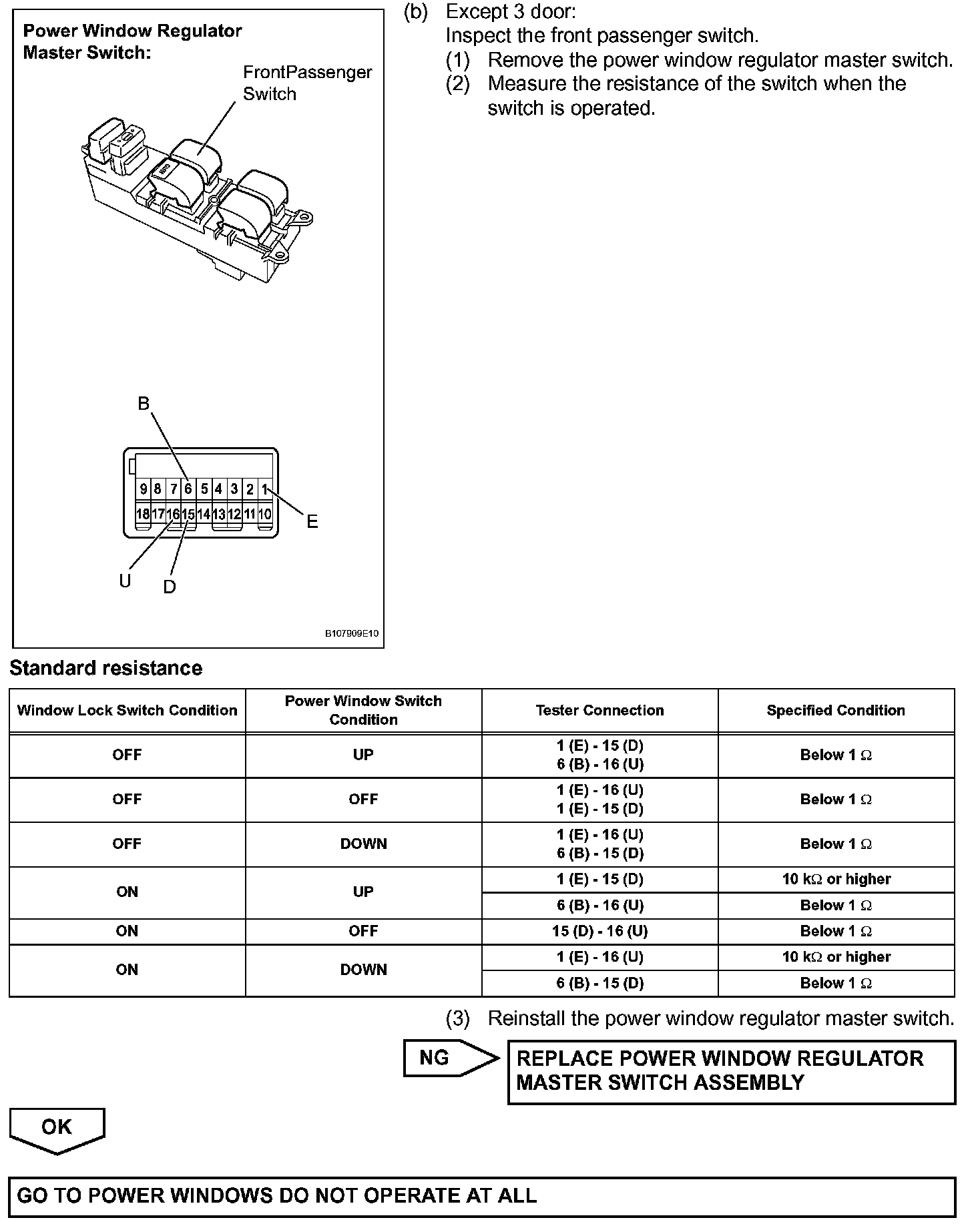

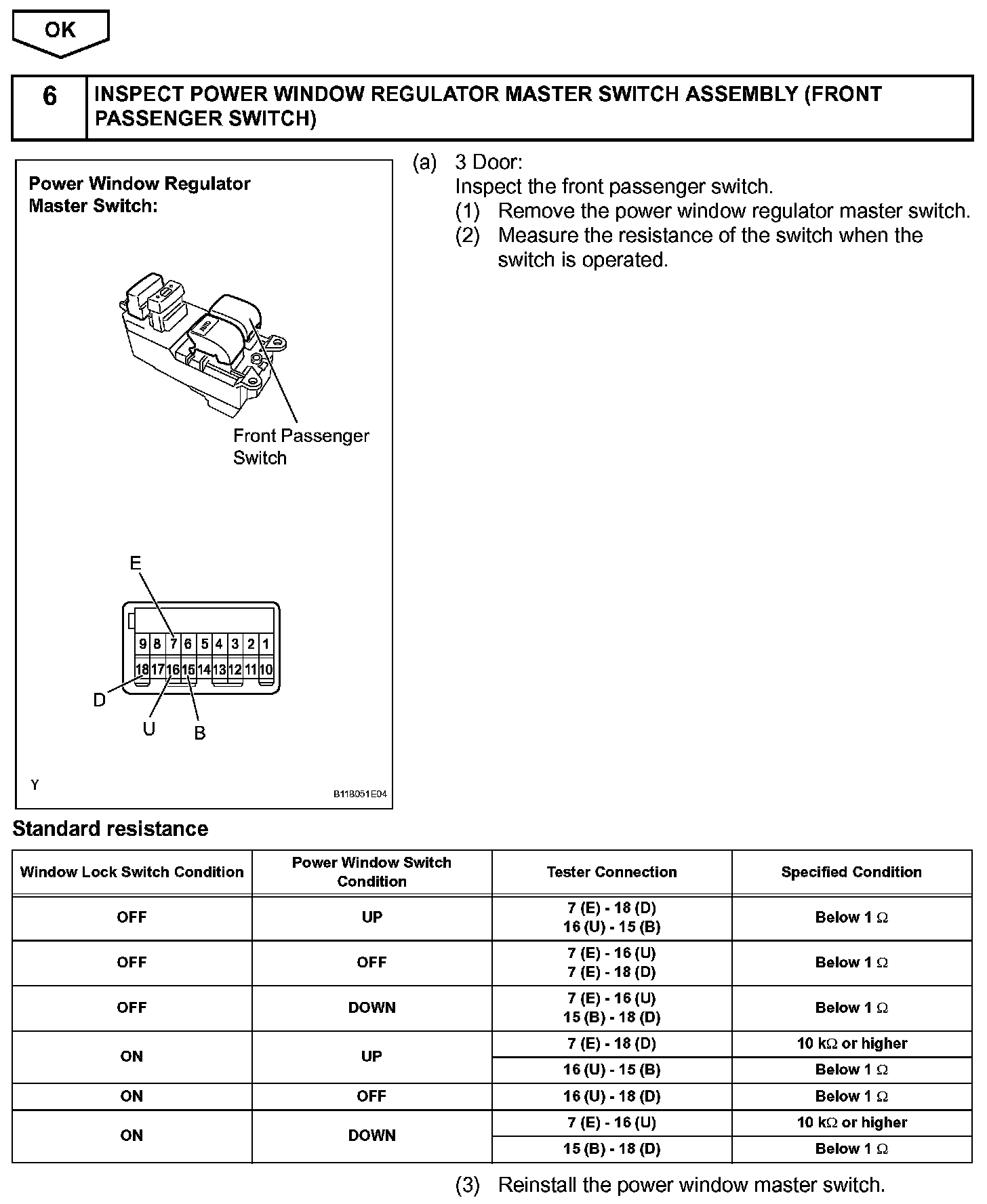

Step 6:
