Power Window Regulator Motor (For Sedan Rear Side):

REMOVAL

HINT:
- Use the same procedure for both the RH and LH sides.
- The procedure described below is for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE REAR DOOR ARMREST BASE UPPER PANEL
3. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
4. REMOVE REAR DOOR TRIM BRACKET
5. REMOVE REAR DOOR SERVICE HOLE COVER
6. REMOVE REAR DOOR CHECK ASSEMBLY
7. REMOVE REAR DOOR WEATHERSTRIP
8. REMOVE REAR DOOR BELT MOULDING
9. REMOVE REAR DOOR GLASS RUN
10. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY
11. REMOVE REAR DOOR GLASS SUB-ASSEMBLY
12. REMOVE REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY

13. REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY REAR

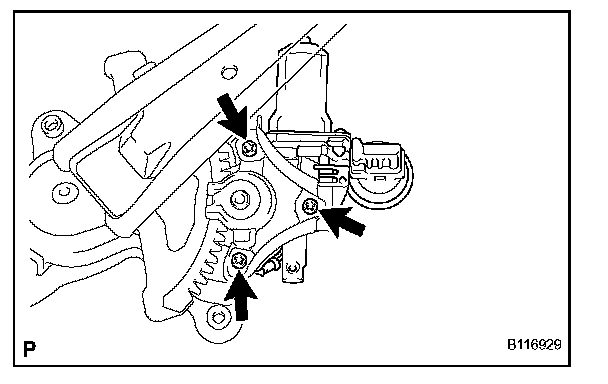

a. Using "Torx" socket wrench T25, remove the 3 screws and power window regulator motor.

INSTALLATION

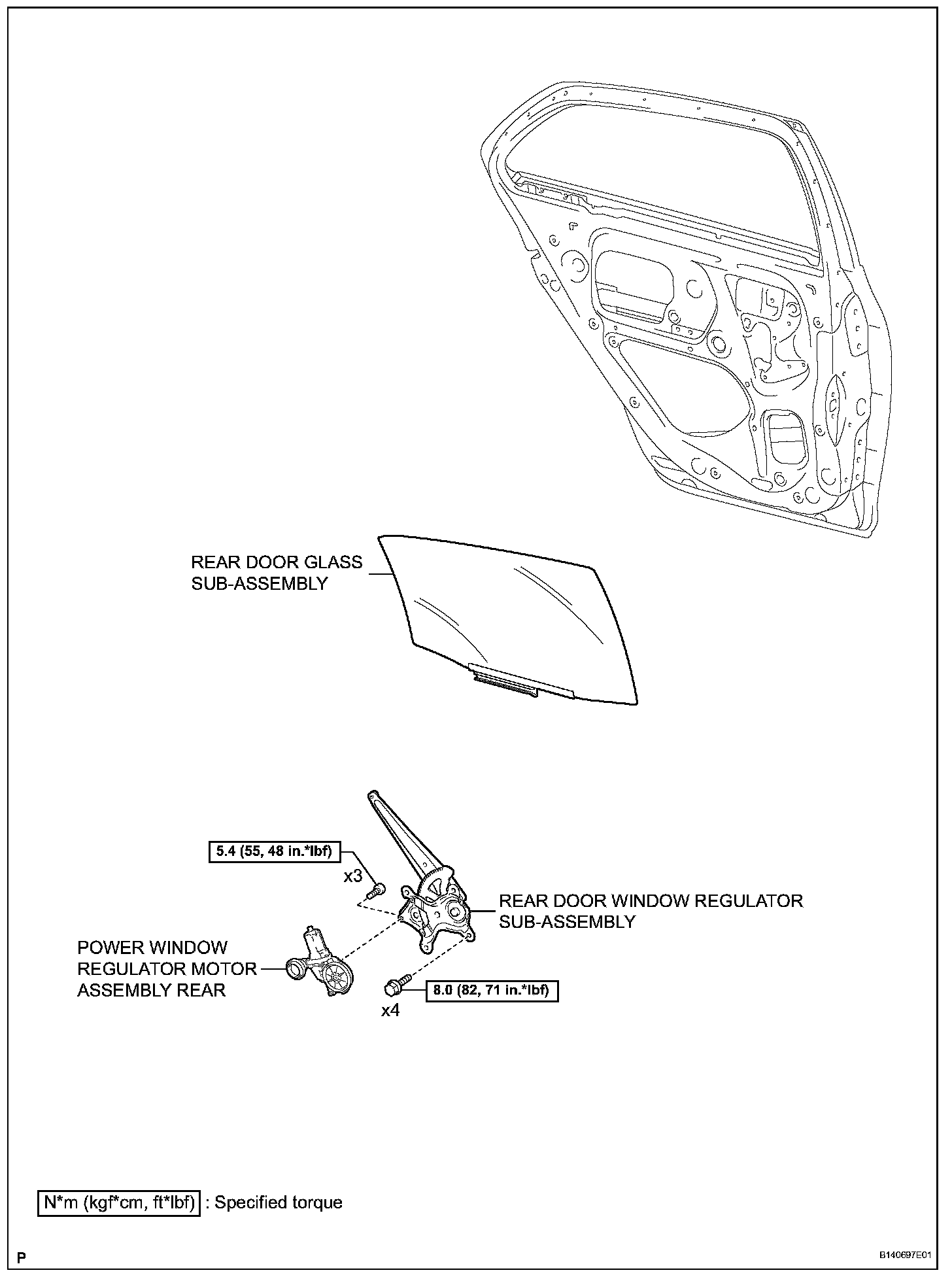

1. INSTALL POWER WINDOW REGULATOR MOTOR ASSEMBLY REAR
a. Apply MP grease to the sliding and rotating areas of the regulator motor.
b. Using "Torx" socket wrench T25, install the power window regulator motor with the 3 screws.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

2. INSTALL REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY
3. INSTALL REAR DOOR GLASS SUB-ASSEMBLY
4. INSTALL REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY
5. INSTALL REAR DOOR GLASS RUN
6. INSTALL REAR DOOR BELT MOULDING
7. INSTALL REAR DOOR WEATHERSTRIP
8. INSTALL REAR DOOR CHECK ASSEMBLY
9. INSTALL REAR DOOR SERVICE HOLE COVER
10. INSTALL REAR DOOR TRIM BRACKET
11. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY
12. INSTALL REAR DOOR ARMREST BASE UPPER PANEL
13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
