Transmission Wire Inspection
INSPECTION
1.

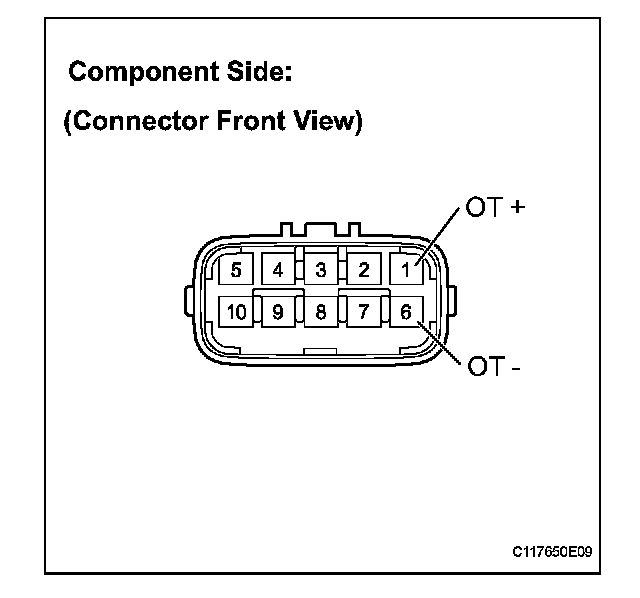

INSPECT TRANSMISSION WIRE
(a)
Measure the resistance.

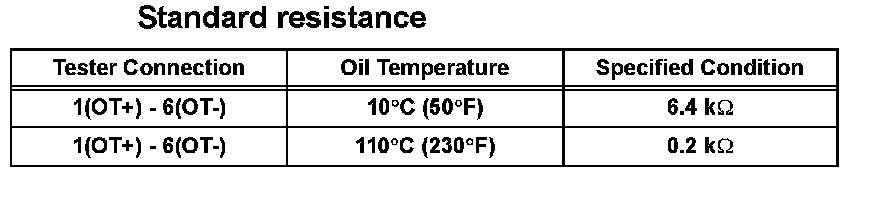

Standard resistance:
