Shifter M/T: Service and Repair

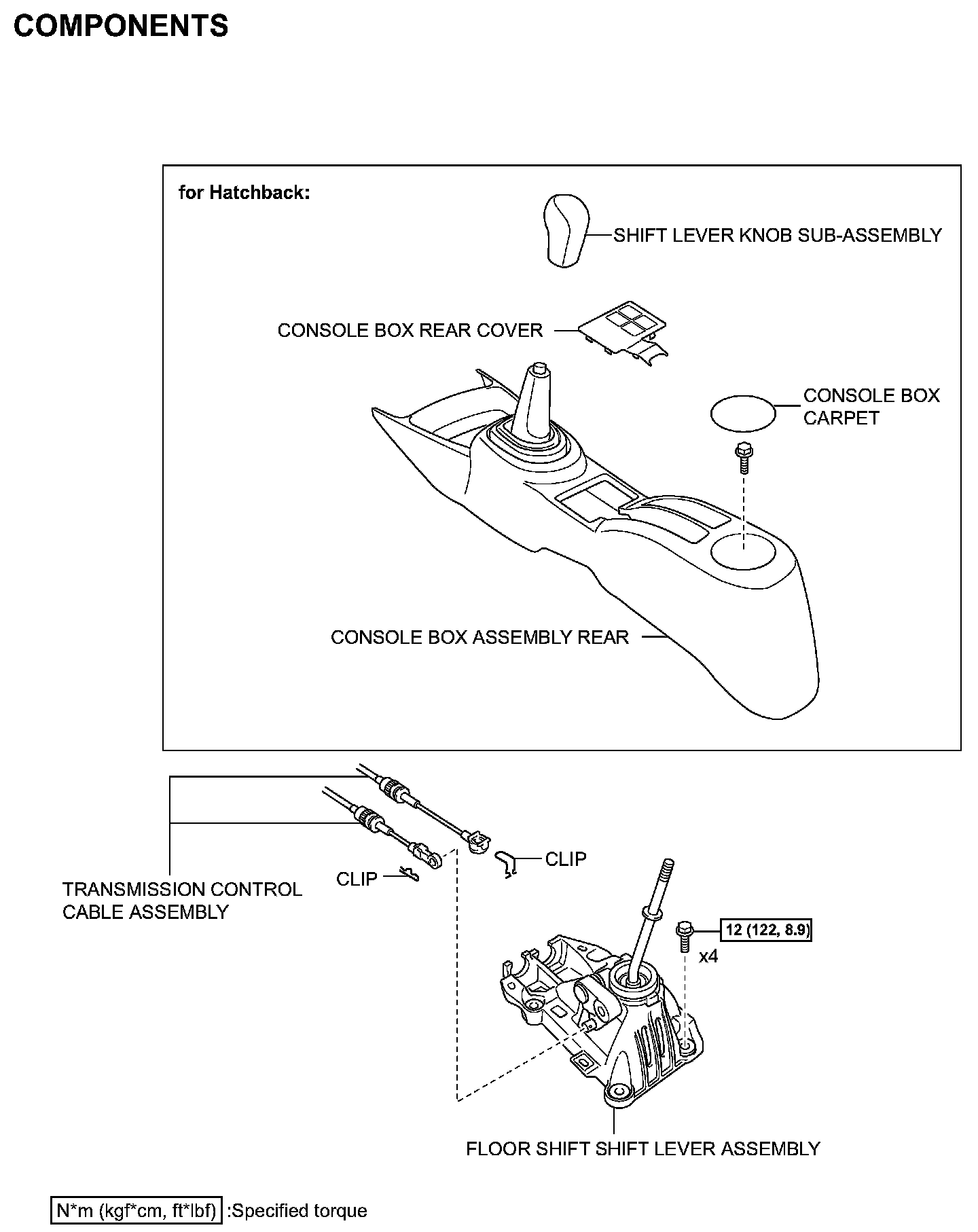

FLOOR SHIFT LEVER ASSEMBLYCOMPONENTS (Part 1):
COMPONENTS (Part 2):
REMOVAL
1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Hatchback)
2. REMOVE CONSOLE BOX ASSEMBLY REAR (for Hatchback)
3. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (for Sedan)
4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Sedan)
5. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for Sedan)
6. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY (for Sedan)
7. REMOVE CONSOLE BOX CARPET (for Sedan)
8. REMOVE REAR CONSOLE BOX ASSEMBLY (for Sedan)
9. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

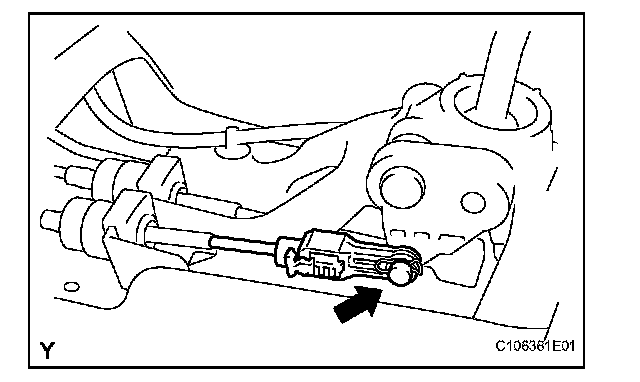

(a) Remove the clip and disconnect the control select cable from the shift lever.
(b) Turn the lock to release it and separate the control select cable from the shift lever retainer.
(c) Disconnect the control shift cable from the shift lever.
(d) Turn the lock to release it and separate the control shift cable from the shift lever retainer.
10. REMOVE FLOOR SHIFT SHIFT LEVER ASSEMBLY

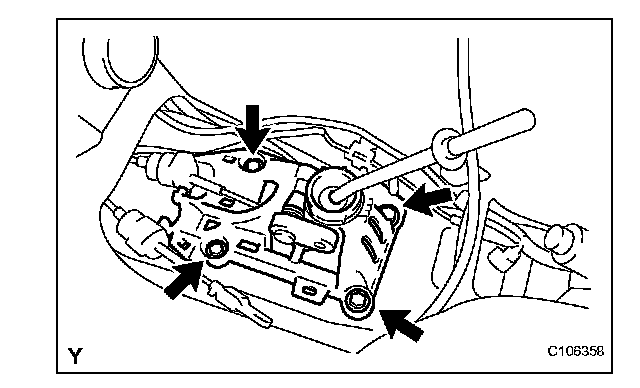

(a) Remove the 4 bolts and remove the shift lever.
INSTALLATION
1. INSTALL FLOOR SHIFT SHIFT LEVER ASSEMBLY

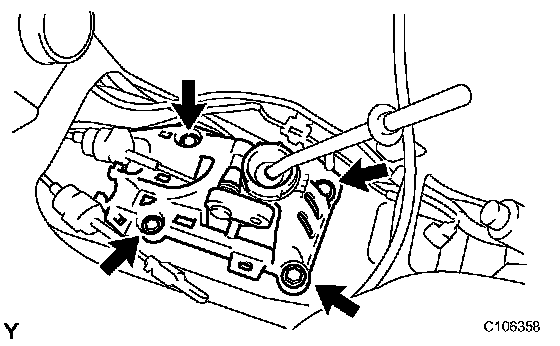

(a) Install the shift lever with the 4 bolts.
Torque: 12 N*m (122 kgf*cm, 8.9 ft.*lbf)
2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
(a) Install the control shift cable onto the shift lever retainer.
NOTICE:
^ Install the cable with the protruding portion of the cable outer facing upward.

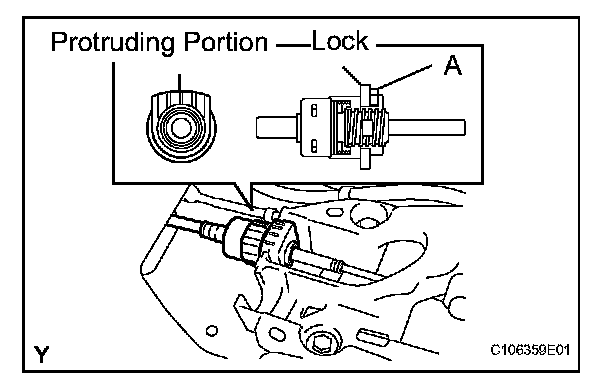

^ After installing, check that the lock of the cable outer is protruding beyond portion A, as shown in the illustration.
(b) Connect the control shift cable to the shift lever.
(c) Install the control select cable onto the shift lever retainer.
NOTICE:
^ Install the cable with the protruding portion of the cable outer facing upward.

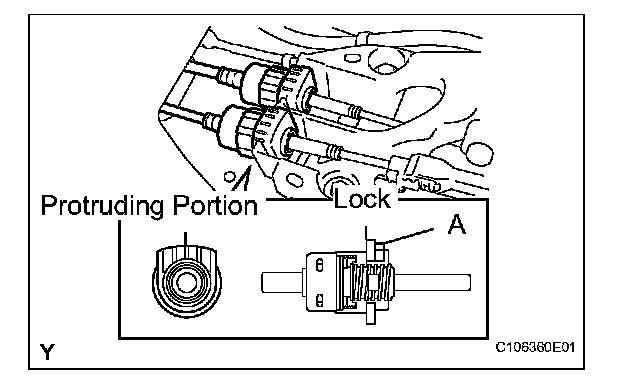

^ After installing, check that the lock of the cable outer is protruding beyond portion A, as shown in the illustration.
(d) Connect the control select cable to the shift lever.
NOTICE:
^ Connect the control select cable so that the adjusting mechanism lock of the control select cable is installed on the left side of the vehicle.
^ Insert the clip in the direction shown in the illustration.
(e) Adjust the length of the control select cable.

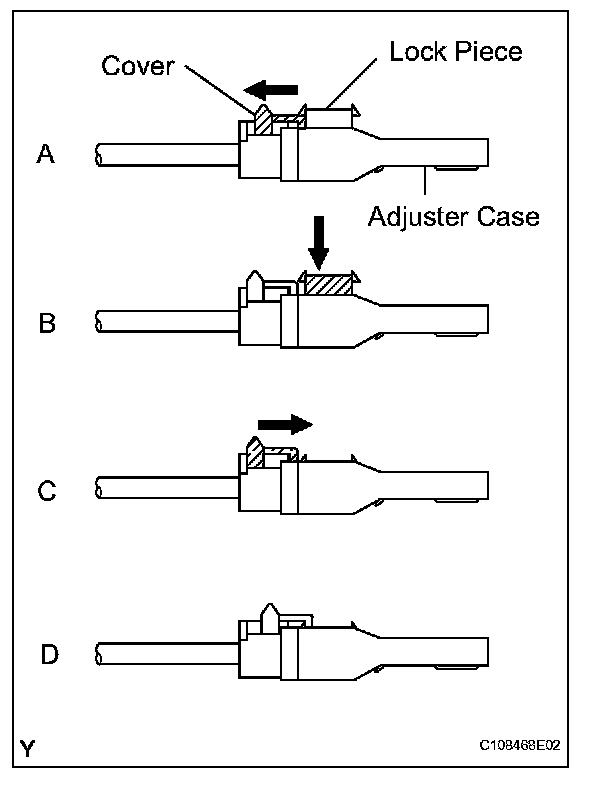

(1) Slide the adjuster case cover in the direction shown in the illustration (Illustration A).
(2) Gently pull the cable rod toward the rear of the vehicle by hand to pull the cable taut.
(3) Press the lock piece into the adjuster case and lock it (Illustration B).
(4) Slide the cover in the direction shown in the illustration (Illustration C).
NOTICE: Slide the cover past the protrusion of the lock piece (Illustration D).
3. INSTALL CONSOLE BOX ASSEMBLY REAR (for Hatchback)
4. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Hatchback)
5. INSTALL REAR CONSOLE BOX ASSEMBLY (for Sedan)
6. INSTALL CONSOLE BOX CARPET (for Sedan)
7. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY (for Sedan)
8. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for Sedan)
9. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Sedan)
10. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER CENTER (for Sedan)
