Wiring Harness: Service and Repair
TRANSMISSION WIRECOMPONENTS:
REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE ENGINE UNDER COVER LH
3. DRAIN AUTOMATIC TRANSAXLE FLUID
(a) Remove the drain plug and gasket, and drain ATF.
(b) Install a new gasket and the drain plug.
Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)
4. REMOVE AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY
5. REMOVE VALVE BODY OIL STRAINER ASSEMBLY
6. REMOVE TRANSMISSION VALVE BODY ASSEMBLY
7. REMOVE TRANSMISSION WIRE
(a) Remove the bolt and the transmission wire from the transaxle case.

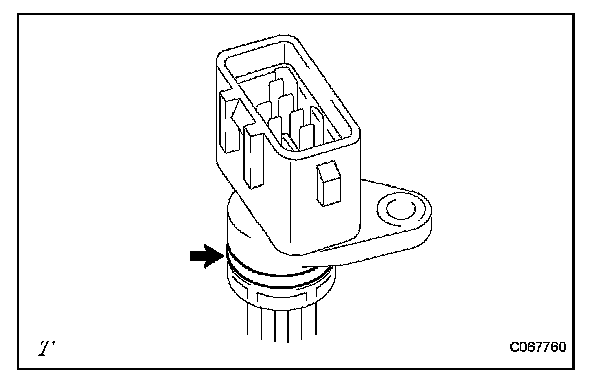

(b) Remove the O-ring from the transmission wire.
INSPECTION
1. INSPECT TRANSMISSION WIRE
(a) Measure the resistance.
Standard resistance:
INSTALLATION
1. INSTALL TRANSMISSION WIRE

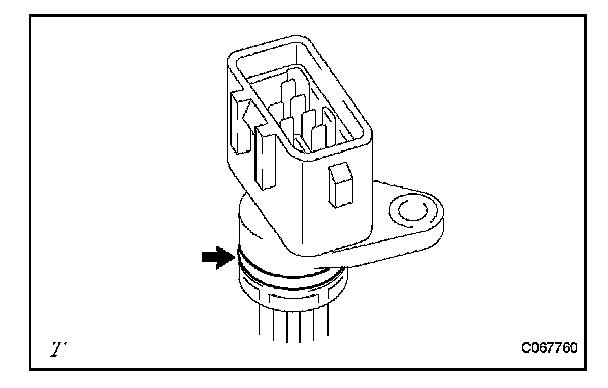

(a) Coat a new O-ring with ATF and install it into the transmission wire.

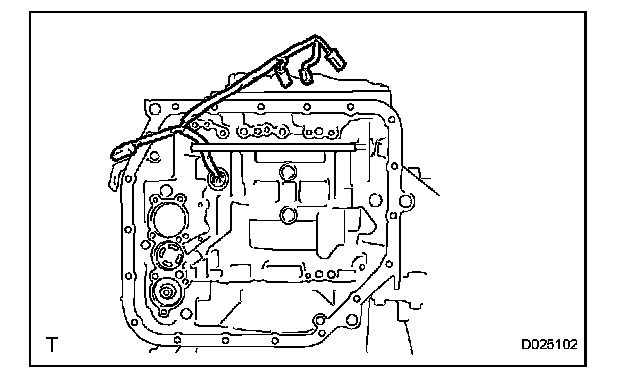

(b) Pass the transmission wire through the transaxle.

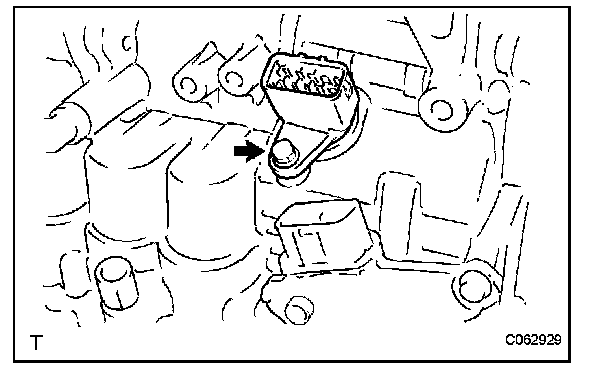

(c) Install the transmission wire with the bolt.
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
2. INSTALL TRANSMISSION VALVE BODY ASSEMBLY
3. INSTALL VALVE BODY OIL STRAINER ASSEMBLY
4. INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
6. ADD AUTOMATIC TRANSAXLE FLUID
7. INSPECT AUTOMATIC TRANSAXLE FLUID
8. CHECK FOR AUTOMATIC TRANSAXLE FLUID LEAKAGE
9. INSTALL ENGINE UNDER COVER LH
