Interior - Rattle From Upper Instrument Panel Area: Overview

T-SB-0304-08

Rev1

September 30, 2008

Upper Instrument Panel Rattle

Service Category
Vehicle Interior

Section
Interior Panels/Trim

Market
USA

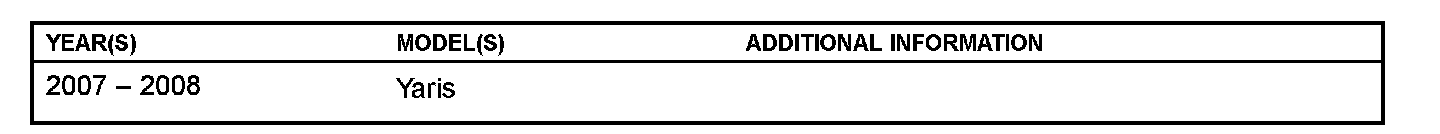

Applicability

^ March 29, 2009 Rev1:

The repair section has been updated to include Sedan repair procedure. Any previous printed versions of this service bulletin should be discarded.

Introduction

Some customers of 2007-2008 Toyota Yaris vehicles may experience a condition where the instrument panel makes a rattling noise. Please use the following repair procedure to address customer concerns.

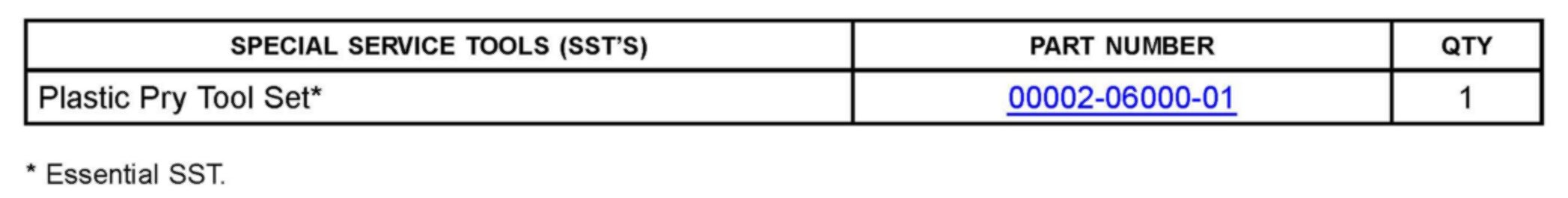

Required Tools & Equipment

Additional SSTs may be ordered by calling 1-800-933-8335.

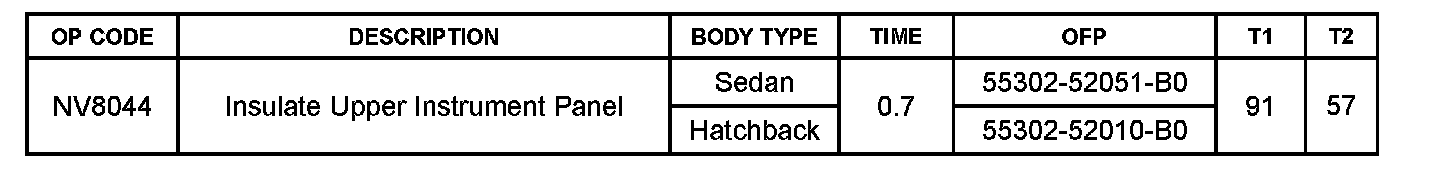

Warranty Information

APPLICABLE WARRANTY

^ This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

^ Warranty application is limited to correction of a problem based upon a customer's specific complaint.

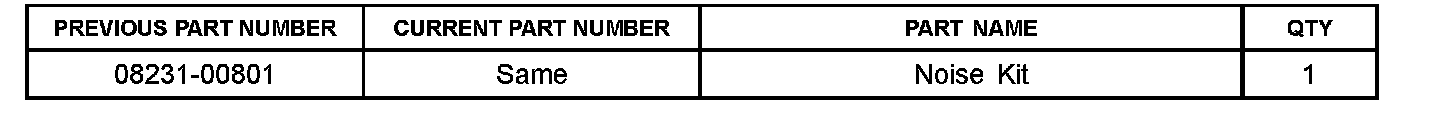

Parts Information
