Scan Tool Testing and Procedures

DATA LIST / ACTIVE TEST
1. DATA LIST
(a) Connect an intelligent tester to the DLC3.
(b) Turn the ignition switch on and turn the tester on.
(c) Operate the intelligent tester according to the prompts on the tester and select DATA LIST.

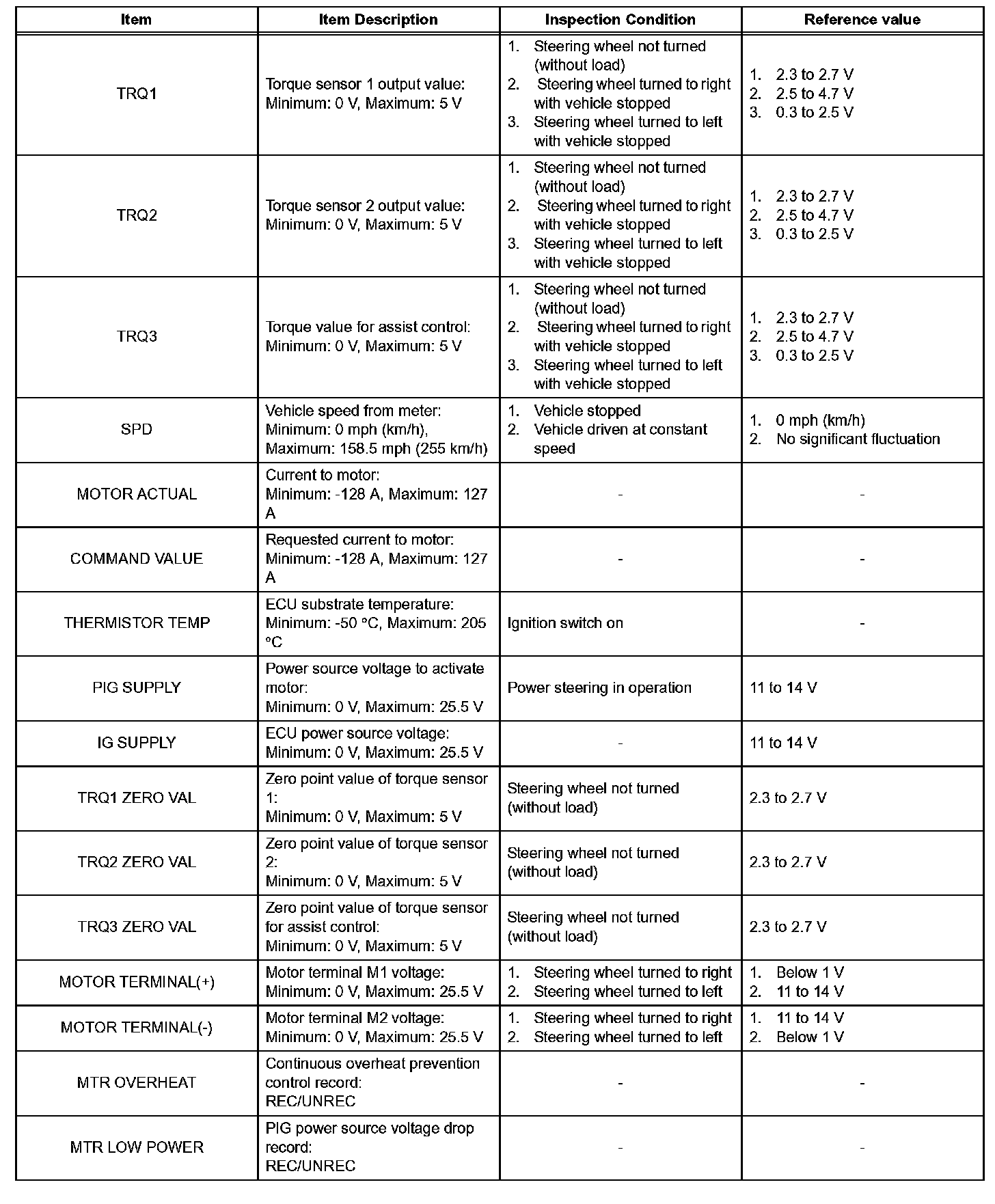

Part 1:

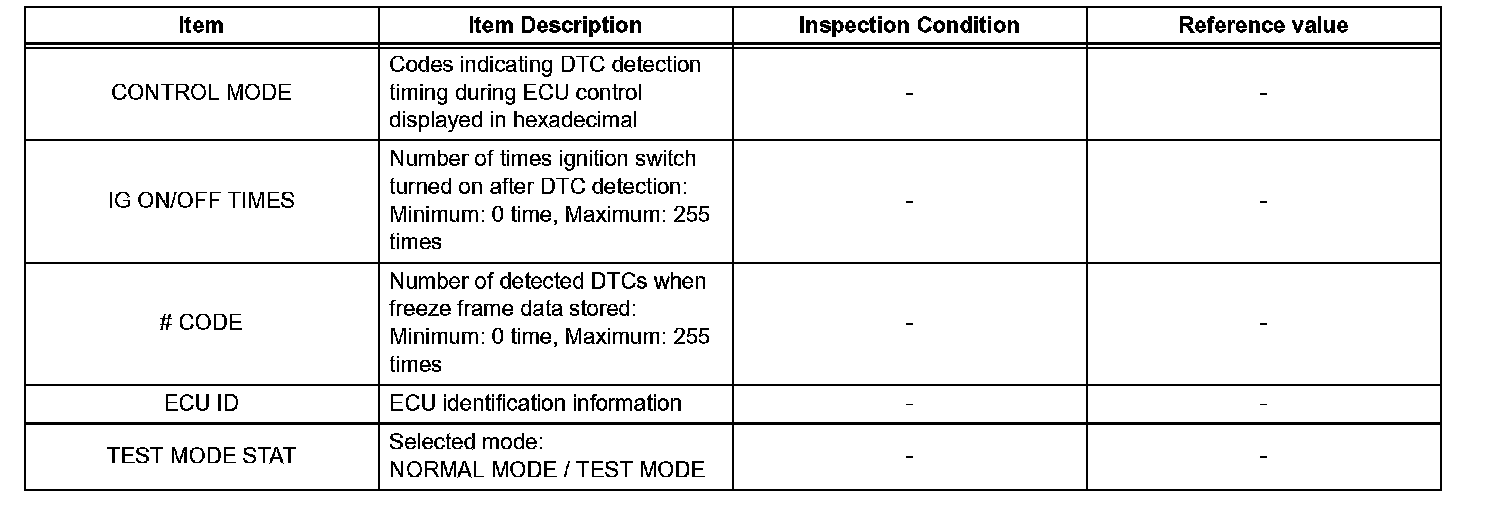

Part 2:
