HOW TO PROCEED WITH TROUBLESHOOTING
Perform troubleshooting according to the following flowchart.
HINT:
The intelligent tester can be used in steps 3, 4, 7, 10 and 13.

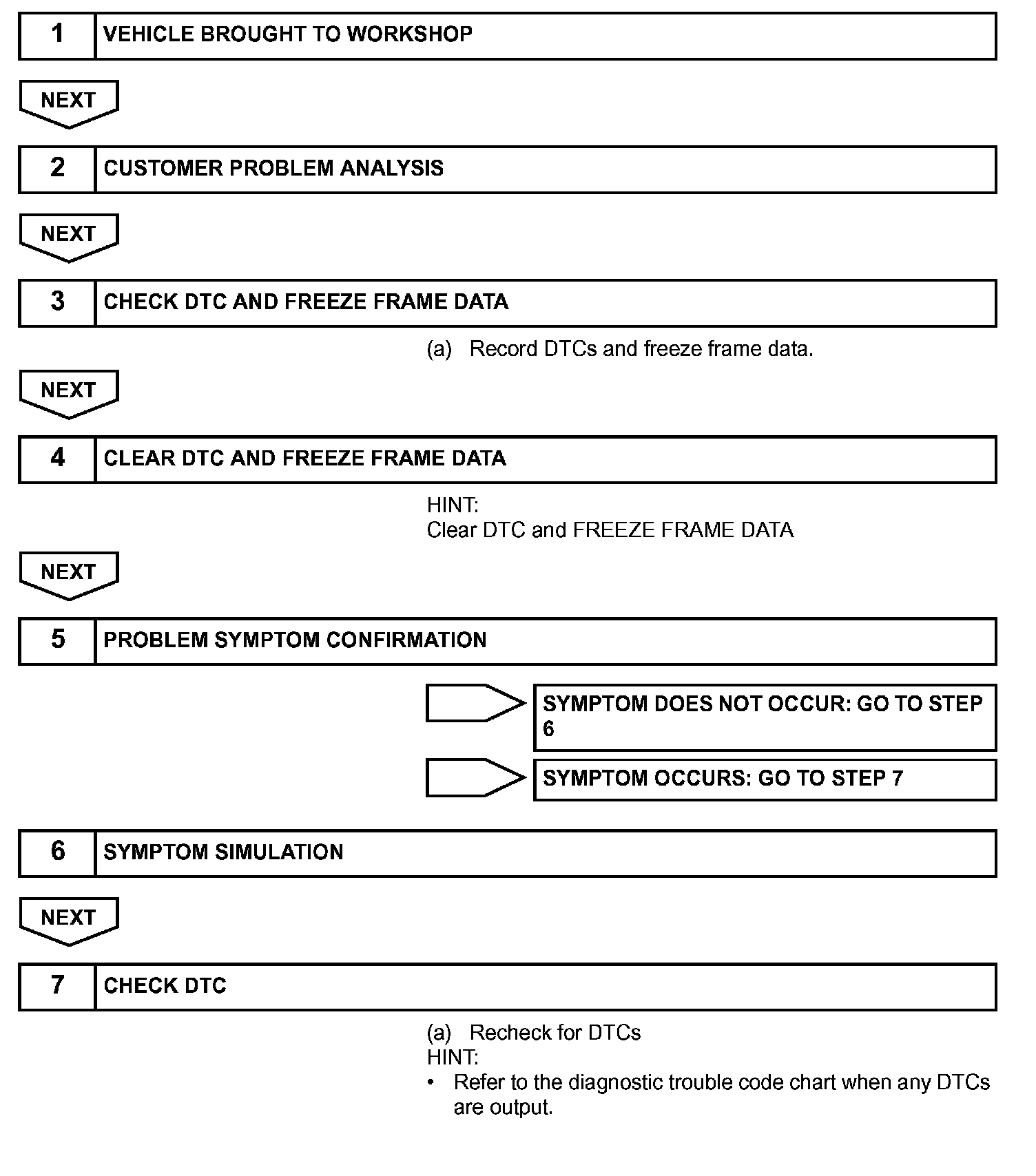

Steps 1-7(Part 1):

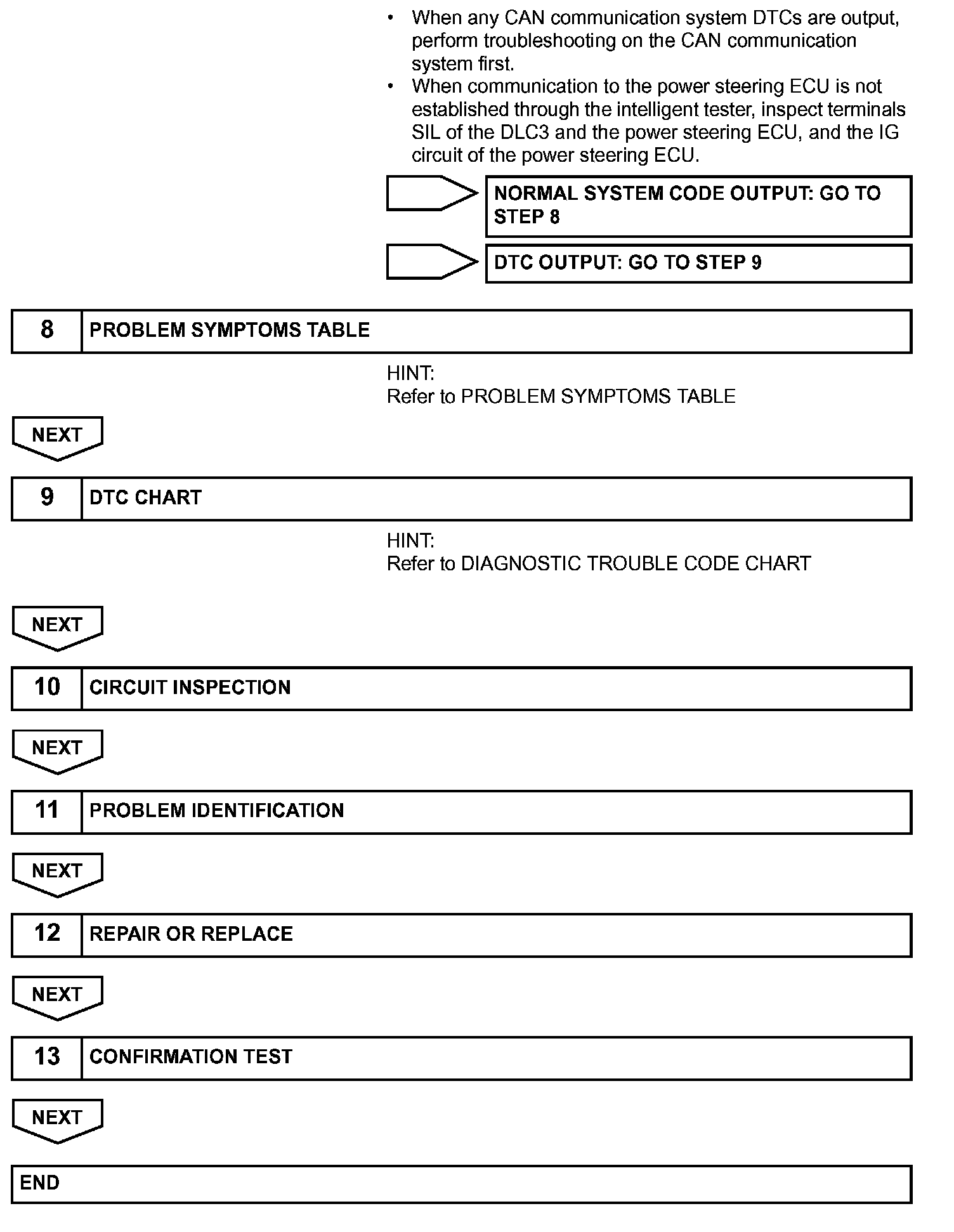

Steps 7(Part 2)-13:
