EPS Warning Light Circuit
EPS Warning Light Circuit
DESCRIPTION
If the
power steering
ECU detects a malfunction, the P/S warning light comes on. At this time, the power steering ECU stores a DTC in its memory.

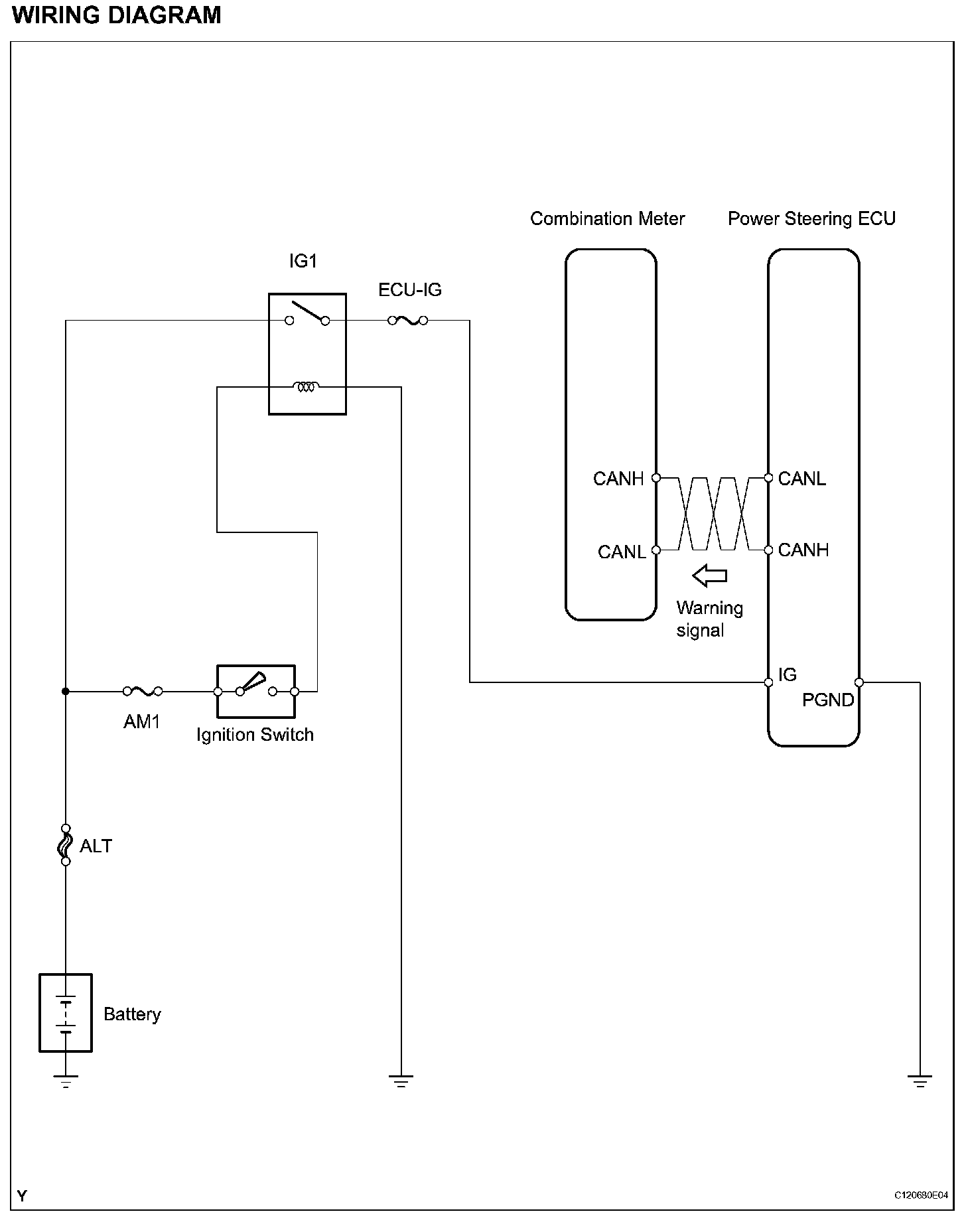

WIRING DIAGRAM:
INSPECTION PROCEDURE

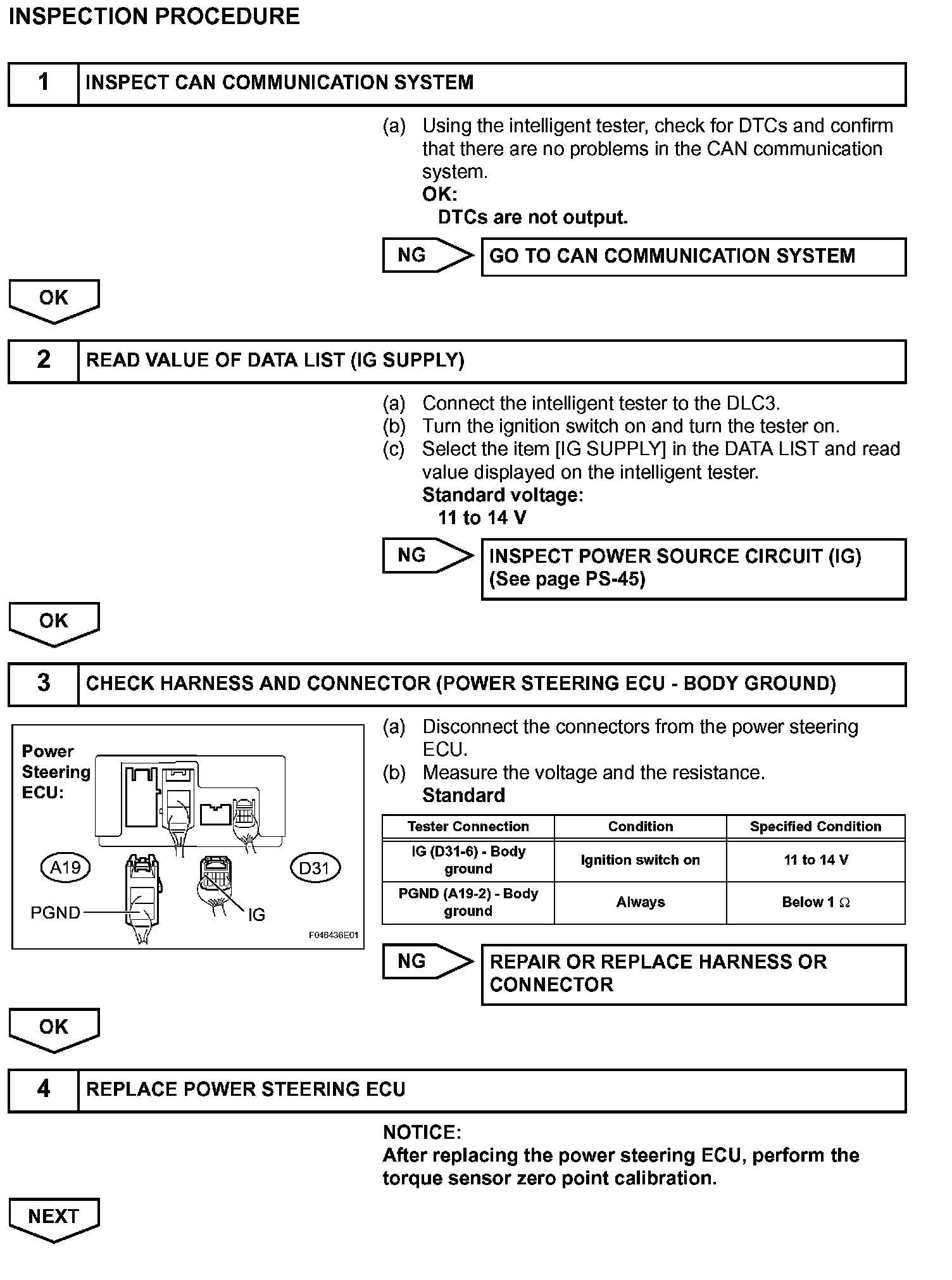

Steps 1-4:

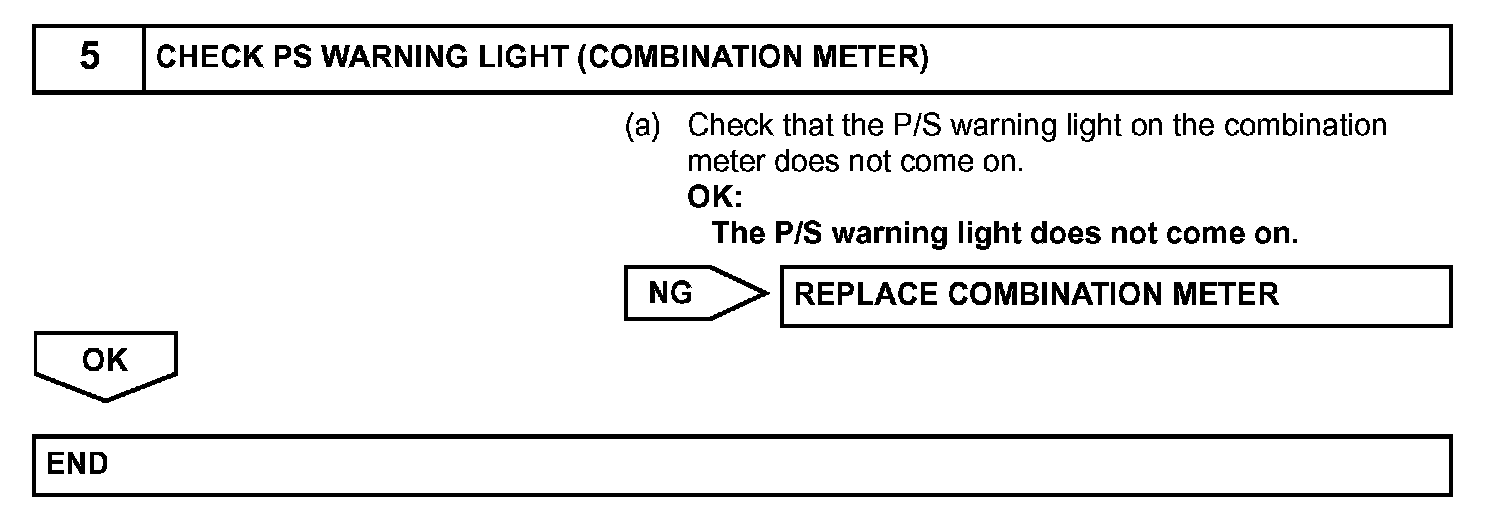

Step 5:
