CALIBRATION1. TORQUE SENSOR ZERO POINT CALIBRATION (USING INTELLIGENT TESTER)
NOTICE: Perform the torque sensor zero point calibration when any of the following conditions occur.
^ The steering column assembly (containing the torque sensor) has been replaced.
^ The power steering ECU has been replaced.
^ The steering wheel has been replaced.
^ The steering gear assembly has been replaced.
^ There is a difference in steering effort between turning right and left.
(a) Center the steering wheel and align the front wheels straight ahead.
(b) Connect the intelligent tester to the DLC3.
(c) Turn the ignition switch on and turn the tester on.

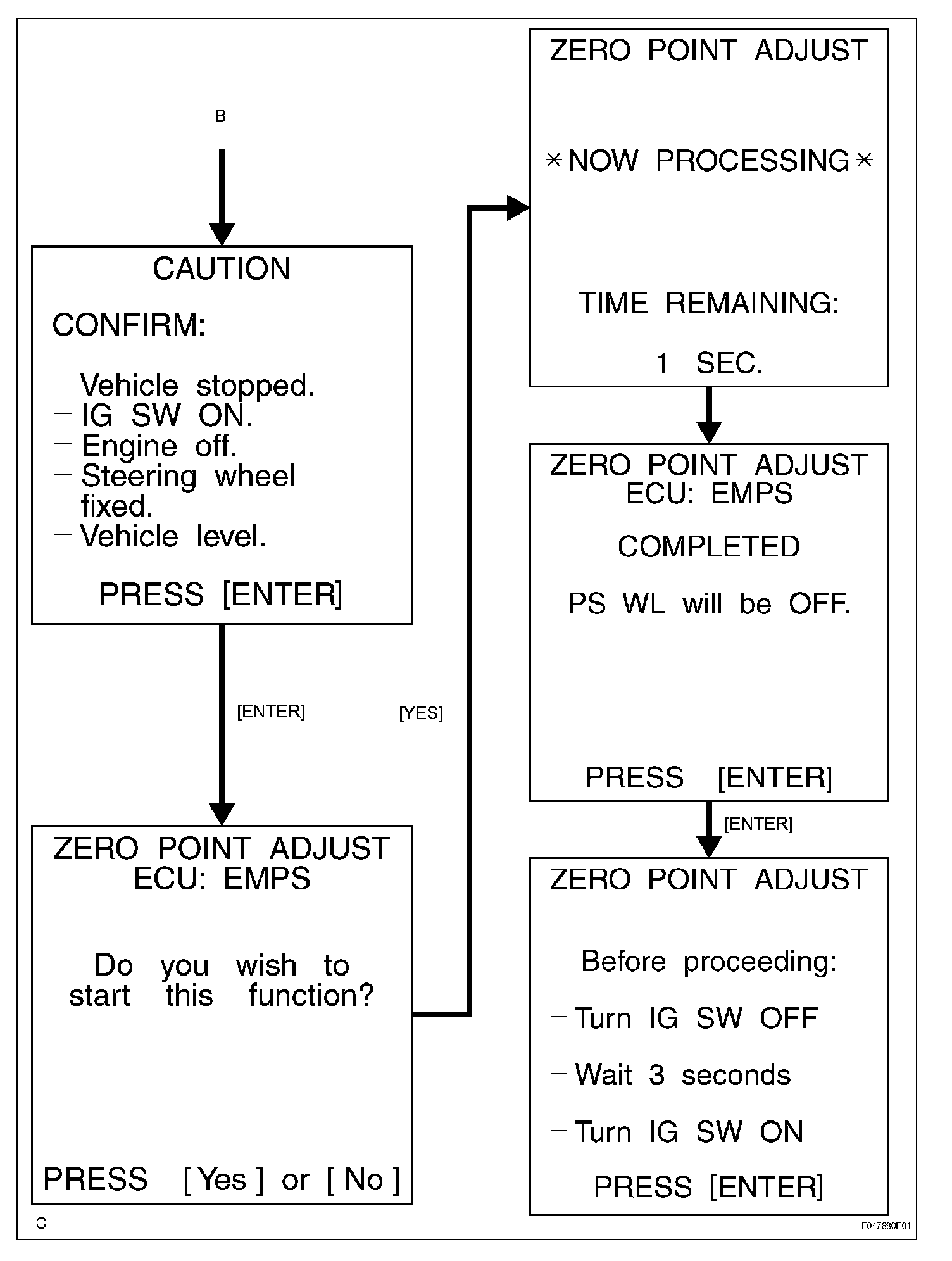

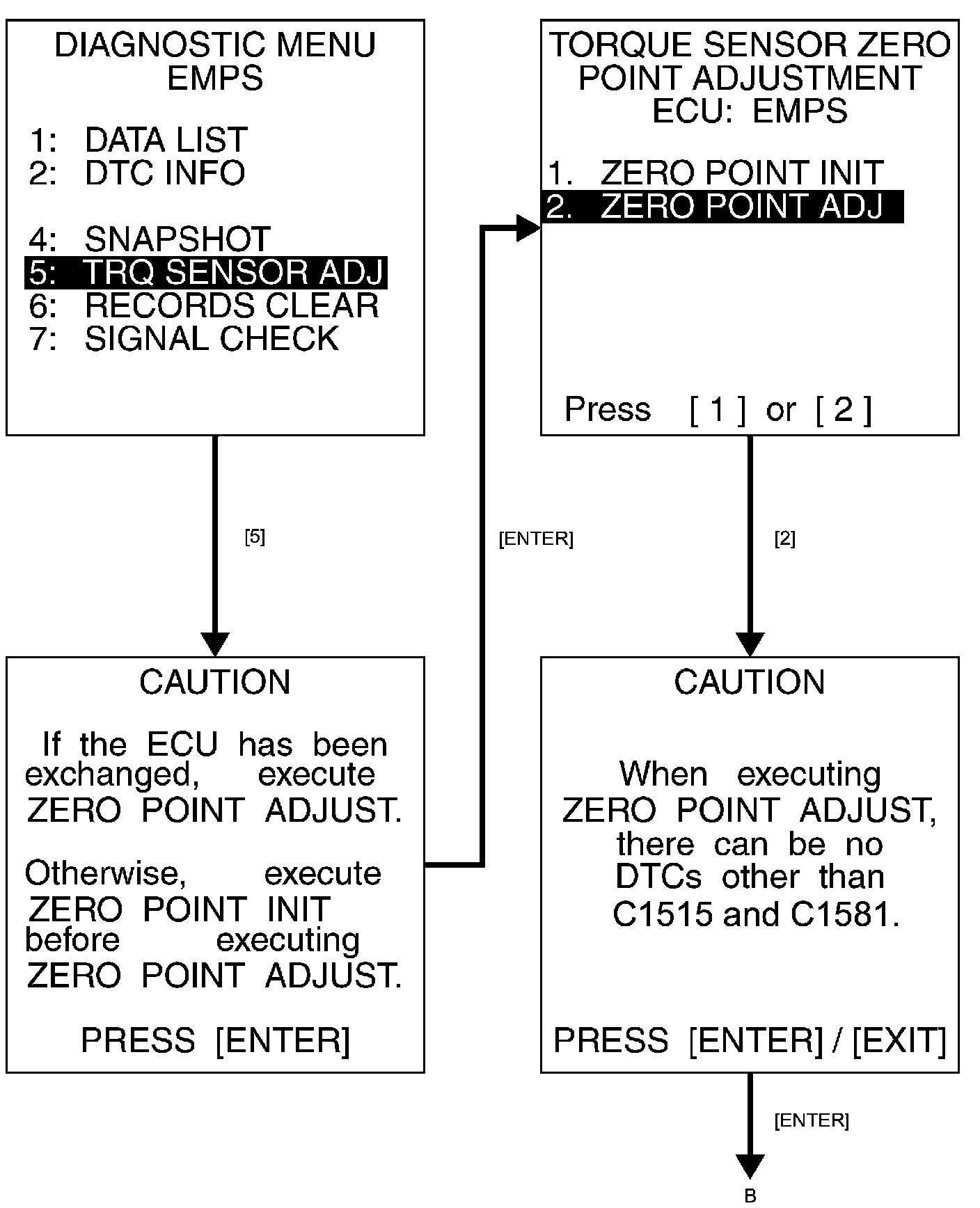

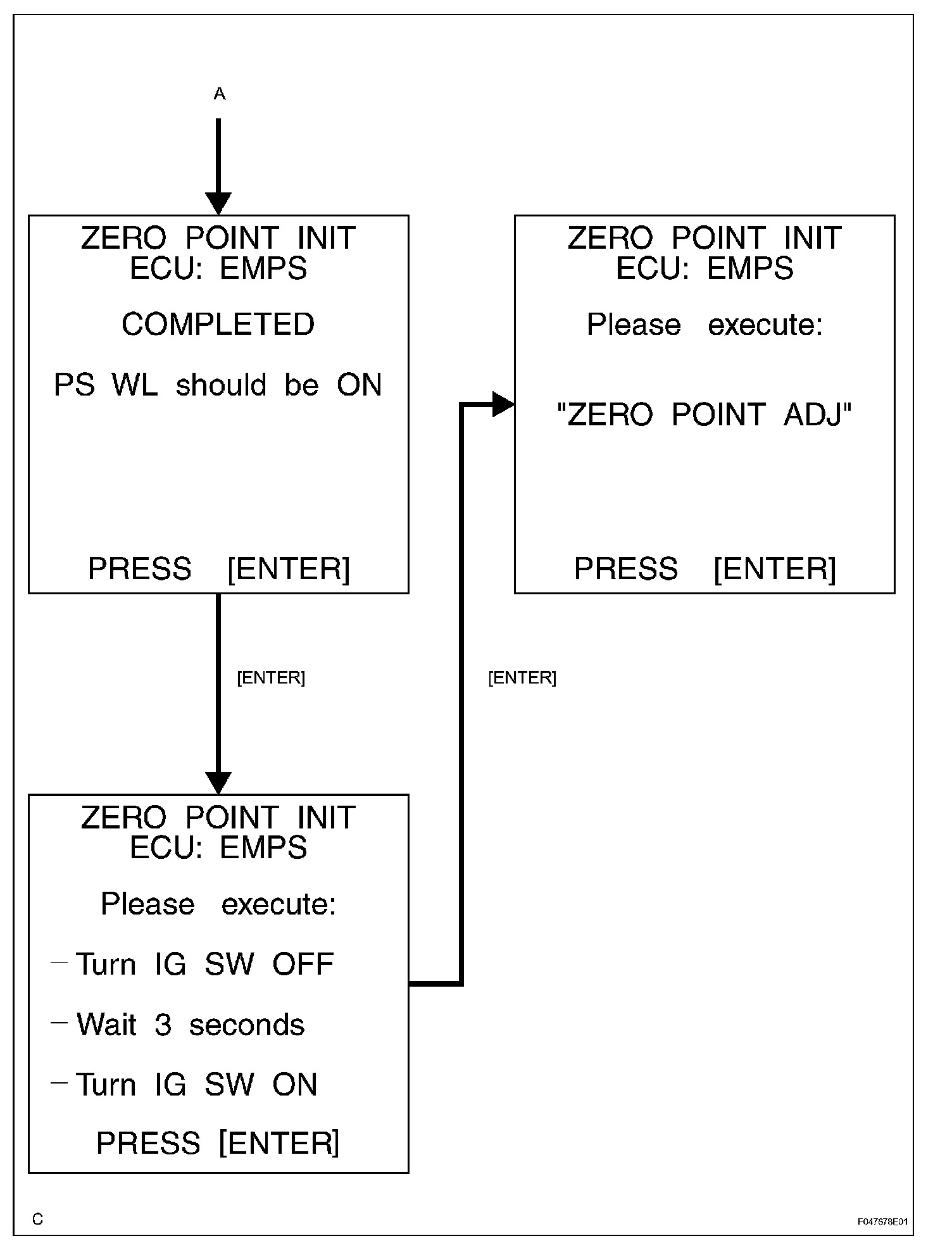

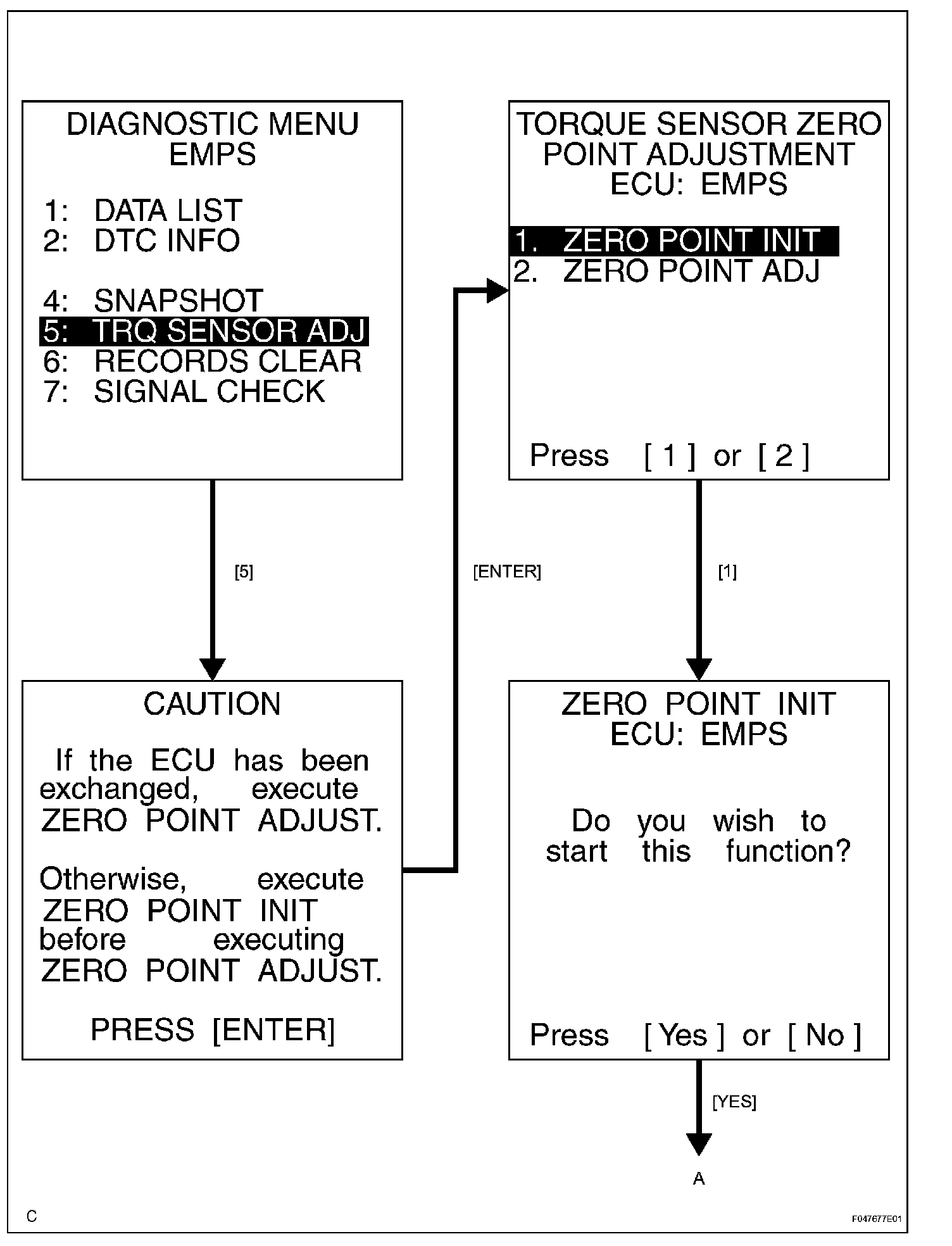

(d) Initialize the torque sensor zero point calibration signal and perform the zero point calibration by following the prompts on the tester screen.
(e) Confirm that no DTCs are output after the zero point calibration is completed.
1. When DTC C1515/15 is output, C1515
2. When DTC C1516/16 is output, C1516
3. When DTC C1534/34 is output, C1534
NOTICE: Do not touch the steering wheel during the calibration.
Part 1:
Part 2:
Part 3:
Part 4:
2. TORQUE SENSOR ZERO POINT CALIBRATION (USING SST CHECK WIRE)
(a) Center the steering wheel and align the front wheels straight ahead.
(b) Initialize the torque sensor zero point calibration signal.
HINT: If the power steering ECU is replaced, initialization is not necessary.
(1) Stop the vehicle and turn the ignition switch off.

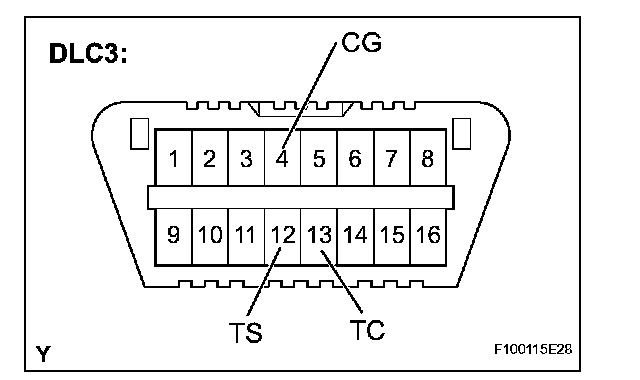

(2) Using SST, connect terminals TS and CG of the DLC3.
SST 09843-18040
(3) Using SST, connect terminals TC and CG of the DLC3.
SST 09843-18040
(4) Turn the ignition switch on.
(5) Disconnect and reconnect terminal TC of the DLC3 20 times or more within 20 seconds.
(6) Check that DTC C1515/15 is output.
(c) Perform the torque sensor zero point calibration.
NOTICE: Do not touch the steering wheel during the calibration.
HINT: Check whether any DTCs except C1515/15 are output.
(1) Stop the vehicle and turn the ignition switch off.
(2) Using SST, connect terminals TS and CG of the DLC3 and turn the ignition switch on.
SST 09843-18040
(3) Wait for 7 seconds after the P/S warning light comes on.

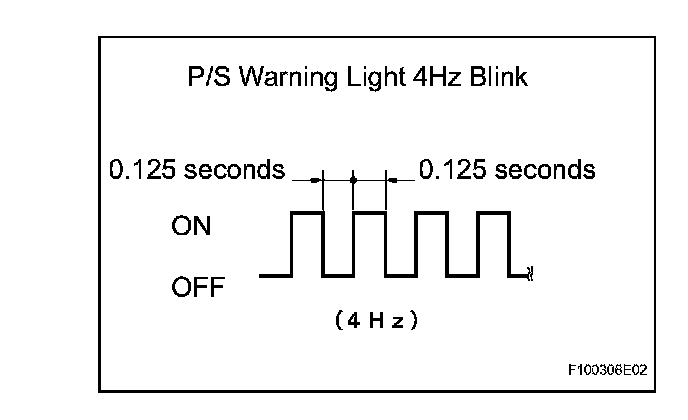

(4) Confirm that the P/S warning light blinks at intervals of 0.125 seconds (4Hz blink).
(5) Disconnect the SST.
SST 09843-18040
(6) Confirm that no DTCs are output.
1. When DTC C1515/15 is output, C1515
2. When DTC C1516/16 is output, C1516
3. When DTC C1534/34 is output, C1534
