Clutch Switch: Service and Repair

CLUTCH START SWITCH

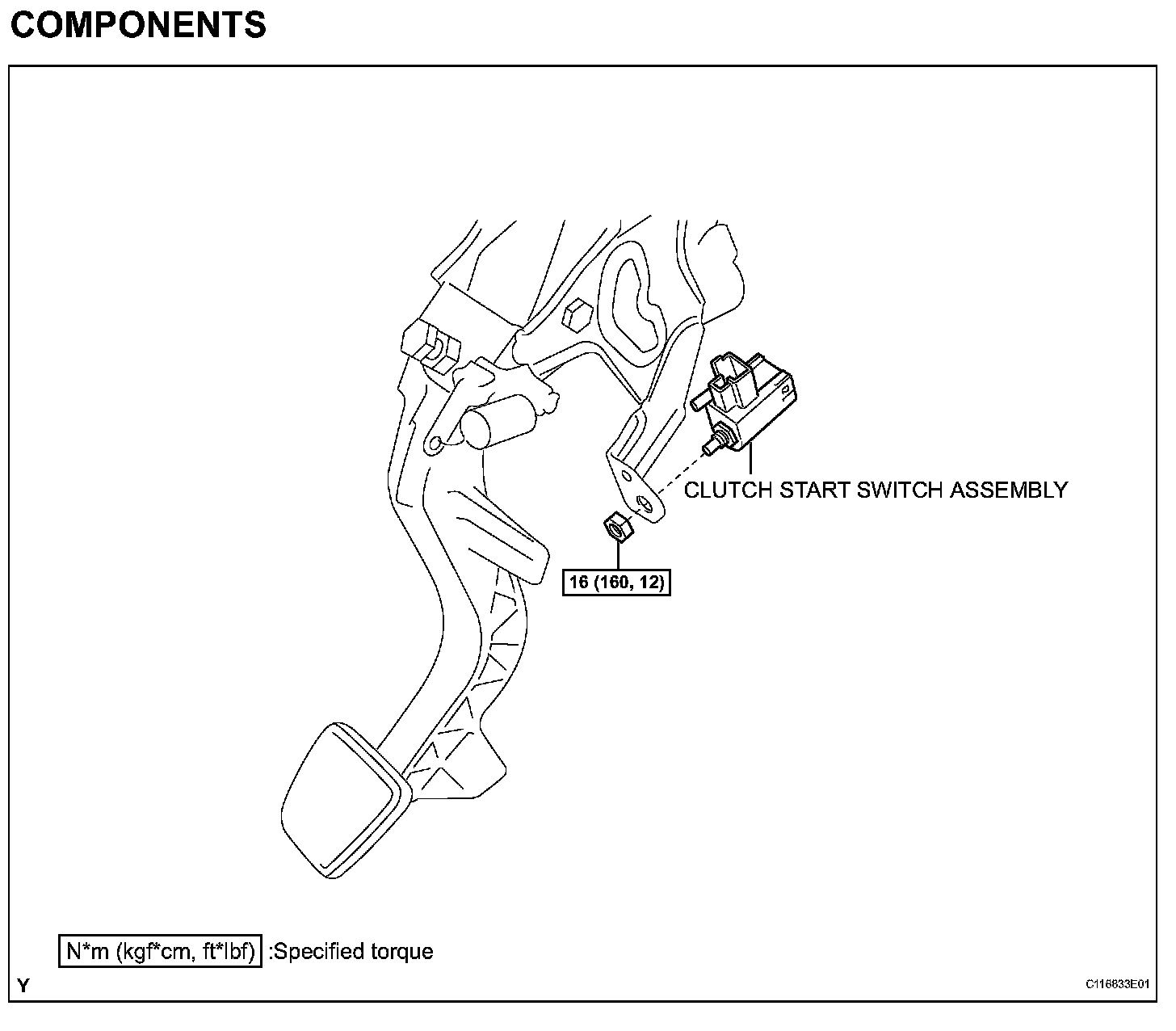

COMPONENTS:

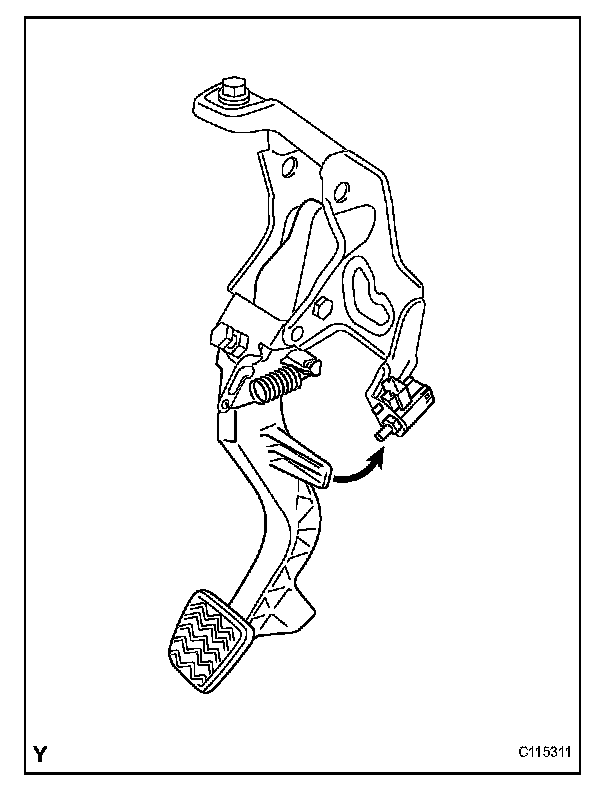

ON-VEHICLE INSPECTION





1. CHECK CLUTCH START SYSTEM
(a) Check that the engine does not start when the clutch pedal is released.
(b) Check that the engine starts when the clutch pedal is fully depressed.
If necessary, replace the clutch start switch assembly.

REMOVAL

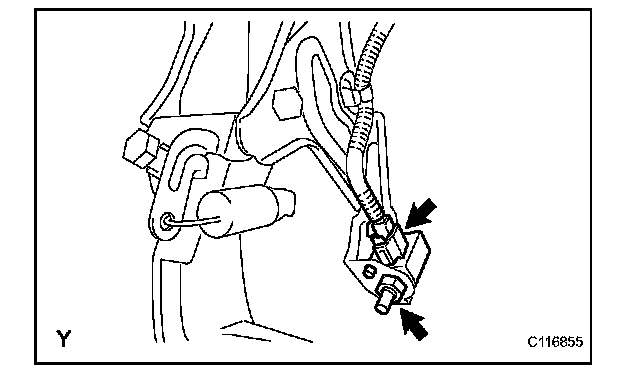

1. REMOVE CLUTCH START SWITCH ASSEMBLY
(a) Disconnect the clutch start switch connector.
(b) Remove the nut and clutch start switch from the bracket.

INSPECTION





1. INSPECT CLUTCH START SWITCH ASSEMBLY
(a) Check the resistance between the terminals when the switch is ON and OFF.

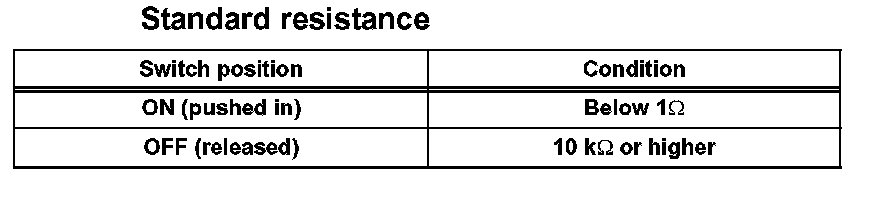

Standard resistance:

INSTALLATION





1. INSTALL CLUTCH START SWITCH ASSEMBLY
(a) Install the clutch start switch with the nut.
Torque: 16 N*m (160 kgf*cm, 12 ft.*lbf)

NOTICE: Insert the protrusion of the clutch start switch into the hole in the clutch pedal support.

(b) Connect the clutch start switch connector.

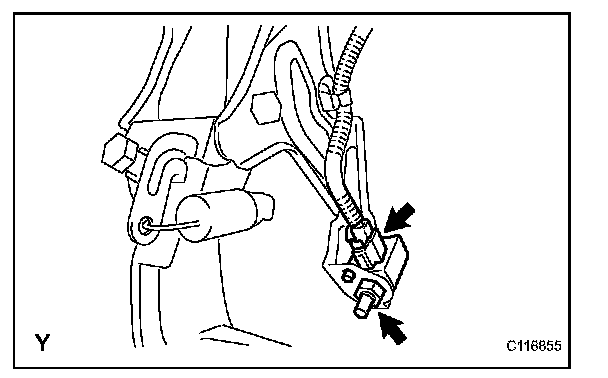

2. INSPECT CLUTCH START SWITCH ASSEMBLY
