Removal and Replacement

Generator:

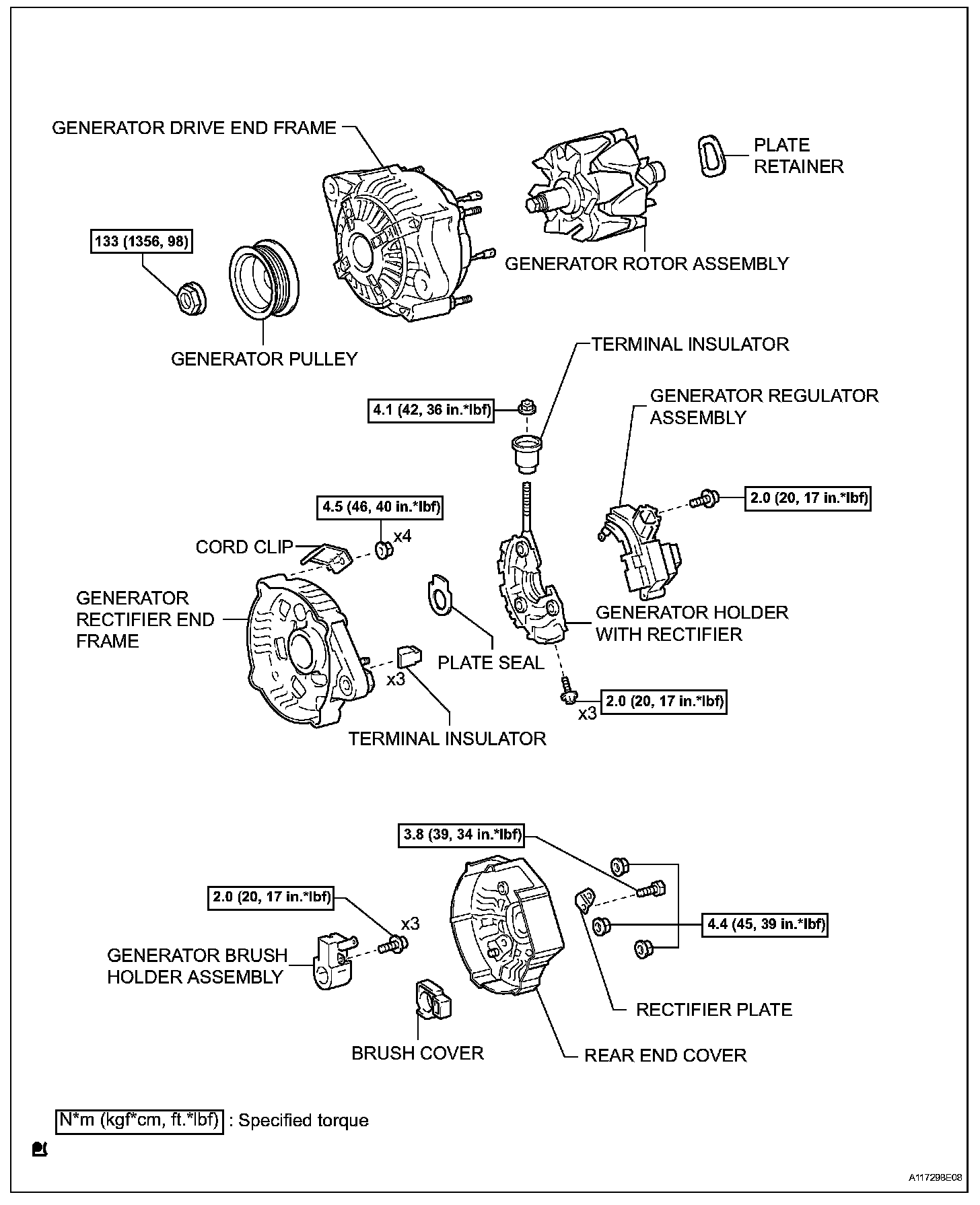

GENERATOR

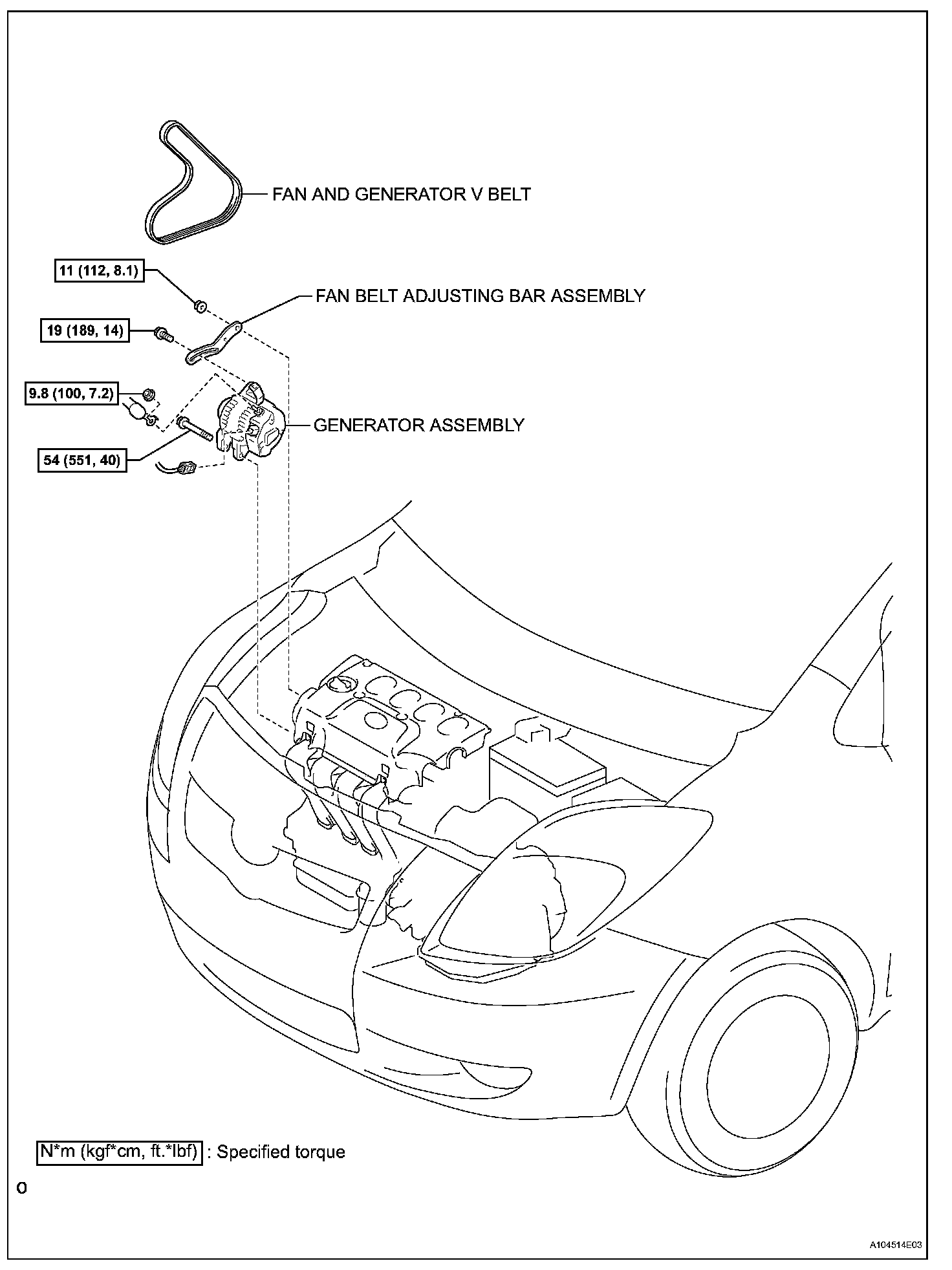

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE ENGINE UNDER COVER RH

3. REMOVE FAN AND GENERATOR V BELT

4. REMOVE GENERATOR ASSEMBLY

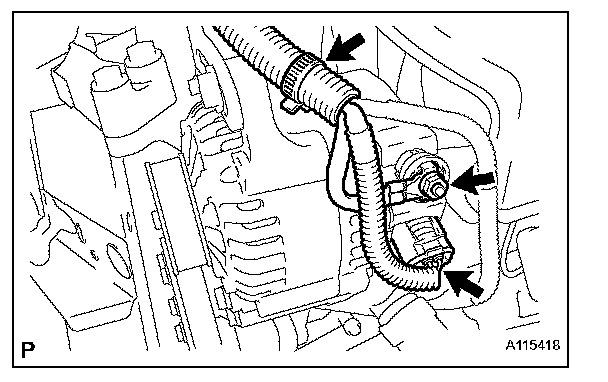

a. Remove the terminal cap.
b. Separate the connector and the harness clamp.
c. Remove the nut and remove terminal B.

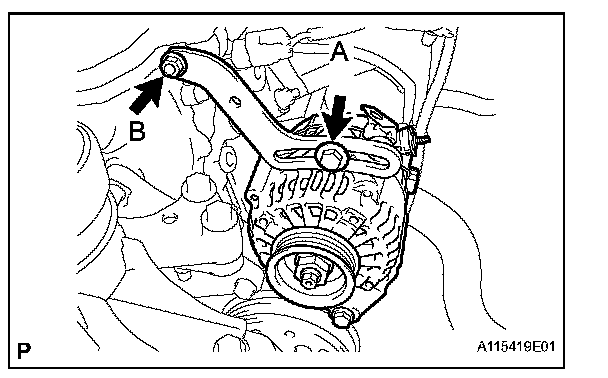

d. Remove fan belt adjusting slider fixing bolts A and and remove the fan belt adjusting slider.

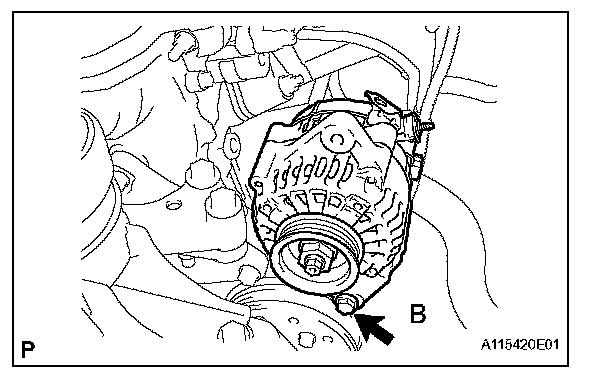

e. Remove fixing bolt B and remove the generator.

INSTALLATION

1. INSTALL GENERATOR ASSEMBLY

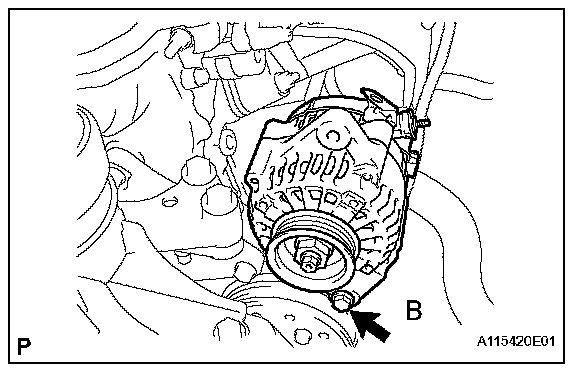

a. Provisionally install the generator with fixing bolt B.

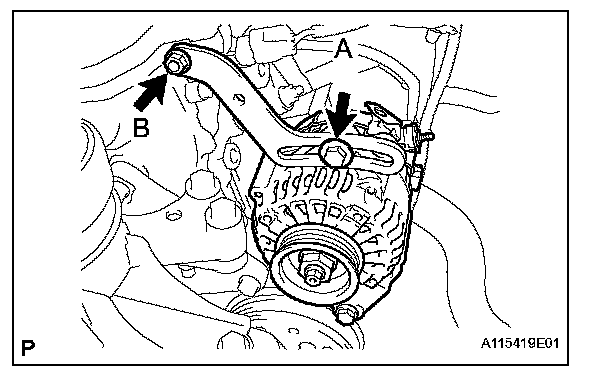

b. Provisionally install the fan belt adjusting slider with fan belt adjusting slider fixing bolts A and B, then move the generator toward the cylinder block and tighten bolt B.

Torque: 11 N.m (112 kgf.cm, 8.1 ft.lbf)

c. Install the connector and the wire harness clamp.
d. Install terminal B with the nut.

Torque: 9.8 N.m (100 kgf.cm, 7.2 ft.lbf)

e. Install the terminal cap.

2. INSTALL FAN AND GENERATOR V BELT

3. ADJUST FAN AND GENERATOR V BELT

4. INSPECT FAN AND GENERATOR V BELT

5. INSTALL ENGINE UNDER COVER RH

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
