Flywheel

FLYWHEEL

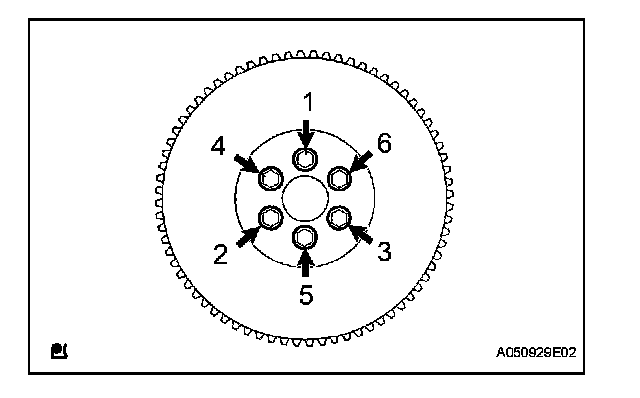

Install the flywheel with the 6 bolts in the order shown in the illustration.
Torque 49 N*m (500 kgf*cm, 38 ft.*lbf)

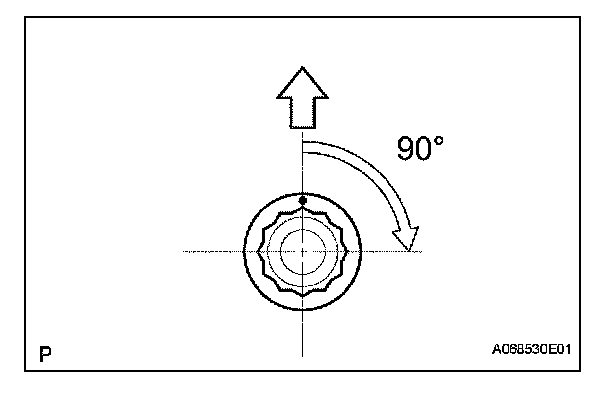

Mark a paint mark on each bolt head on the engine upper side.





Tighten the bolts 90° in the sequence shown in the illustration.
