Component Tightening Specifications and Sequences

CYLINDER HEAD





Using several steps, install and tighten the 10 cylinder head bolts and plate washers uniformly with an 8 mm bi-hexagon wrench, in the sequence shown in the illustration.
Torque 29 N*m (300 kgf*cm, 22 ft.*lbf)





Retighten the cylinder head bolts 90° and then an additional by 90° as shown in the illustration.
Check that the paint mark is now at a 180° angle from the front.


INTAKE MANIFOLD





Provisionally tighten the intake manifold nuts and bolts in the order shown in the illustration, and then tighten them to the specified torque.
Torque 30 N*m (306 kgf*cm, 22 ft.*lbf)


CAMSHAFT BEARING CAP





Uniformly tighten the bolts in several steps in the sequence shown in the illustration and install camshaft bearing cap No. 1 and camshaft bearing cap No. 2.
Torque: Camshaft bearing cap No. 1 23 N*m (235 kgf*cm, 17 ft.*lbf)
Camshaft bearing cap No. 2 13 N*m (129 kgf*cm, 9.4 ft.*lbf)


MAIN BEARING CAP





Using SST, tighten the bolts in several steps to the specified torque in the sequence shown in the illustration (*1).
SST 09011-38121
Torque 22 N*m (224 kgf*cm, 16 ft.*lbf)





Mark the front of the bearing cap bolts with paint.
Retighten the bearing cap bolts by 90° in the same sequence as step (*1).
Check that the painted mark is now at a 90° angle from the front.


CONNECTION ROD BEARING CAP
Using SST, tighten the bolts in several steps to the specified torque.
SST 09205-16010
Torque 15 N*m (153 kgf*cm, 11 ft.*lbf)





Mark the front of the connecting cap bolts with paint.
Retighten the cap bolts by 90° as shown.


FLYWHEEL





Install the flywheel with the 6 bolts in the order shown in the illustration.
Torque 49 N*m (500 kgf*cm, 38 ft.*lbf)
Mark a paint mark on each bolt head on the engine upper side.





Tighten the bolts 90° in the sequence shown in the illustration.


DRIVE PLATE





Install and uniformly tighten the 6 bolts in several steps, in the sequence shown in the illustration.
Torque 88 N*m (900 kgf*cm, 65 ft.*lbf)


OIL PUMP

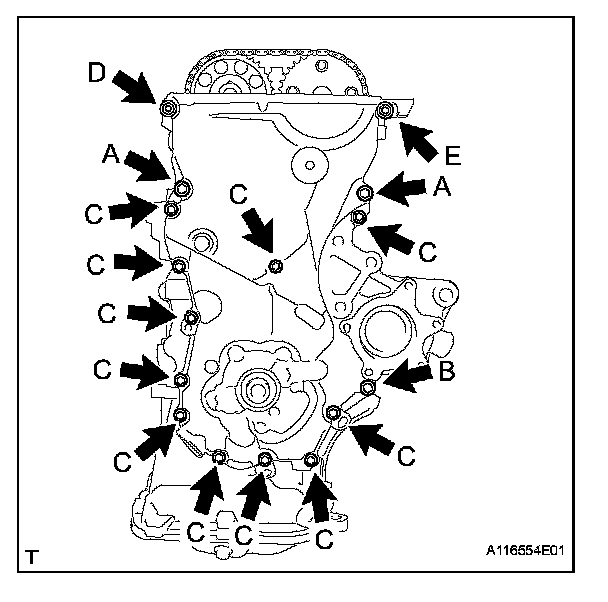

Install the oil pump assembly with the 15 bolts and nut. Tighten the bolts and nut uniformly in several steps.
Torque for bolt A 32 N*m (326 kgf*cm, 24 ft.*lbf)
Torque for bolt B 11 N*m (112 kgf*cm, 8.1 ft.*lbf)
Torque for bolt C 11 N*m (112 kgf*cm, 8.1 ft.*lbf)
Torque for nut D 24 N*m (245 kgf*cm, 18 ft.*lbf)
Torque for bolt E 24 N*m (245 kgf*cm, 18 ft.*lbf)


EXHAUST MANIFOLD





Tighten the exhaust manifold nuts and bolts, in the order shown in the illustration, through a new gasket.
Torque 27 N*m (275 kgf*cm, 20 ft.*lbf)


WATER PUMP
Install the water pump and a new gasket with the 3 bolts and 2 nuts.
Torque 11 N*m (112 kgf*cm, 8.1 ft.*lbf)
