Front Seat Inner Belt Assembly (For Hatchback)

INSPECTION

1. INSPECT FRONT SEAT INNER BELT ASSEMBLY







a. for Driver Side:
1. Check the resistance.

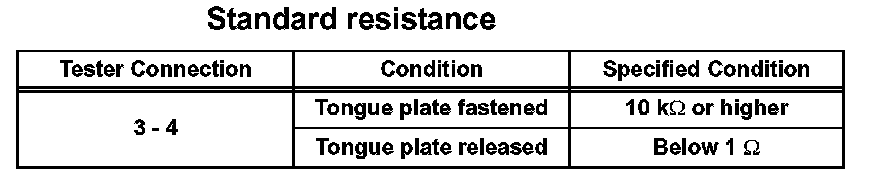

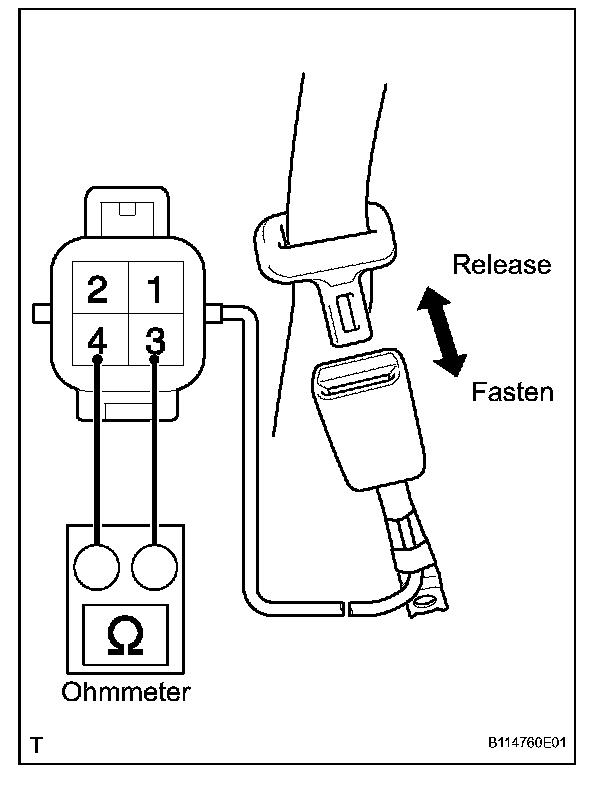

1. Using an ohmmeter, measure the resistance between the terminals.

If the result is not as specified, replace the front seat inner belt.







b. for Front Passenger Side:
1. Check the resistance.

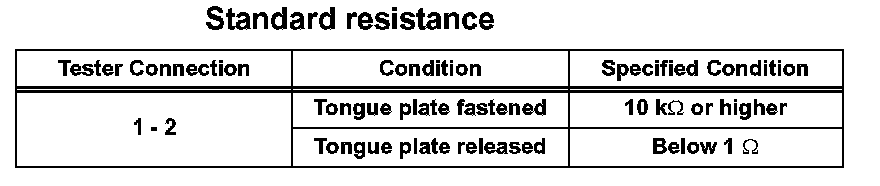

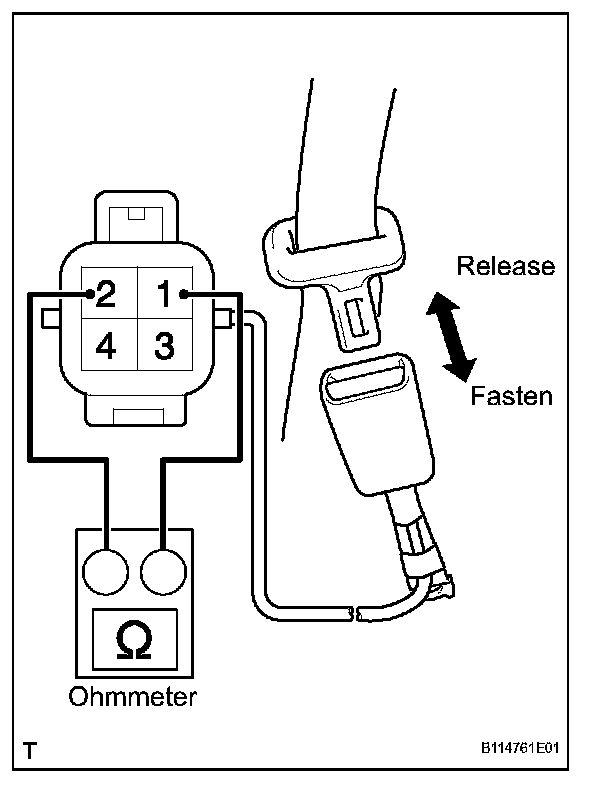

1. Using an ohmmeter, measure the resistance between the terminals.

If the result is not as specified, replace the front seat inner belt.
