Child Restraint: Service and Repair

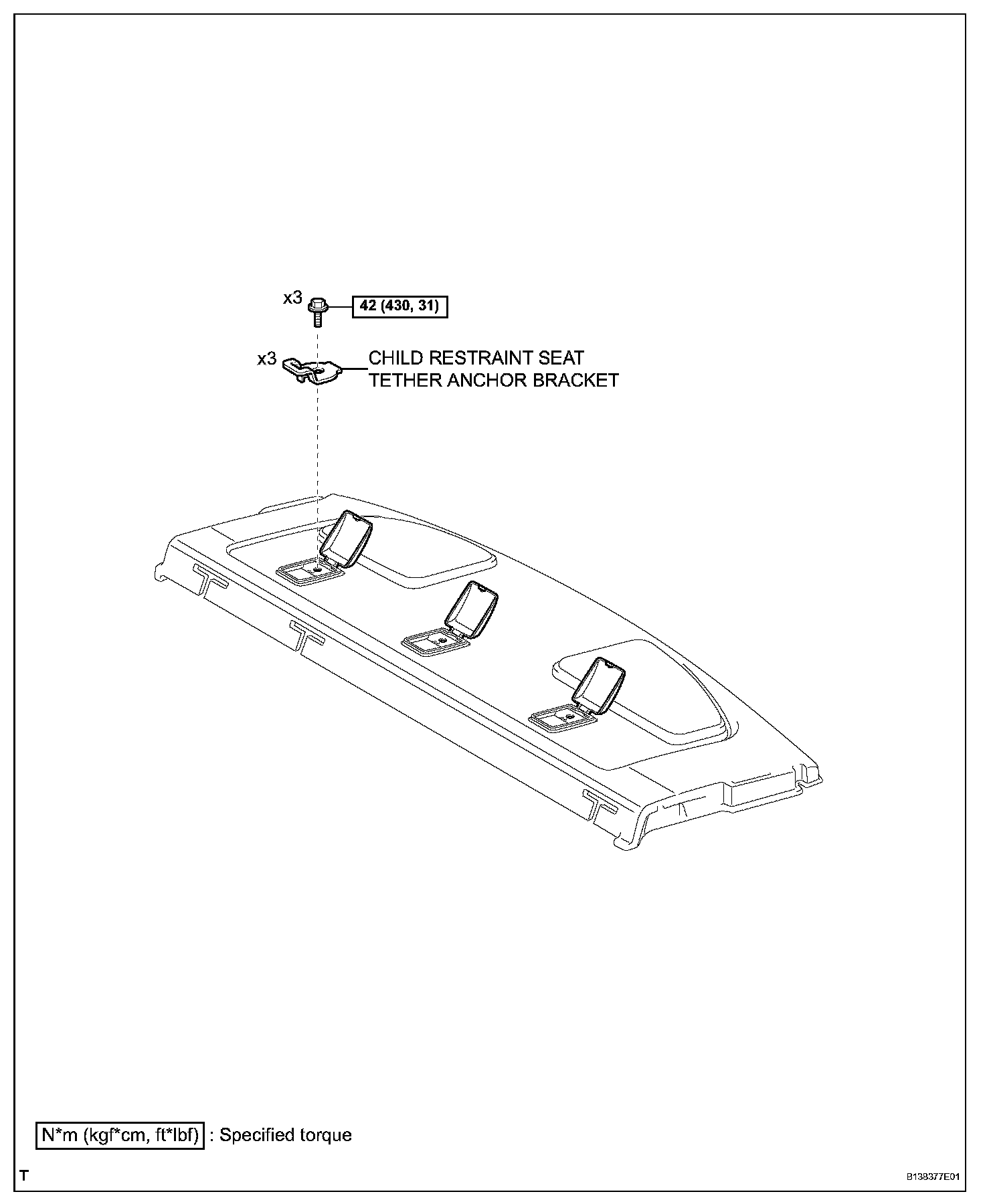

Child Restraint Seat Anchor Bracket (for Sedan):

REMOVAL

1. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET






HINT: Use the same procedure to remove all the child restraint seat tether anchor brackets.

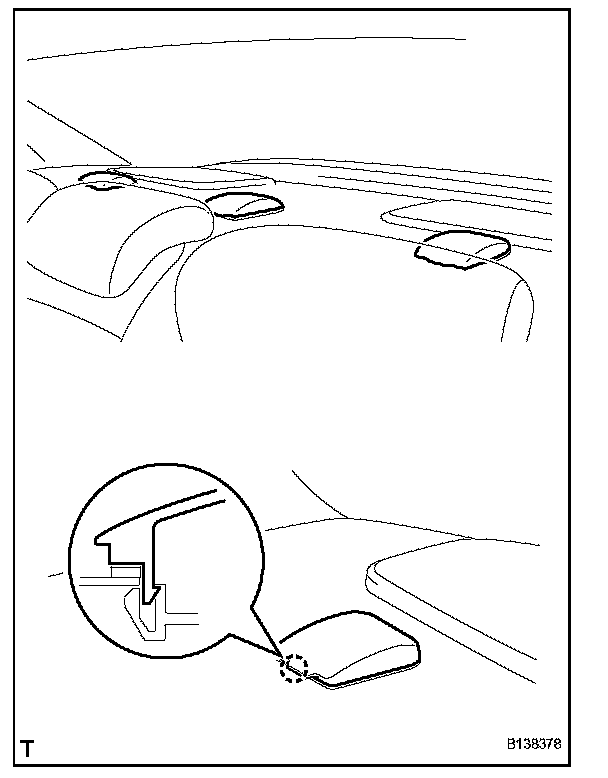

a. Disengage the claw and open the package tray trim cover.

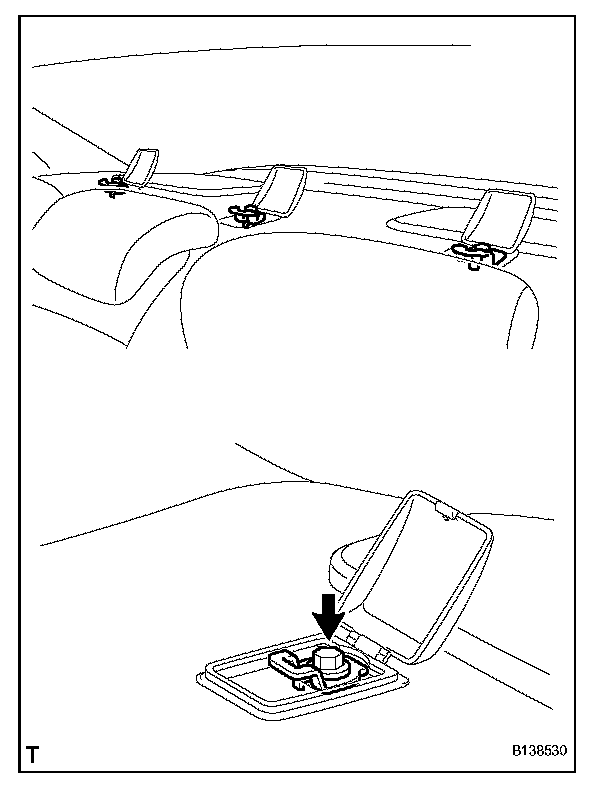

b. Remove the bolt and the child restraint seat tether anchor bracket.

INSTALLATION

1. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET






HINT: Use the same procedure to install all the child restraint seat tether anchor brackets.

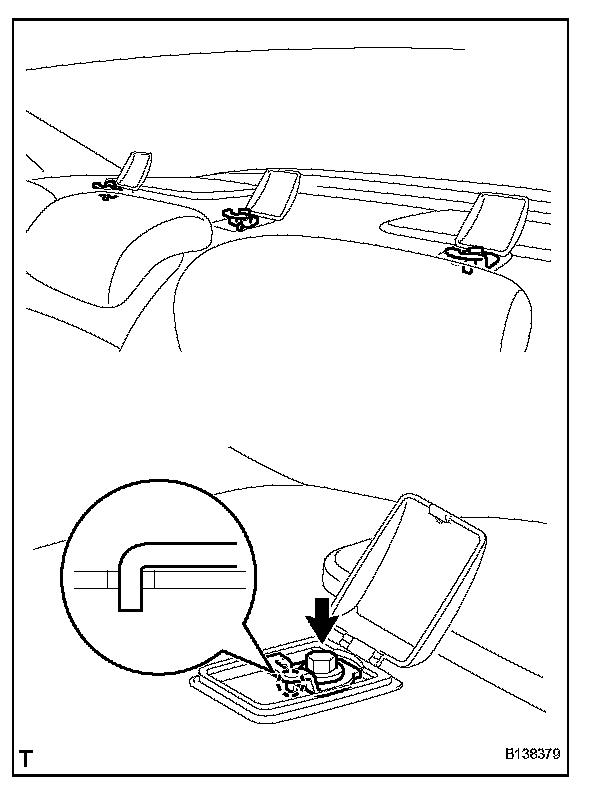

a. Insert the hook into the body hole and install the child restraint seat tether anchor bracket with the bolt.

Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

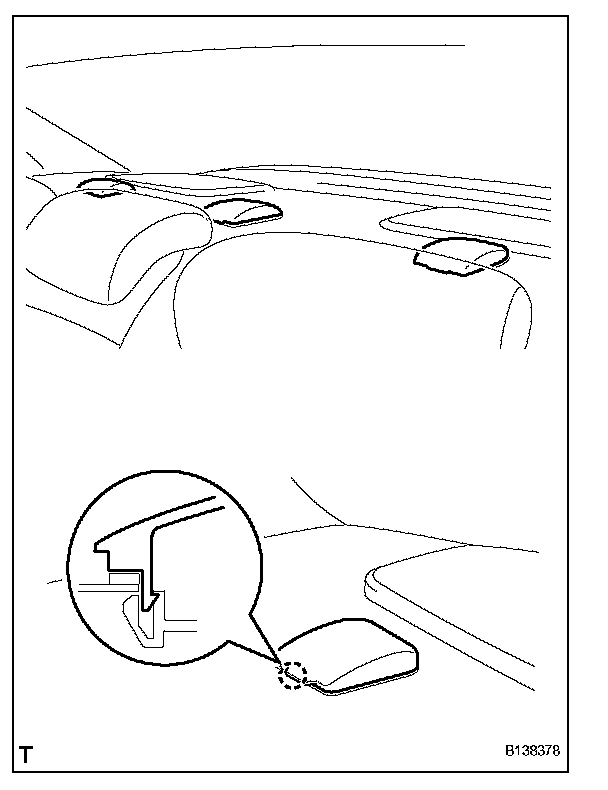

b. Engage the claw and close the package tray rim cover.
