System Description

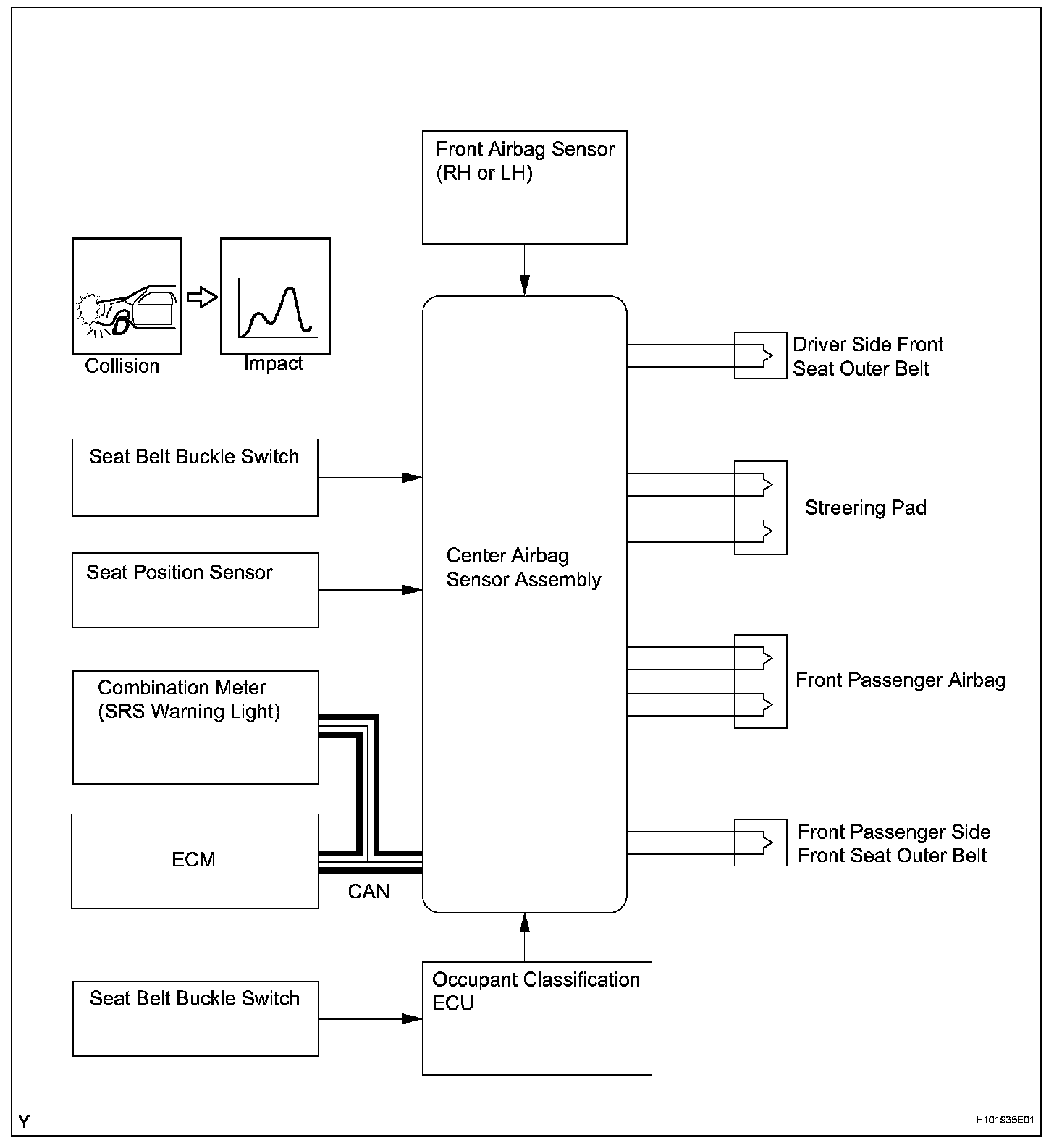

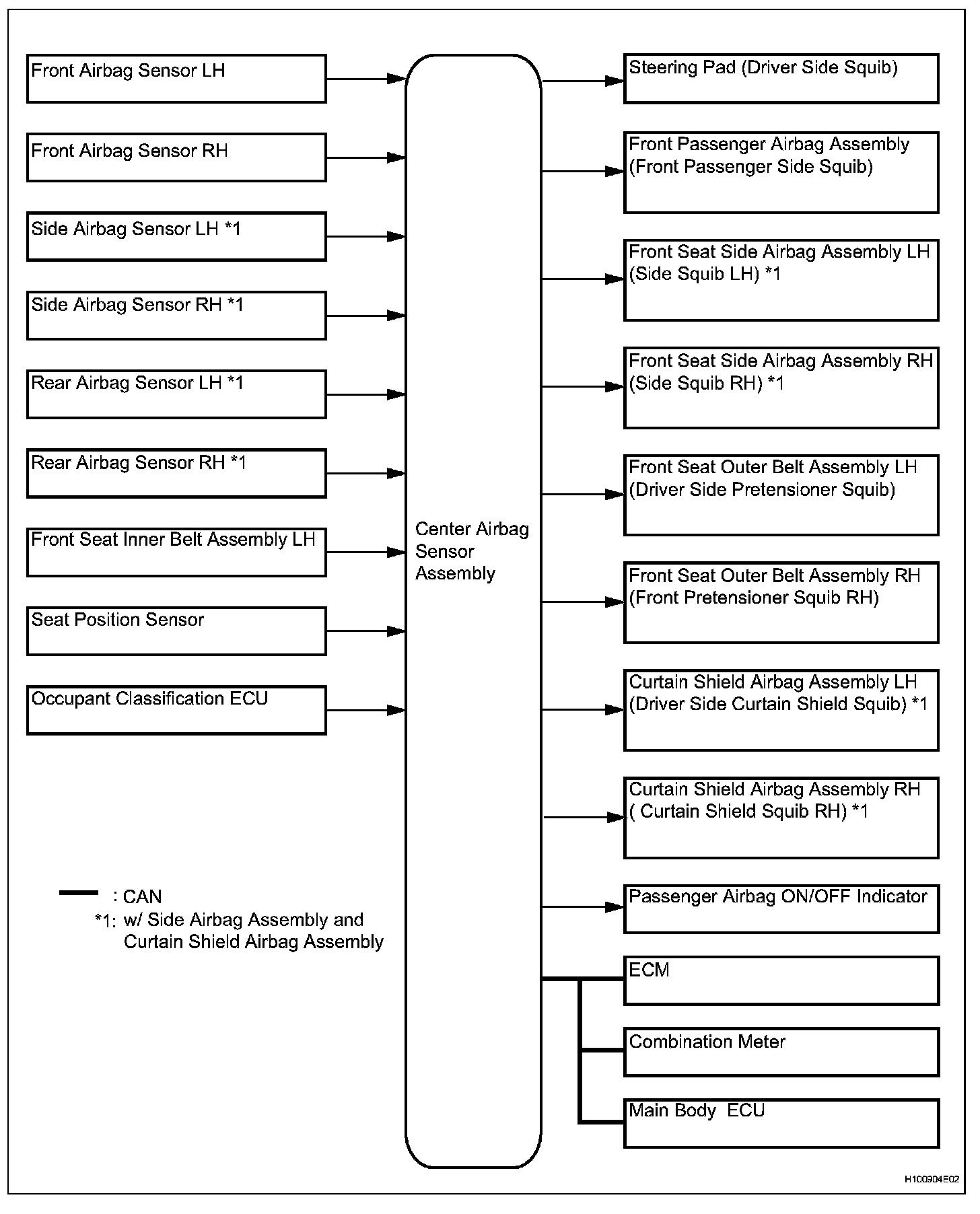

System Diagram:

SYSTEM DESCRIPTION

1. GENERAL




a. Airbag for Frontal Collision
1. The dual-stage SRS driver and front passenger airbags deploy simultaneously in the event of a frontal impact collision as supplements to the seat belts. The dual-stage SRS airbag system controls the airbag inflation output by judging the extent of the impact the seat position and whether the seat belt is fastened.

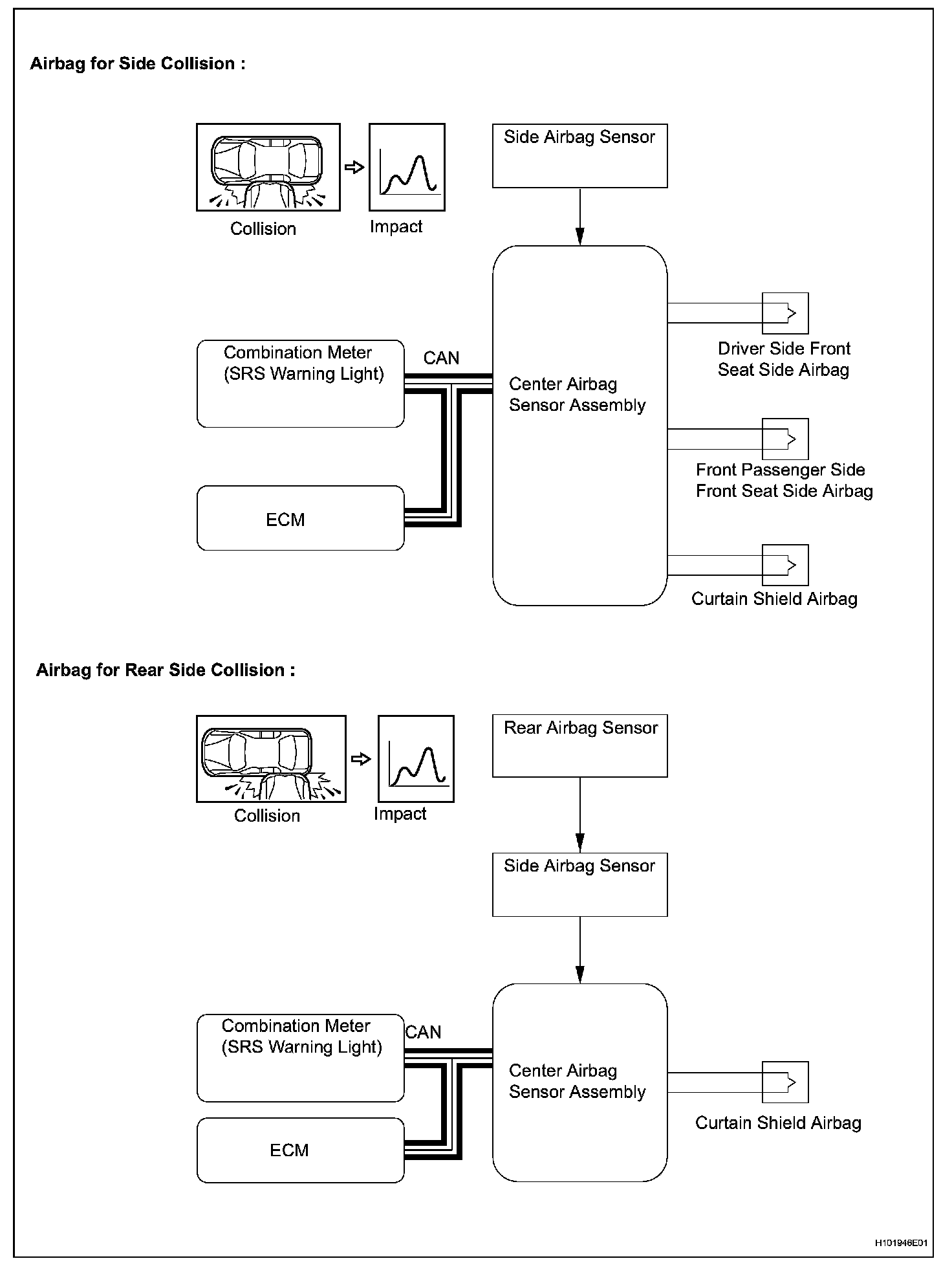

b. Airbag for Side/Rear Side Collision
1. SRS side and curtain shield airbags deploy simultaneously in the event of a side collision. Only the curtain shield airbag deploys in the event of a rear side collision.

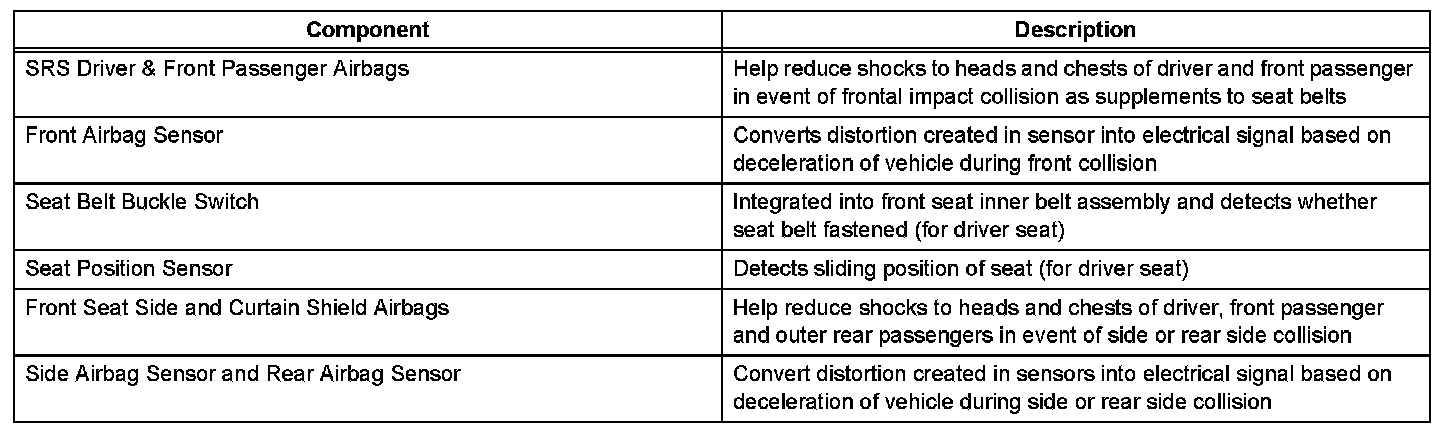

2. MAIN COMPONENTS
