FRONT PASSENGER AIRBAG ASSEMBLY (for Hatchback)

REMOVAL

CAUTION: Some of these service operations affect the SRS airbag system. Refer to Restraint Systems Service Precautions before servicing.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

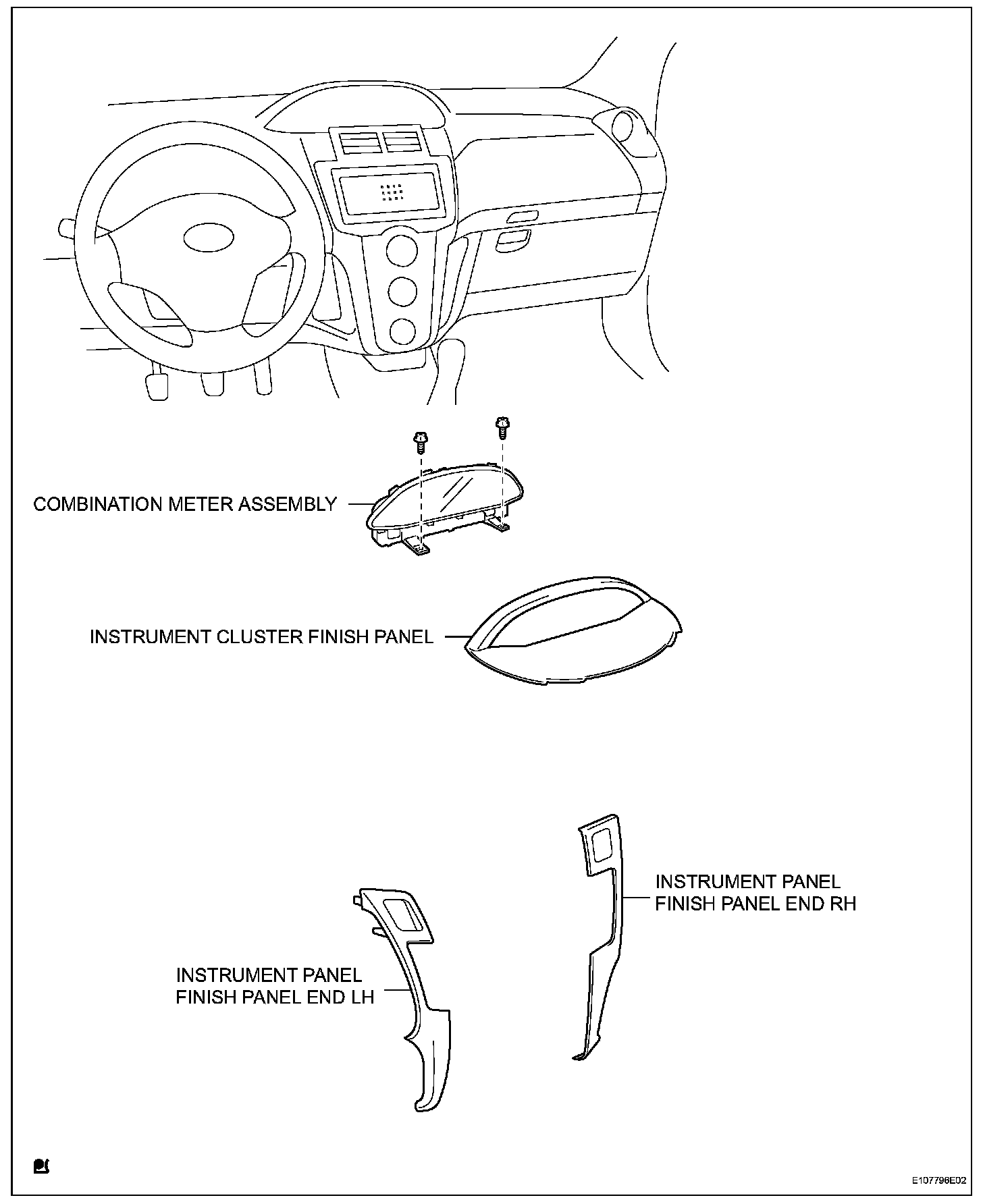

2. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
4. REMOVE INSTRUMENT CLUSTER FINISH PANEL
5. REMOVE COMBINATION METER ASSEMBLY
6. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
7. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

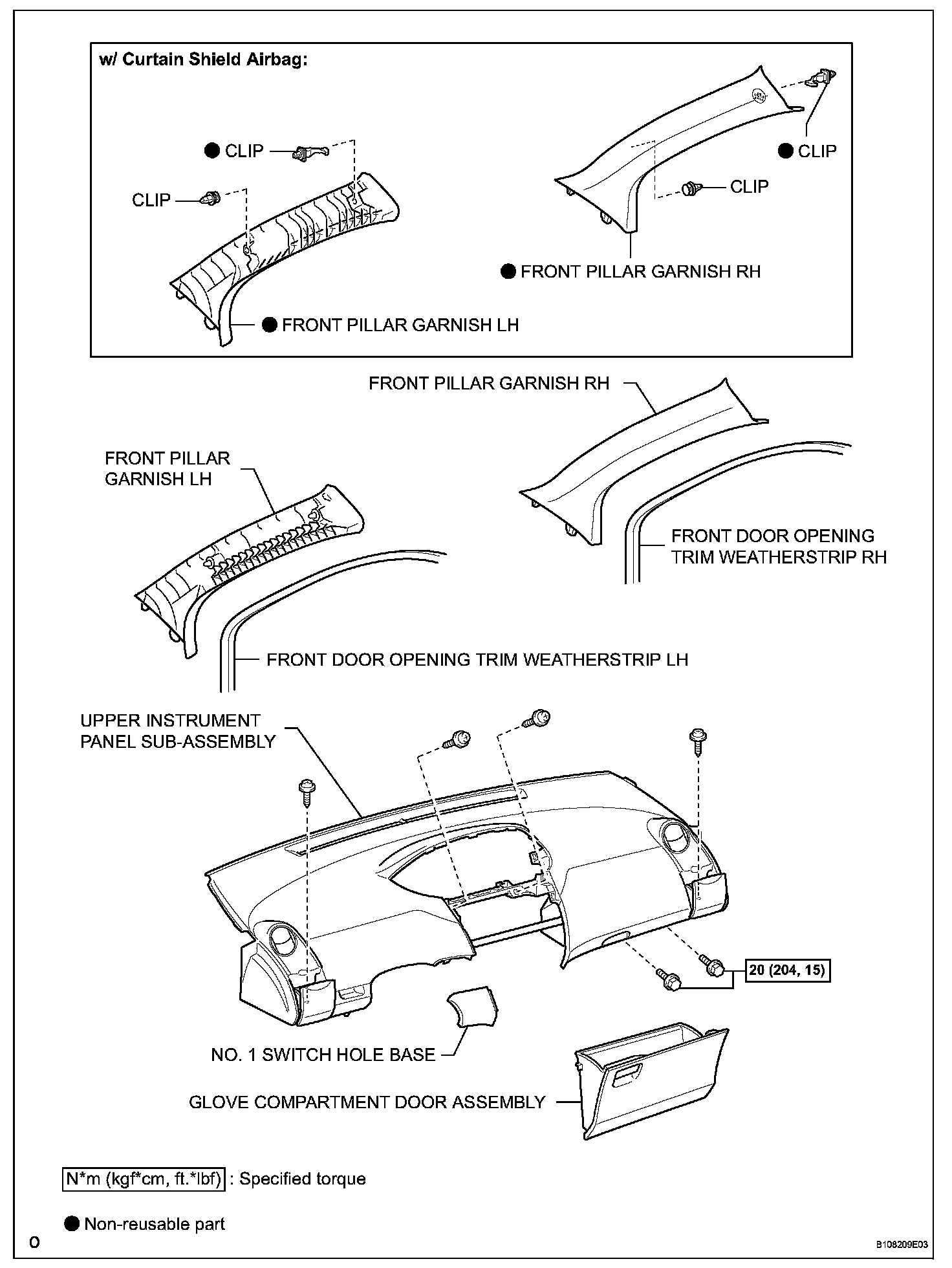

8. REMOVE FRONT PILLAR GARNISH RH
9. REMOVE FRONT PILLAR GARNISH LH
10. REMOVE NO.1 SWITCH HOLE BASE
11. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
12. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY

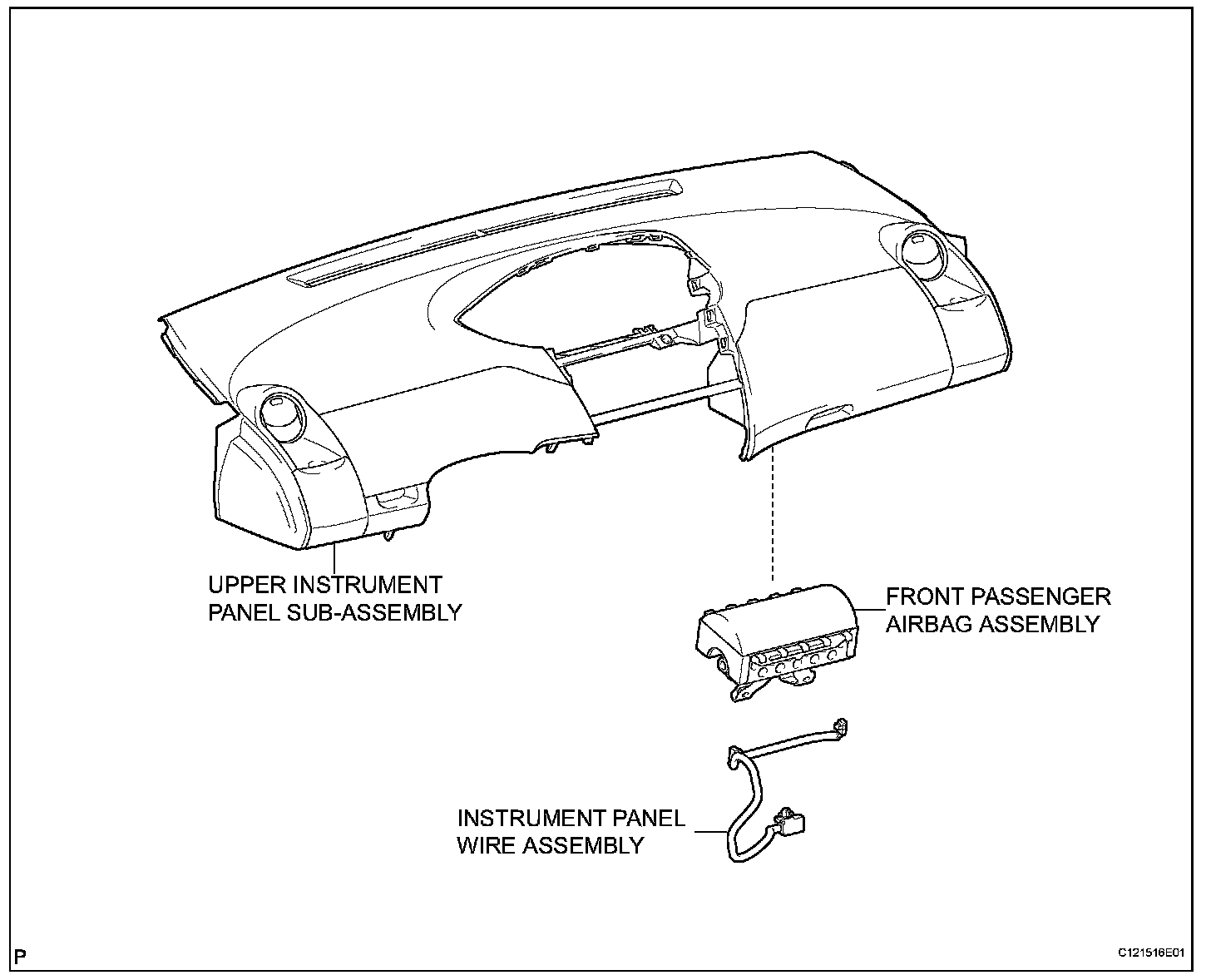

13. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY
a. Remove the wire harness from the 2 claws of the instrument panel.
b. Disengage the 10 hooks and remove the instrument panel passenger airbag.

14. REMOVE INSTRUMENT PANEL WIRE ASSEMBLY

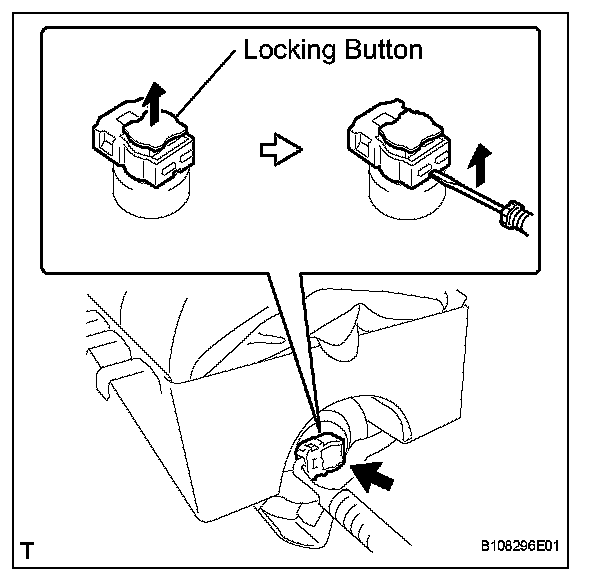

a. Using a thin-bladed screwdriver release the locking button.
b. Using a thin-bladed screwdriver disconnect the 2 airbag connectors and remove the instrument panel wire assembly.

INSTALLATION

CAUTION: Some of these service operations affect the SRS airbag system. Refer to Restraint Systems Service Precautions before servicing.

1. INSTALL INSTRUMENT PANEL WIRE ASSEMBLY
a. Connect the airbag connector to install the instrument panel wire.

NOTE:
- Match the color of the connector of the instrument panel wire assembly with that of the connector of the front passenger assembly and install the airbag connector.

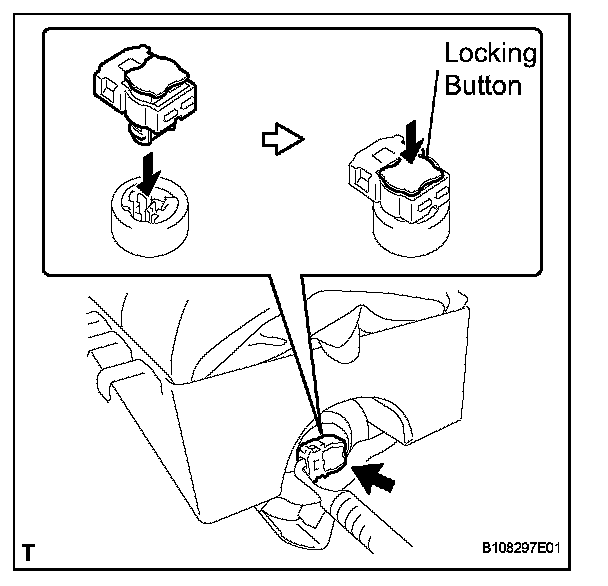

- Lock the locking button securely.

2. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY

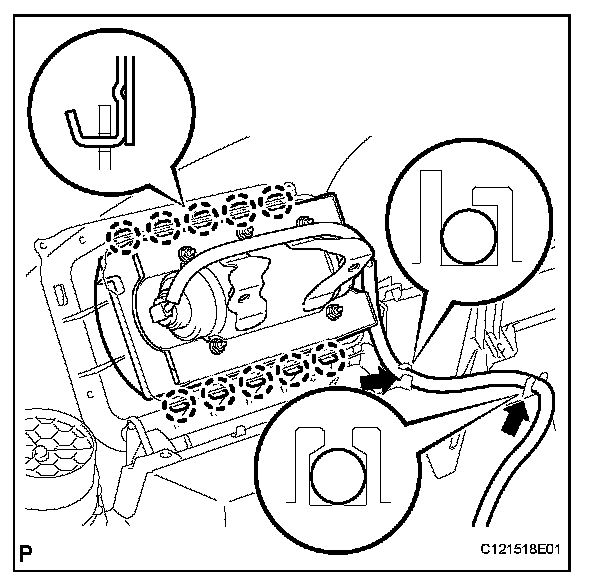

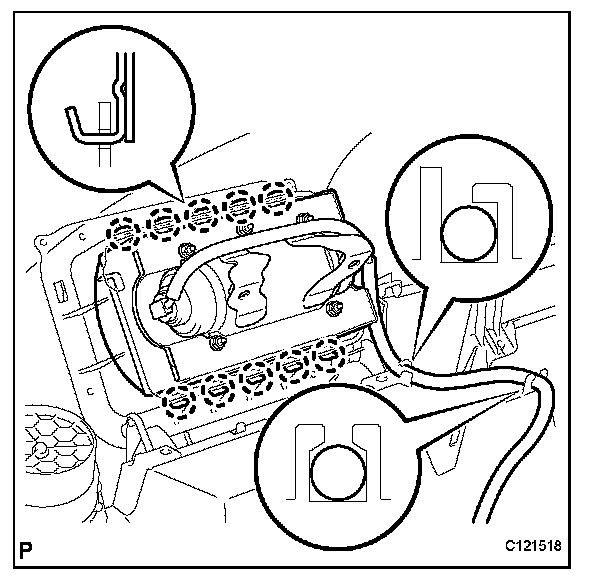

a. Engage the 10 hooks so that the connector side faces the outside of the vehicle and install the instrument panel passenger airbag.
b. Install the wire harness onto the 2 claws of the instrument panel.

3. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY
4. INSTALL FRONT PILLAR GARNISH RH
5. INSTALL FRONT PILLAR GARNISH LH
6. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
7. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
8. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
9. INSTALL NO.1 SWITCH HOLE BASE
10. INSTALL COMBINATION METER ASSEMBLY
11. INSTALL INSTRUMENT CLUSTER FINISH PANEL
12. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
13. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

15. INSPECT SRS WARNING LIGHT
