Horn Relay (For Hatchback)

Horn Relay (for Hatchback):

HORN RELAY (for Hatchback)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL




2. REMOVE NO. 1 RELAY BLOCK COVER

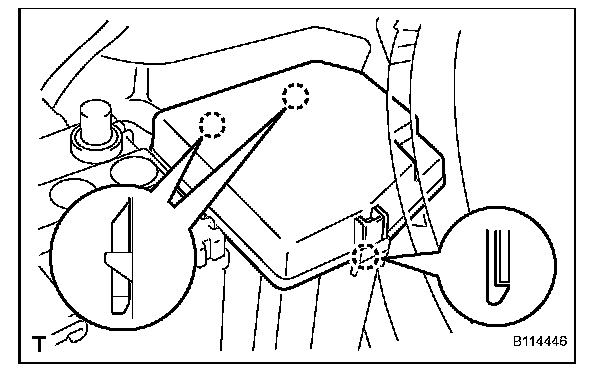

a. Disengage the 3 claws and remove the No. 1 relay block cover.

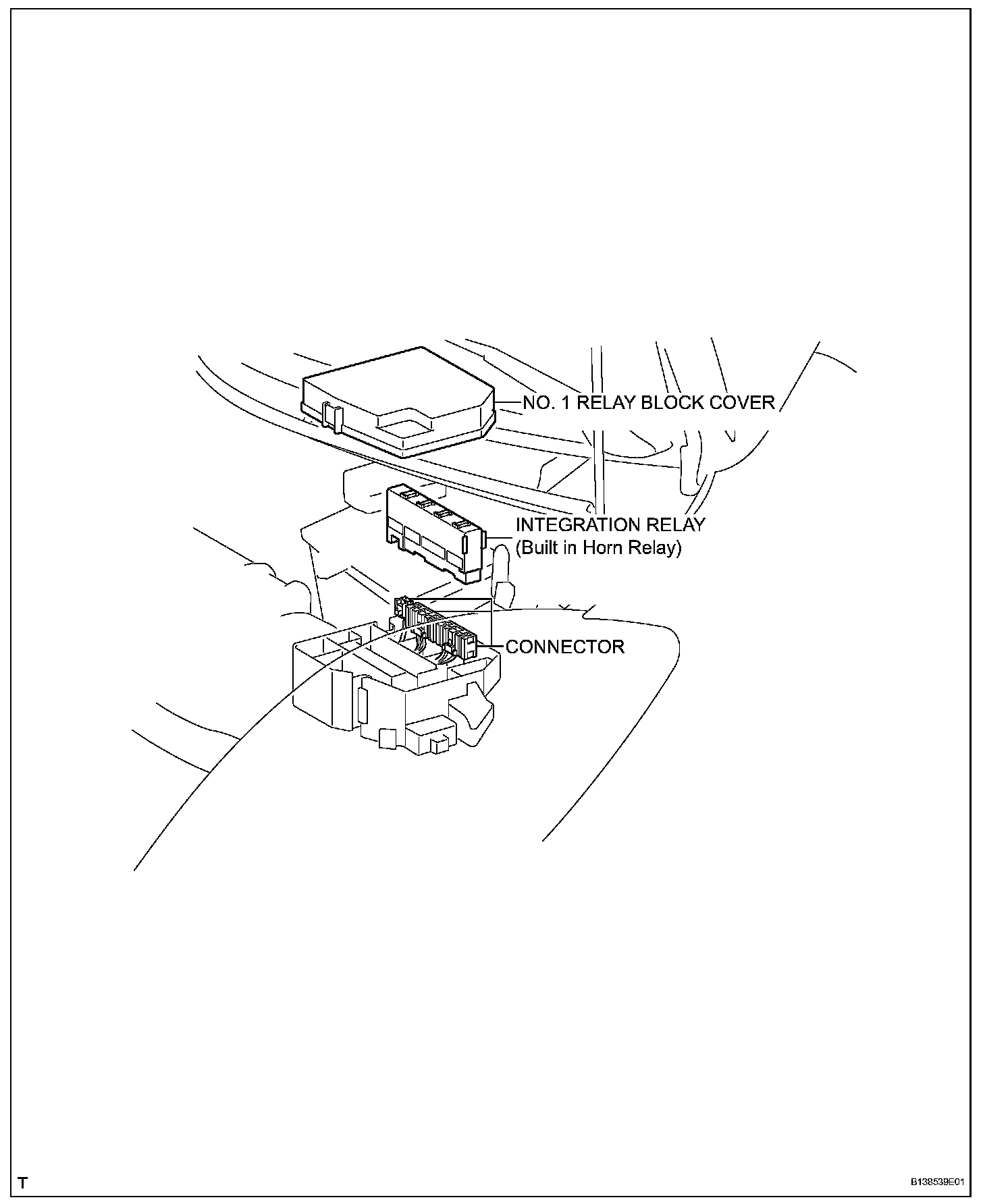

3. REMOVE INTEGRATION RELAY (Built in Horn Relay)

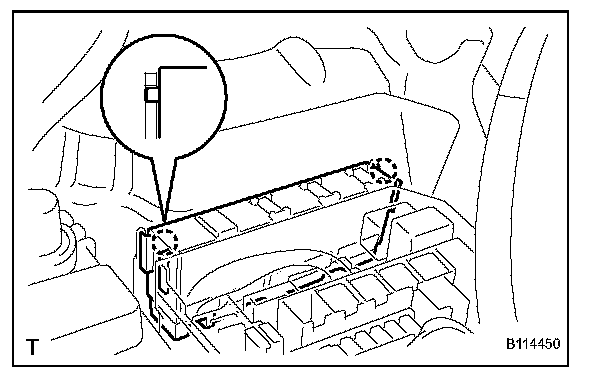

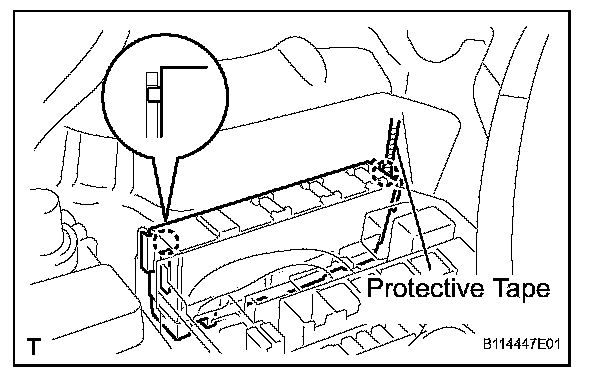

a. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the integration relay.

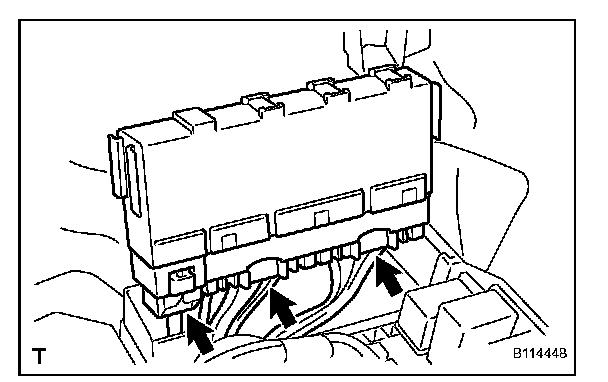

b. Disconnect the 3 connectors.

INSTALLATION




1. INSTALL INTEGRATION RELAY (Built in Horn Relay)

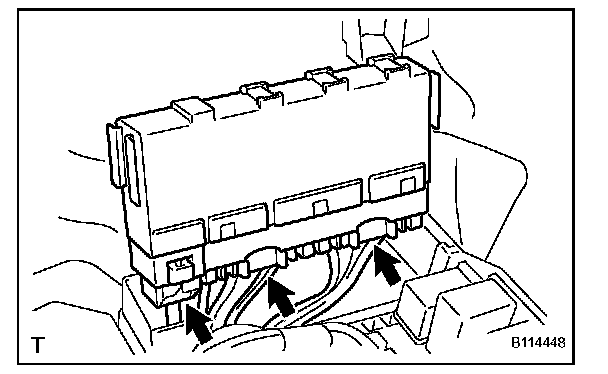

a. Connect the 3 connectors.




b. Engage the 2 claws and install the integration relay.




2. INSTALL NO. 1 RELAY BLOCK COVER

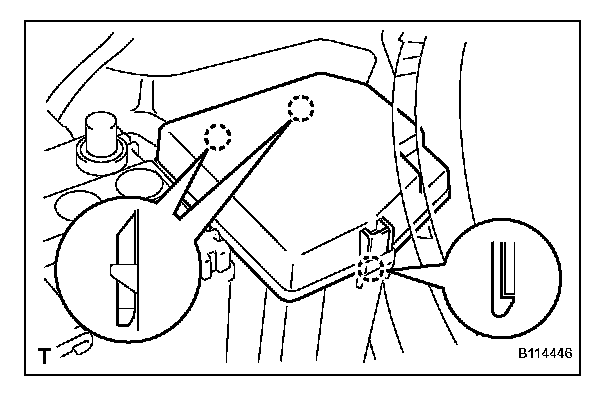

a. Engage the 3 claws and install the No. 1 relay block cover.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
