Headlamp Relay: Testing and Inspection

HEADLIGHT RELAY

ON-VEHICLE INSPECTION




1. INSPECT HEADLIGHT RELAY
a. Check the resistance.

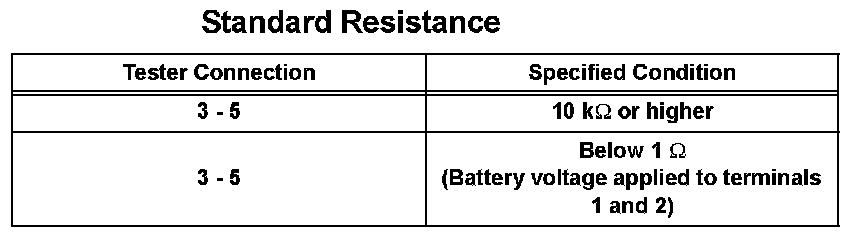

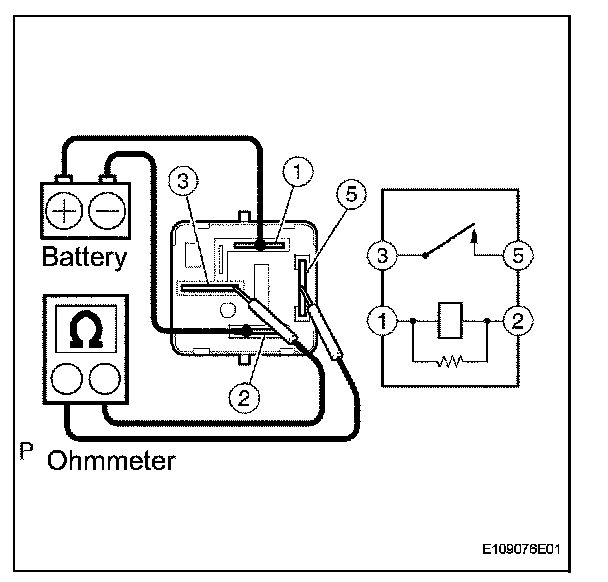

1. Using an ohmmeter, measure the resistance between the terminals.

If the result is not as specified, replace the headlight relay.
