Fog Light Relay (For Sedan)
INSPECTION

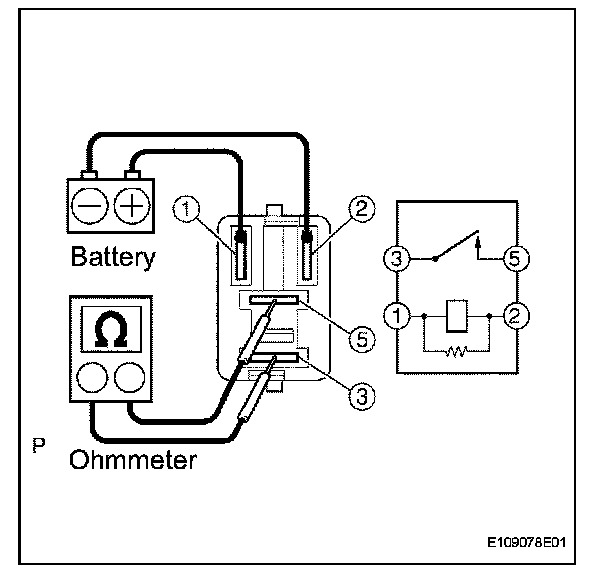

1. INSPECT FOG LIGHT RELAY

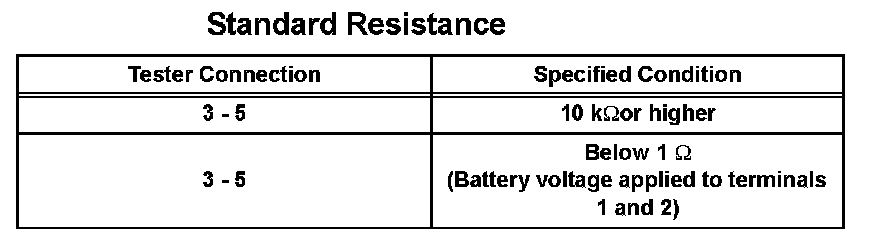

a. Check the resistance.
1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the fog light relay.
1. INSPECT FOG LIGHT RELAY
a. Check the resistance.
1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the fog light relay.
