Fog Light Relay (For Sedan)

Fog Light Relay (for Sedan):

FOG LIGHT RELAY (for Sedan)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

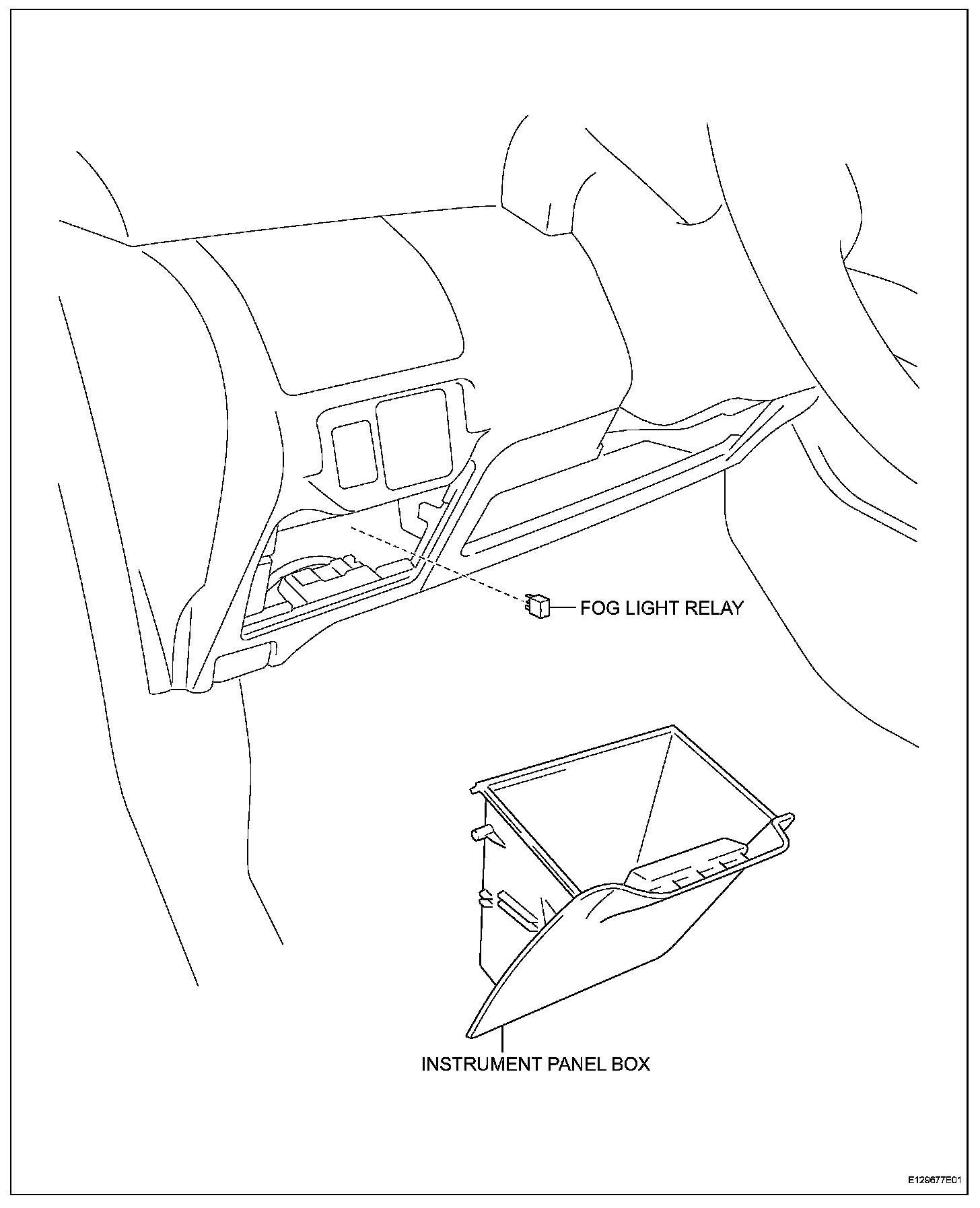

2. REMOVE INSTRUMENT PANEL BOX




3. REMOVE FOG LIGHT RELAY

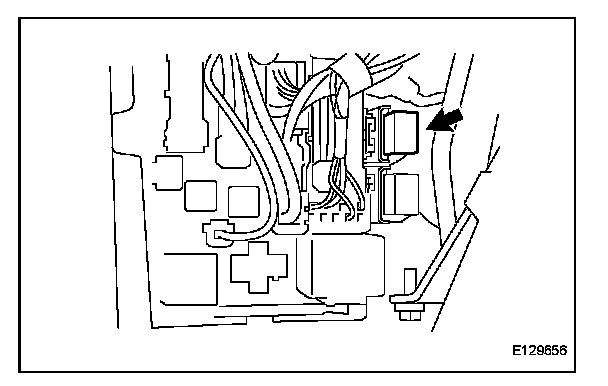

a. Remove the fog light relay.

INSTALLATION




1. INSTALL FOG LIGHT RELAY

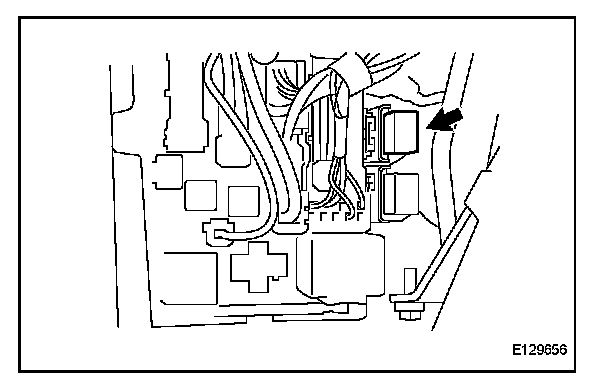

a. Install the fog light relay.

2. INSTALL INSTRUMENT PANEL BOX

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
