Transmission Revolution Sensor Inspection
INSPECTION
1.
INSPECT TRANSMISSION REVOLUTION SENSOR
(a)

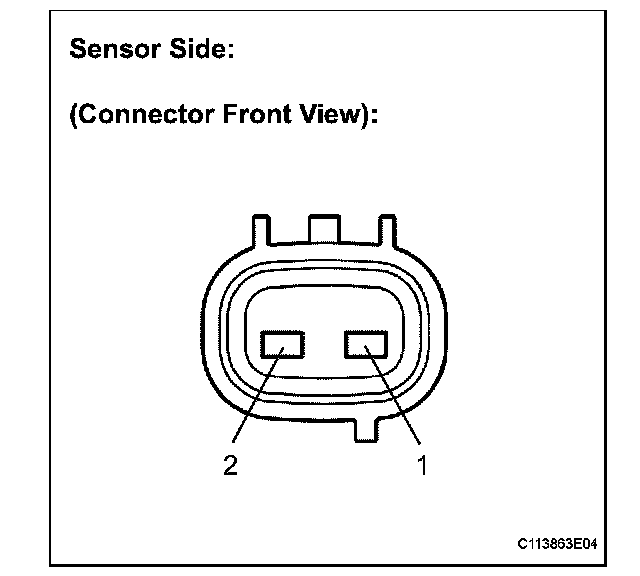

Measure the resistance.

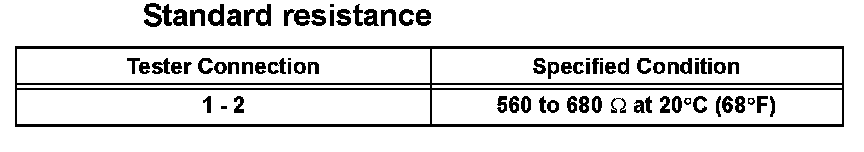

Standard resistance:
