Powertrain Management: Locations

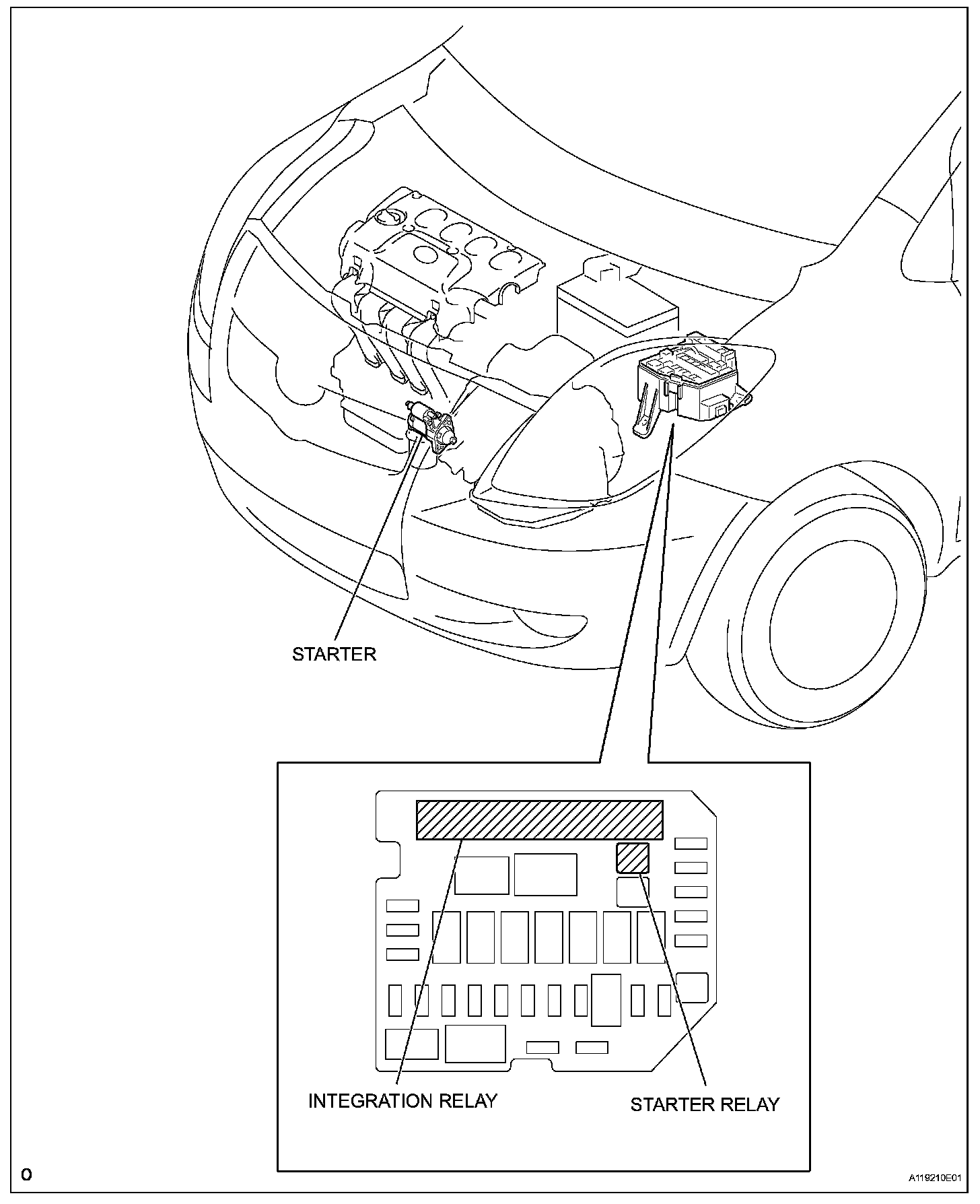

SFI System:

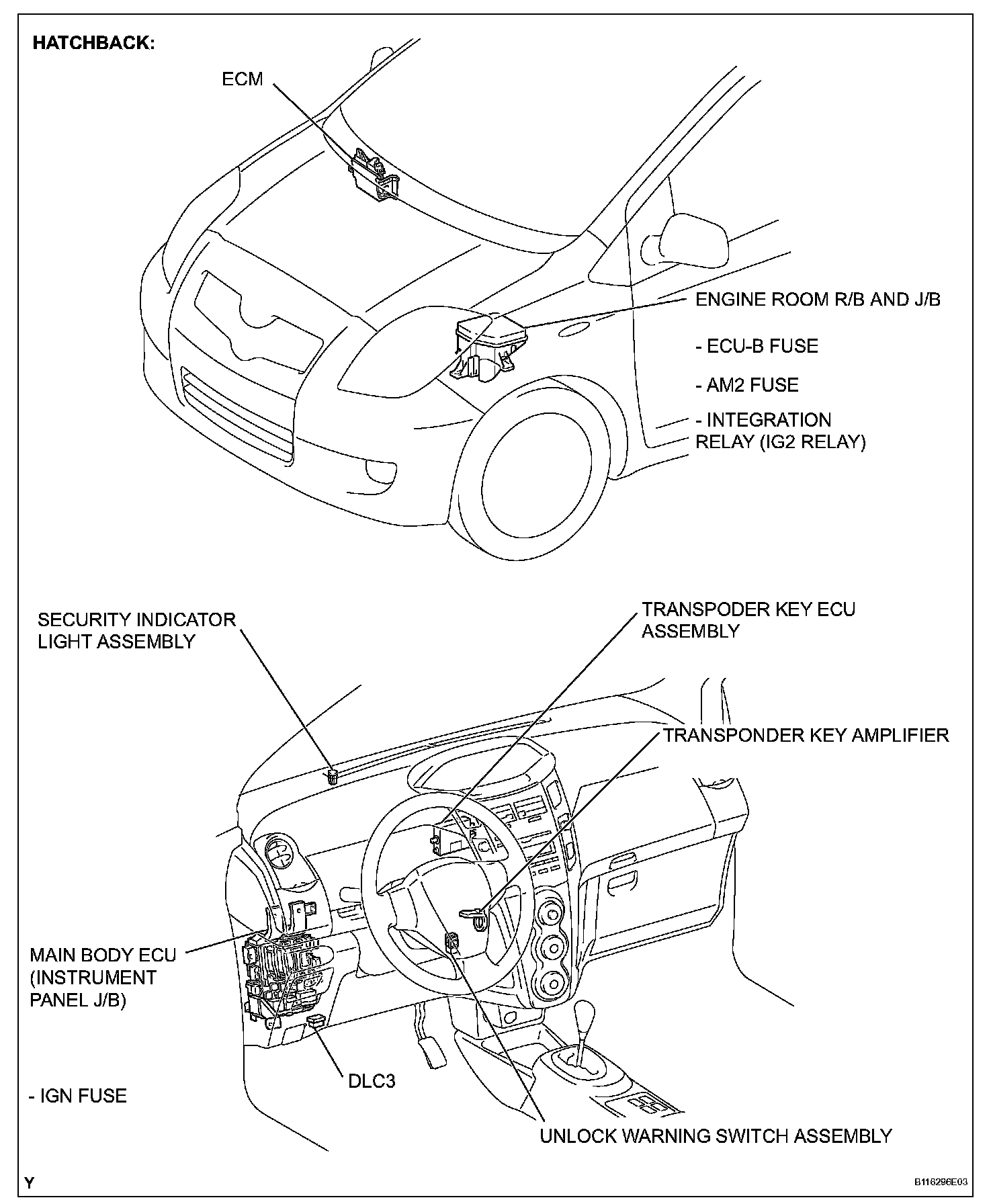

Engine Immobilizer System:
Engine Immobilizer System:

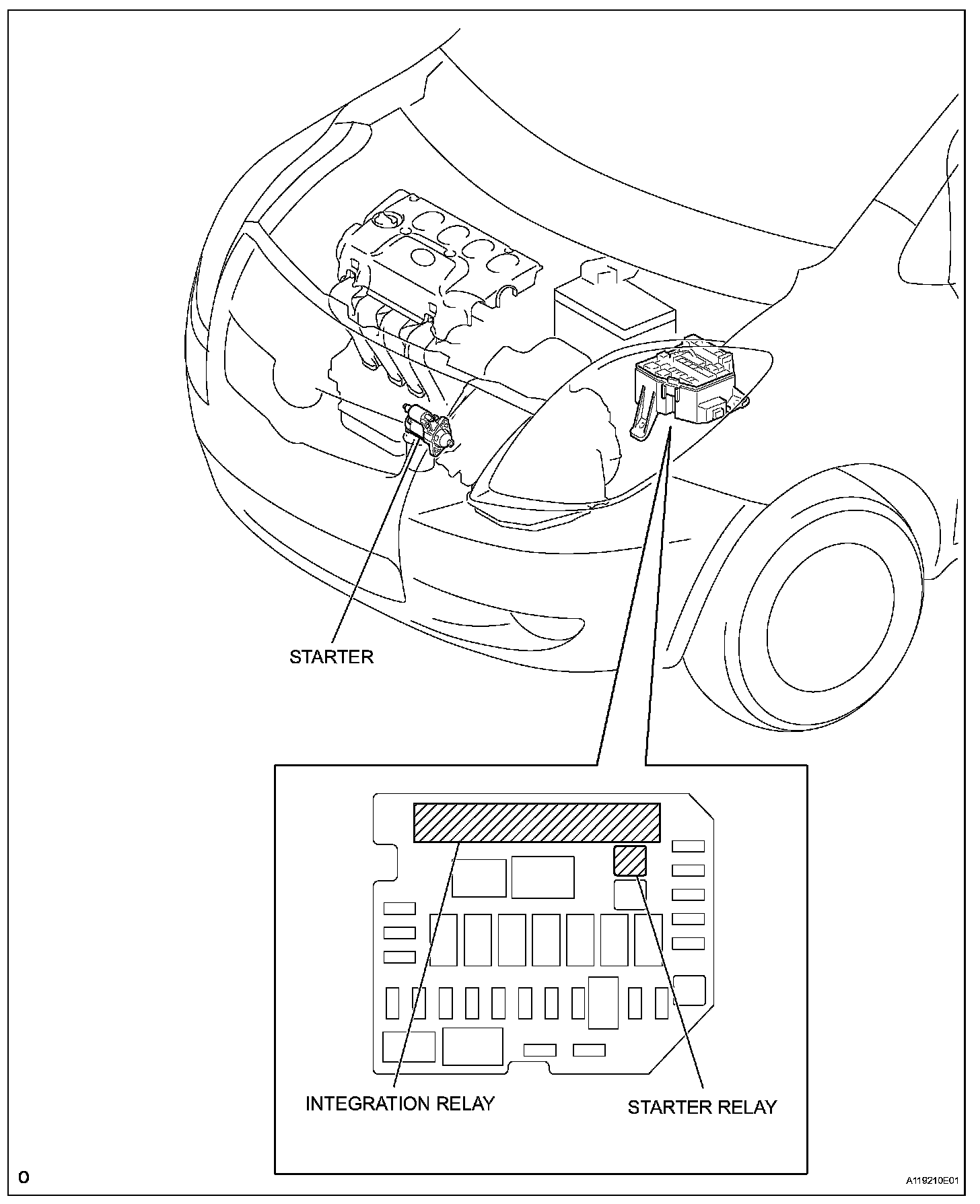

Starting System (for 0.8kW Type):
Starting System (for 1.6kW Type):
