Ignition Coil: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE CYLINDER HEAD COVER NO. 2

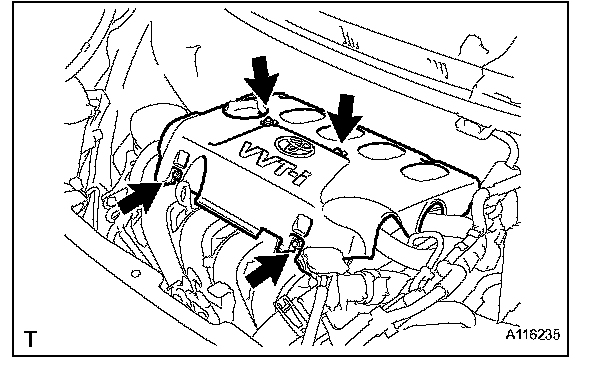

a. Remove the 4 nuts and cylinder head cover No. 2.
3. REMOVE IGNITION COIL NO. 1

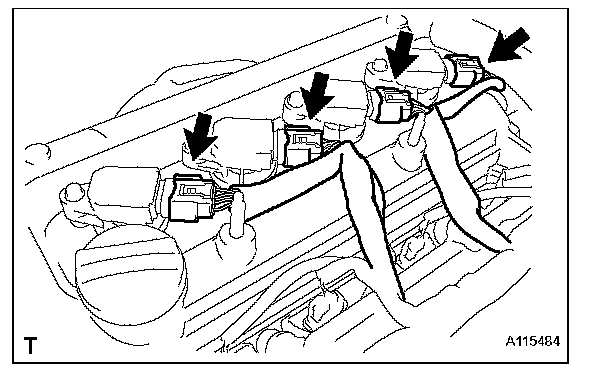

a. Disconnect the 4 ignition coil connectors.

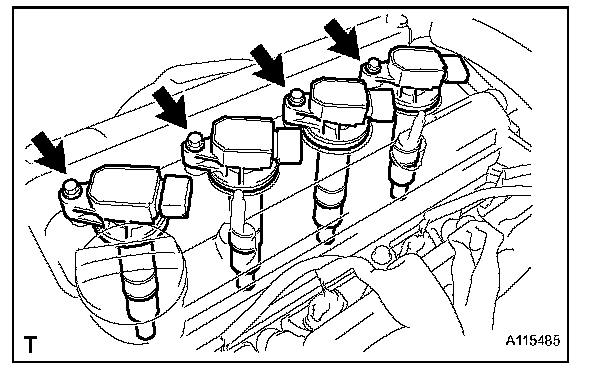

b. Remove the 4 bolts and 4 ignition coils.
INSTALLATION
1. INSTALL IGNITION COIL NO. 1

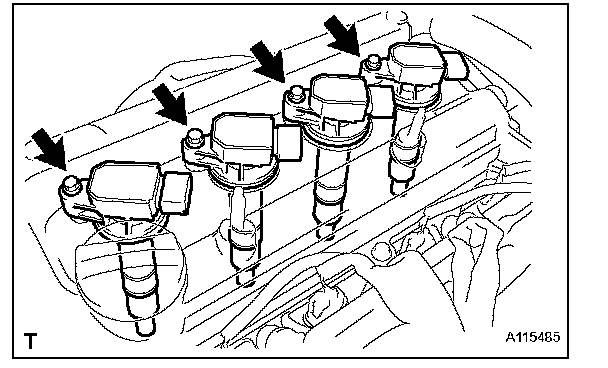

a. Install the 4 ignition coils with the 4 bolts.
Torque: 9.0 Nm (92 kgf.cm, 80 in. lbs.)
b. Connect the 4 ignition coil connectors.
2. INSTALL CYLINDER HEAD COVER NO. 2

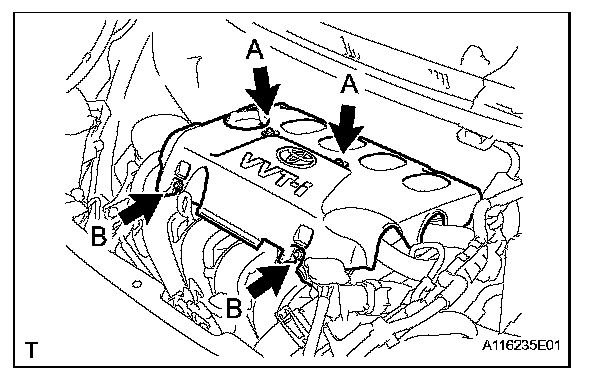

a. Tighten the 2 A nuts, then the 2 B nuts.
Torque: 7.0 Nm (71 kgf.cm, 62 in. lbs.)
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf.cm, 48 in. lbs.)
