Inspection

INSPECTION




1. INSPECT THROTTLE WITH MOTOR BODY ASSEMBLY

a. Check the resistance.

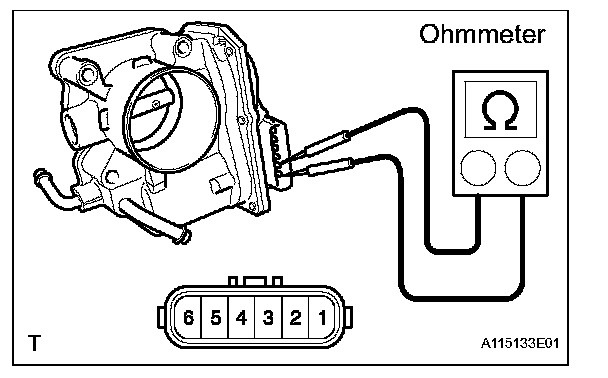

1. Using an ohmmeter, measure the resistance between the terminals.

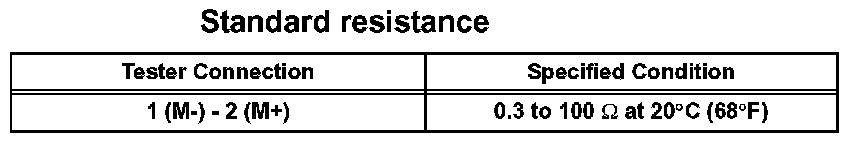

If the result is not as specified, replace the throttle with motor body assembly.
