Leak Detection Pump: Locations
Ai - Si:
Ai - Sp:
Ai - Sp:

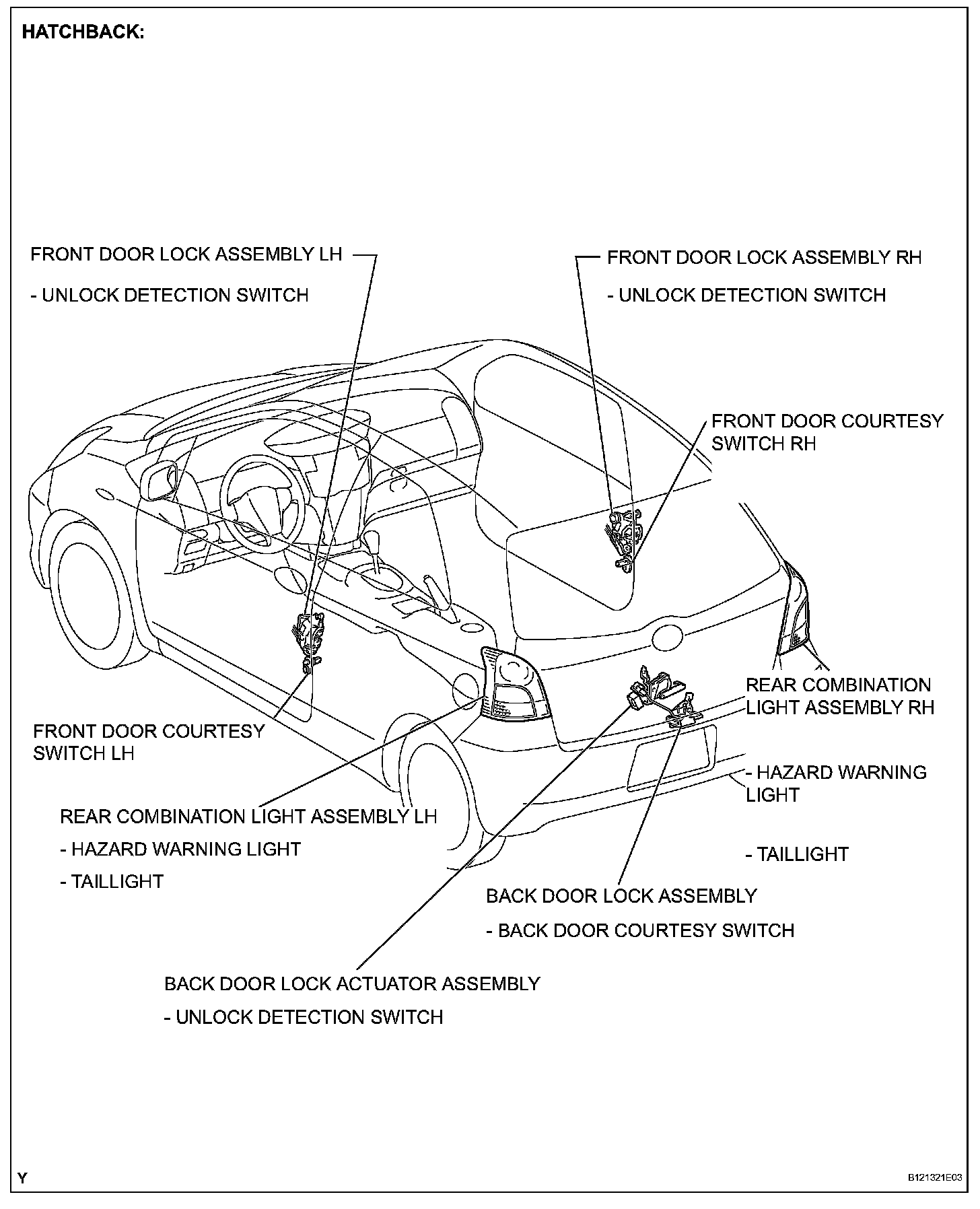

Power Door Lock Control System:
Power Door Lock Control System:

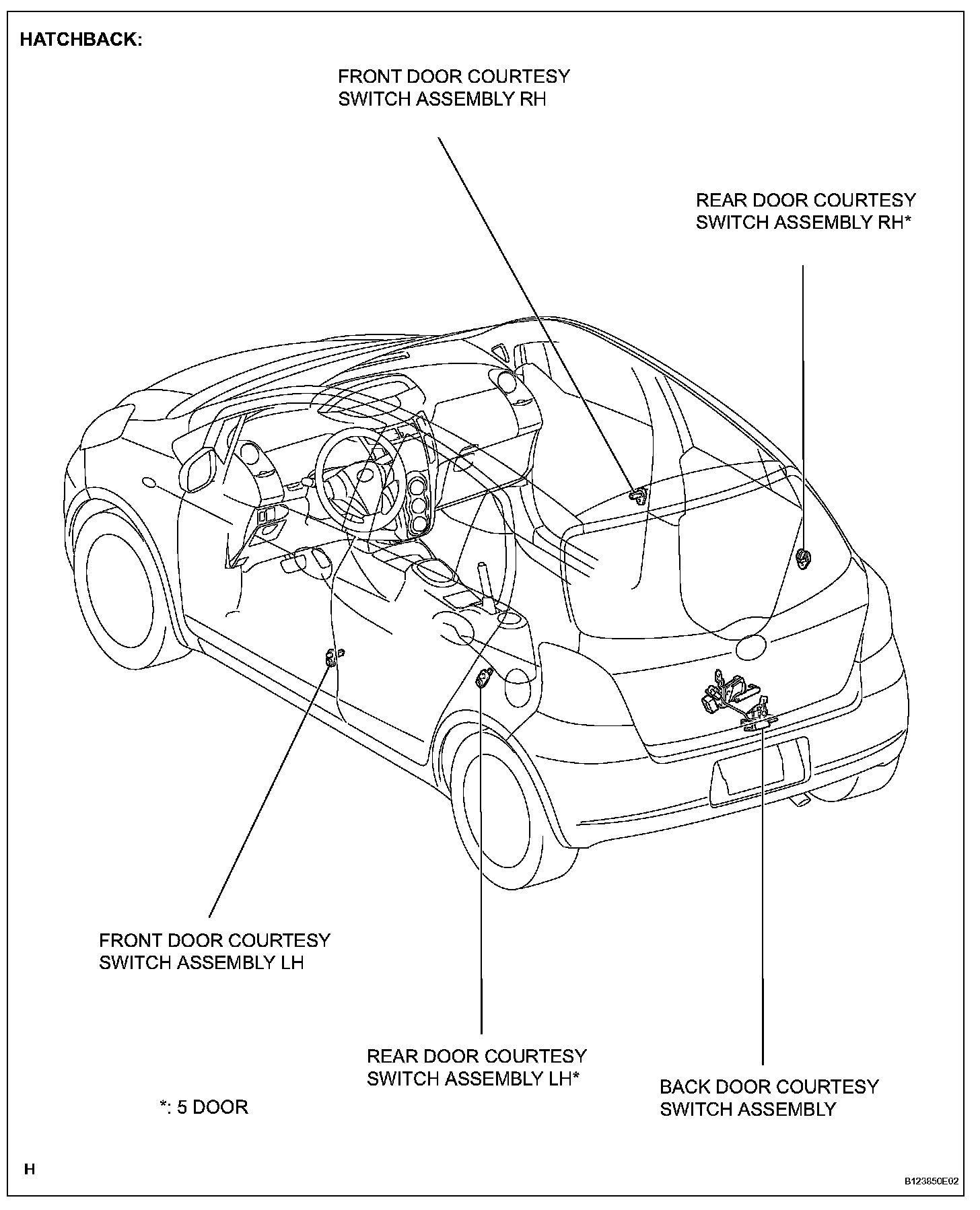

Theft Deterrent System (Hatchback):
Theft Deterrent System:
