Evaporative Emission Control Canister: Service and Repair

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL




2. REMOVE CANISTER

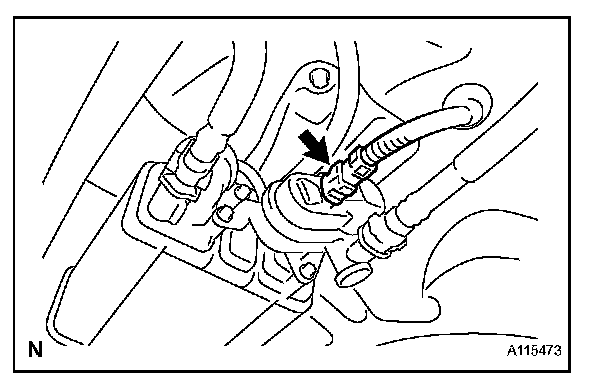

a. Disconnect the connector.

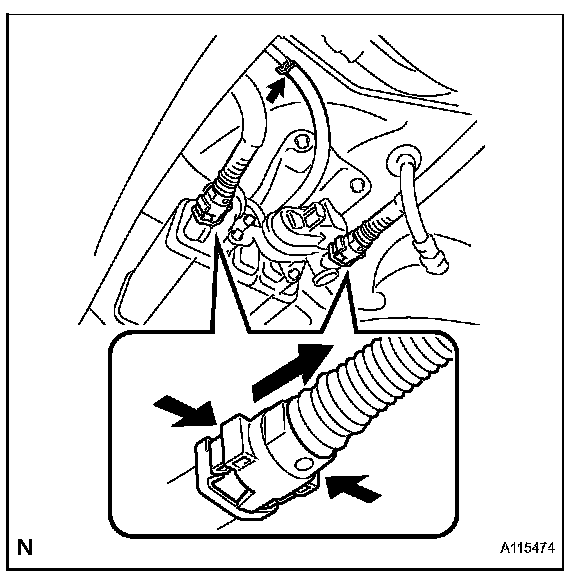

b. Disconnect the purge line hose.
c. Disconnect the air inlet line hose from the leak detection pump.
d. Disconnect the vent line hose from the canister.

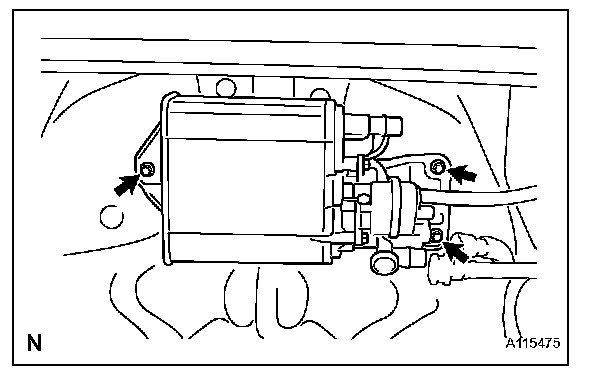

e. Remove the 3 bolts and the canister assembly.

INSTALLATION




1. INSTALL CANISTER

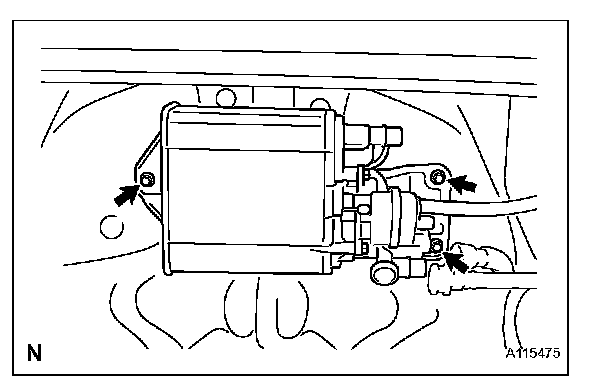

a. Install the canister with the 3 bolts.

Torque: 19 Nm (194 kgf.cm, 14 ft. lbs.)




b. Connect the vent line hose to the canister.
c. Connect the air inlet line hose to the leak detection pump.
d. Connect the purge line hose.

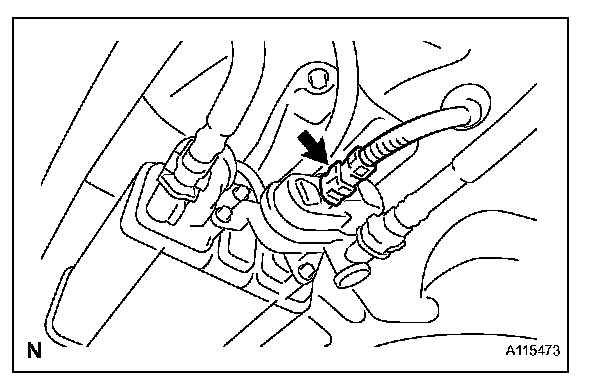

e. Connect the connector.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 Nm (55 kgf.cm, 48 in. lbs.)
