Short to B+ in CAN Bus Line

Short to B+ in CAN Bus Line

DESCRIPTION

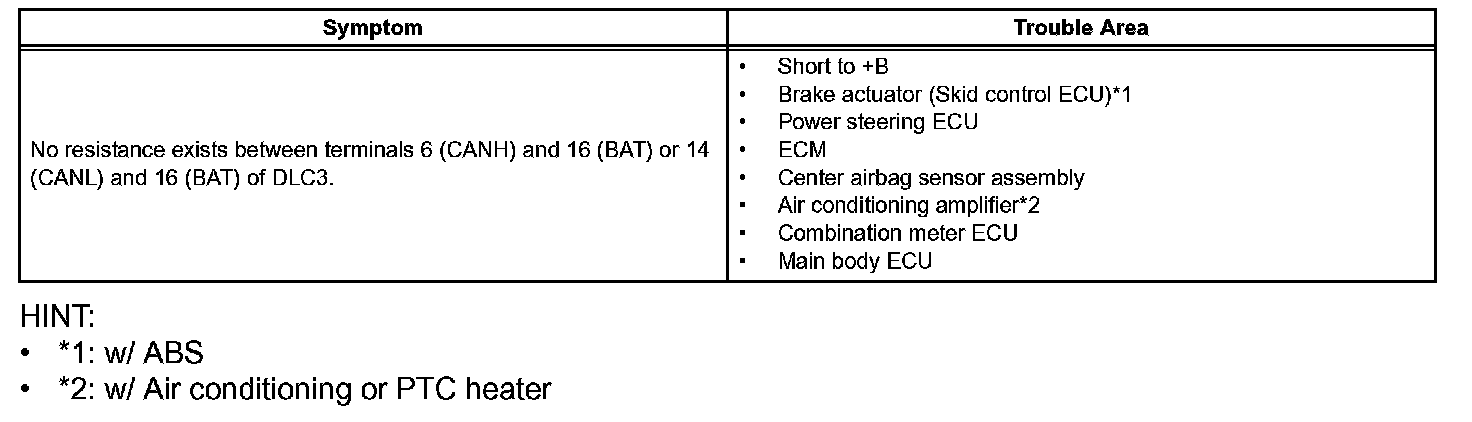

There may be a short circuit between the CAN bus line and +B when no resistance exists between terminals 6 (CANH) and 16 (BAT) or terminals 14 (CANL) and 16 (BAT) of the DLC3.

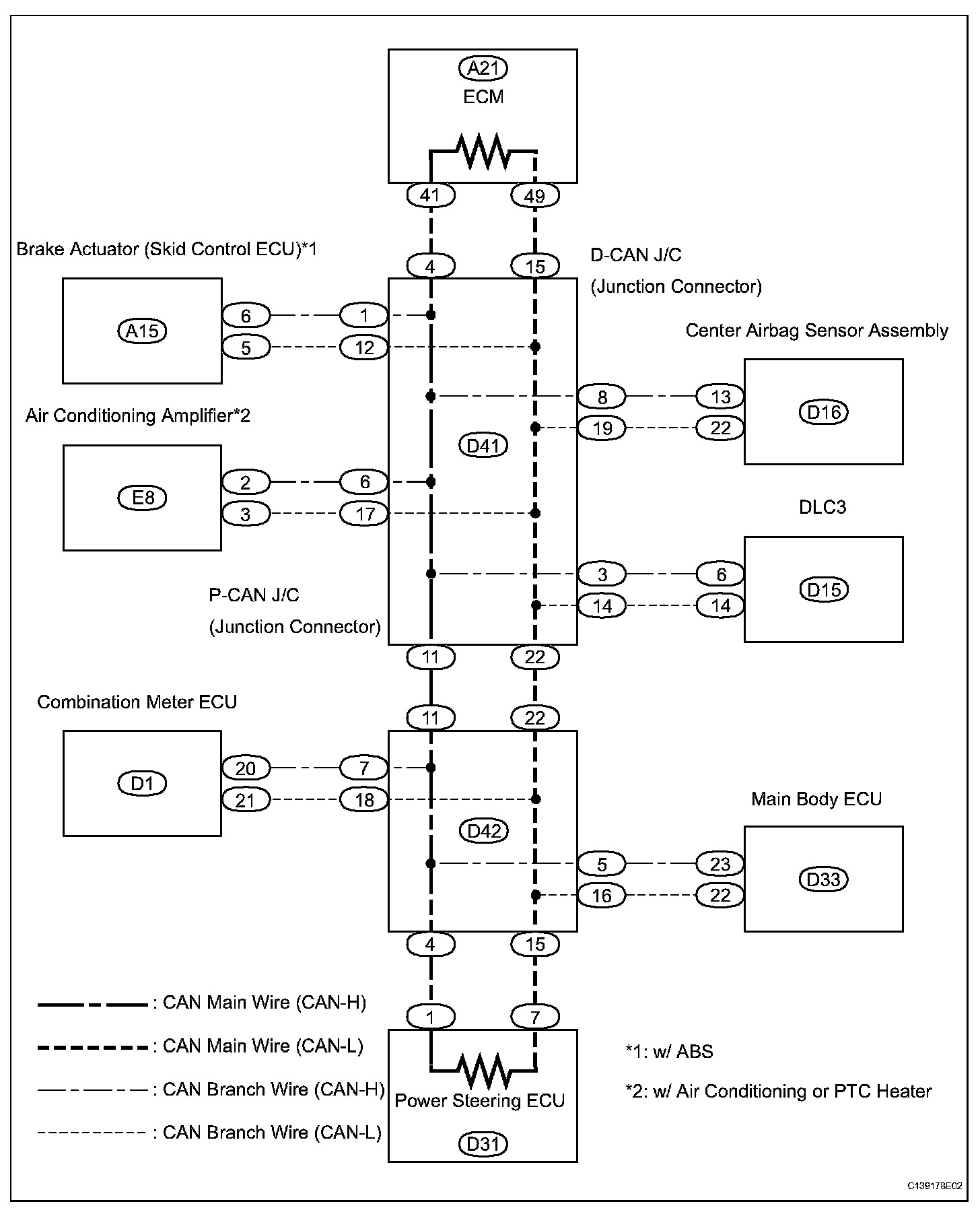

Wiring Diagram:

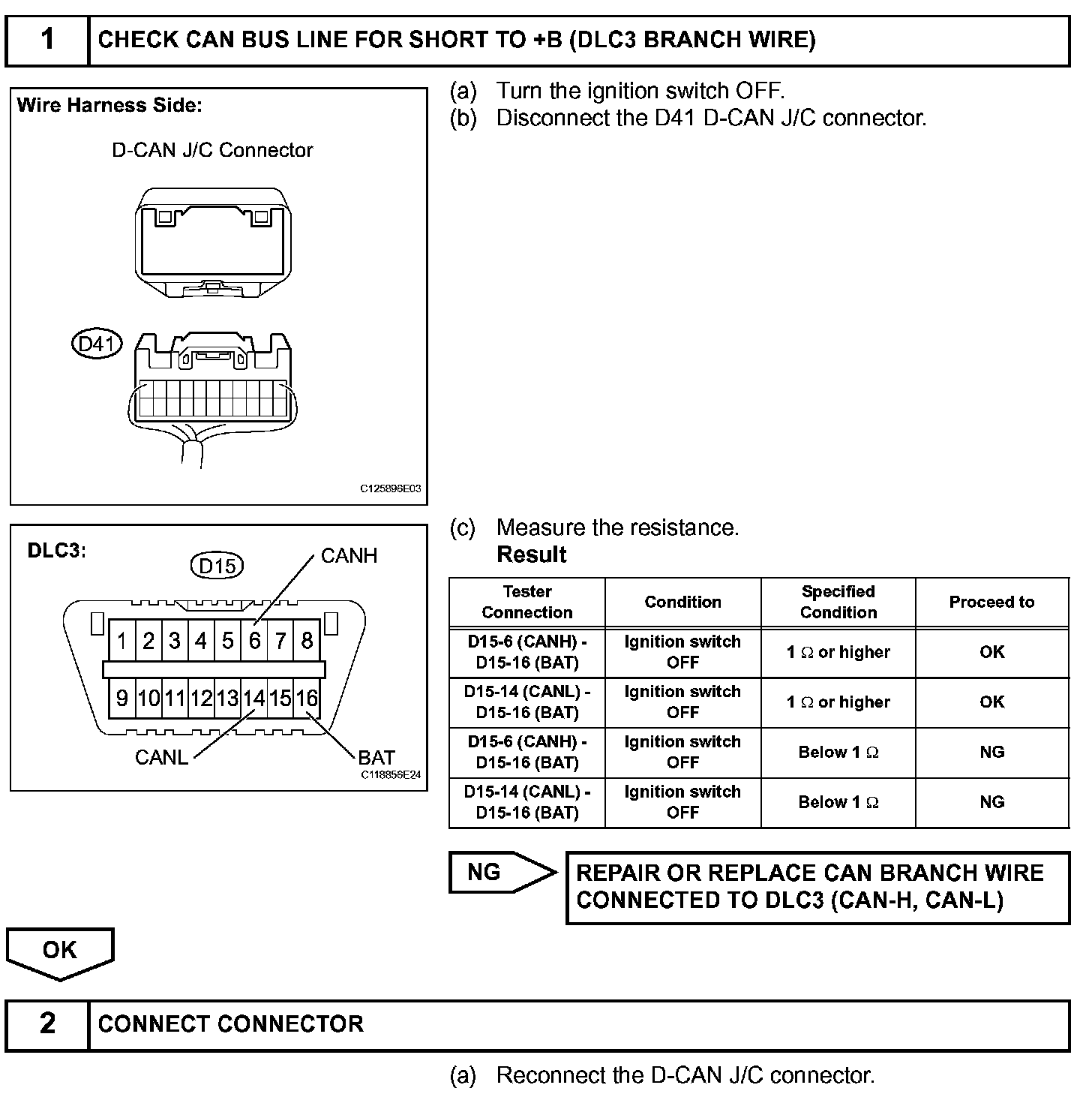

Step 1-2:

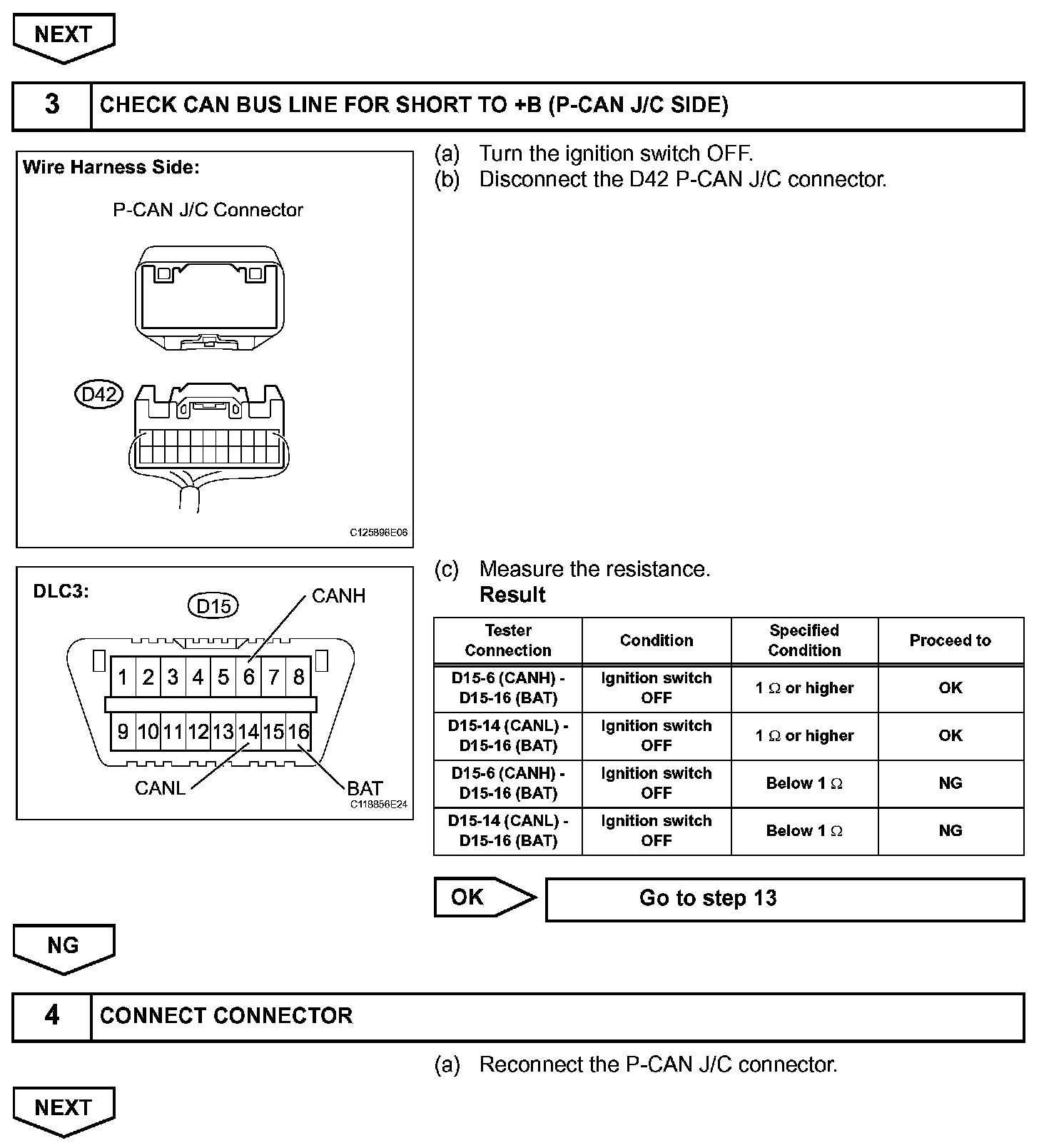

Step 2(Continued)-4:

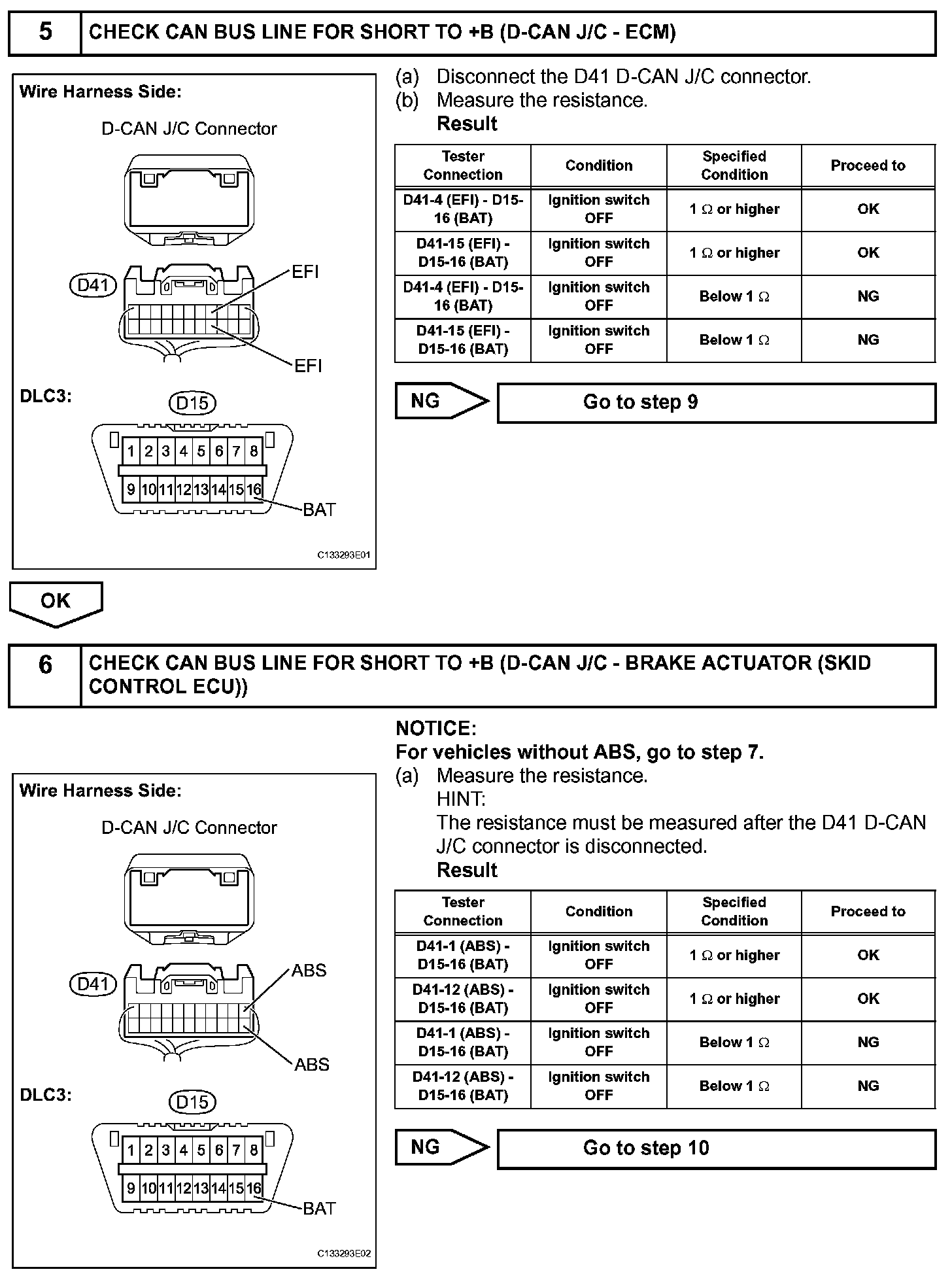

Step 5-6:

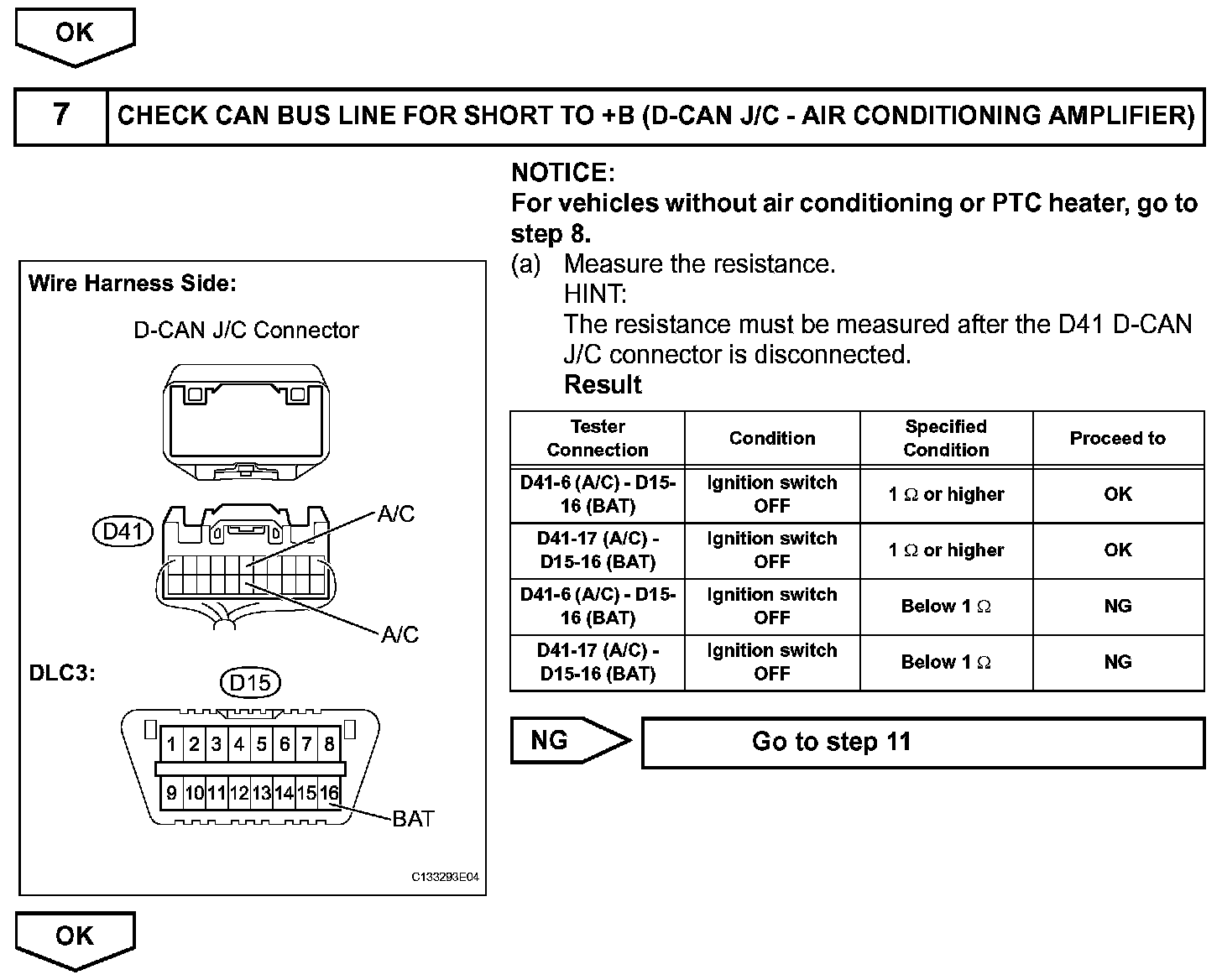

Step 6(Continued)-7:

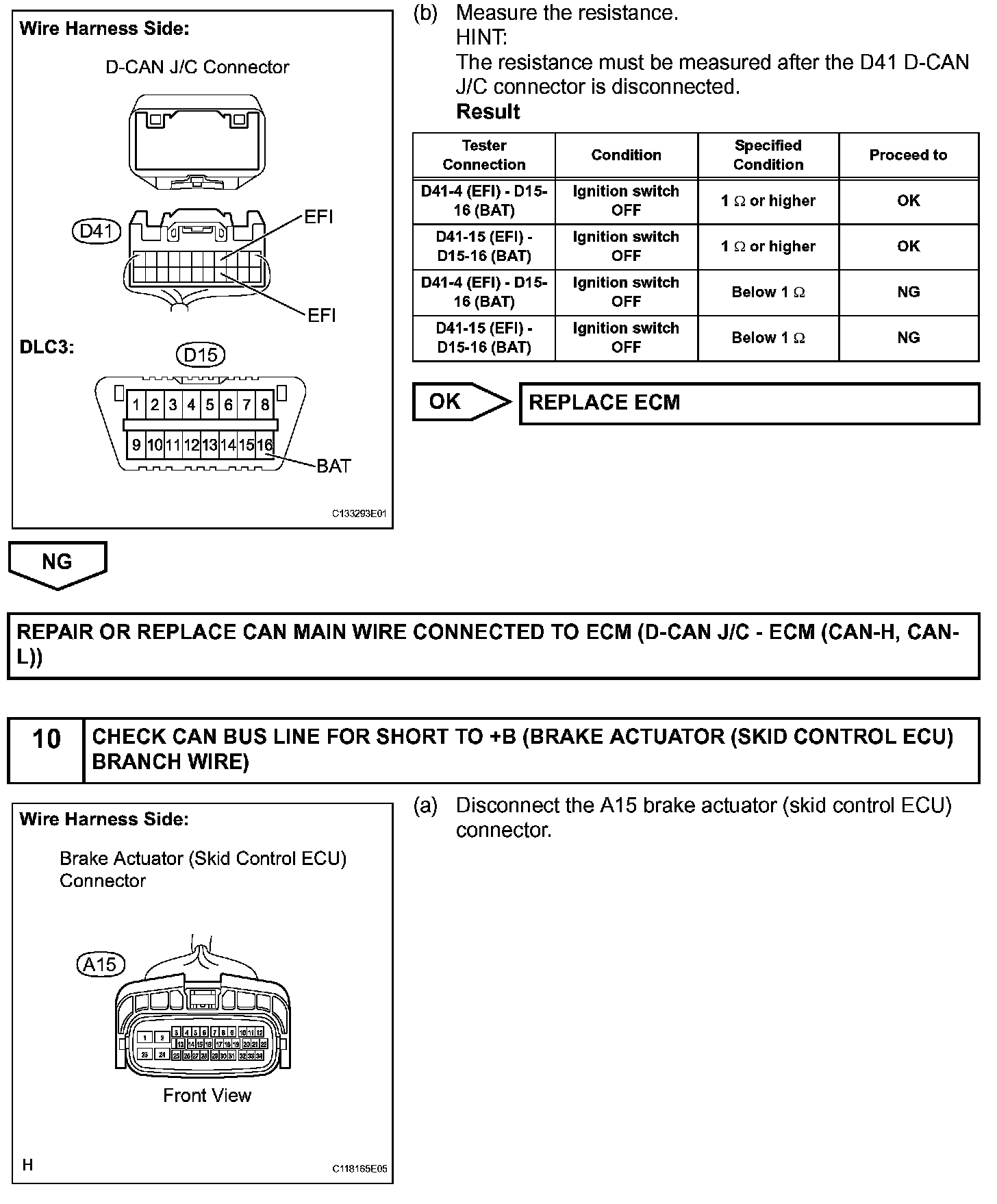

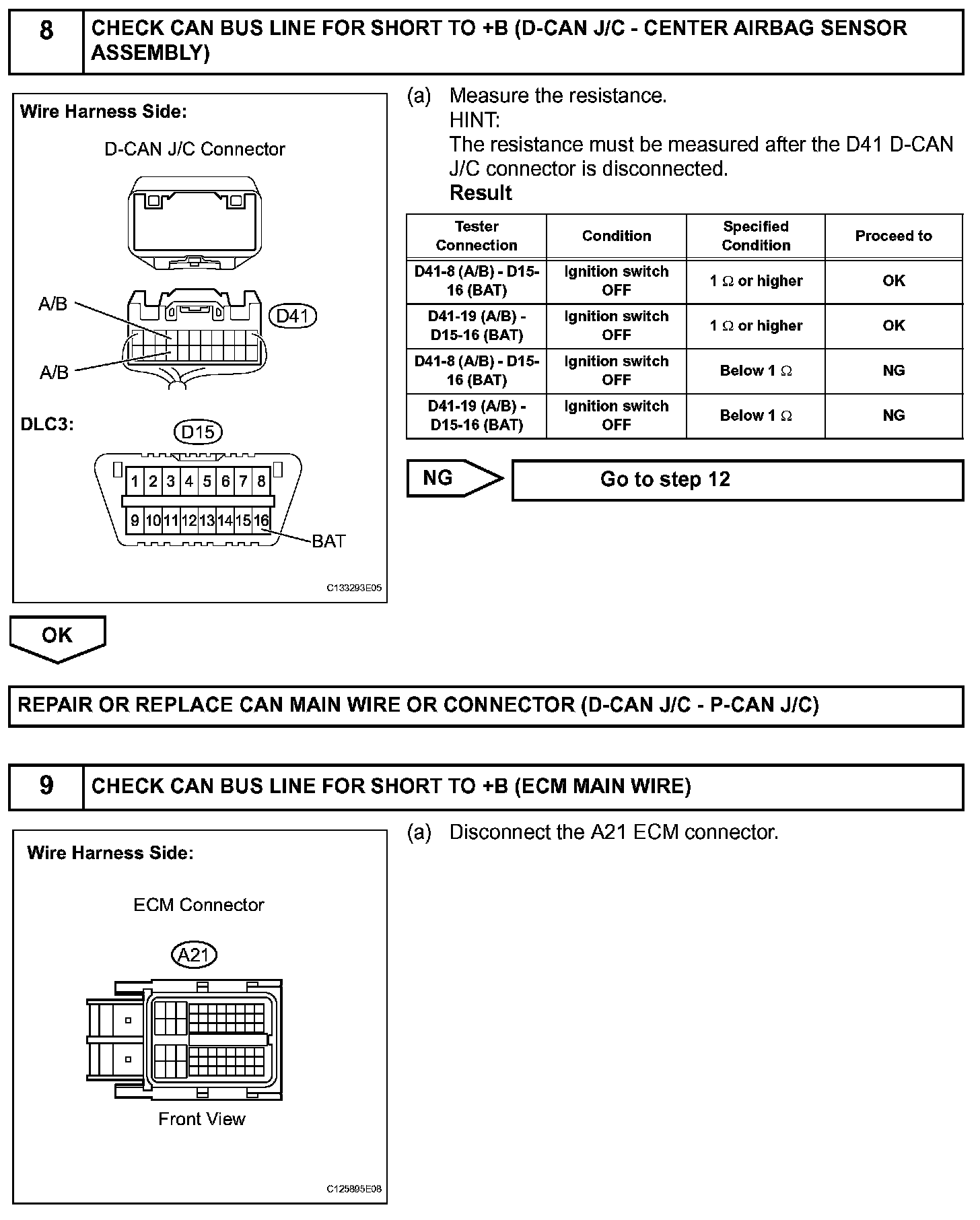

Step 8-9:

Step 9(Continued)-10:

Step 10(Continued)-11:

Step 11(Continued)-12:

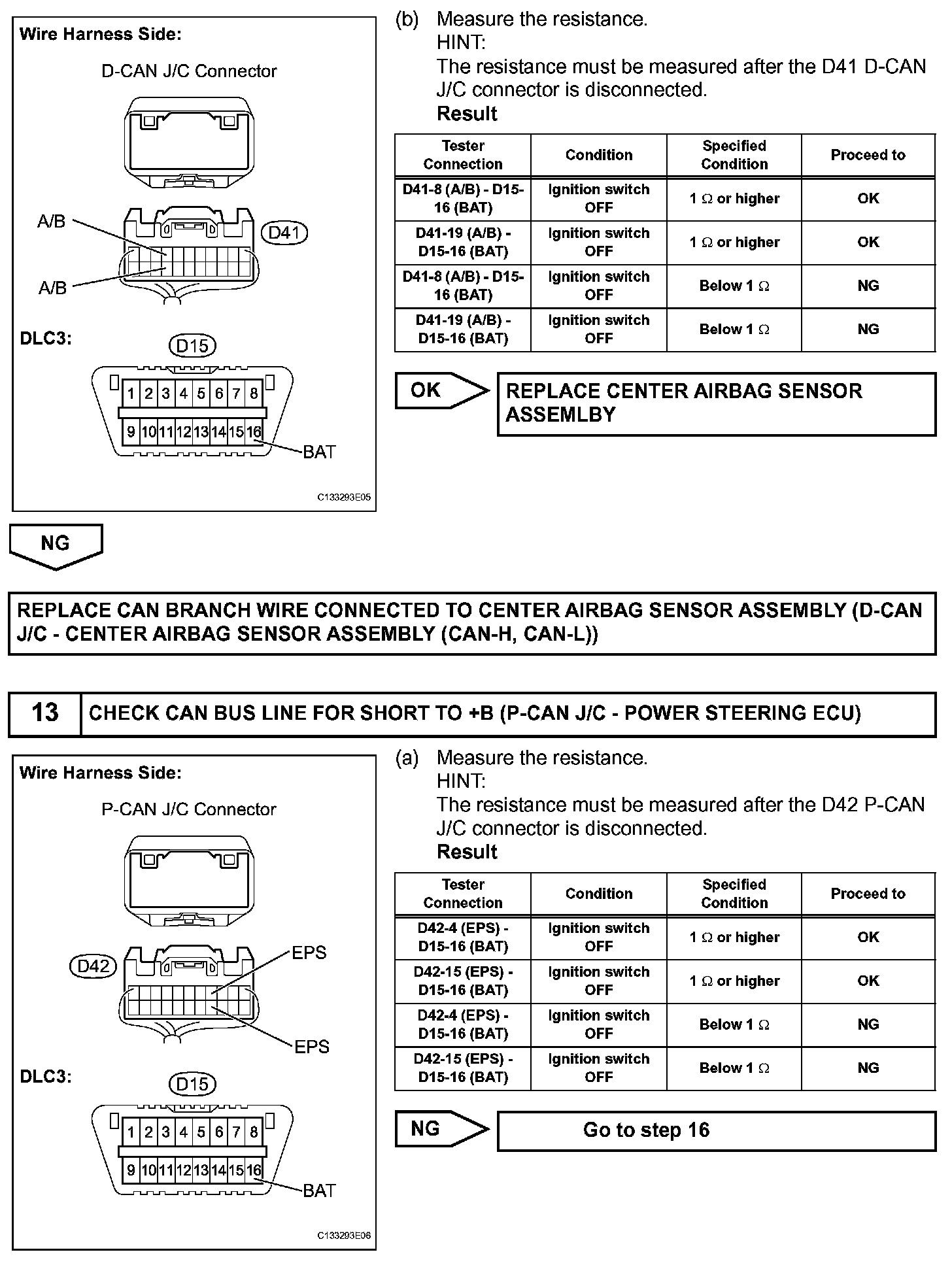

Step 12(Continued)-13:

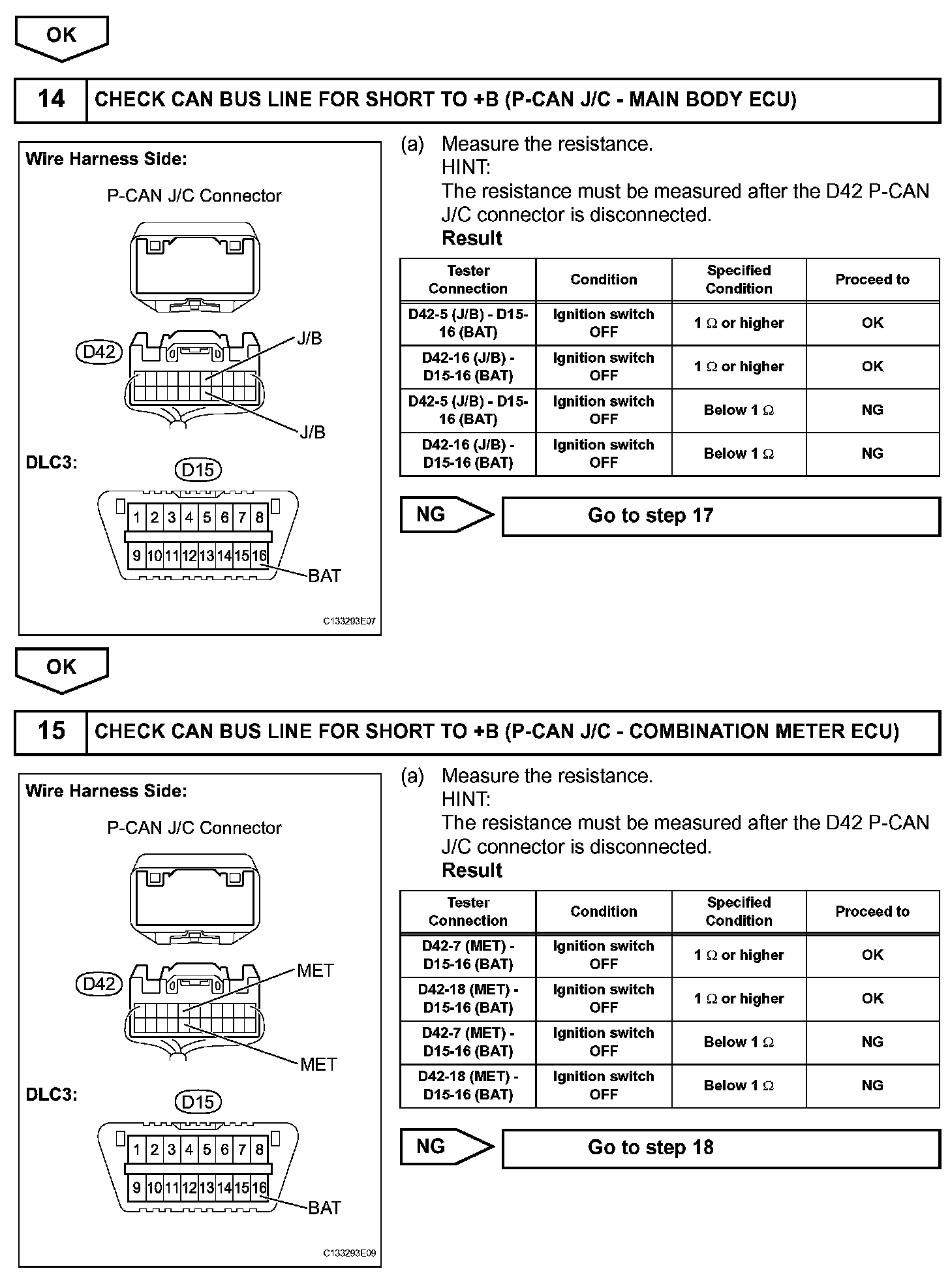

Step 13(Continued)-15:

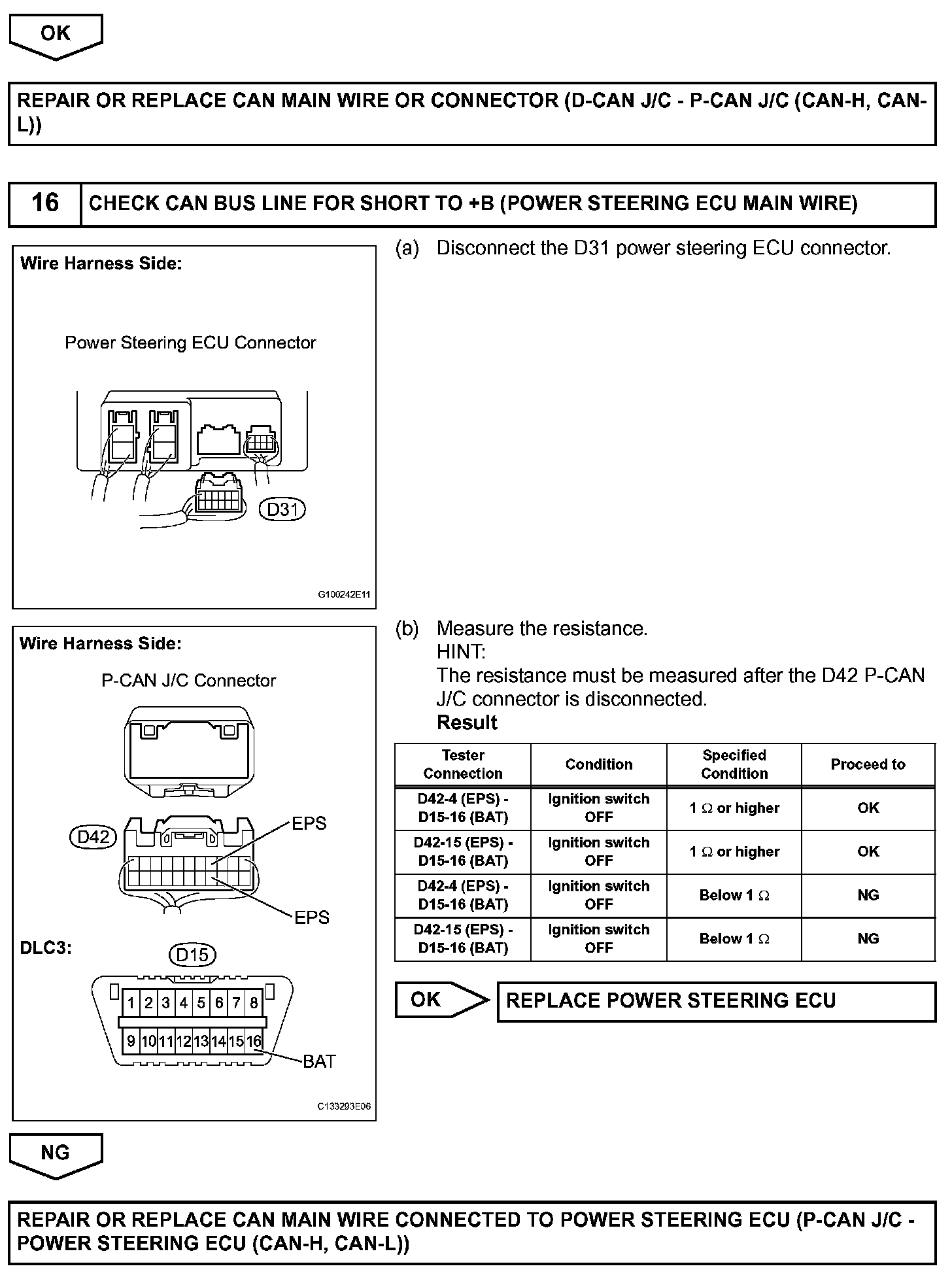

Step 15(Continued)-16:

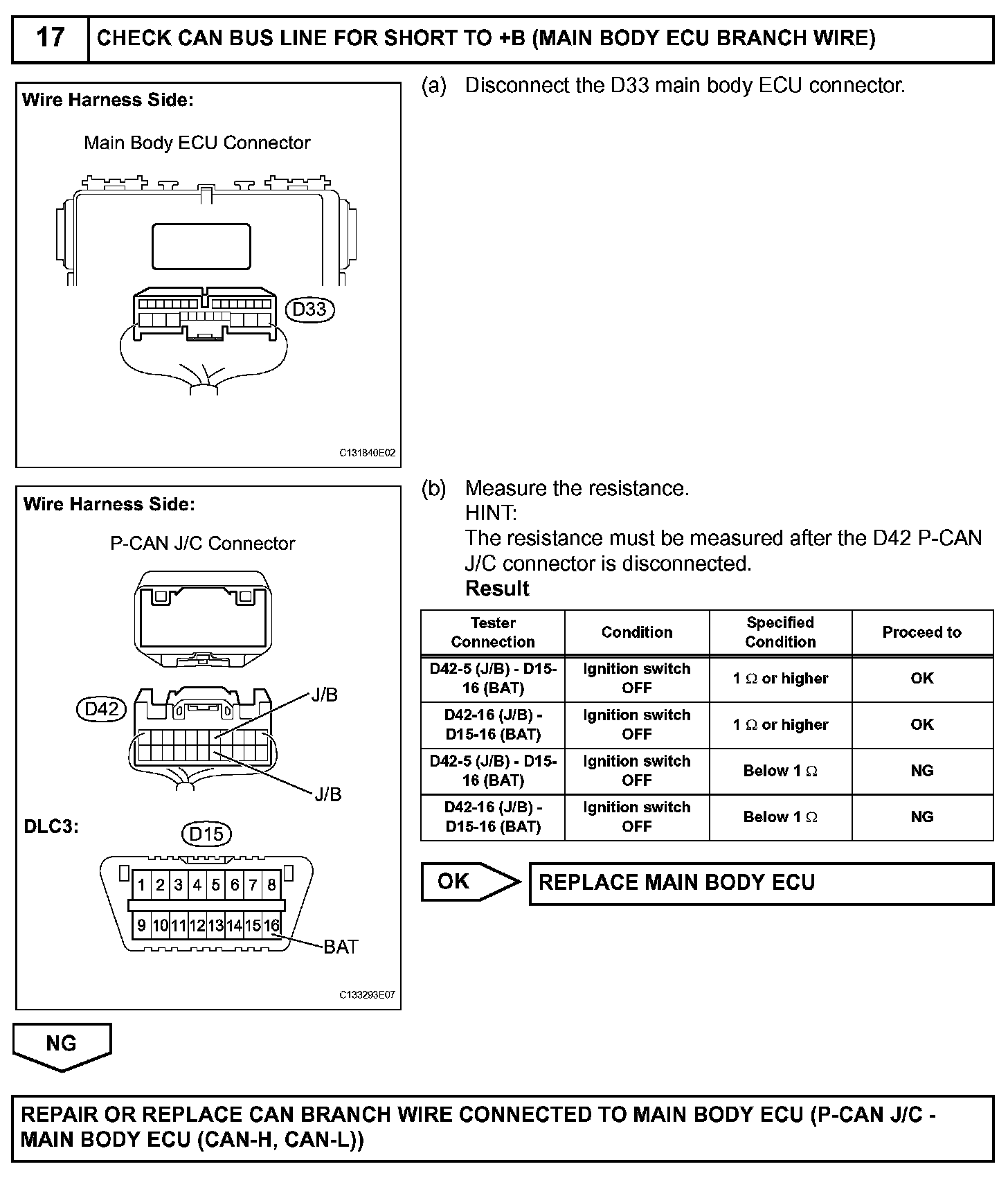

Step 17:

Step 18:

INSPECTION PROCEDURE

NOTE:
- Turn the ignition switch OFF before measuring the resistances of the CAN main wire and the CAN branch wire.
- After the ignition switch is turned off, check that the key reminder warning system and light reminder warning system are not in operation.
- Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors. If doors need to be opened in order to check connectors, open the doors and leave them open.

HINT: Operating the ignition switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.
