Power Outlet Socket (For Hatchback)

Power Outlet Socket (for Hatchback):

POWER OUTLET SOCKET (for Hatchback)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
4. REMOVE INSTRUMENT CLUSTER FINISH PANEL
5. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
6. REMOVE AIR CONDITIONING PANEL SUB-ASSEMBLY
7. DISCONNECT AIR MIX DAMPER CONTROL CABLE SUB-ASSEMBLY
8. DISCONNECT DEFROSTER DAMPER CONTROL CABLE SUB-ASSEMBLY
9. DISCONNECT AIR INLET DAMPER CONTROL CABLE SUB-ASSEMBLY
10. REMOVE POWER OUTLET SOCKET

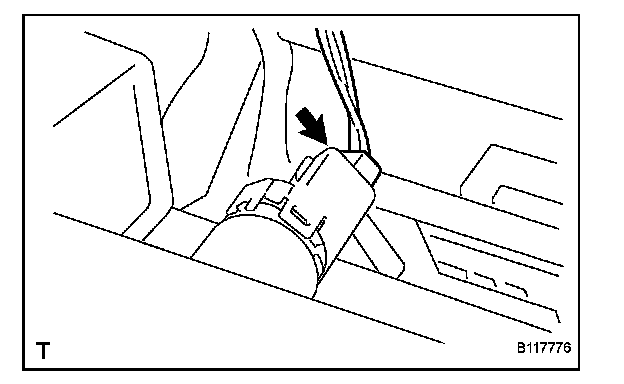

a. Disconnect the power outlet connector.

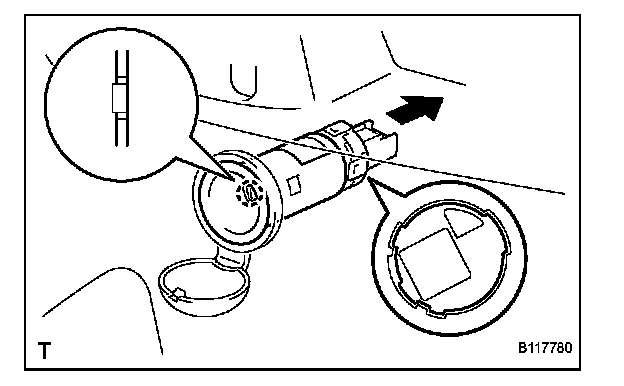

b. Using a screwdriver disengage the claw then turn the power outlet socket counterclockwise and push the power outlet socket half way out.




c. Align the protrusion of the power outlet socket with the cutout of the power outlet socket cover and then push the power outlet socket out.




11. REMOVE POWER OUTLET SOCKET COVER

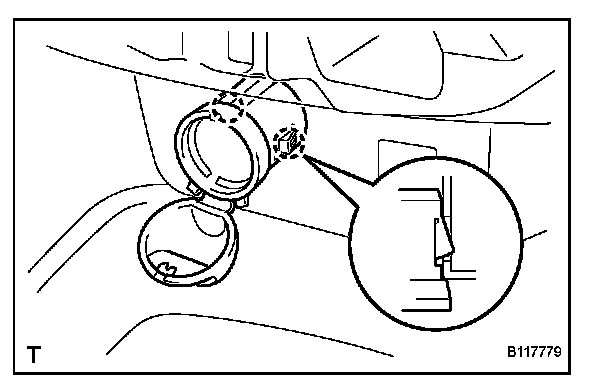

a. Disengage the 2 claws and remove the power outlet socket cover.

INSTALLATION




1. INSTALL POWER OUTLET SOCKET COVER
a. Engage the 2 claws and install a new power outlet socket cover.

2. INSTALL POWER OUTLET SOCKET




a. Align the protrusion of the power outlet socket with the cutout of the power outlet socket cover and install the power outlet socket.
b. Securely engage the claw.




c. Connect the power outlet socket connector.

3. CONNECT AIR INLET DAMPER CONTROL CABLE SUB-ASSEMBLY
4. CONNECT DEFROSTER DAMPER CONTROL CABLE SUB-ASSEMBLY
5. CONNECT AIR MIX DAMPER CONTROL CABLE SUB-ASSEMBLY
6. INSTALL AIR CONDITIONING PANEL SUB-ASSEMBLY
7. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
8. INSTALL INSTRUMENT CLUSTER FINISH PANEL
9. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
10. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
