Component Tests and General Diagnostics

TIRE AND WHEEL SYSTEM

INSPECTION
1. INSPECT TIRES
(a) Check the tires for wear and proper inflation pressure.

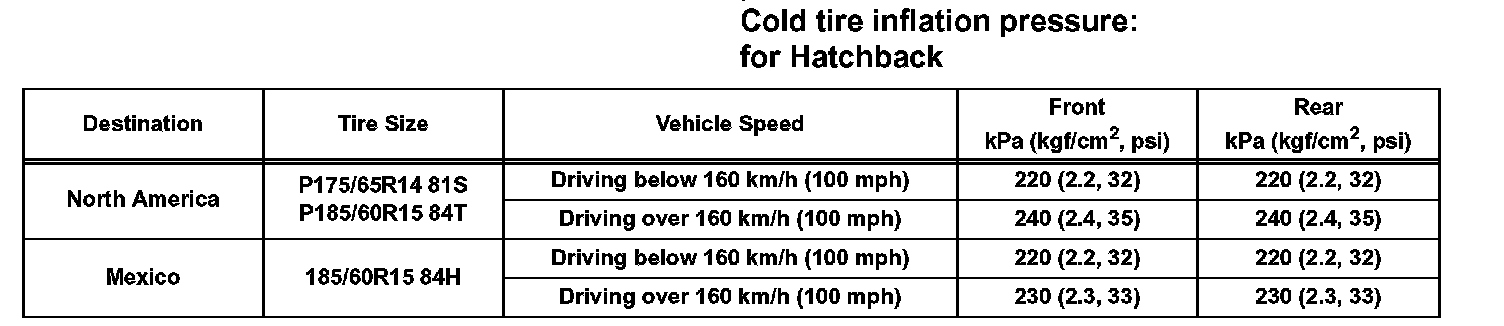

Cold tire inflation pressure: for Hatchback:

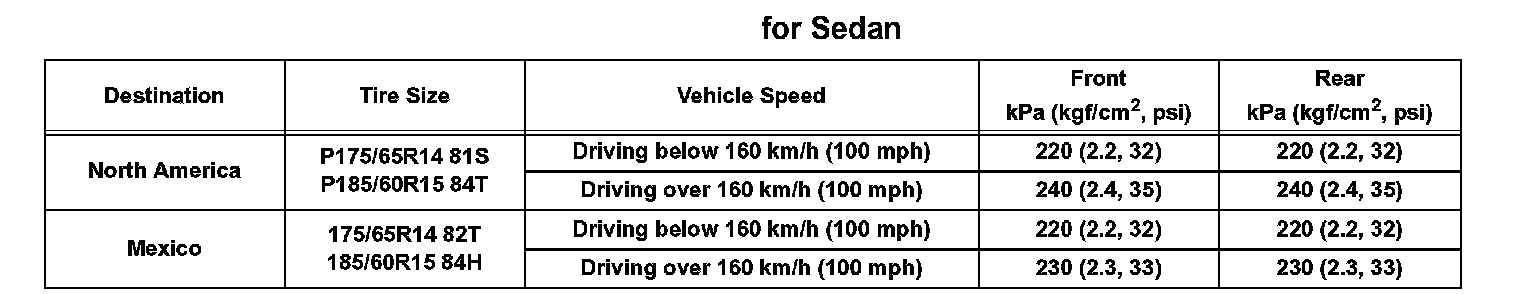

Cold tire inflation pressure: for Sedan:

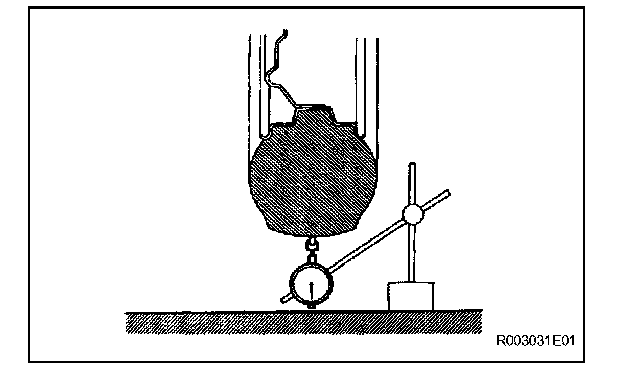

(b) Using a dial indicator, check the tire runout.
Tire runout: 1.4 mm (0.055 in.) or less





2. ROTATE TIRES

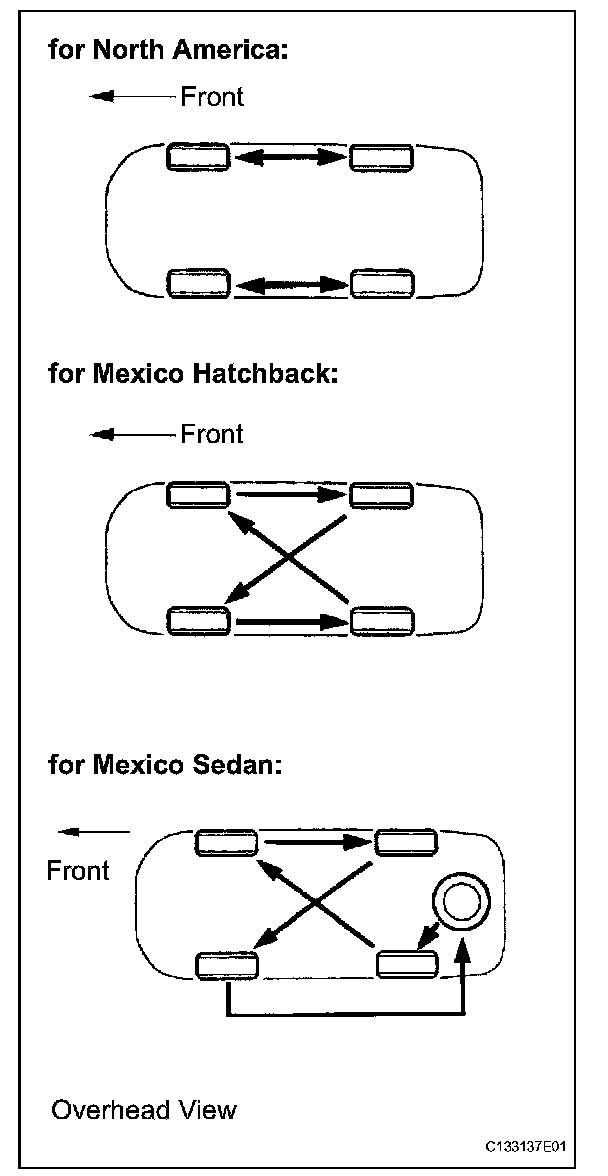

HINT: Rotate tires, as shown in the illustration.





3. INSPECT WHEEL BALANCE

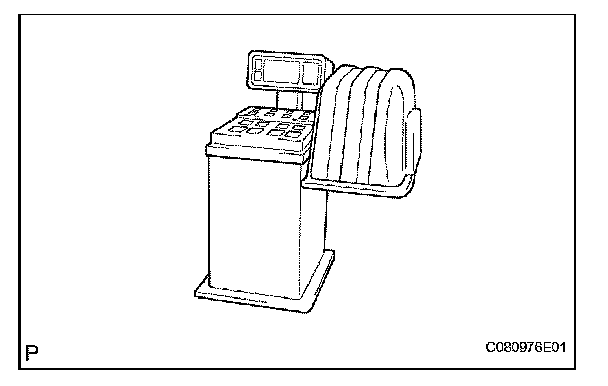

(a) Check and perform off-car balancing.
(b) If required, perform on-car balancing.
Imbalance after adjustment: 8 g (0.018 lb) or less
4. INSPECT FRONT AXLE HUB BEARING
5. INSPECT REAR AXLE HUB BEARING
