Connector Locations

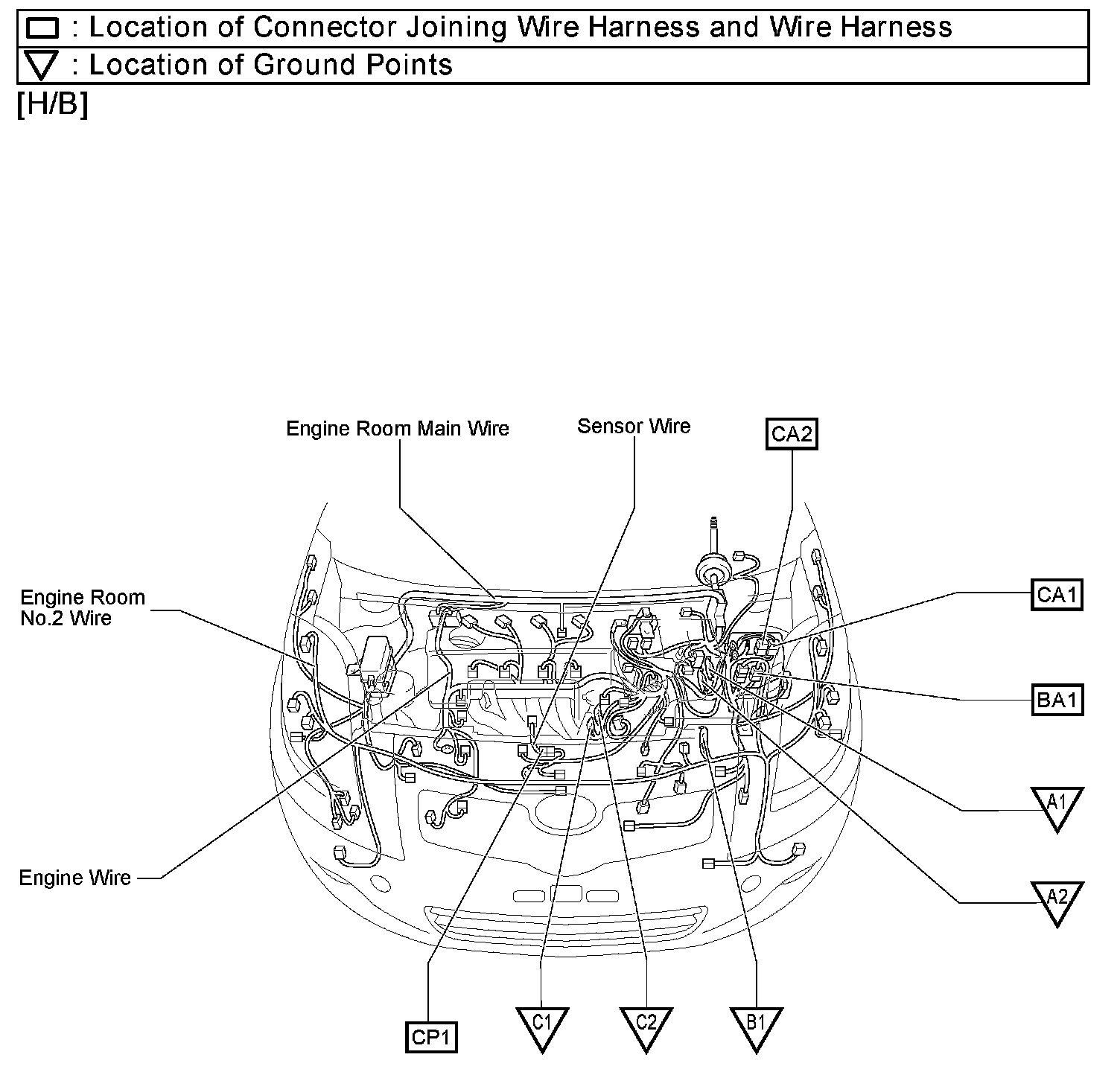

BA1 - CP1, A1 - C2:
BA1 - CP1, A1 - C2:

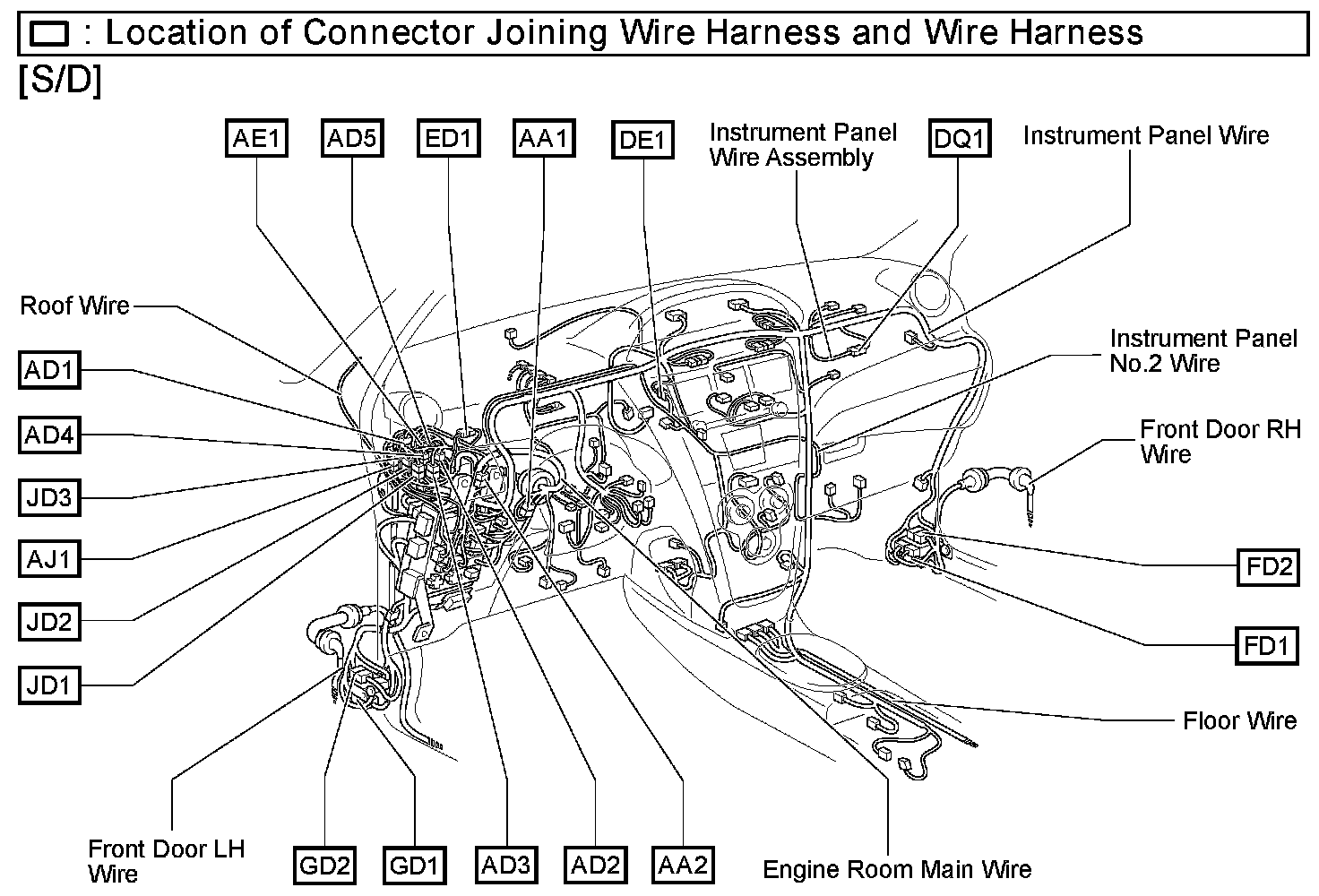

AA1 - JD2:
AA1 - JD3:

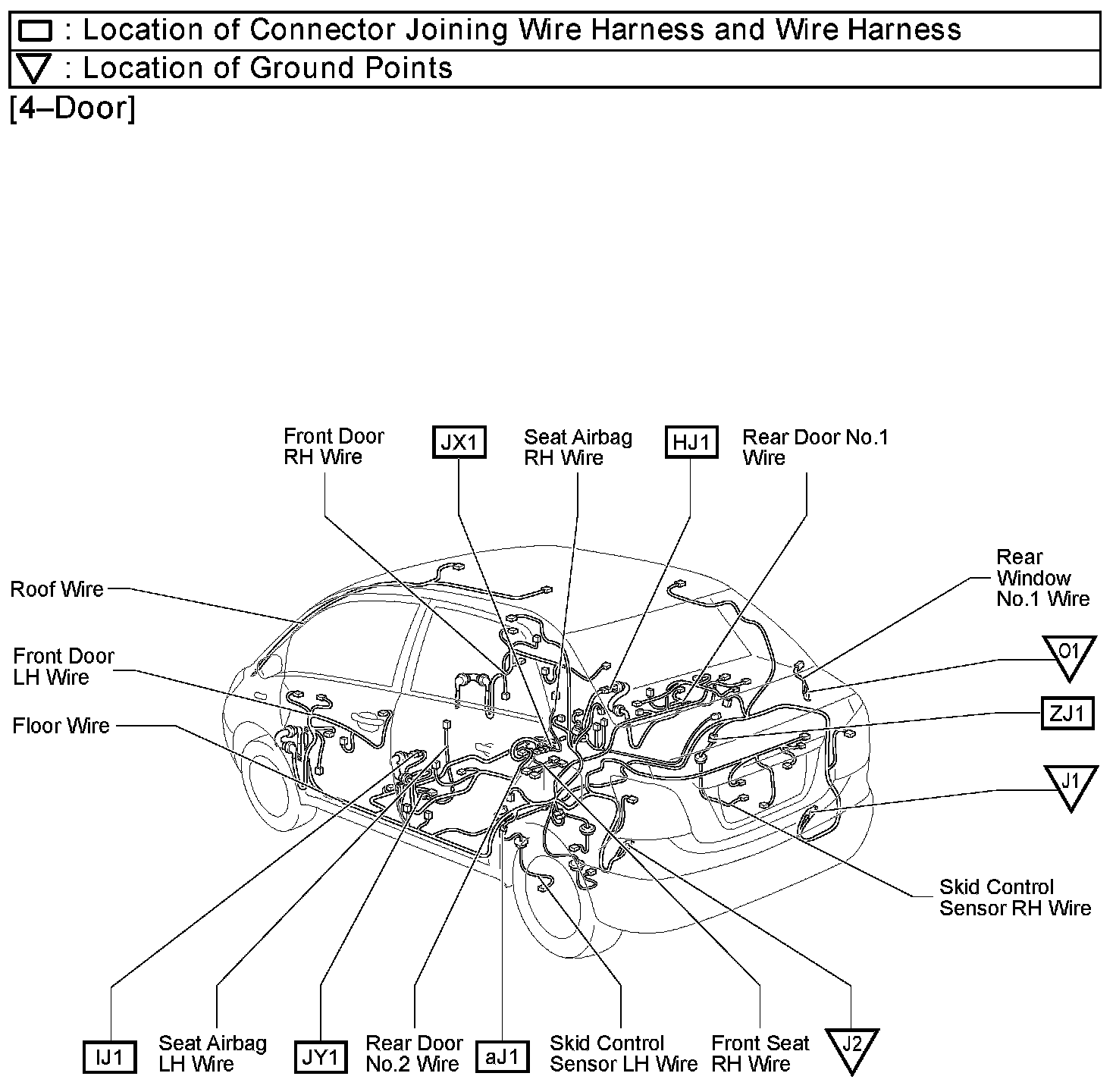

HJ1 - aJ1, J1 - O1:

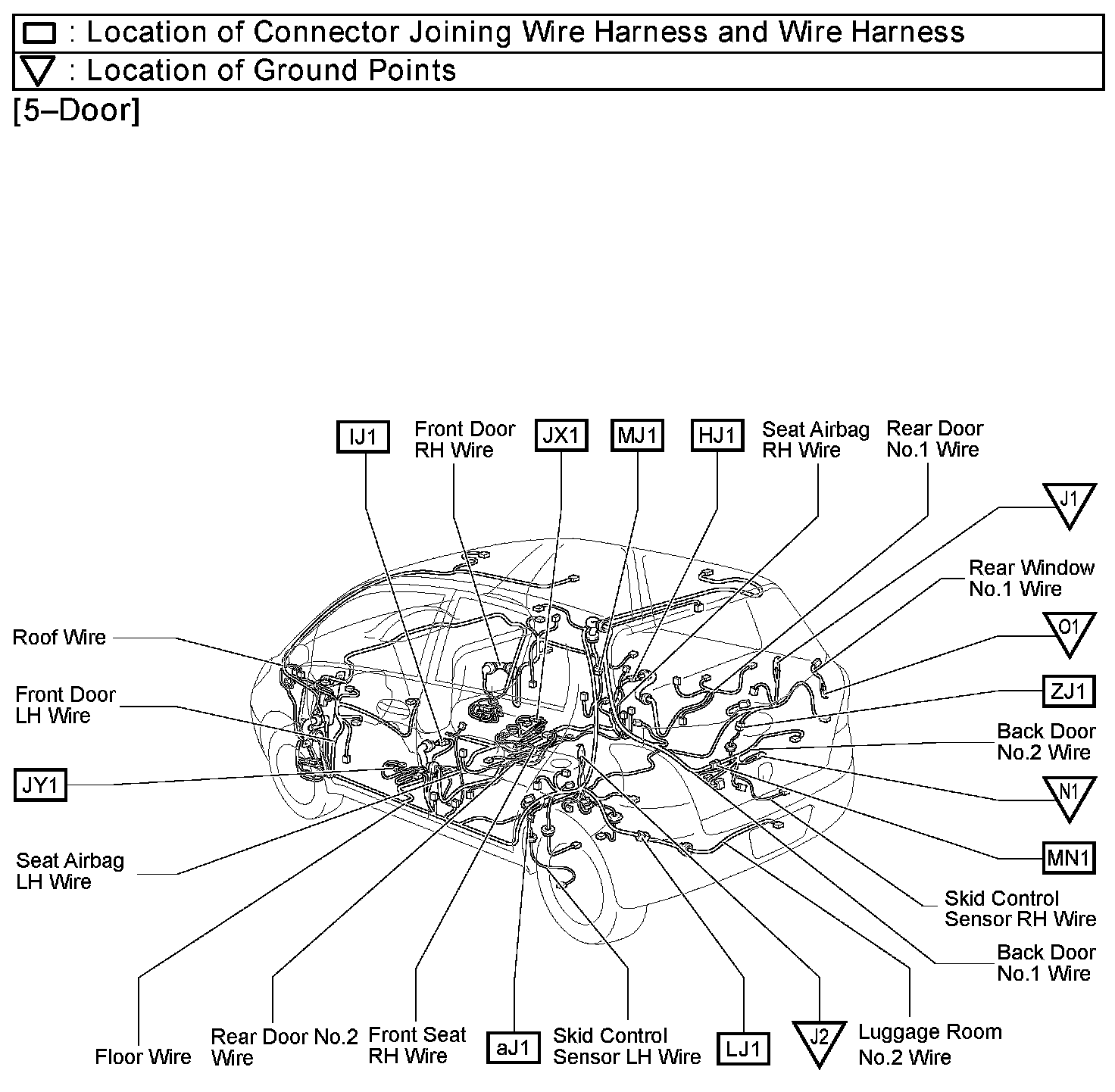

JX1 - aJ1, J1 - O1:
IJ1 - aJ1, J1 - O1:
