Luggage Compartment Room Light (For Sedan)

Luggage Compartment Room Light (for Sedan):

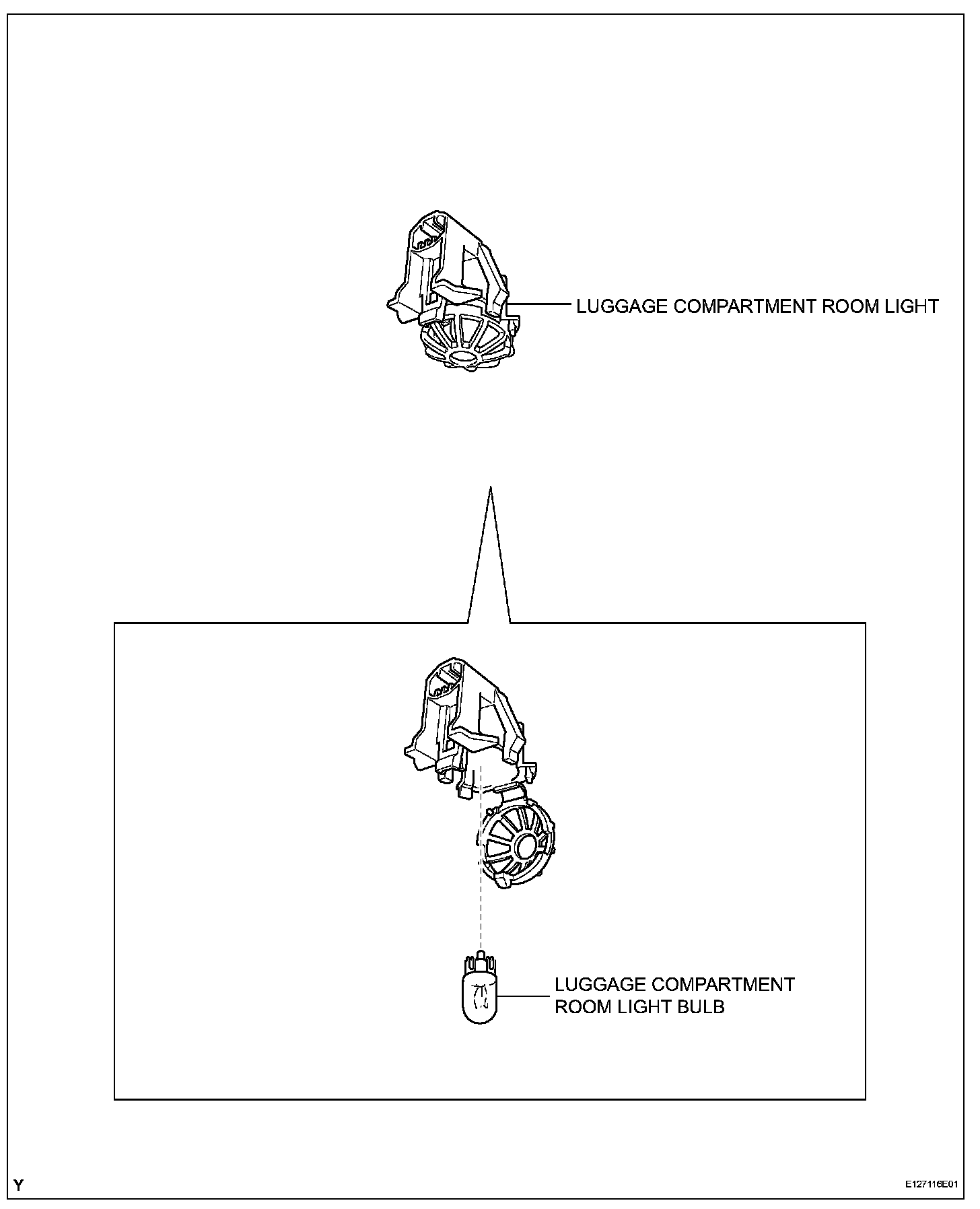

LUGGAGE COMPARTMENT ROOM LIGHT (for Sedan)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE LUGGAGE COMPARTMENT ROOM LIGHT

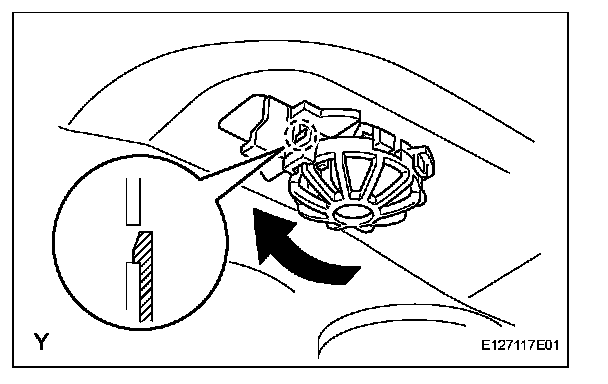

a. Disengage the claw and pull up the luggage compartment room light in the direction indicated by the arrow.

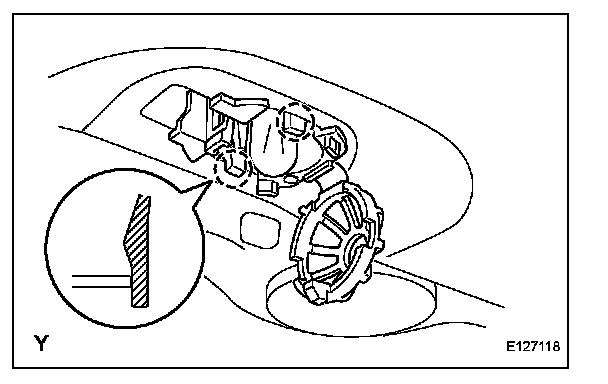

b. Disengage the 2 claws and remove the luggage compartment room light.
c. Disconnect the connector.




3. REMOVE LUGGAGE COMPARTMENT ROOM LIGHT BULB

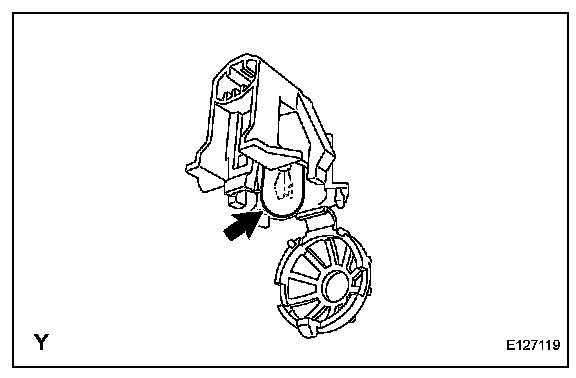

a. Remove the luggage compartment room light bulb.

INSTALLATION




1. INSTALL LUGGAGE COMPARTMENT ROOM LIGHT BULB
a. Install the luggage compartment room light bulb.




2. INSTALL LUGGAGE COMPARTMENT ROOM LIGHT
a. Connect the connector.

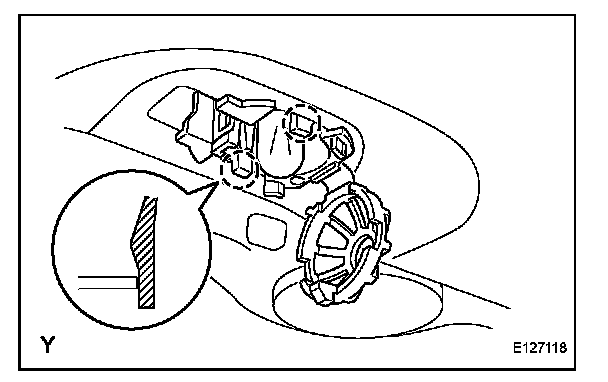

b. Engage the 2 claws and install the luggage compartment room light.

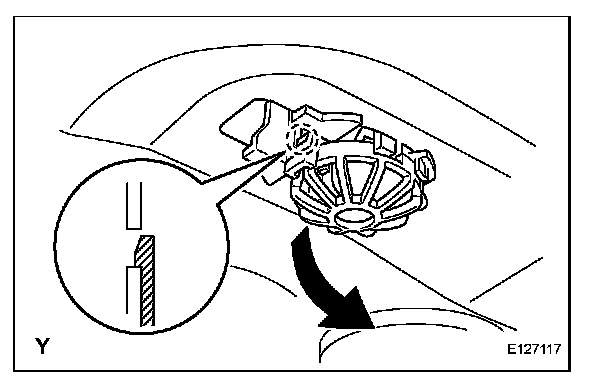

c. Tilt the luggage compartment room light in the direction shown in the illustration and lock it.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
