Luggage Compartment Room Light (For Hatchback)

Luggage Compartment Room Light (for Hatchback):

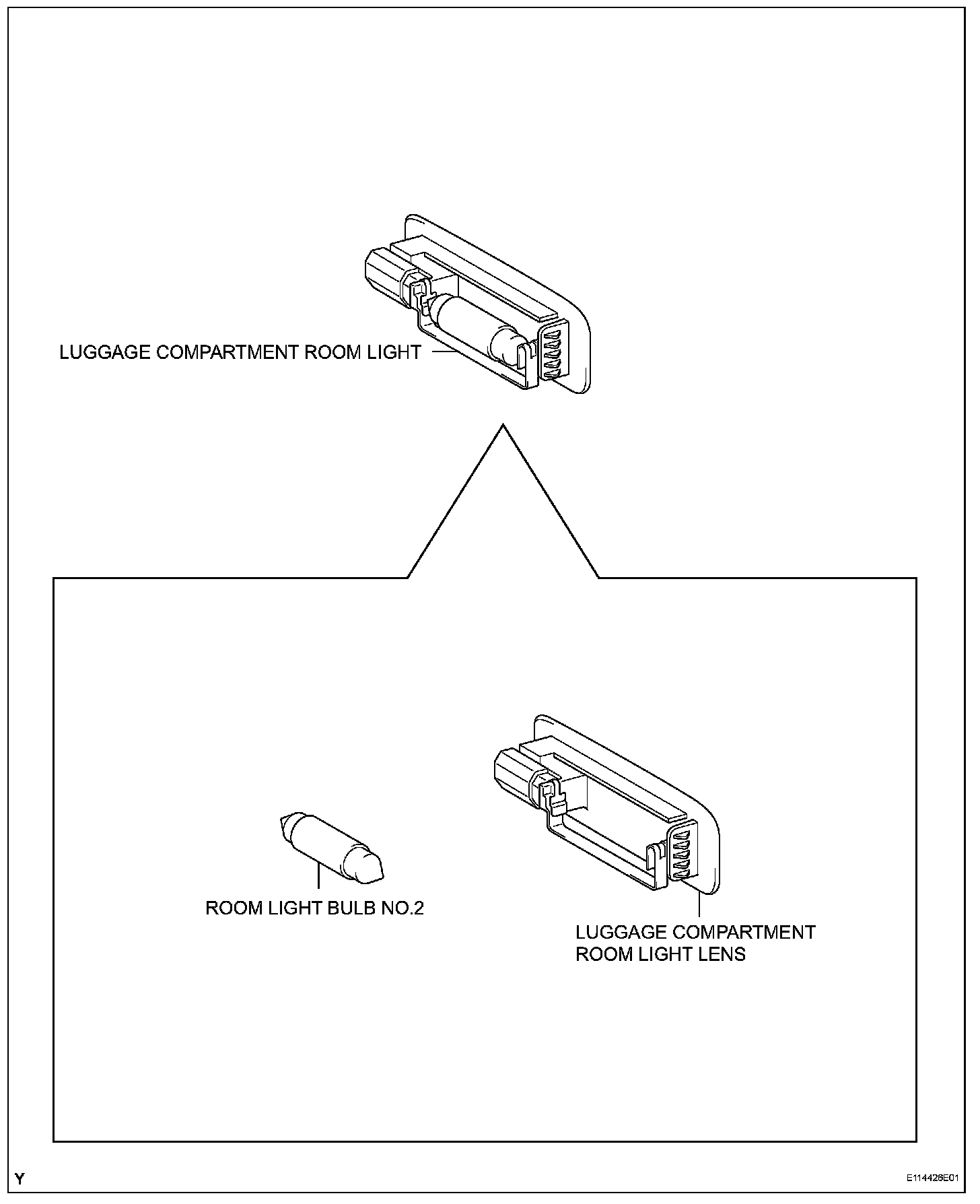

LUGGAGE COMPARTMENT ROOM LIGHT (for Hatchback)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL




2. REMOVE LUGGAGE COMPARTMENT ROOM LIGHT

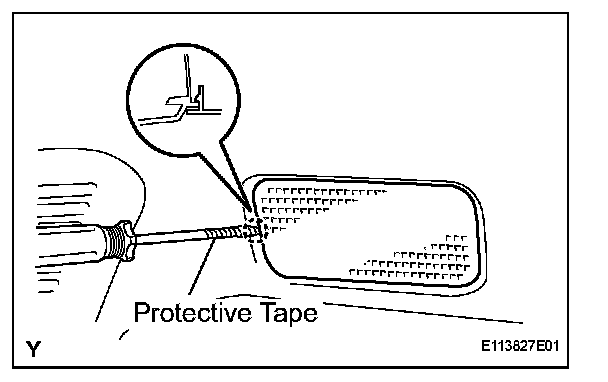

a. Using a screwdriver with its tip wrapped in protective tape, disengage the claw and remove the luggage compartment room light.
b. Disconnect the connector.

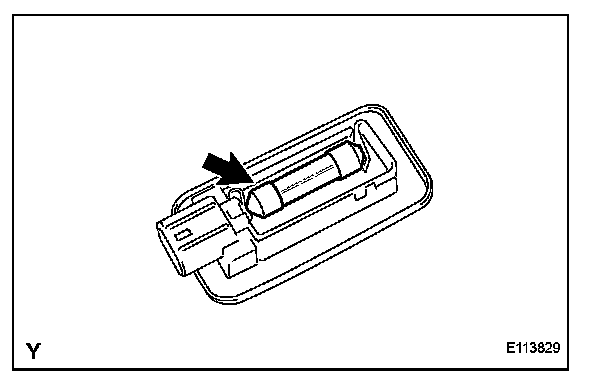

3. REMOVE ROOM LIGHT BULB NO. 2
a. Remove room light bulb No. 2.
