Turn Signal Light Circuit

Turn Signal Light Circuit

DESCRIPTION
The turn signal flasher relay in the main body ECU turns on when it receives signals from the headlight dimmer switch integrated with the turn signal switch, causing the turn signal lights to flash.

Wiring Diagram:

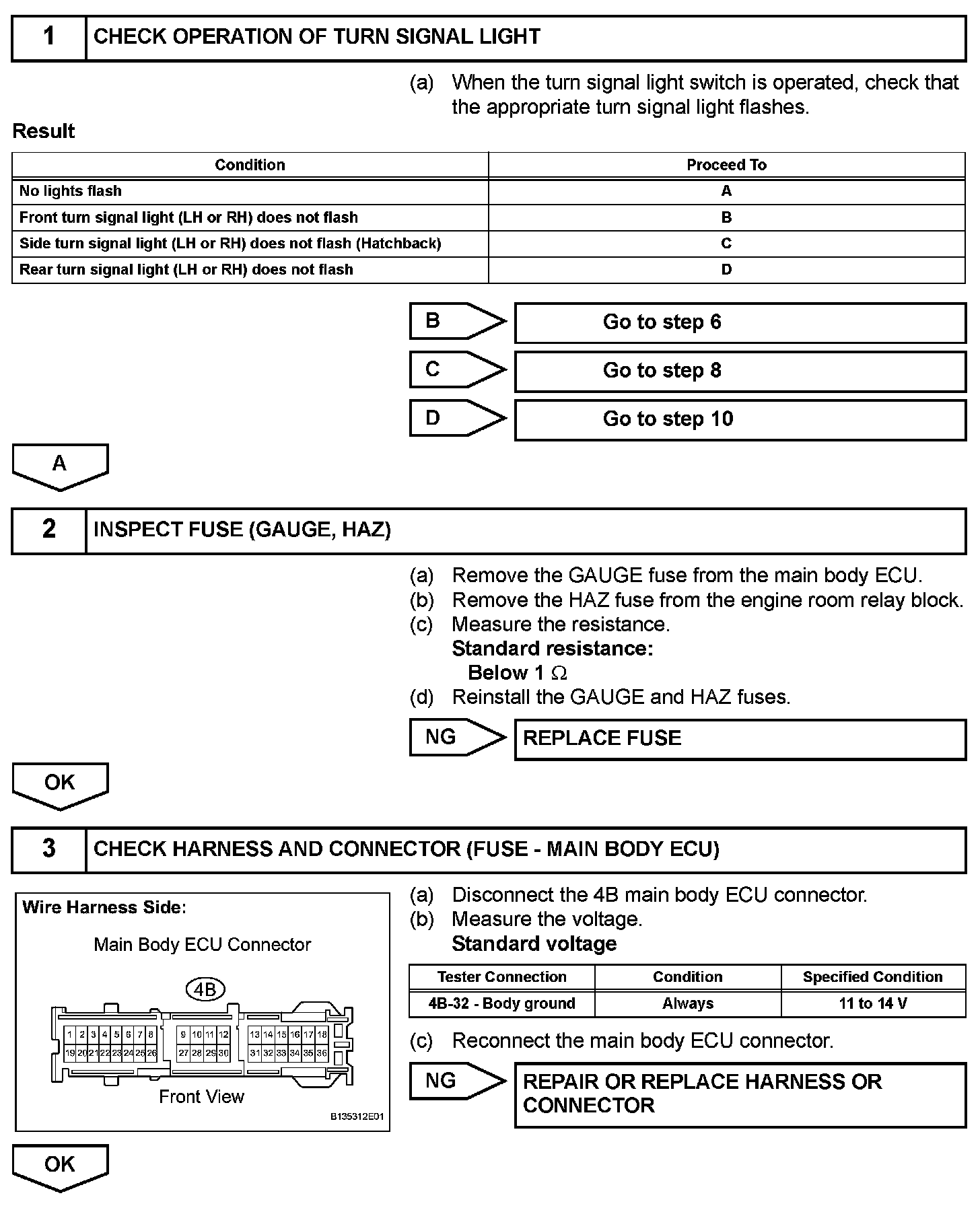

Step 1-3:

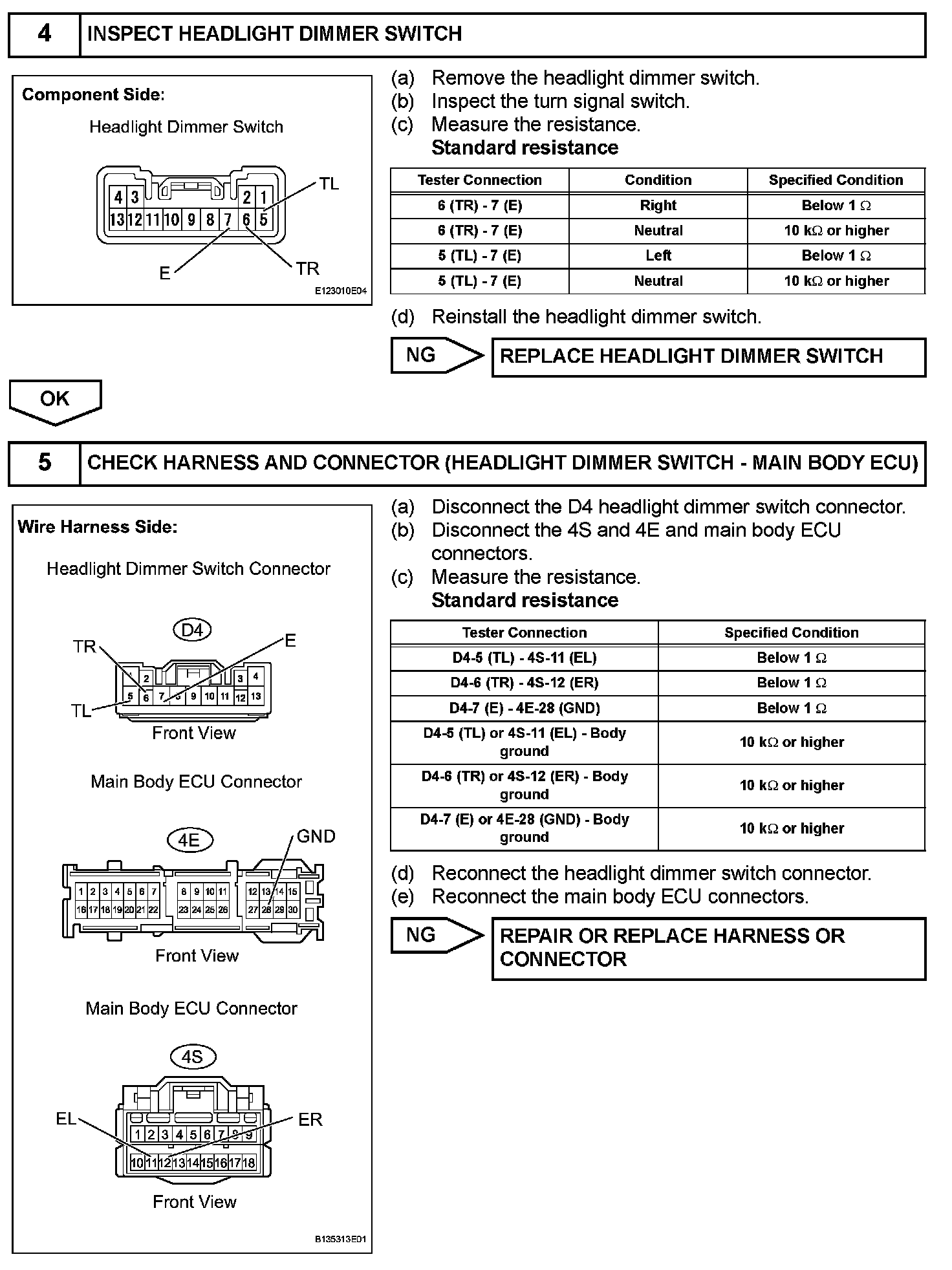

Step 4-6:

Step 5(Continued)-6:

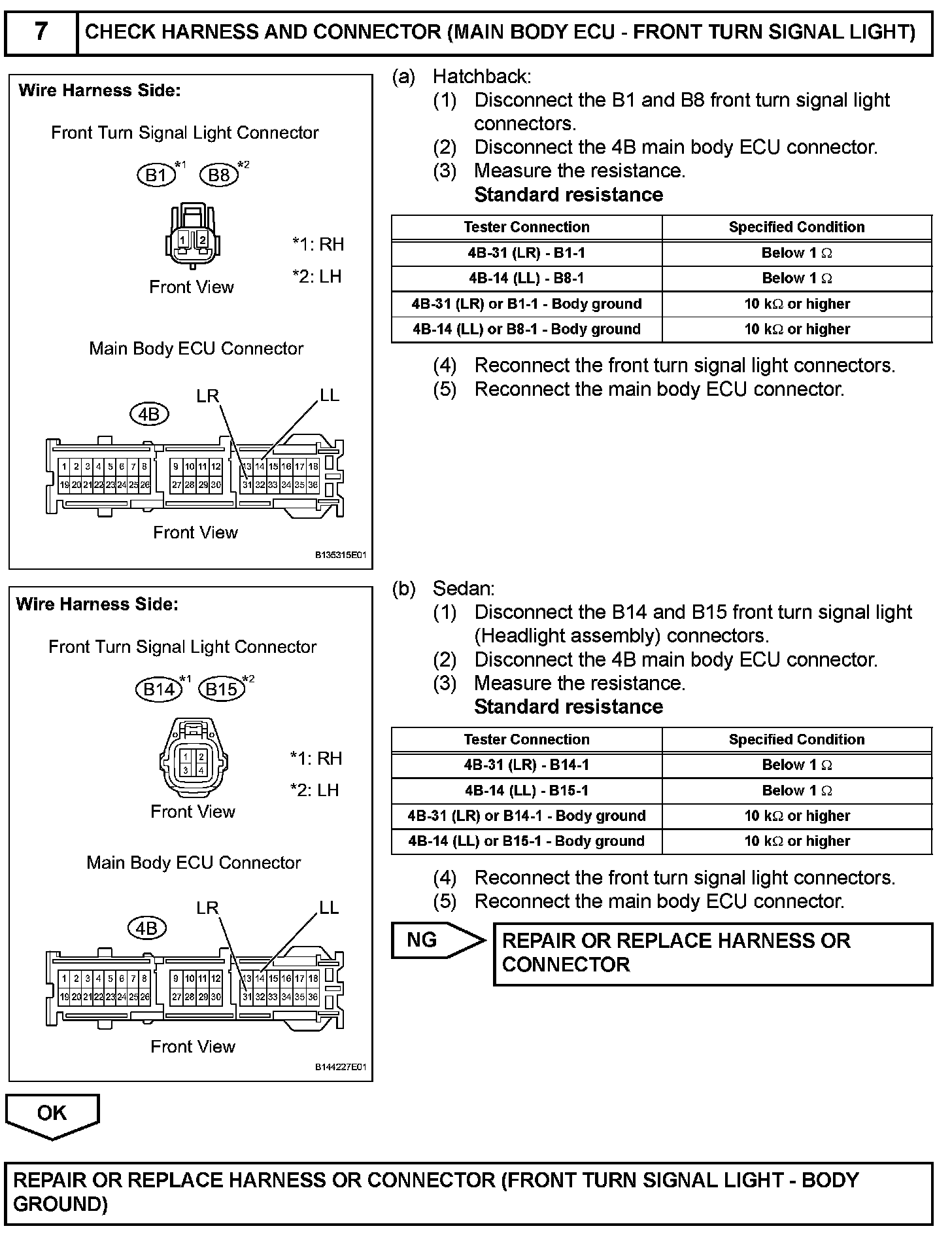

Step 7:

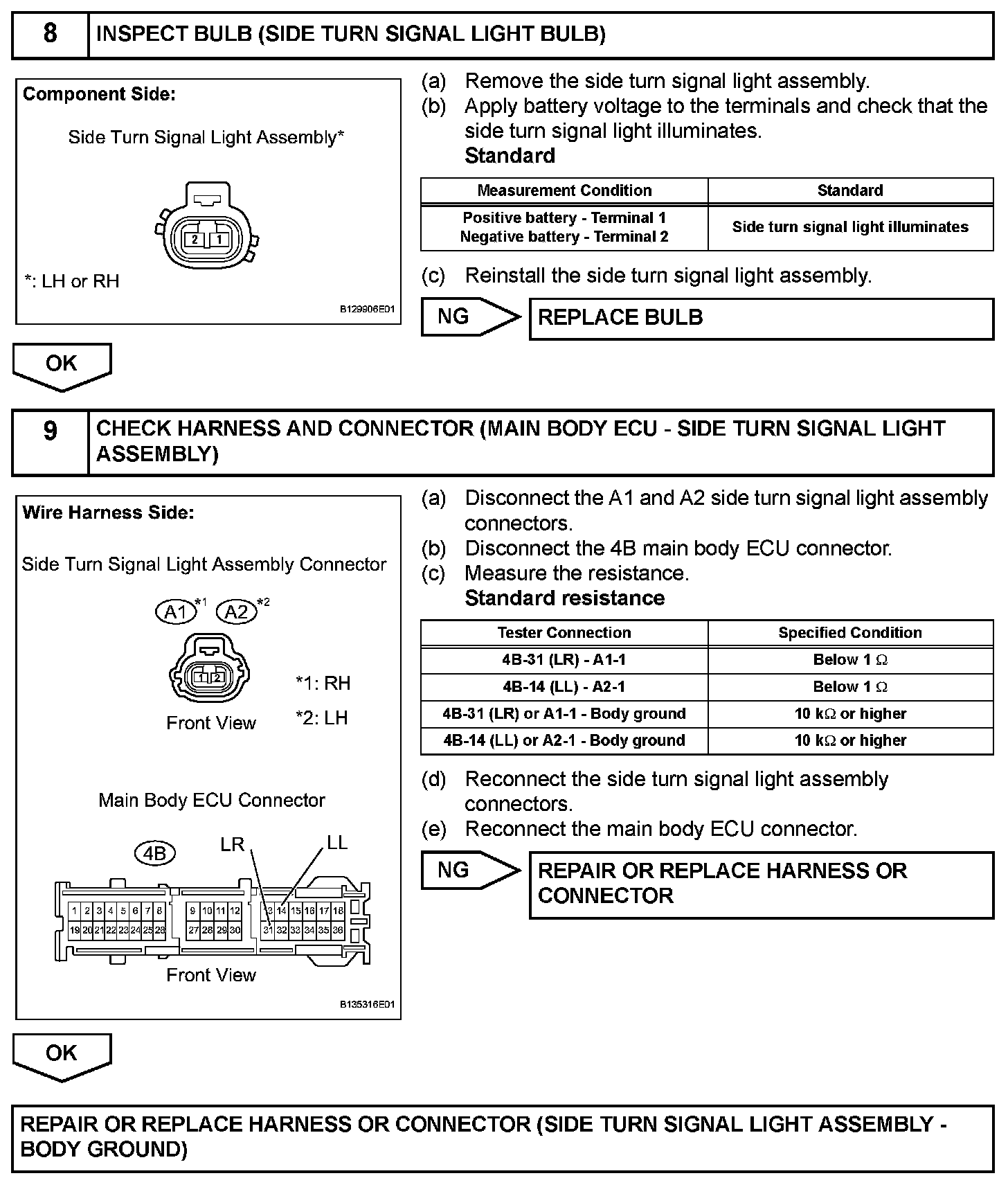

Step 8-9:

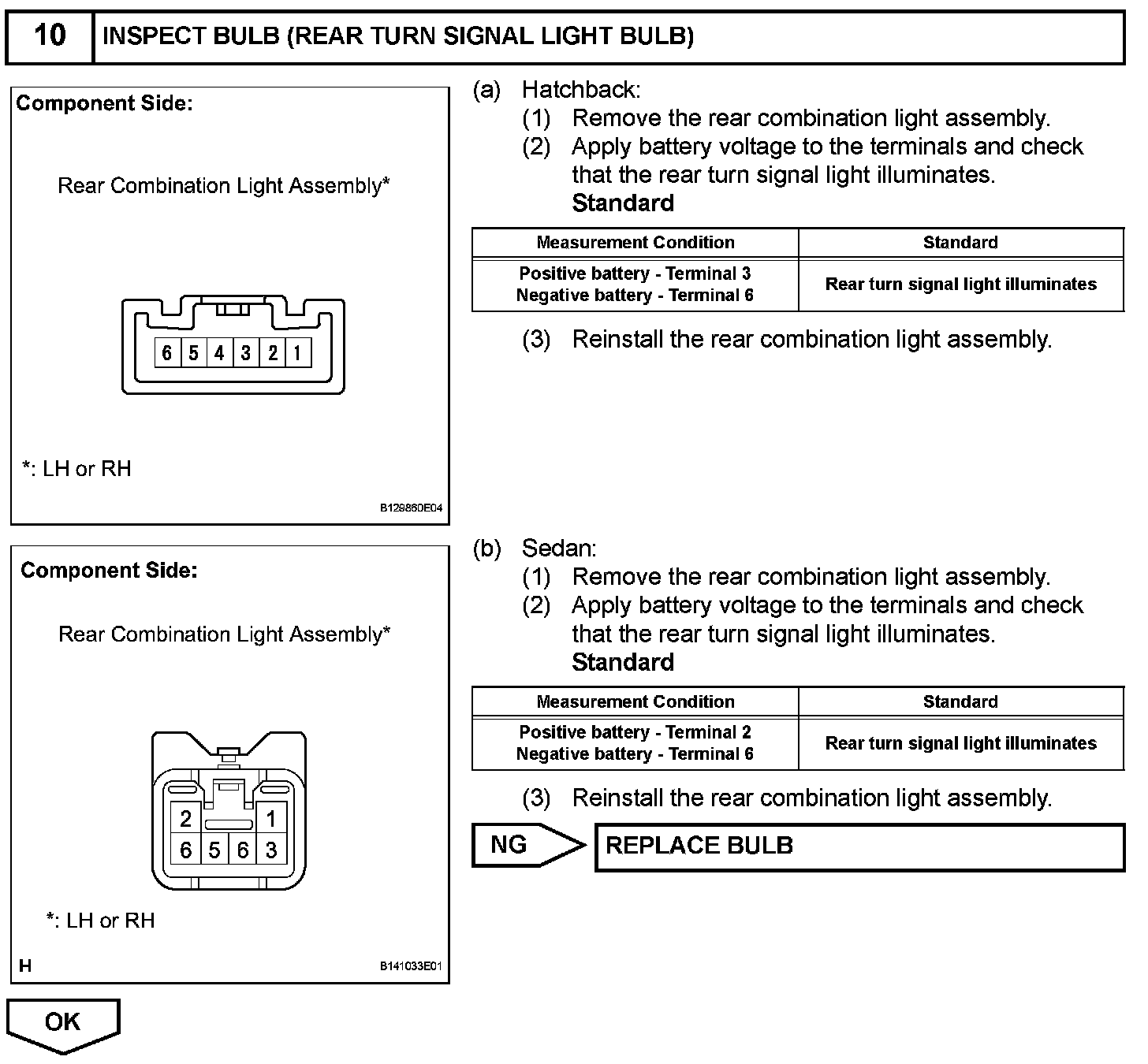

Step 10:

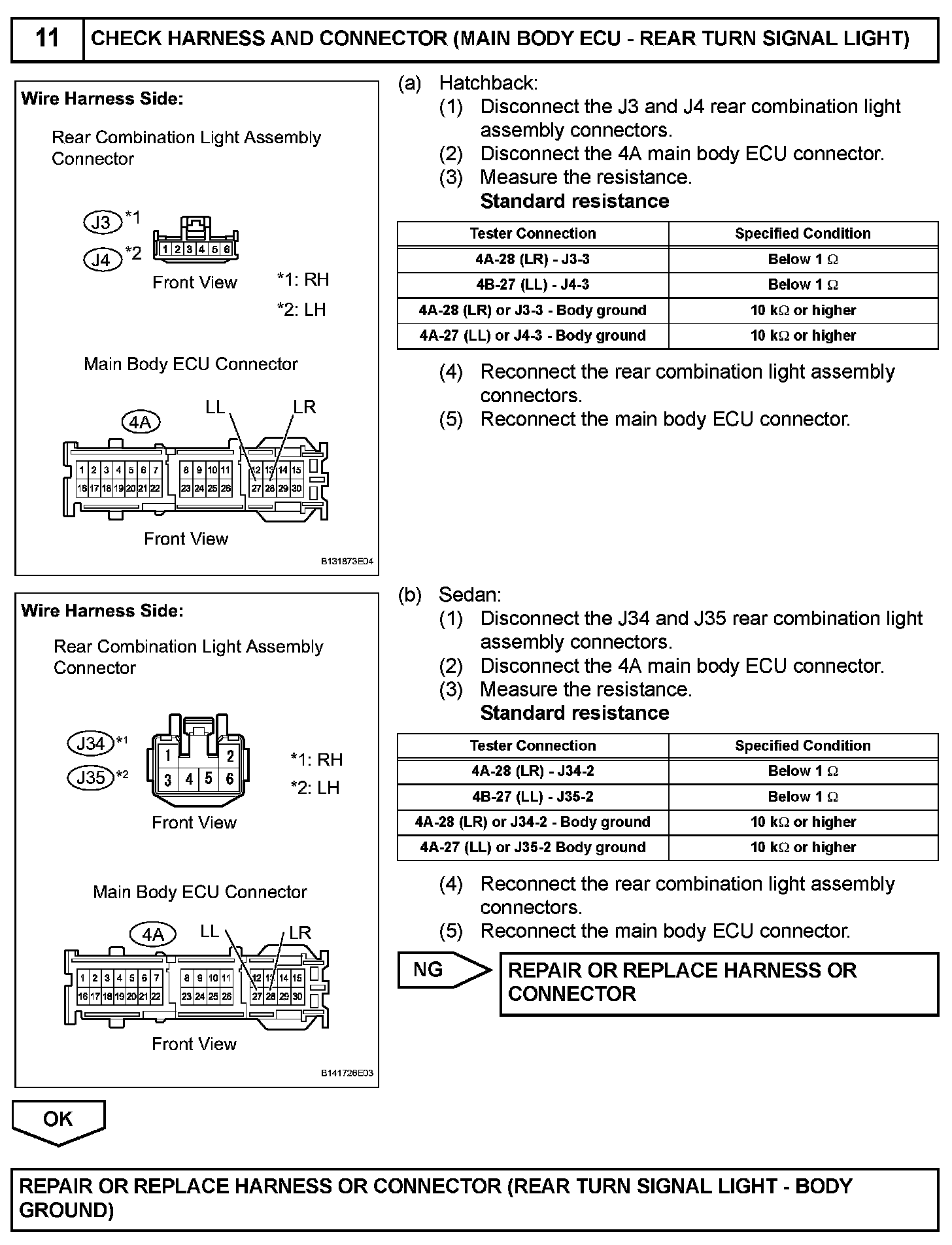

Step 11:

INSPECTION PROCEDURE
