Headlight Relay Circuit
Headlight Relay CircuitDESCRIPTION
When the light control switch, located on the headlight dimmer switch, is turned to the HEAD position, the H-LP/AMT relay illuminates the headlights.

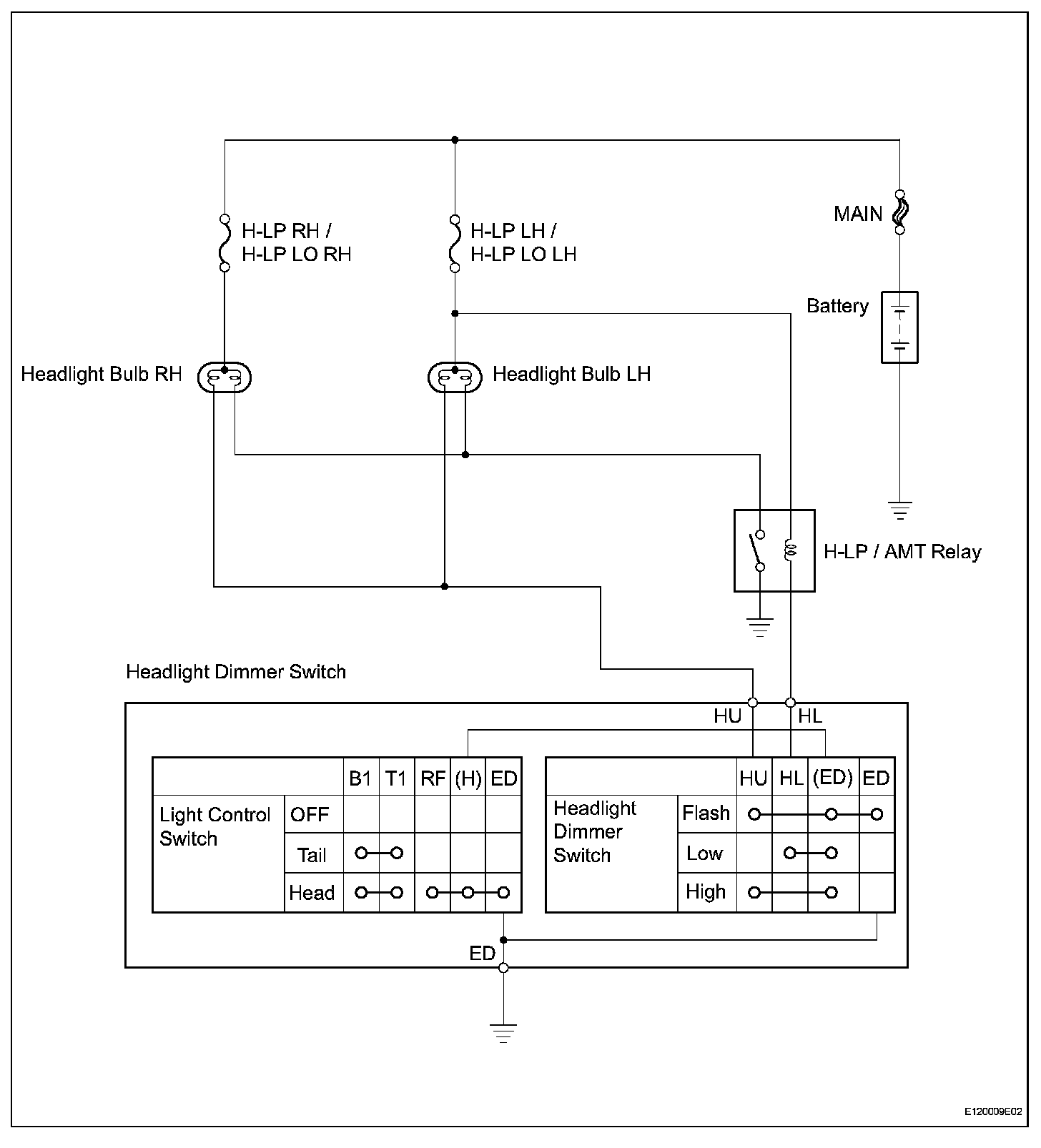

Wiring Diagram:

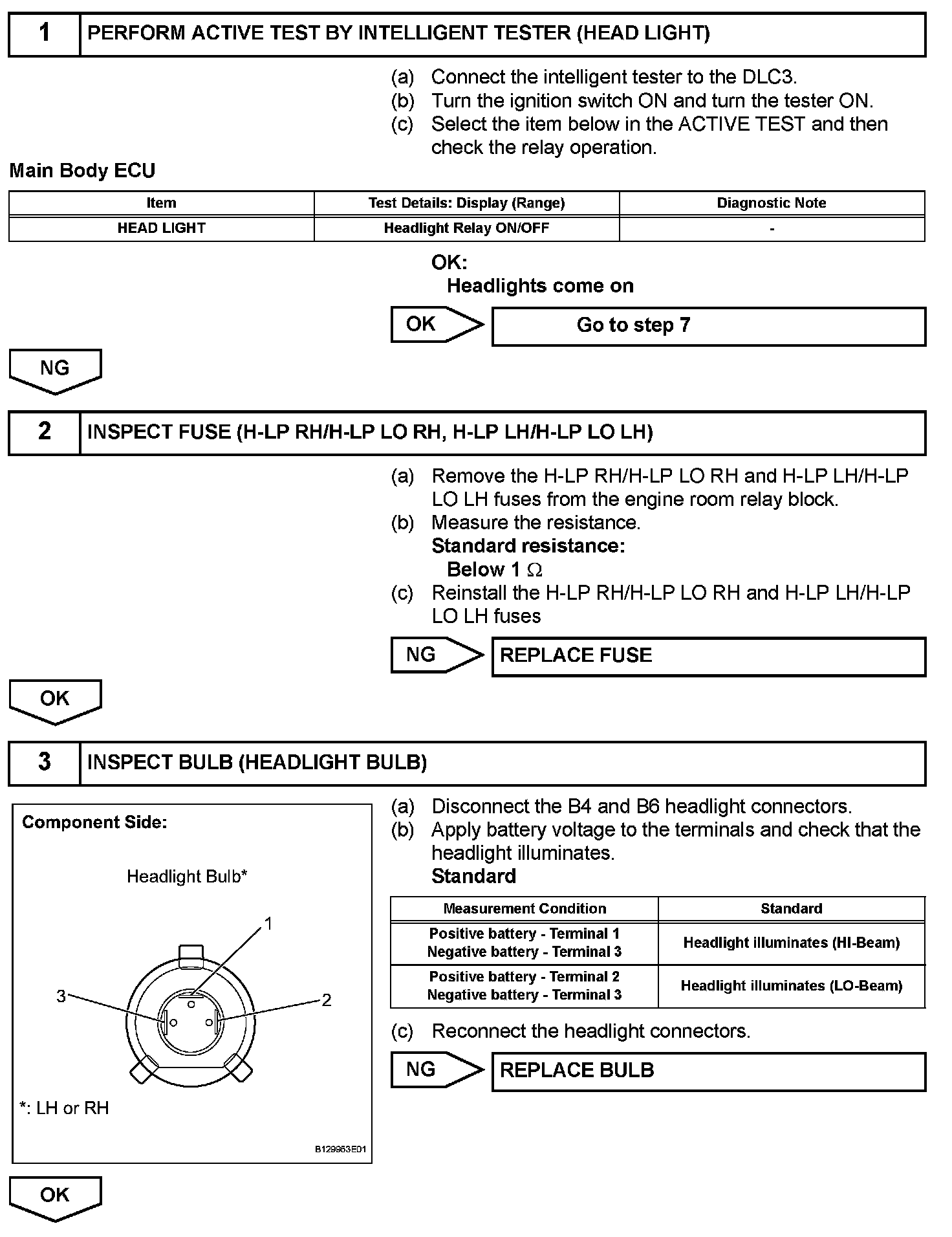

Step 1-3:

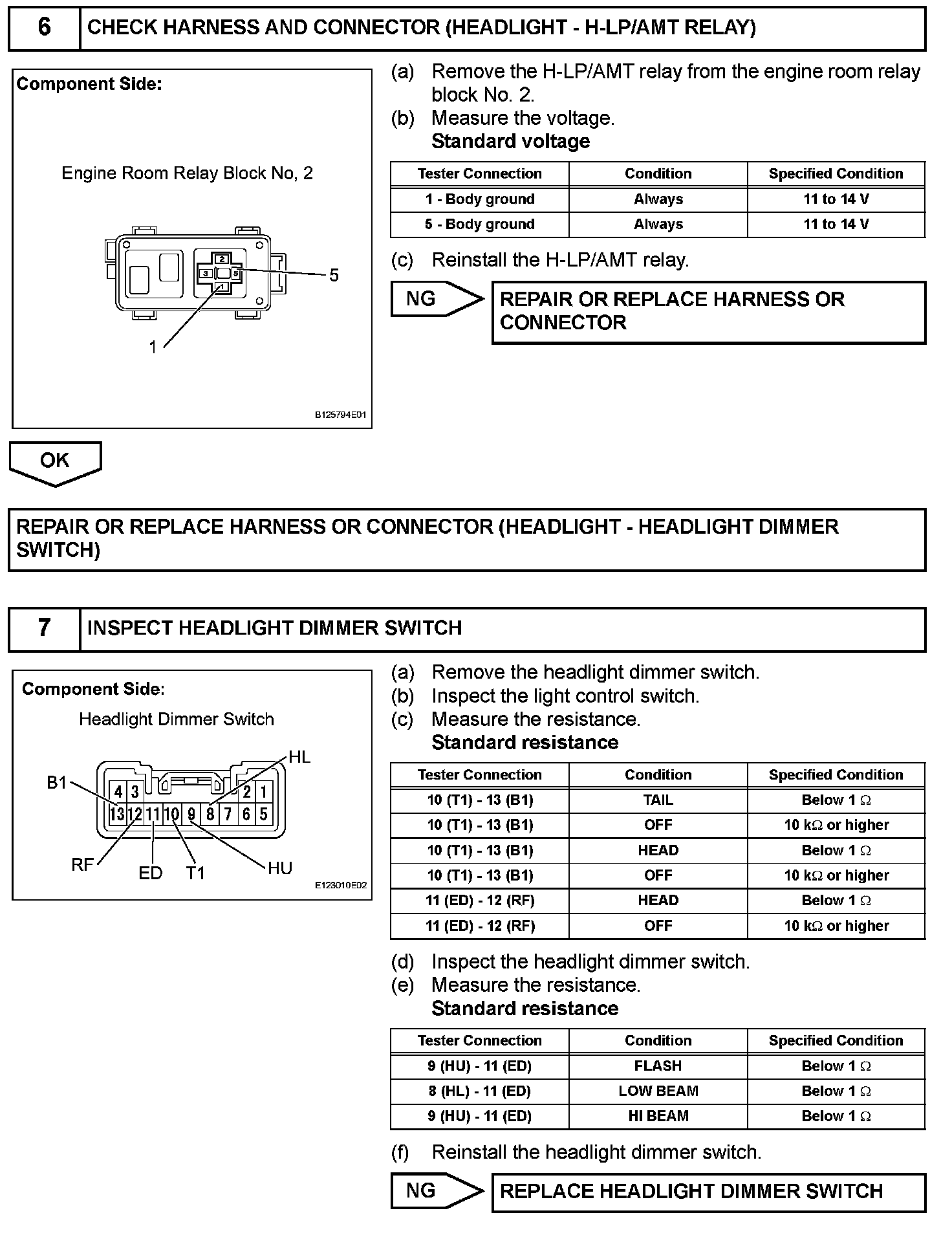

Step 4-5:
Step 6-7:

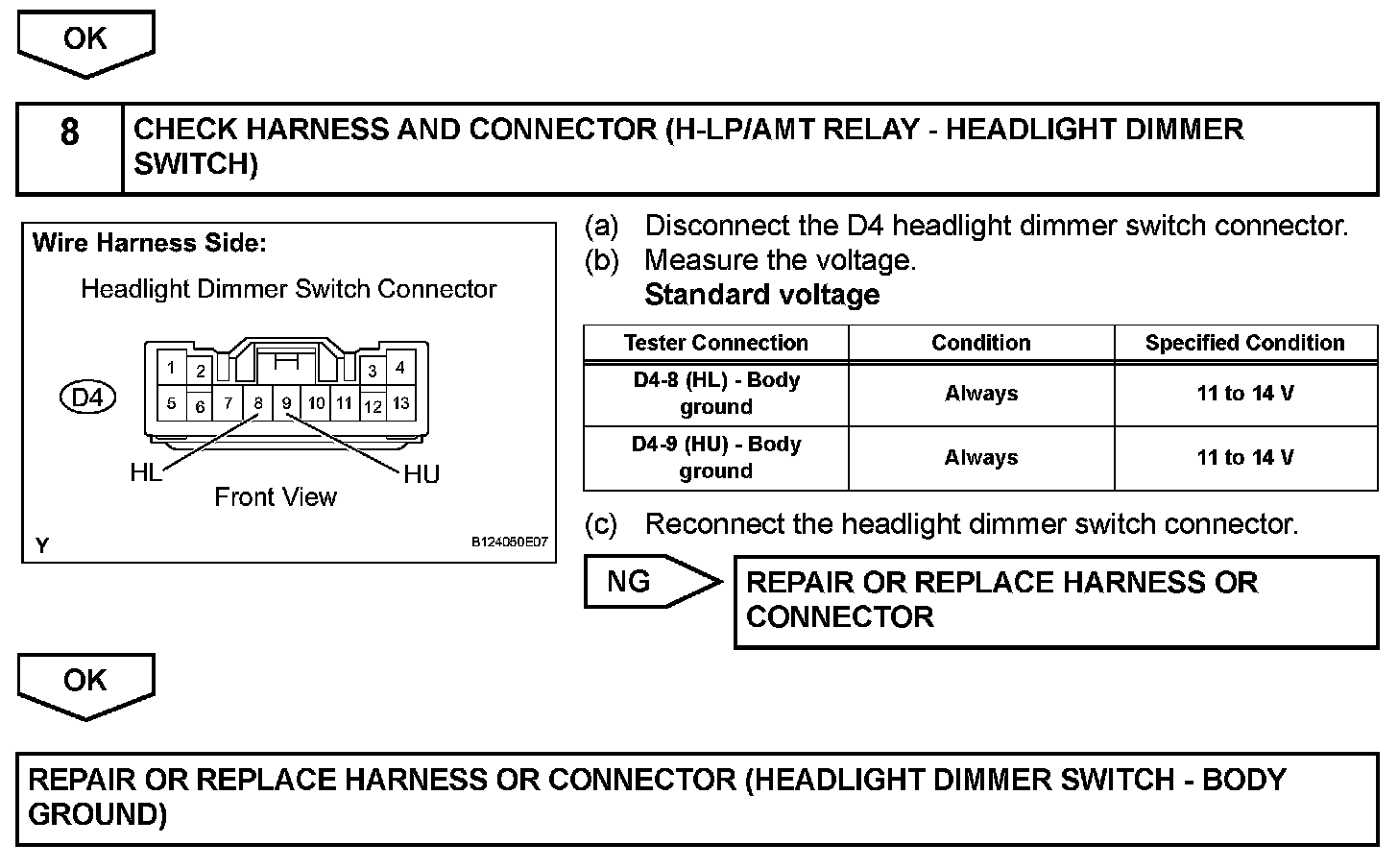

Step 7(Continued)-8:
INSPECTION PROCEDURE
