Hazard Warning Switch Circuit
Hazard Warning Switch CircuitDESCRIPTION
When the hazard warning signal switch is turned on, the turn signal flasher relay in the main body ECU turns on to flash the hazard warning signal lights.
Wiring Diagram:

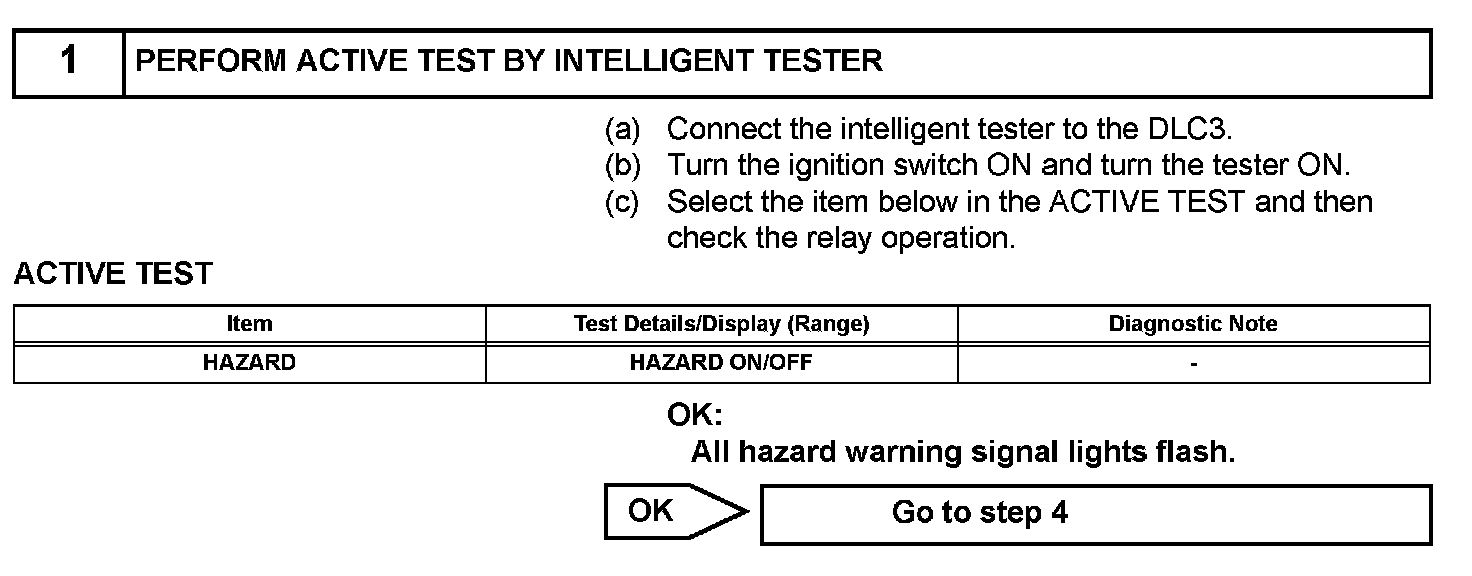

Step 1:

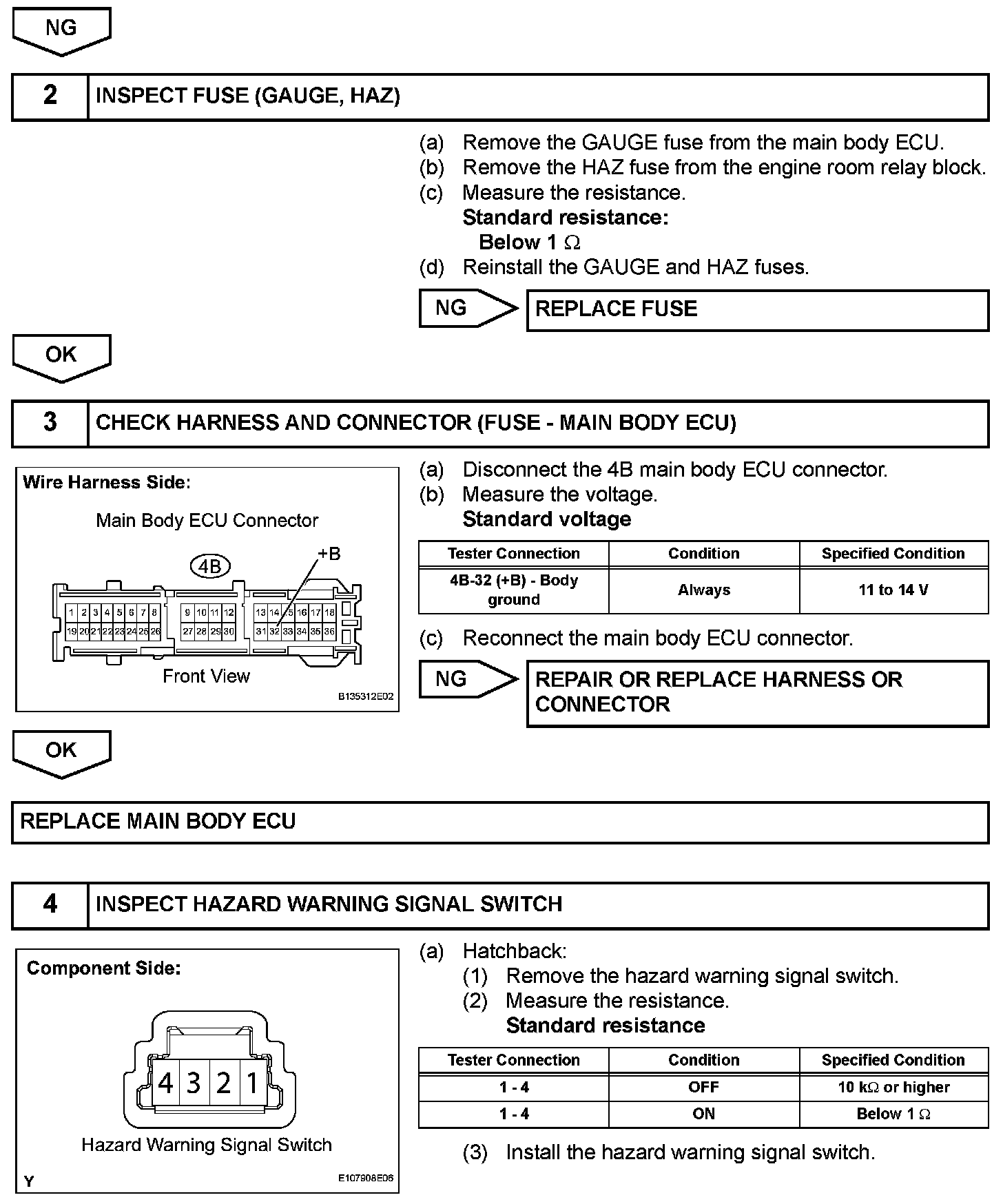

Step 1(Continued)-4:

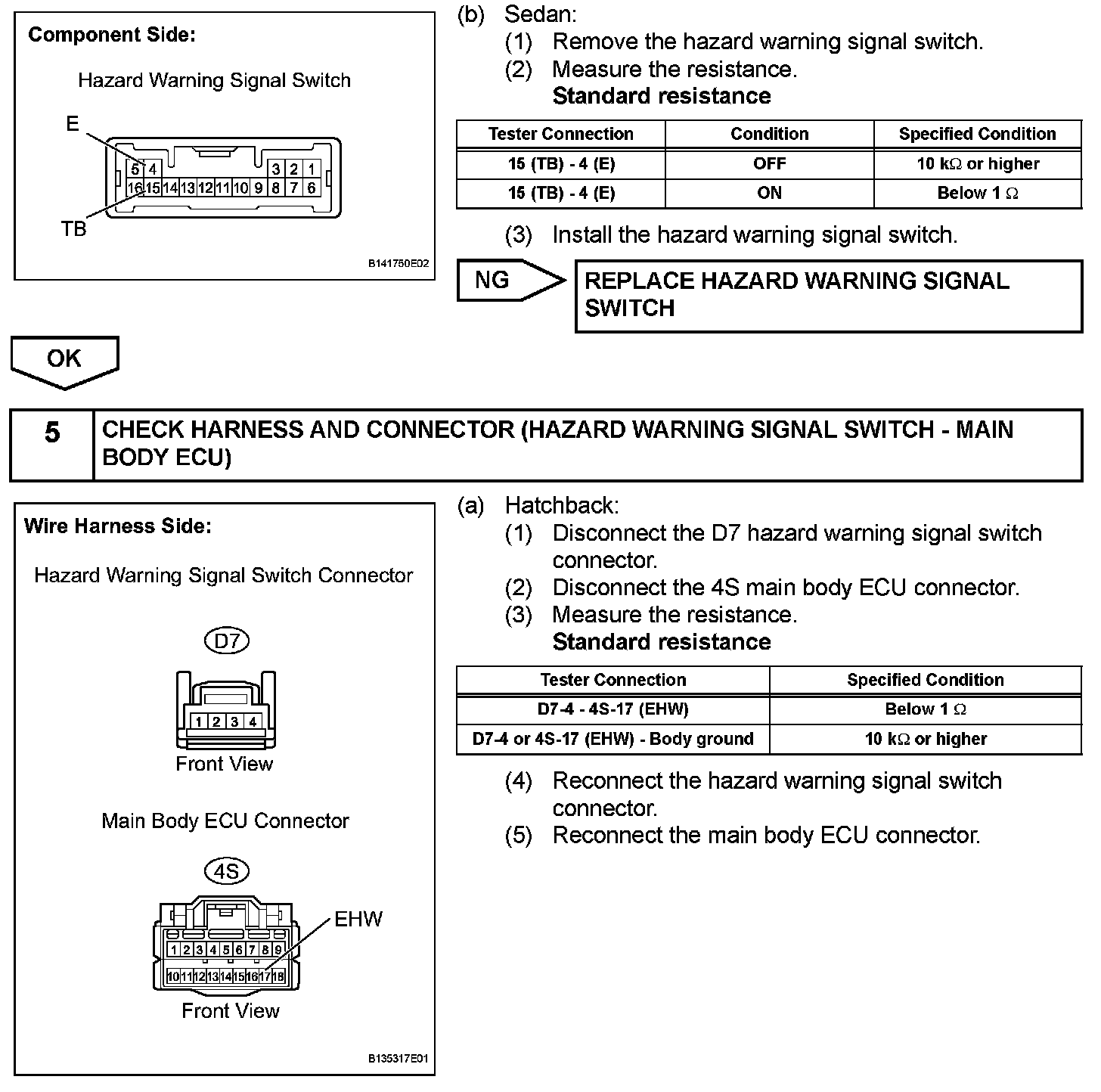

Step 4(Continued)-5:

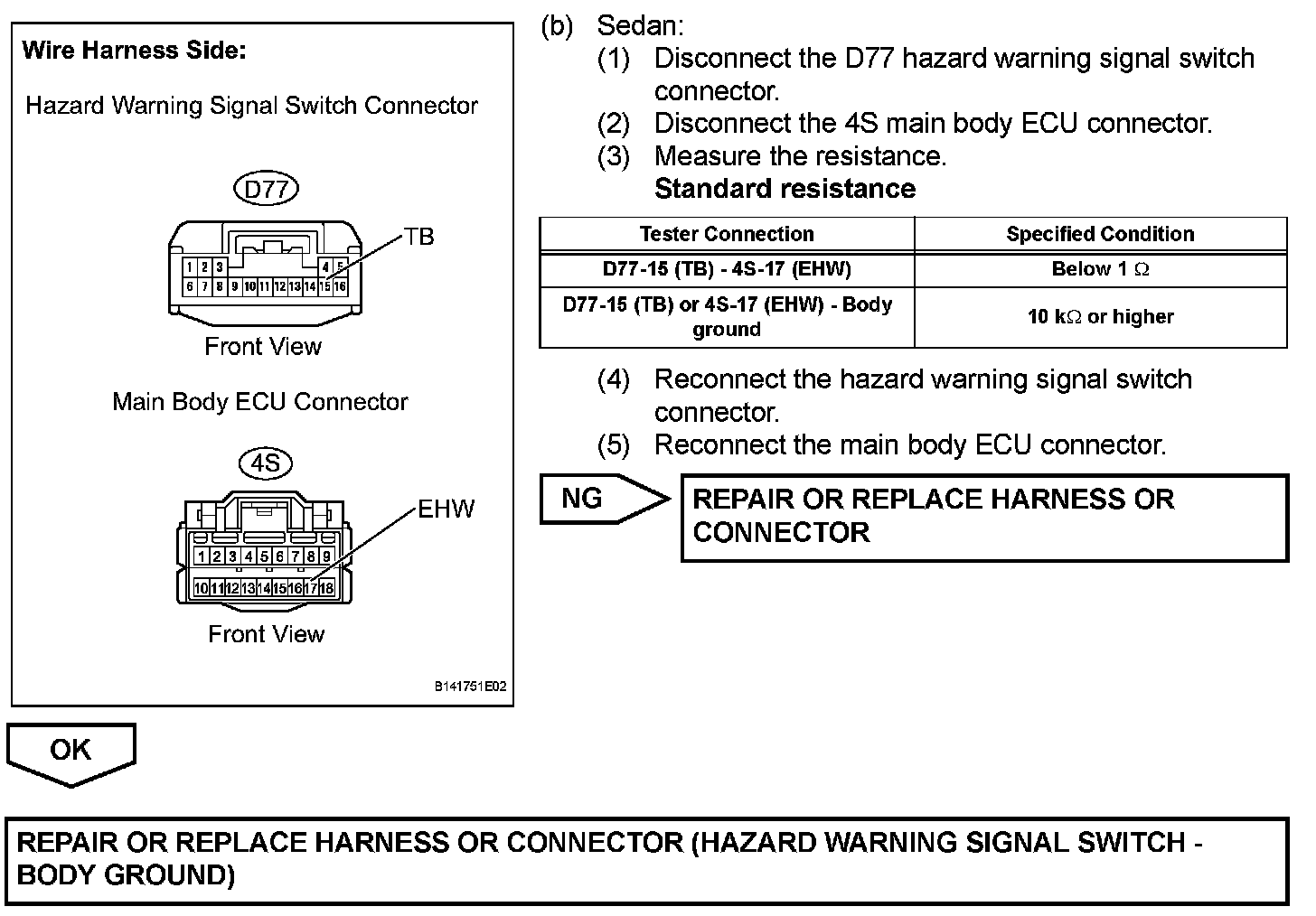

Step 5(Continued):
INSPECTION PROCEDURE
