Back-Up Light Circuit

Back-up Light Circuit

DESCRIPTION
A/T models: The park / neutral position switch turns on when the shift lever is moved into the R position, causing the back-up light to illuminate.
M/T models: The back-up light switch turns on when the shift lever is moved into the R position, causing the back-up light to illuminate.

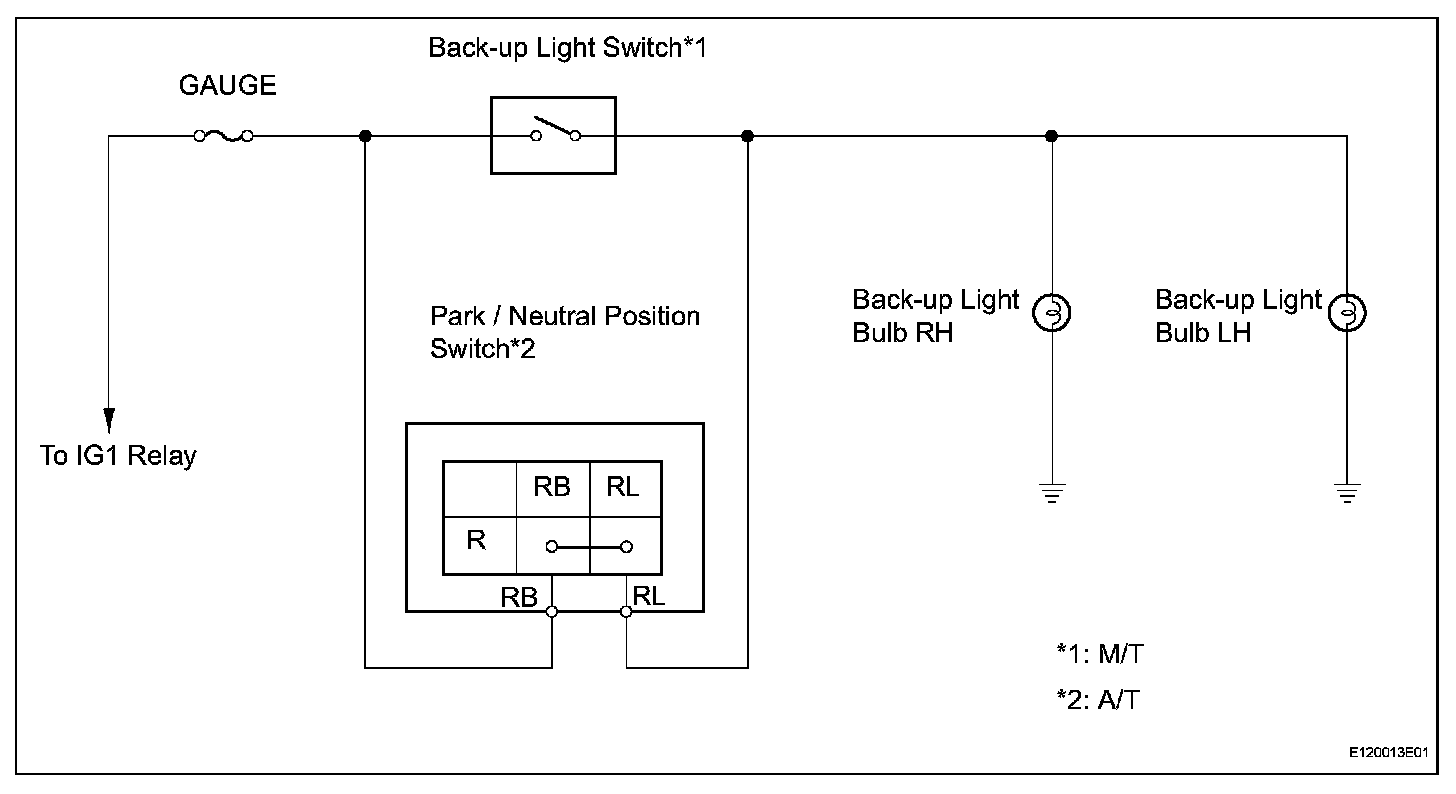

Wiring Diagram:

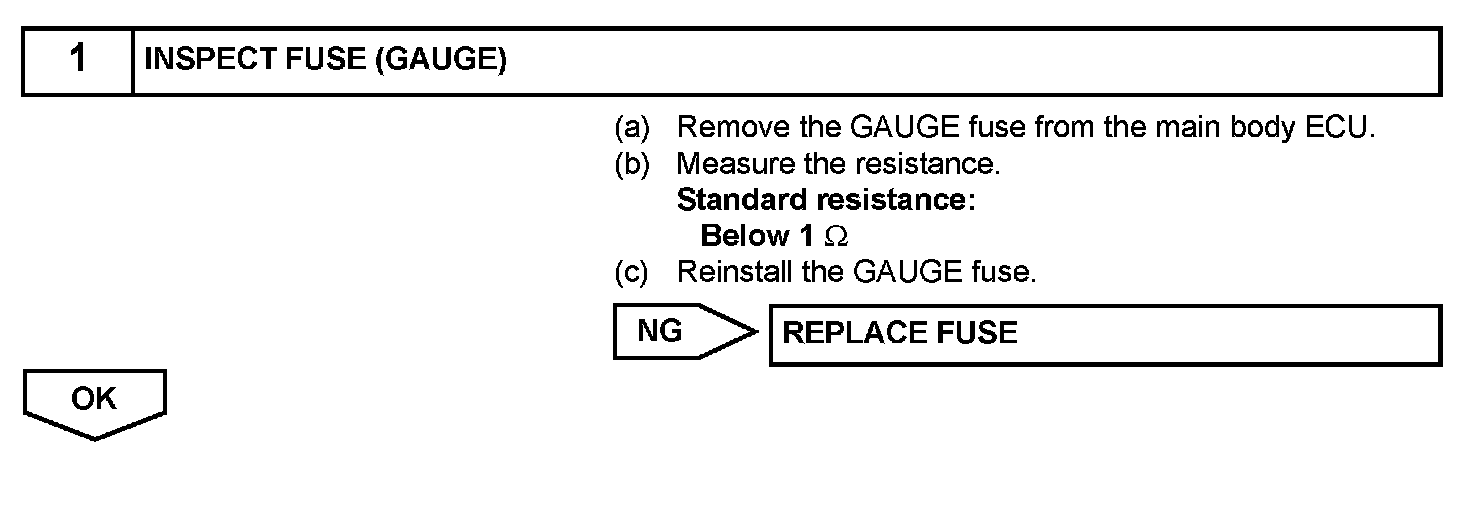

Step 1:

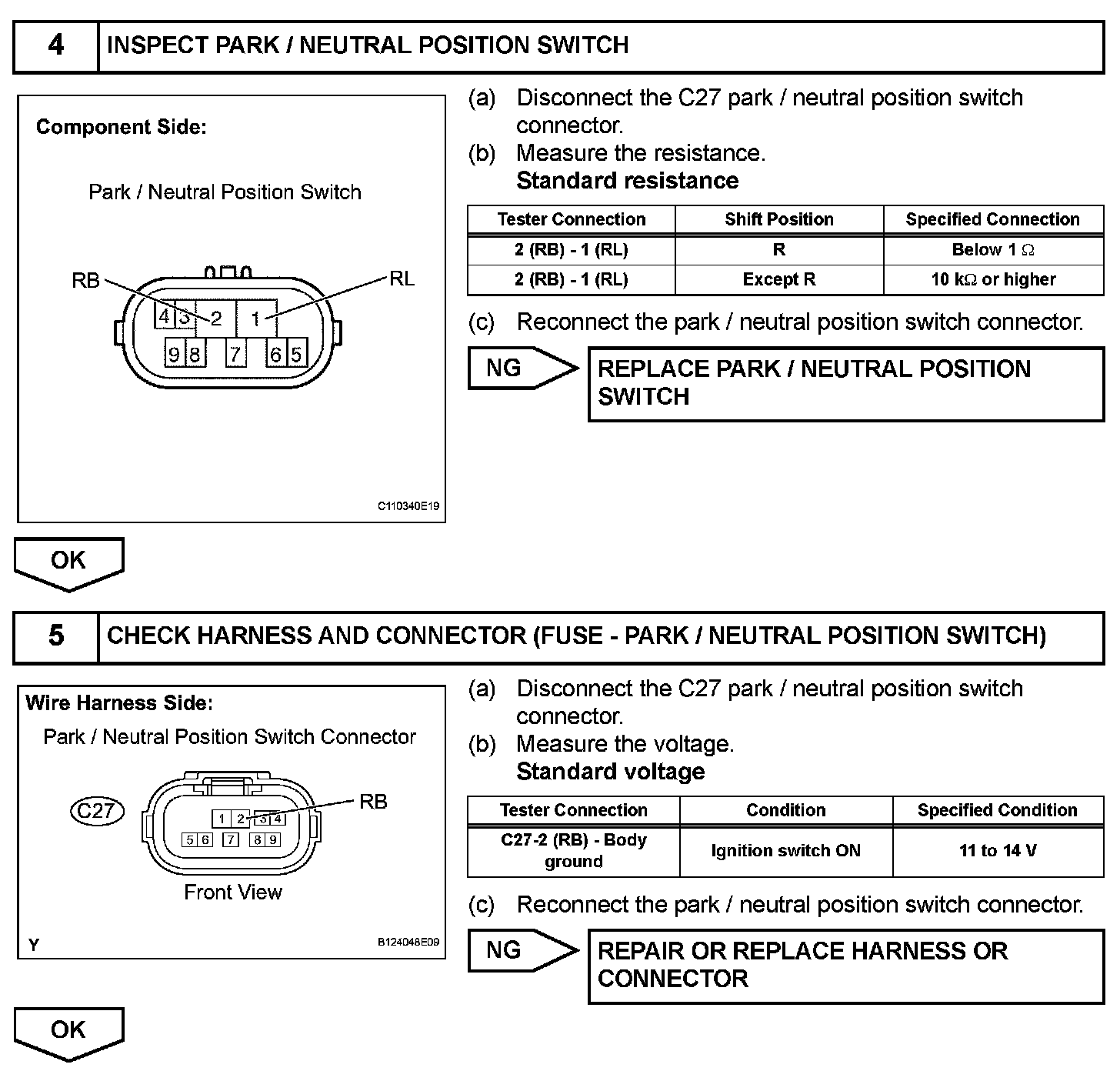

Step 2-3:

Step 4-5:

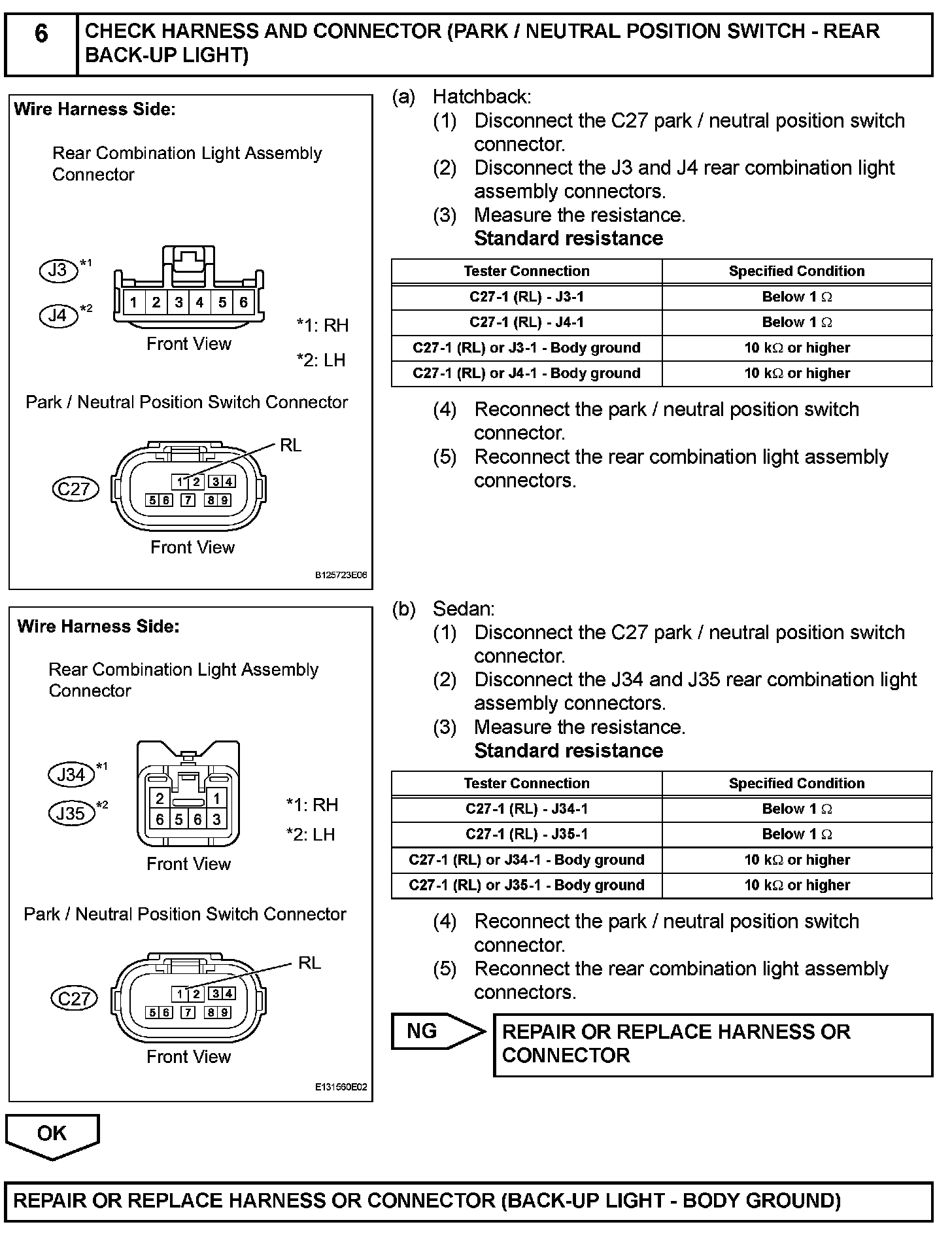

Step 6:

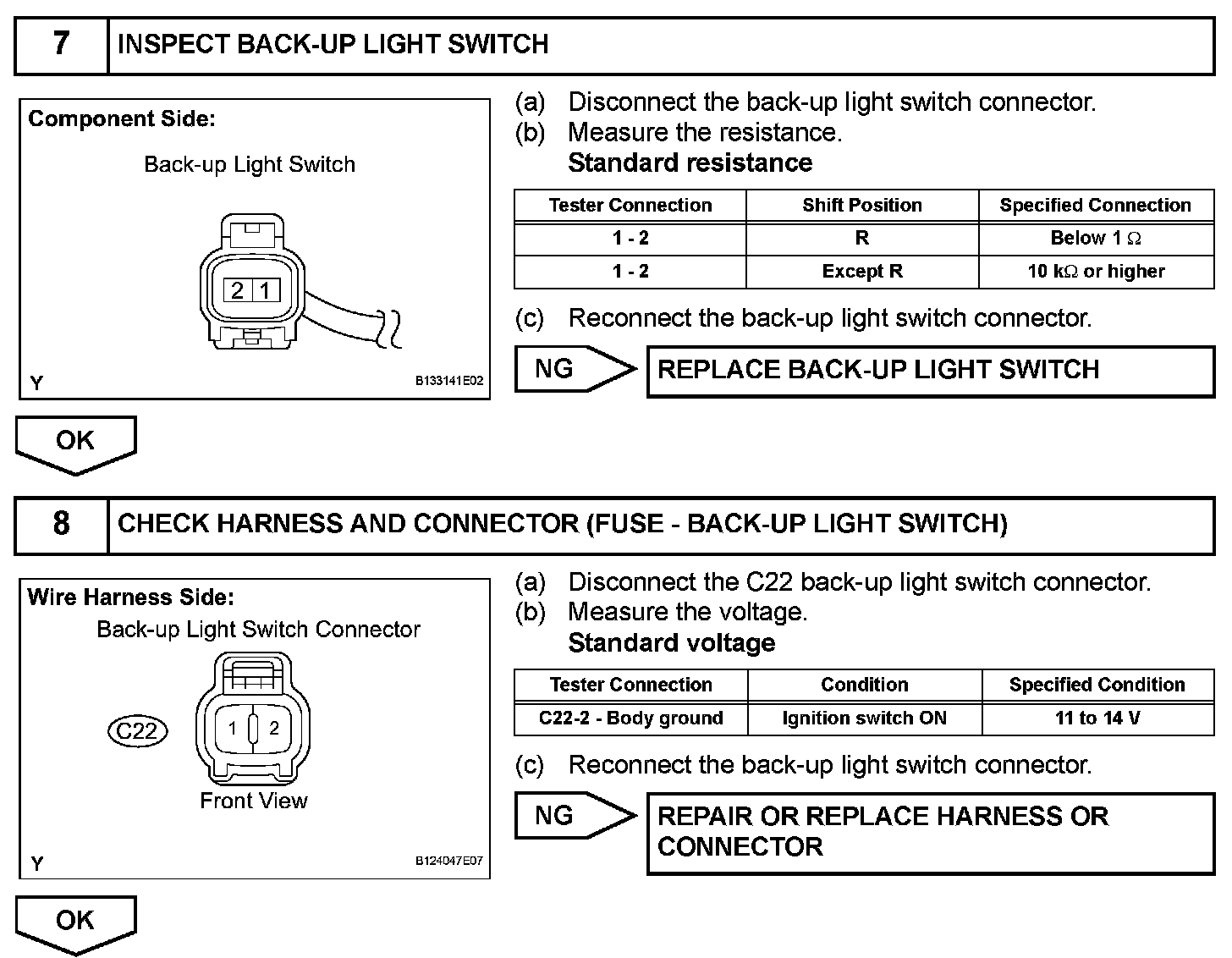

Step 7-8:

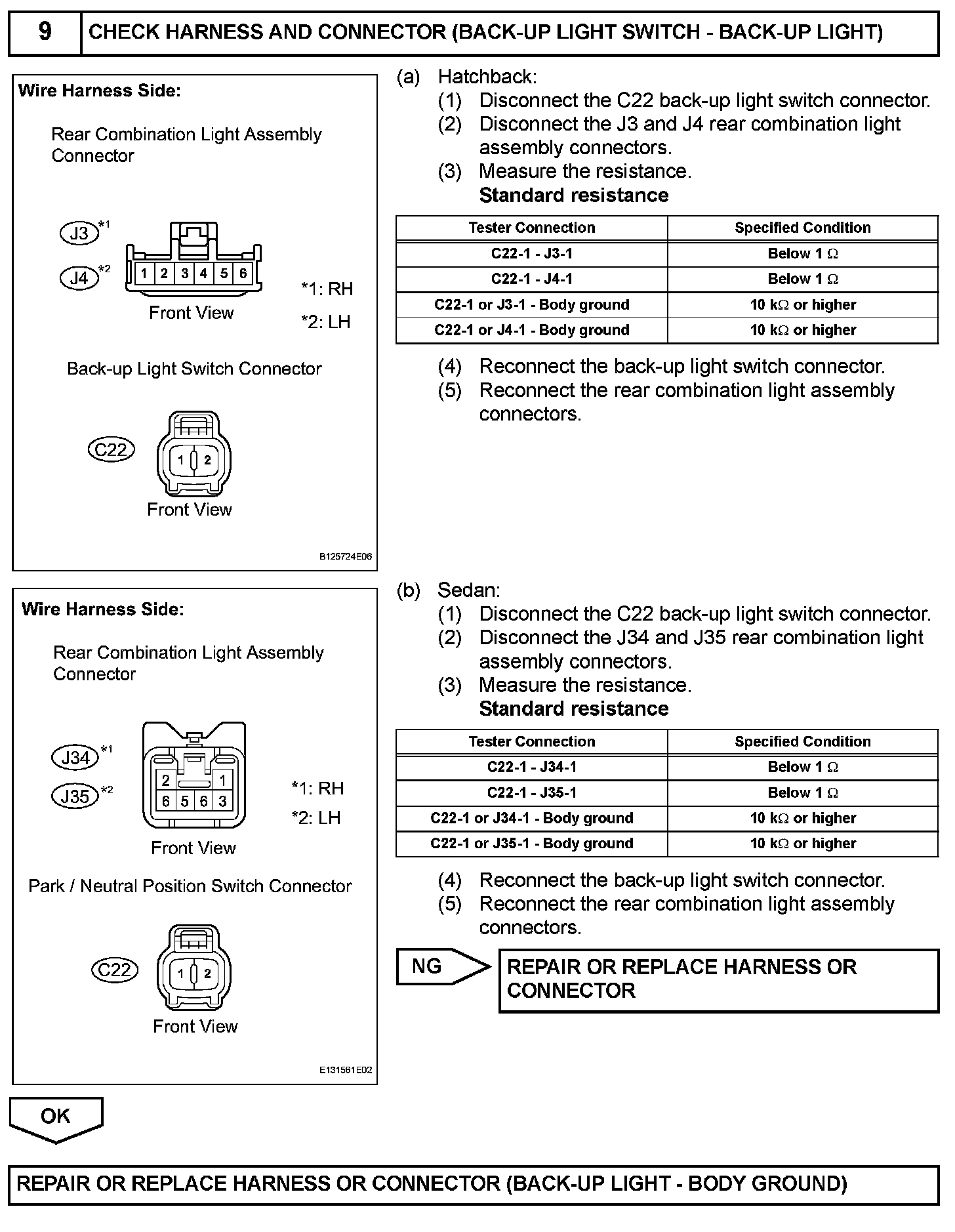

Step 9:

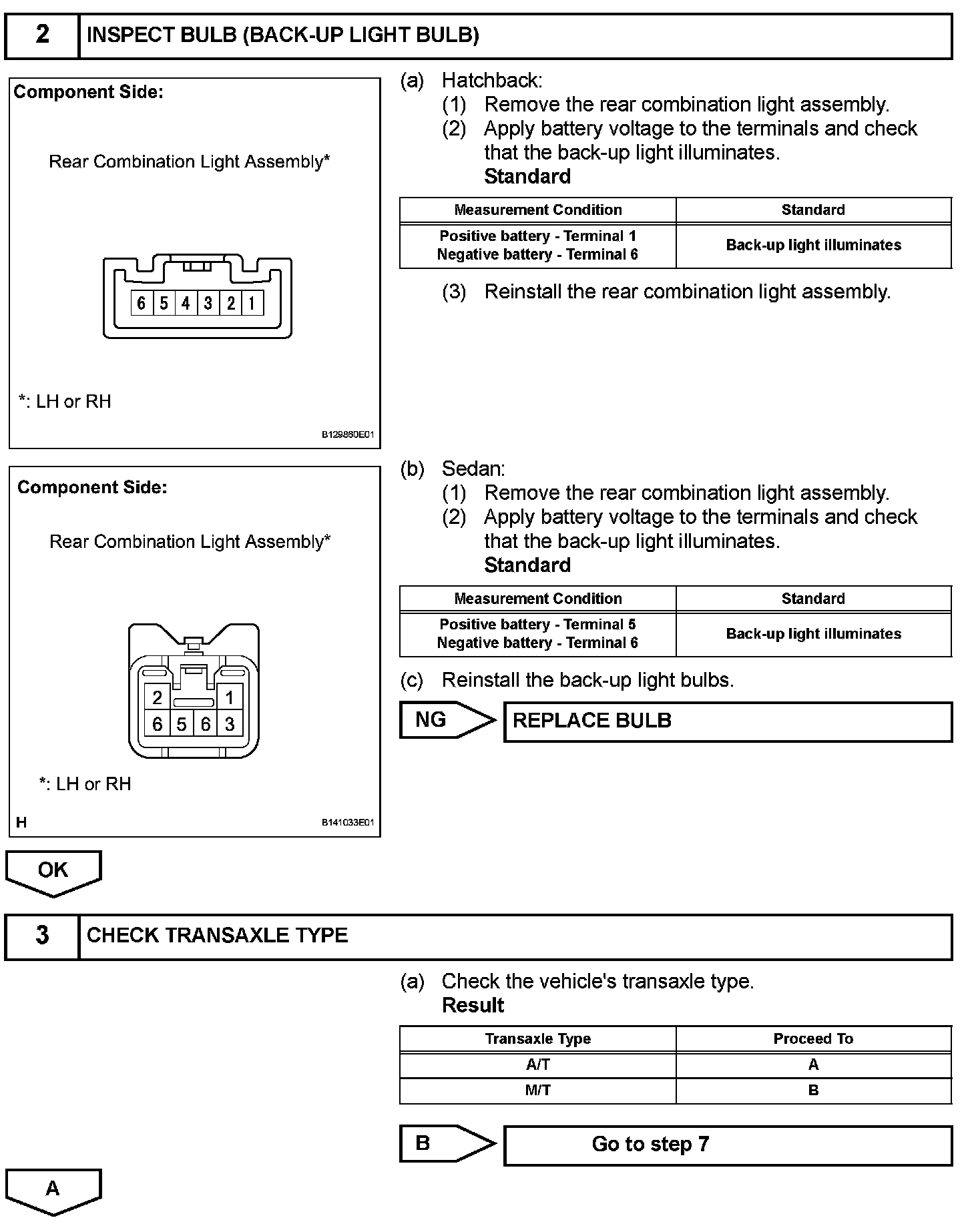

INSPECTION PROCEDURE
