License Plate Light Assembly (For Sedan)

License Plate Light Assembly (for Sedan):

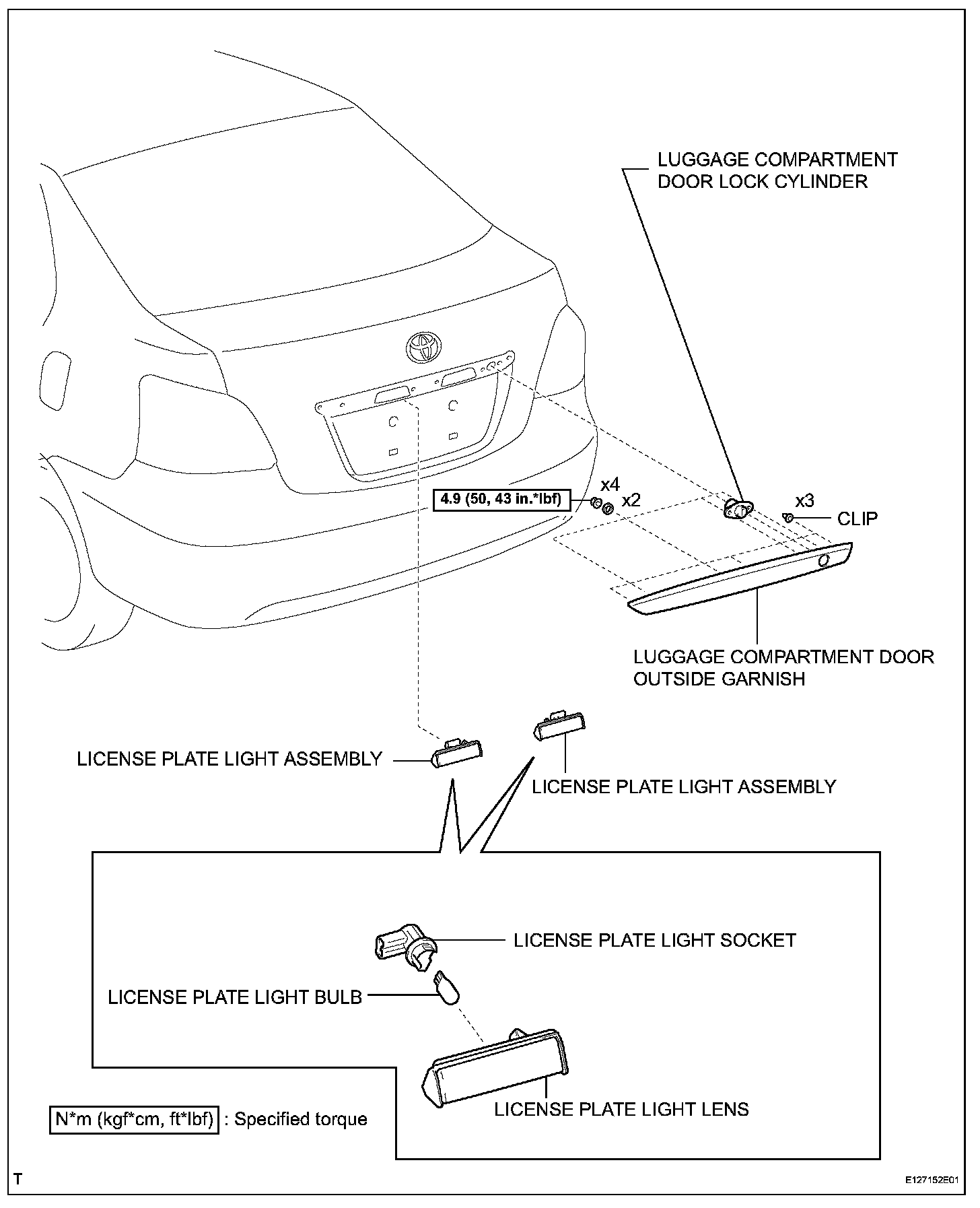

LICENSE PLATE LIGHT ASSEMBLY (for Sedan)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

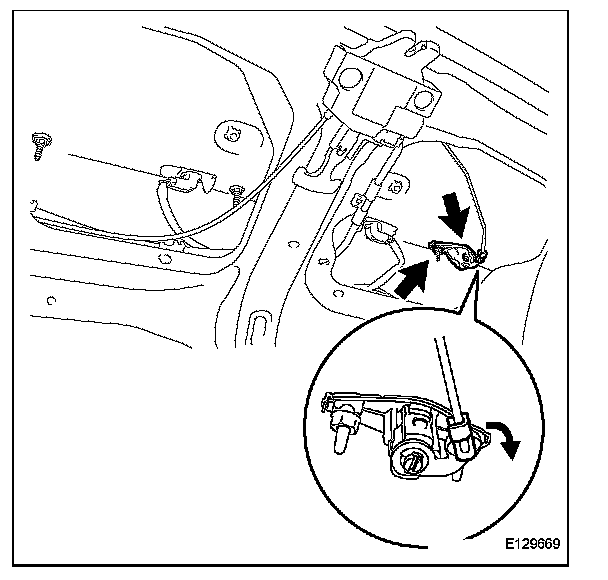

a. Remove the snap ring in the direction indicated by the arrow and remove the luggage compartment door lock link.
b. Remove the 2 nuts and the luggage compartment door lock cylinder.




3. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

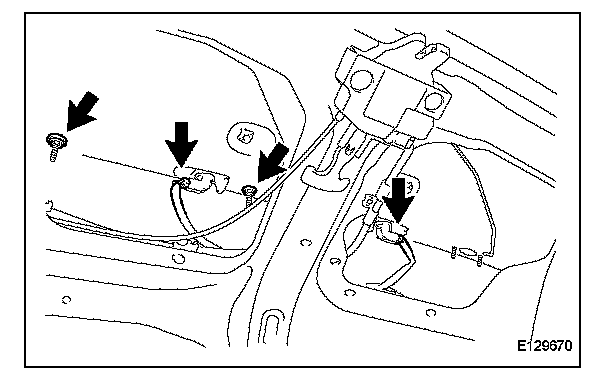

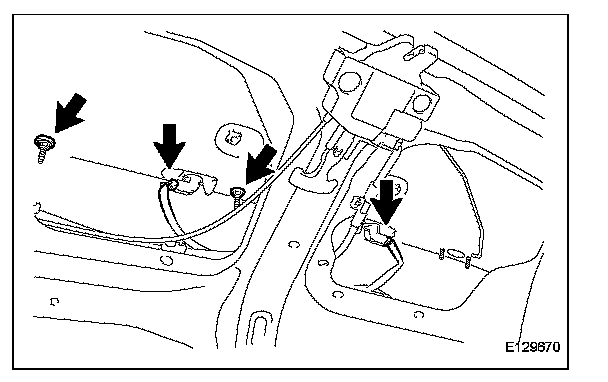

a. Disconnect the 2 connectors.
b. Remove the 2 nuts.

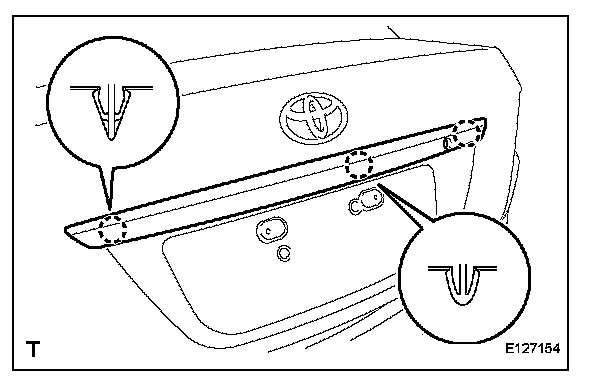

c. Disengage the 3 claws and remove the luggage compartment door outside garnish.

4. REMOVE LICENSE PLATE LIGHT ASSEMBLY

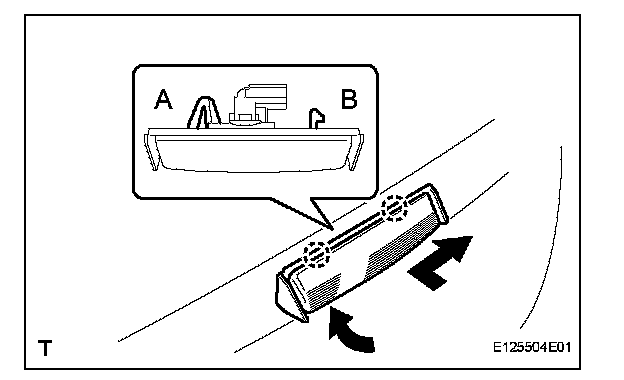

a. Pull the license plate light assembly in the direction indicated by arrow 1, shown in the illustration. Disengage claw B by pulling claw A toward you while flexing it and remove the license plate light assembly.

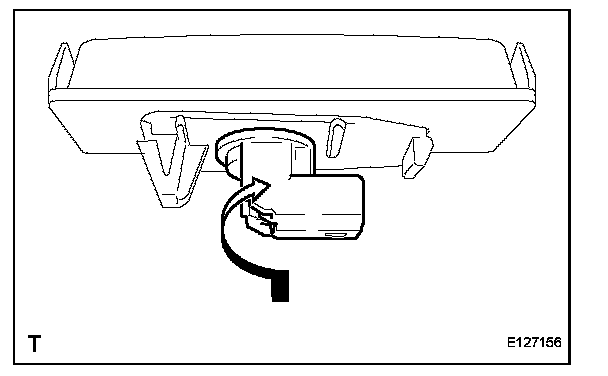

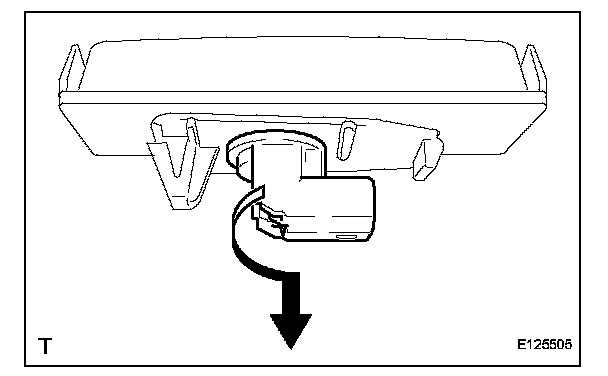

b. Turn the license plate light socket and bulb, in the directions indicated by the arrow in the illustration, to remove them.
c. Remove the license plate light bulb from the light socket.

INSTALLATION

1. INSTALL LICENSE PLATE LIGHT ASSEMBLY
a. Install the license plate light bulb into the light socket.




b. Turn the license plate light bulb socket and bulb, in the directions indicated by the arrow in the illustration, to install them.




c. Engage claw A and claw B, and install the license plate light assembly.




2. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

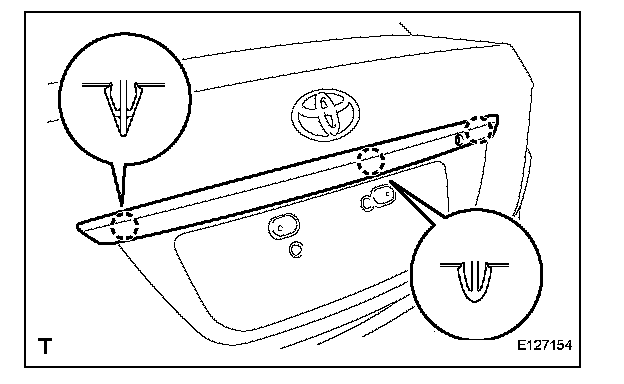

a. Engage the 3 claws and install the luggage compartment door outside garnish.




b. Connect the 2 connectors.
c. install the luggage compartment door outside garnish with the 2 nuts.

Torque: 4.9 N.m (50 kgf.cm, 43 in.lbf)




3. INSTALL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
a. Install the luggage compartment door lock cylinder with the 2 nuts.

Torque: 4.9 N.m (50 kgf.cm, 43 in.lbf)

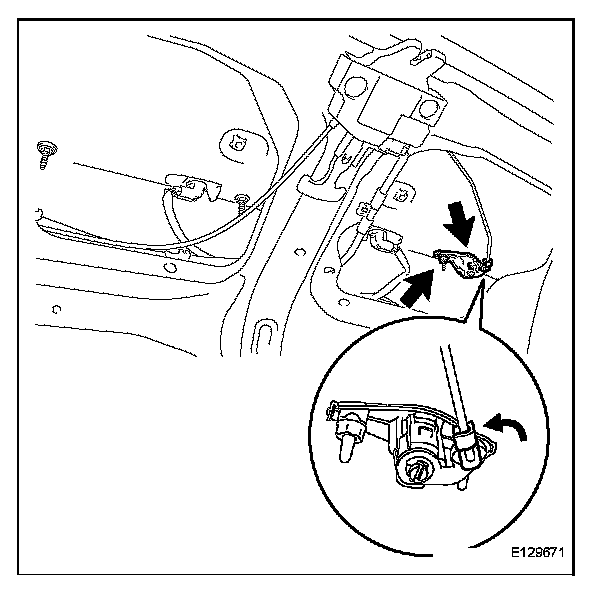

b. Install the luggage compartment door lock link.

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
