License Plate Light Assembly (For Hatchback)

License Plate Light Assembly (for Hatchback):

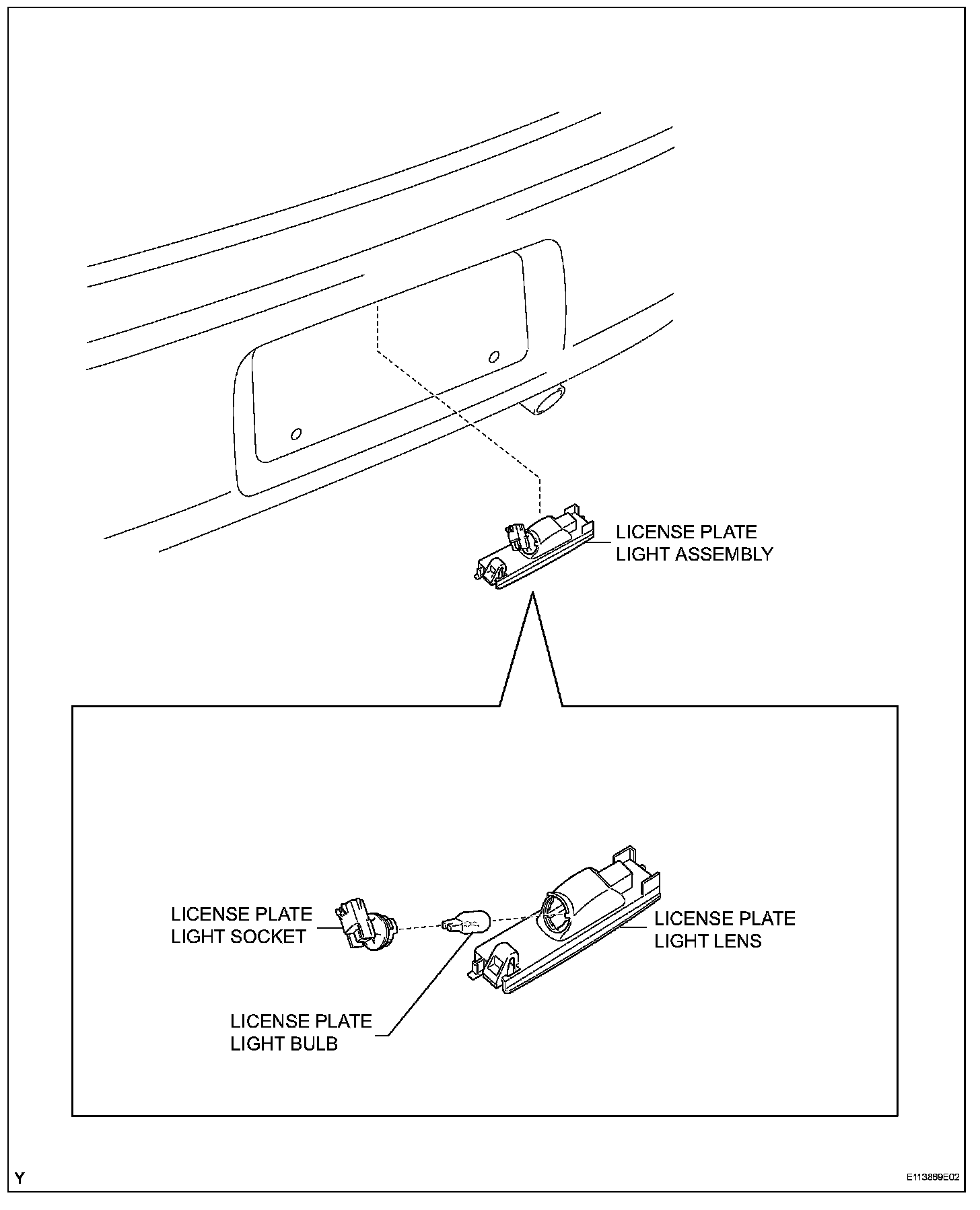

LICENSE PLATE LIGHT ASSEMBLY (for Hatchback)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE LICENSE PLATE LIGHT ASSEMBLY

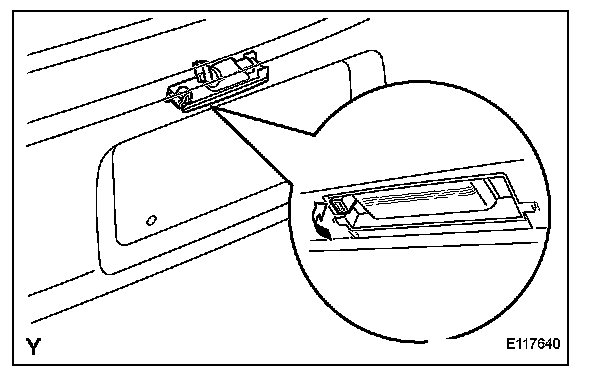

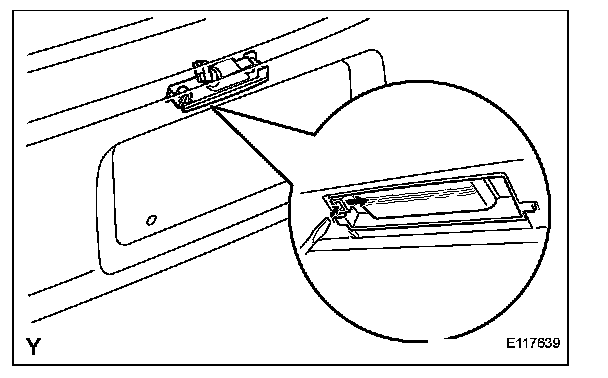

a. Insert a screwdriver in the position shown in the illustration and move the license plate light in the direction shown in the illustration to disengage the claw.
b. Disconnect the connector, then remove the license plate light.

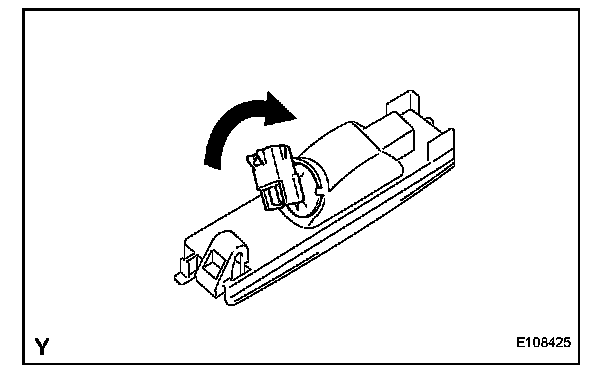

c. Turn the license plate light socket and bulb, in the direction indicated by the arrow in the illustration, to remove them.
d. Remove the license plate light bulb from the light socket.

INSTALLATION

1. INSTALL LICENSE PLATE LIGHT ASSEMBLY
a. Install the license plate light bulb into the light socket.




b. Turn the license plate light bulb socket and bulb, in the direction indicated by the arrow in the illustration, to install them.
c. Connect the connector.




d. Engage the claw and install the license plate light.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
