IG2 Relay

INSPECTION

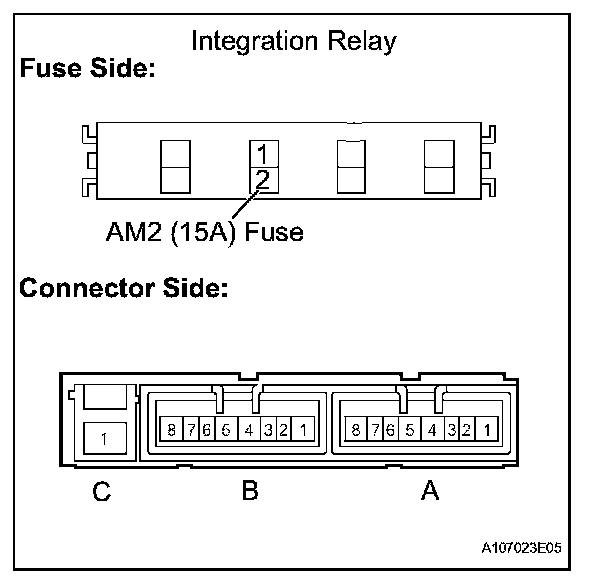

1. INSPECT INTEGRATION RELAY







a. Inspect the AM2 (15A) fuse.

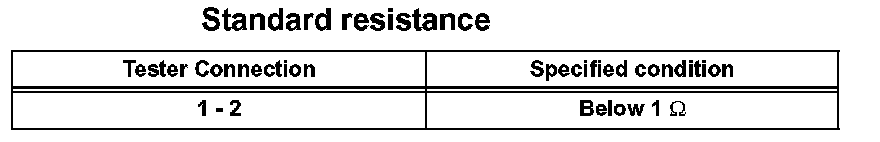

1. Disconnect the fuse. Using an ohmmeter, measure the resistance of the fuse.




b. Inspect the IG2 relay.

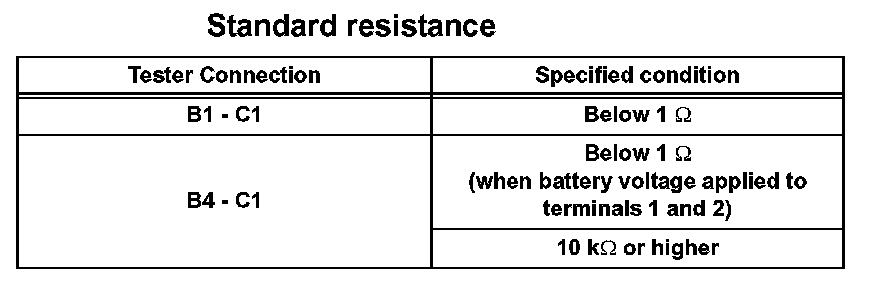

1. Using an ohmmeter, measure the resistance between the terminals.

NOTE: While using the battery for the inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
