Low Pitched Horn (For Hatchback)

Low Pitched Horn (for Hatchback):

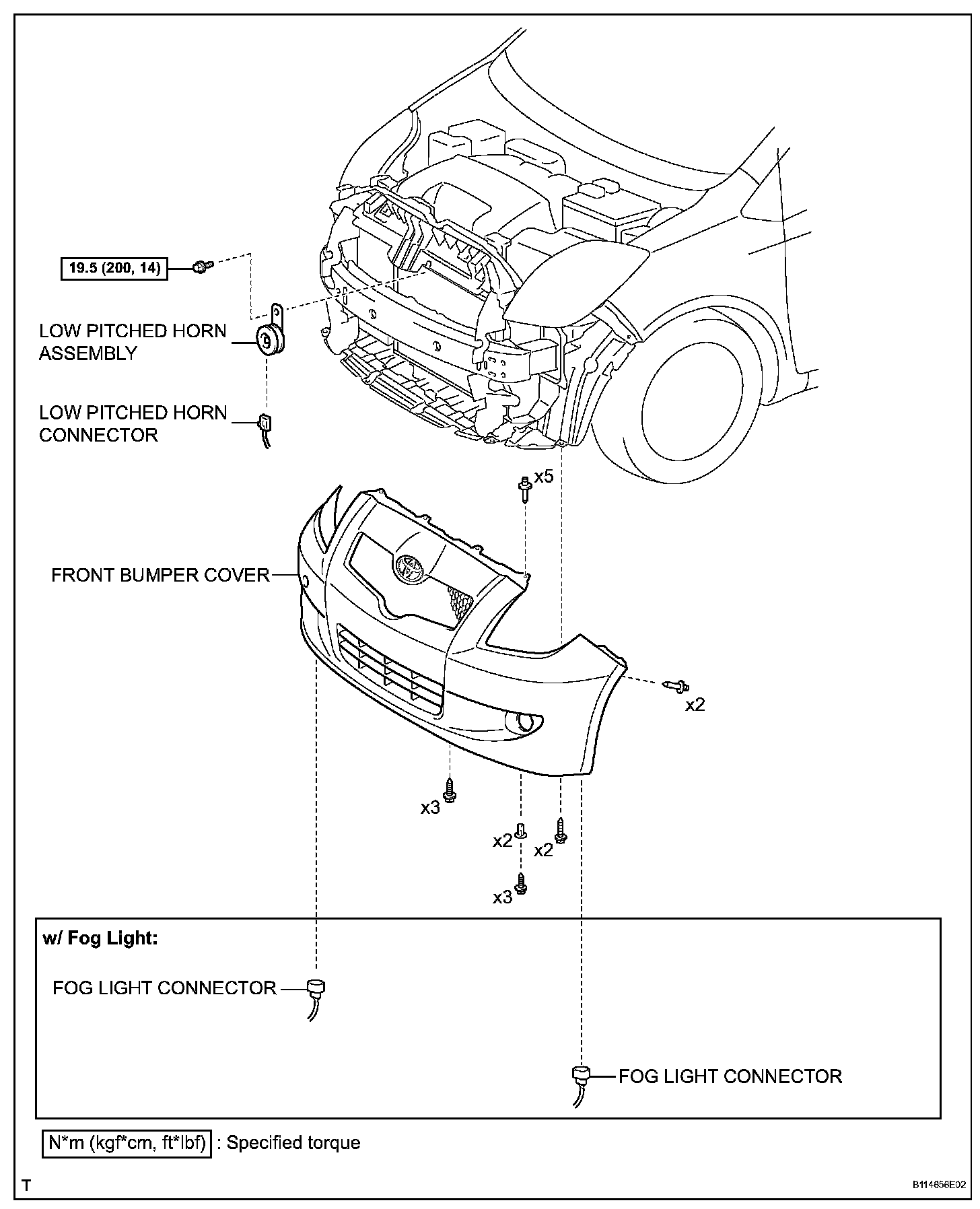

LOW PITCHED HORN (for Hatchback)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE FRONT BUMPER COVER

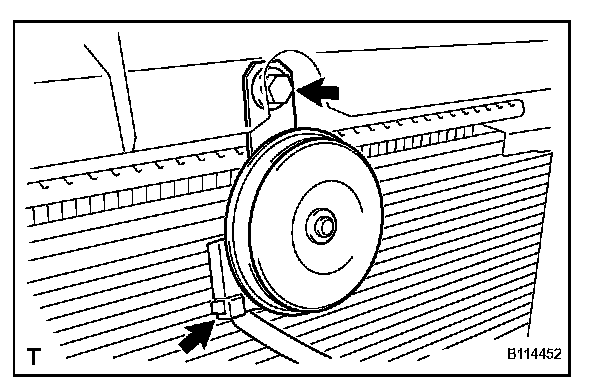

3. REMOVE LOW PITCHED HORN ASSEMBLY
a. Disconnect the low pitched horn connector.
b. Remove the bolt and the low pitched horn.

INSTALLATION

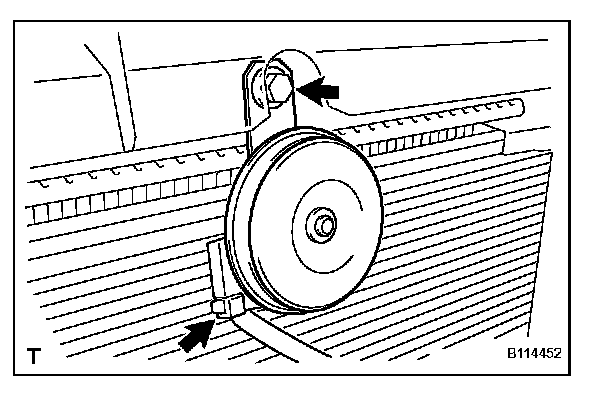

1. INSTALL LOW PITCHED HORN ASSEMBLY
a. Install the low pitched horn with the bolt.

Torque: 19.5 N.m (200 kgf.cm, 14 ft.lbf)

b. Connect the low pitched horn connector.

2. INSTALL FRONT BUMPER COVER

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
